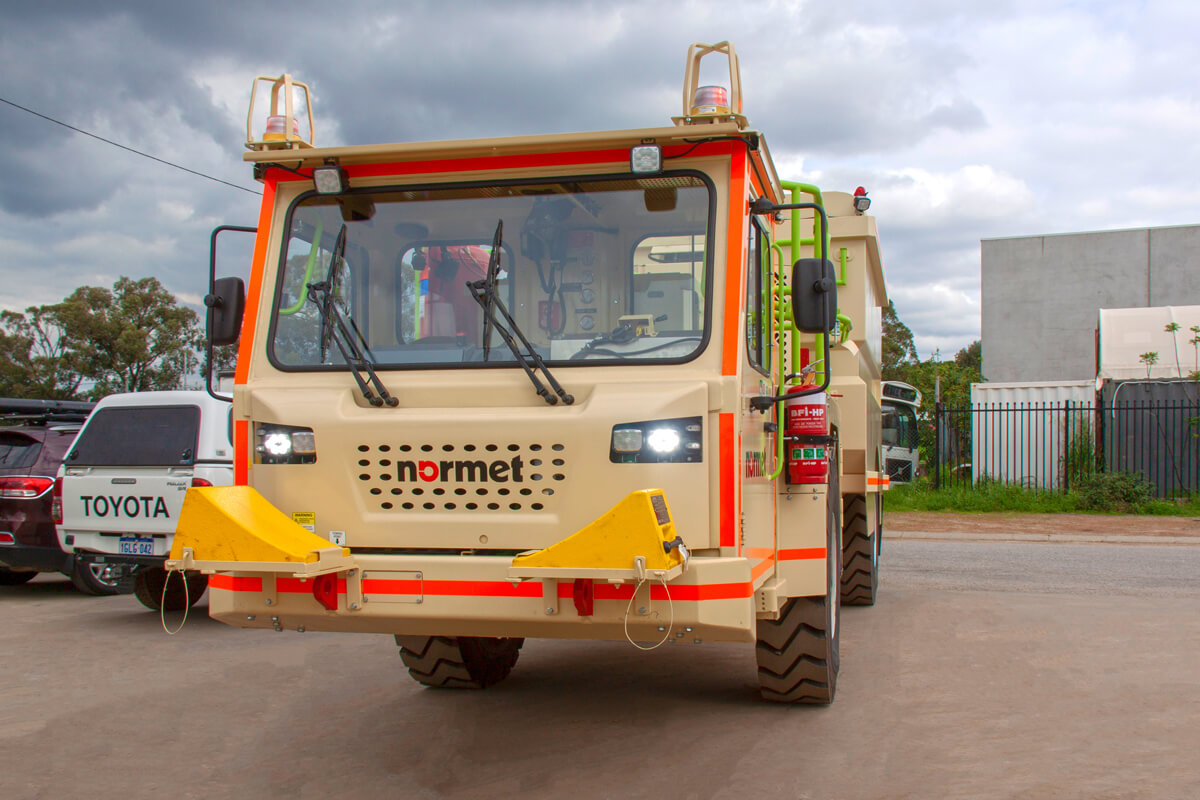

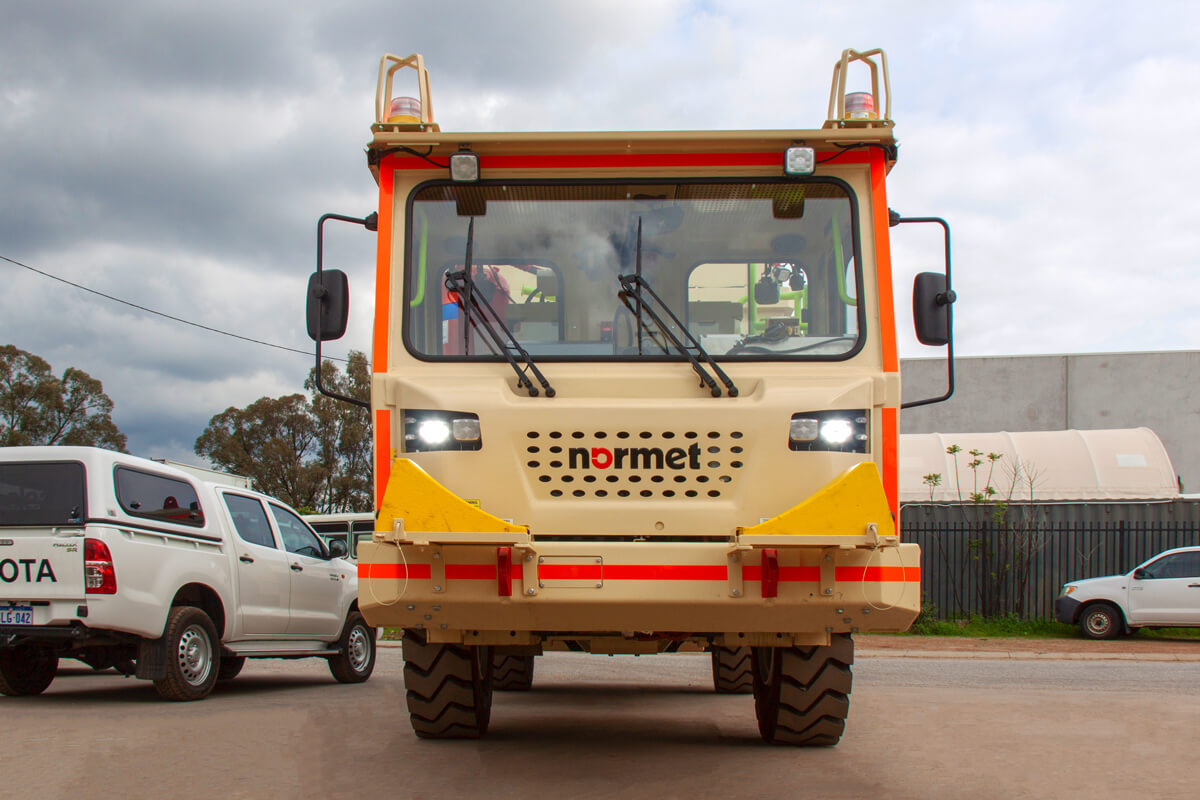

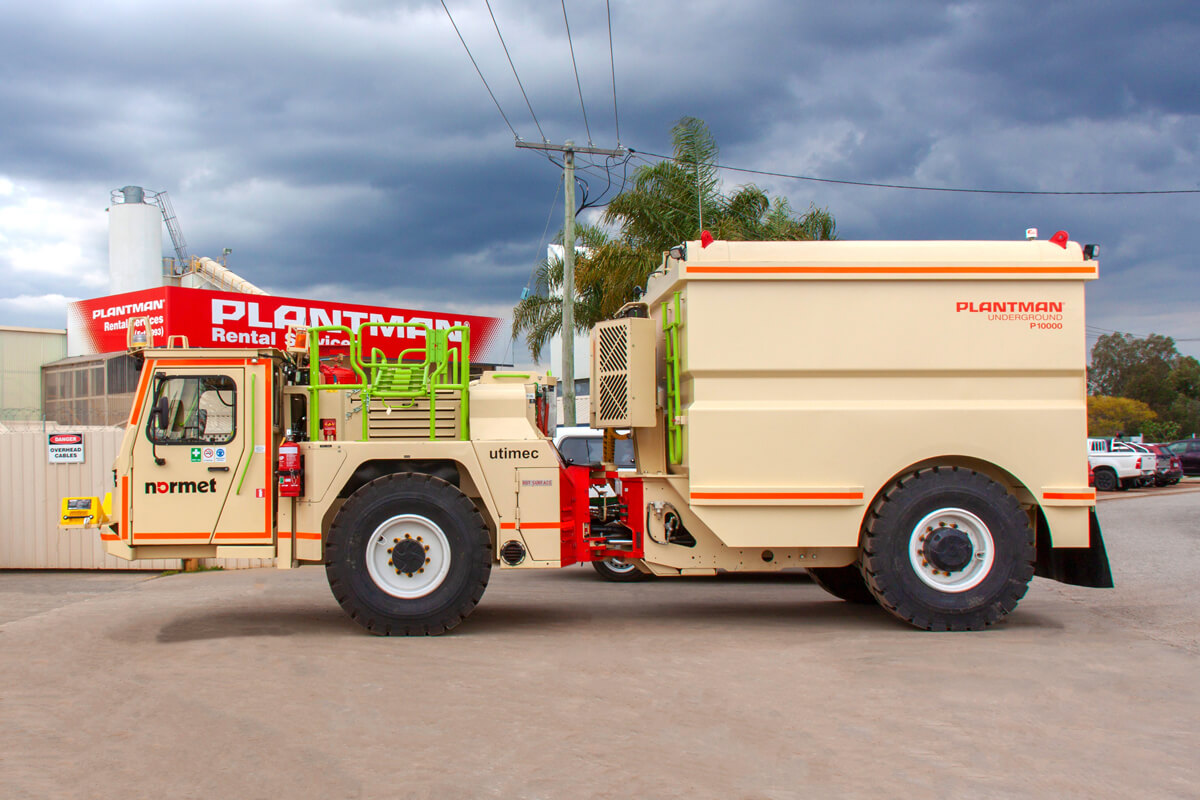

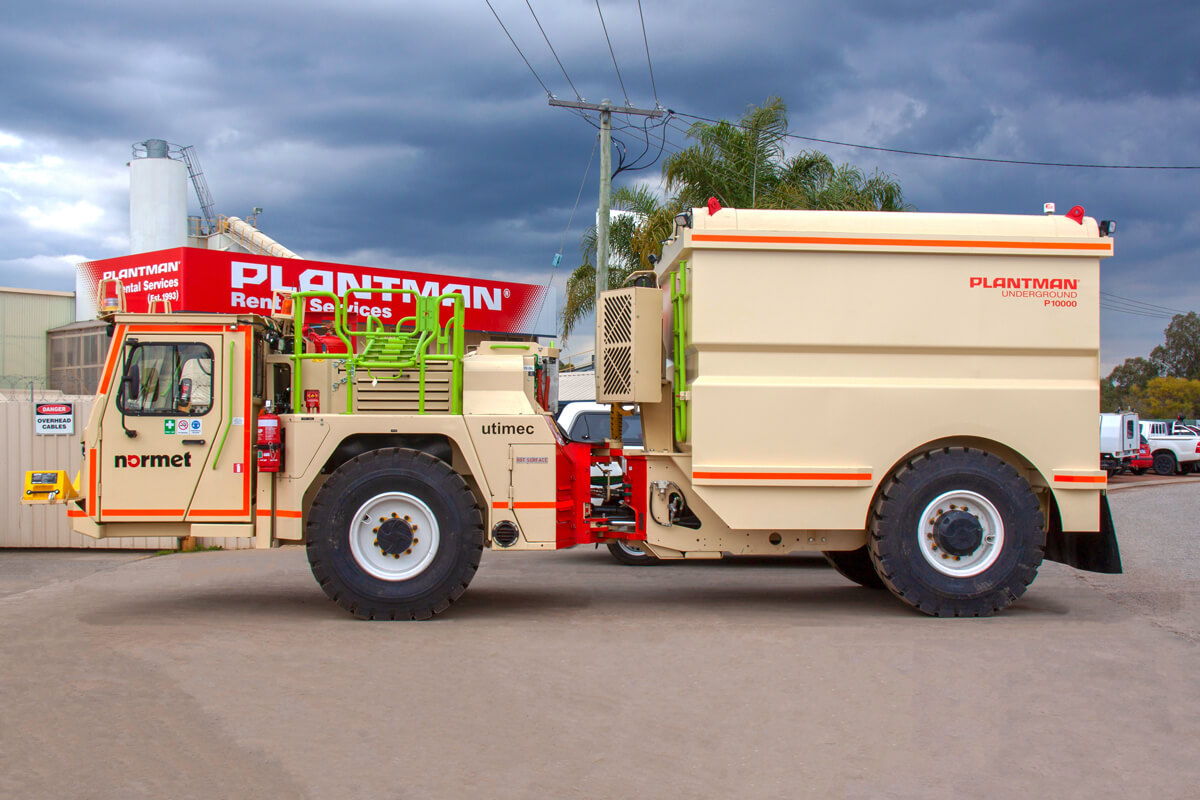

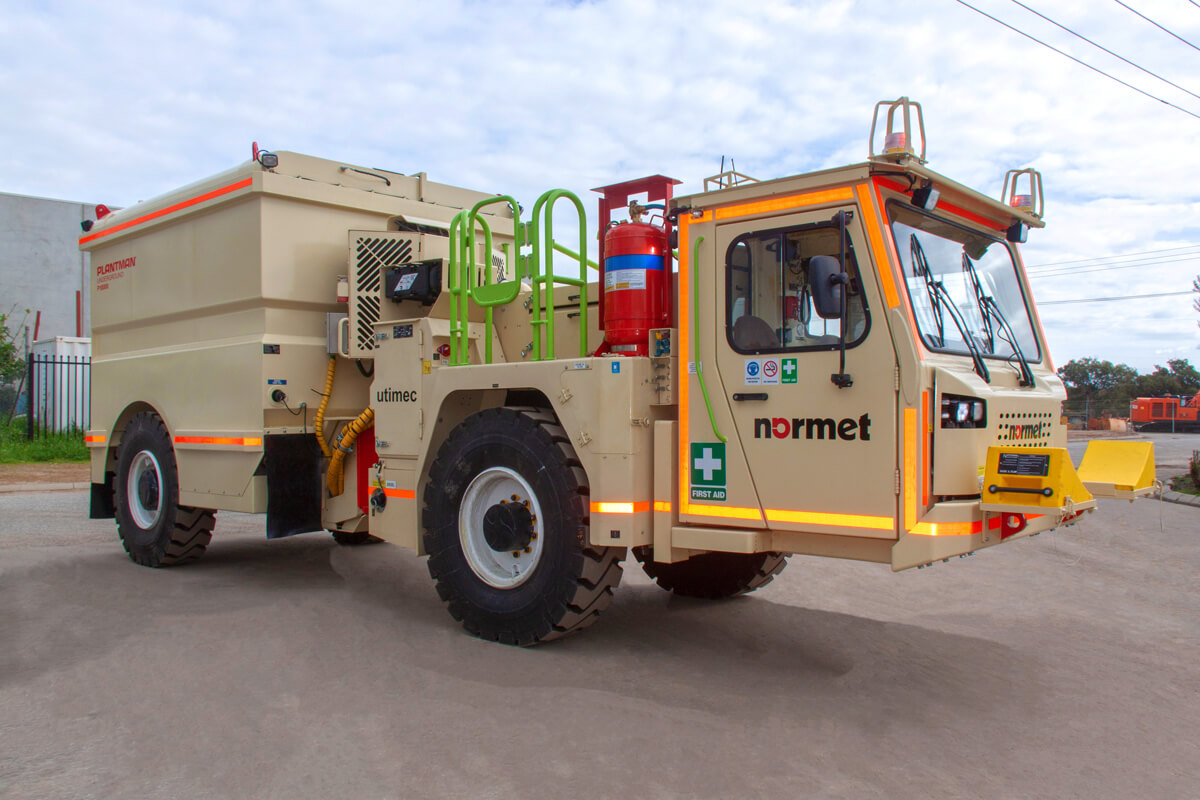

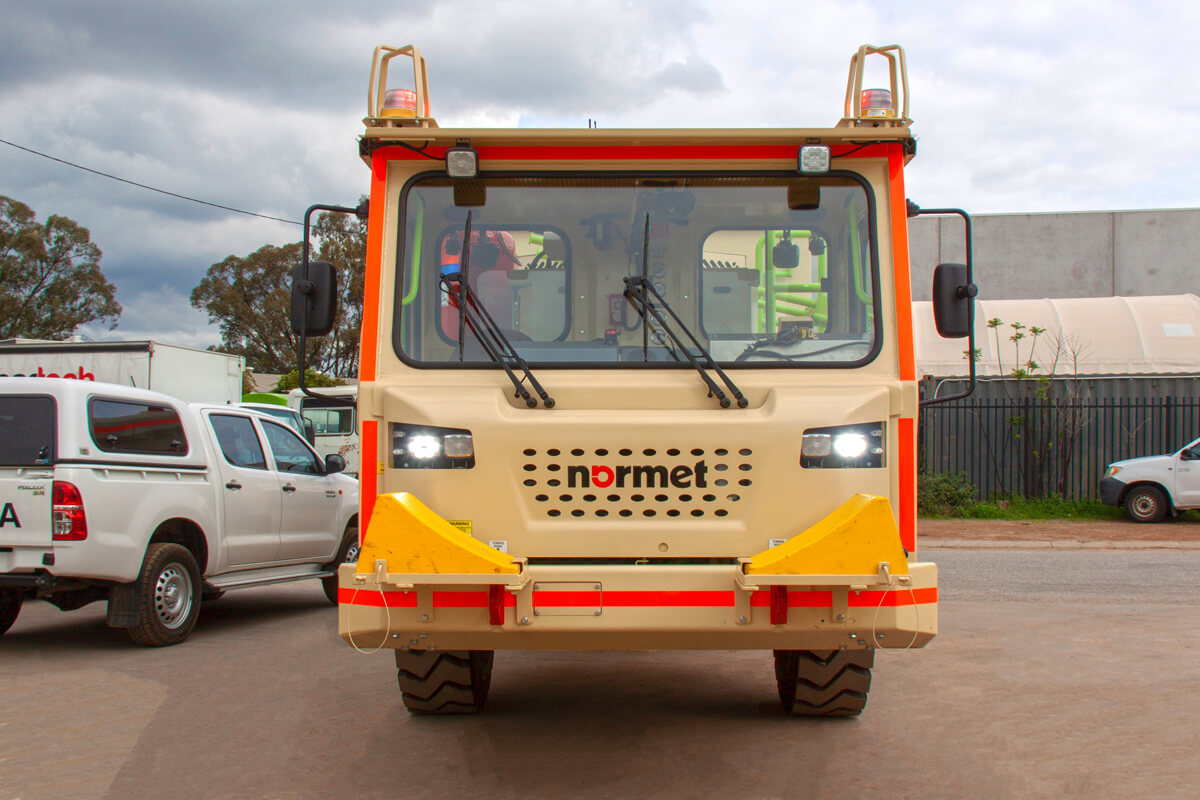

2019 NORMET UTIMEC LF700 CARRIER SERVICE TRUCK P10000

NORMET

INDUSTRY: MINING

LOCATION: PILBARA

TYPE: SERVICE TRUCK

Download Specs
Product Summary

New Heavy-duty chassis-mounted steel, Plantman P14000 compartment service module:

Tank#Tank TypeTank Capacity
No 1Bulk Diesel – Auto air rewind reel, hose, Wiggins fast-fill handpiece10,500 litres
L/V Diesel – Samoa spring retractable reel, hose, Light Vehicle handpiece
No 2Oil – Samoa spring retractable reel, hose, handpiece & manual dispenser950 litres
No 3Oil – Samoa spring retractable reel, hose, handpiece & manual dispenser950 litres
No 5Oil – Samoa spring retractable reel, hose, handpiece & manual dispenser550 litres

Plantman P10000 – Normet LF100 Service Truck P10000 Specifications:

  • E-Stop on Module to stop Hydraulic PTO operation
  • Six (6) service lights on Module and Three (3) Inside Rear Module Reel Bay
  • 250 Grade Mild Steel Tank with 6mm sides and 8mm thick base
  • 1 x Hydraulic BLACKMER Vane Pump for Diesel Delivery
  • 3 x Ground Level Fill / Evac Points
  • 3 x Digital display on Oil Tanks and Diesel Tank
  • 1 x Inline flow meter on Ad-Blue Nozzle – Hose
  • 3 x Tank Level Gauges

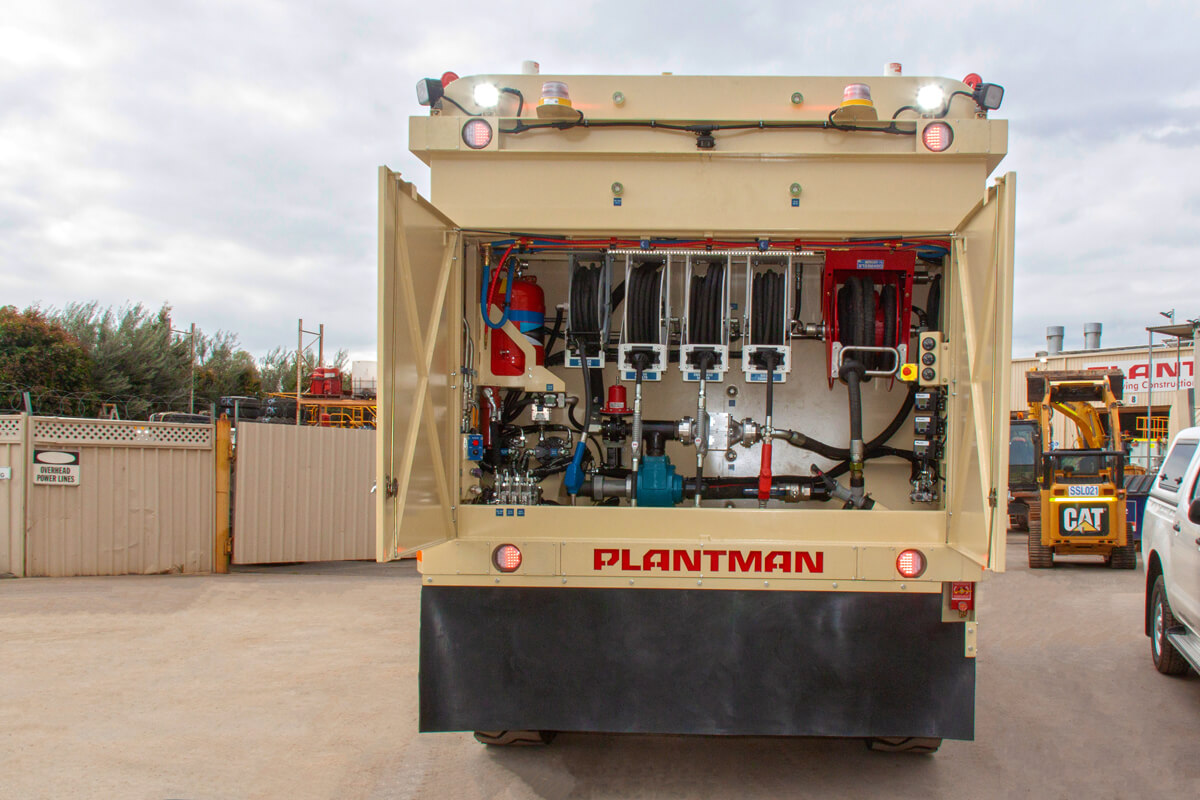

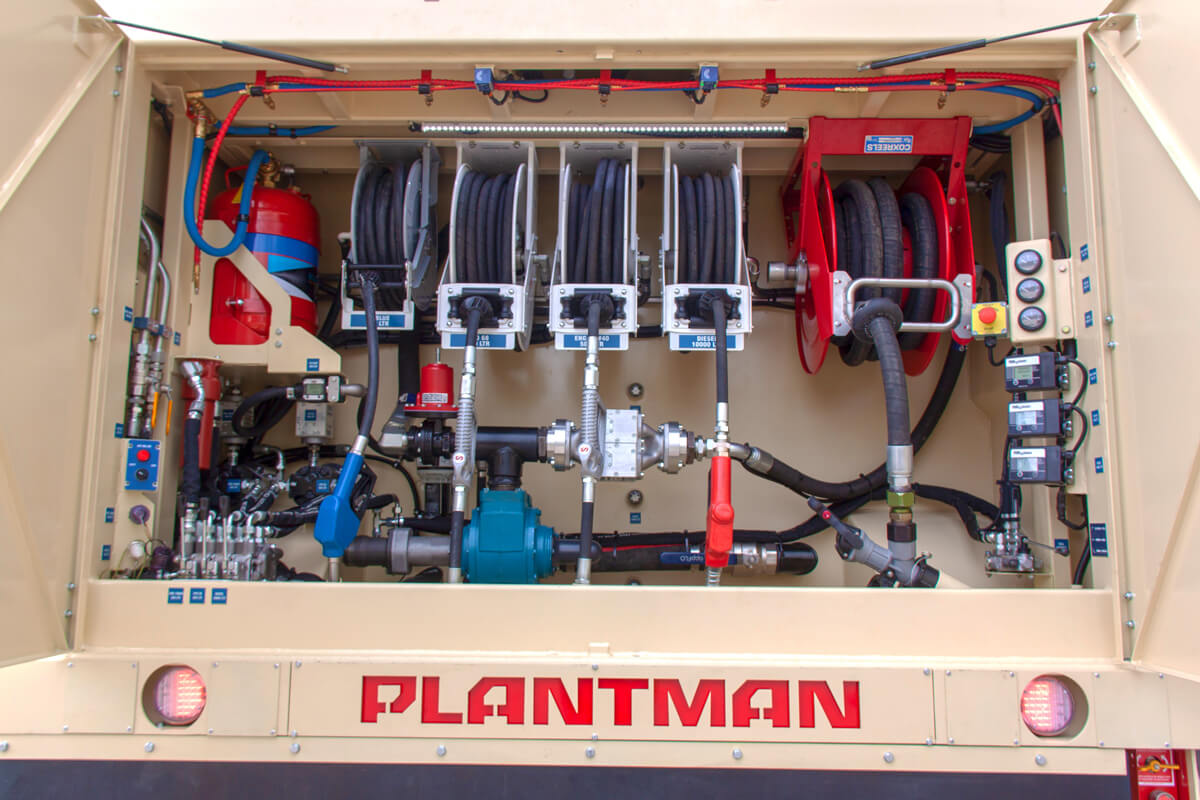

  • Enclosed Heavy Duty Rear Mounted Hose Reel & Pump cabinet with barn doors
  • 3 x Bolt on Inspection Lids in roof
  • Corner Lifting Points on module
  • Oil & Diesel pumps Hydraulically Controlled via Variable Displacement Pump and Hydraulic / Gear Pumps
  • 24V Ad-blue pump
  • Anti Corrosion Content in Paint
  • Safety & Operating Decals
  • Hydrau Flow Pressureless Fill System
  • RCT Muirhead Fuel Cap Isolation System
  • Crash Protection Bars on side of Module (4)
  • Remote Location of Breathers
  • Front & Rear Dual Beacons
  • KF Fire Retardant Denso Tape
  • Proximity Switches on Doors
  • Paint to be inline with truck’s “Beige RAL 1014” advised along with anti-corrosive protection
Read More
Product Specifications
Capacity 10000L
Make NORMET
Type Underground Mining Truck
