PTO HYDRAULIC FILTER
$67.10

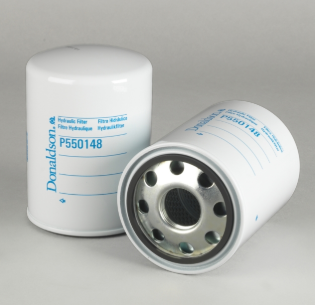

The Donaldson Spin-On Hydraulic Filter is engineered to deliver exceptional protection for hydraulic systems operating in demanding industrial, mobile, and heavy-equipment environments. Built with Donaldson’s advanced media technology, these filters provide superior dirt-holding capacity, efficient contaminant removal, and long service life — ensuring your hydraulic system runs cleaner, longer, and more reliably.
Donaldson’s rigorous design, testing, and manufacturing standards make these spin-on filters some of the most trusted and widely used filtration solutions in mining, construction, transport, agriculture, and manufacturing applications.
Why Choose Donaldson Spin-On Hydraulic Filters?
- High-Performance Media Technology
Donaldson’s precision-engineered media formulations outperform conventional filters, delivering superior dirt capture, lower pressure drop, and extended service intervals.
- Superior Hydraulic System Protection
Designed to safeguard pumps, valves, cylinders, and sensitive system components from harmful contamination.
- Largest Replacement Range
Donaldson offers the industry’s widest selection of spin-on hydraulic filters, allowing operators to match or exceed OEM requirements with confidence.
- OEM-Grade Quality
Each filter is built to meet or exceed OEM specifications, ensuring performance and compatibility across a vast range of hydraulic equipment.
- Attributes
| Outer Diameter | 128.9 mm (5.07 inch) |
| Thread Size | 1 1/4 BSP/G |
| Length | 180.2 mm (7.09 inch) |
| Gasket OD | 106.8 mm (4.20 inch) |
| Gasket ID | 97 mm (3.82 inch) |
| Efficiency Beta 2 | 10 micron |
| Efficiency Beta 200 | 32 micron |
| Efficiency Beta 1000 | 36 micron |
| Efficiency Test Std | ISO 16889 |
| Collapse Burst | 6.9 bar (100 psi) |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | UCC HYDRAULICS MX1591410 |
Packaged Dimensions
| Packaged Length | 139.70 mm (5.50 inch) |
| Packaged Width | 137.16 mm (5.40 inch) |
| Packaged Height | 195.58 mm (7.70 inch) |
| Packaged Weight | 1.27 kg (2.80 lb) |
| Packaged Volume | 3681190.06 mm3 (0.13 ft3) |
Other Information
| NMFC Code | 069100-09 |
| UPC Code | 742330041154 |
