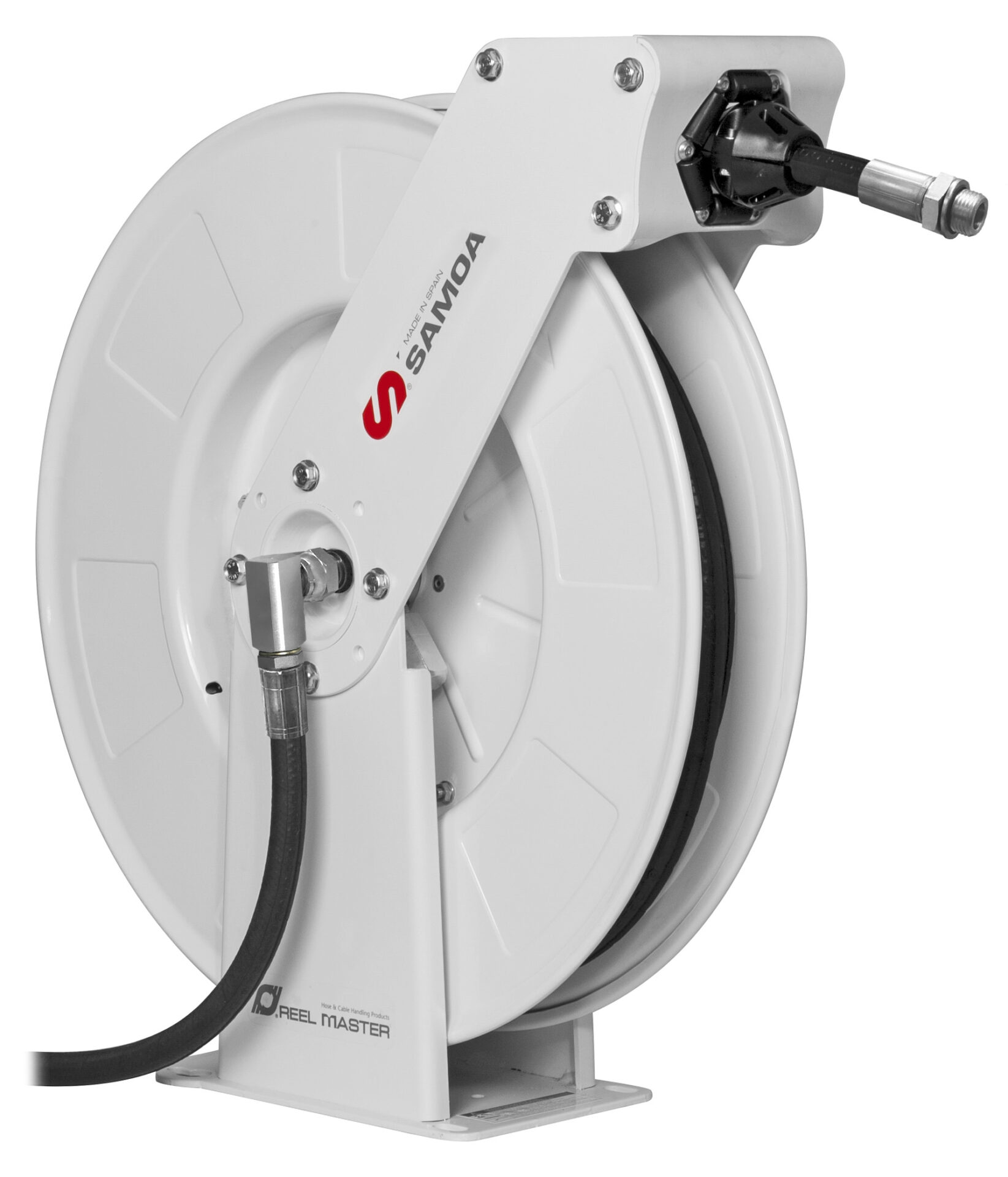

Samoa 3/8″ Spring Retract High Pressure Grease Reel
$1,997.60
Built for intensive-duty applications, this industrial hose reel is engineered to withstand continuous use and harsh environments. The fatigue-resistant steel spring ensures long-lasting performance, delivering smooth and consistent tension for effortless hose retraction and extension. A full-port shaft and swivel design allows unrestricted fluid flow, while the sealed, permanently lubricated ball bearings minimise torque load on the spring, enhancing reel longevity and reducing maintenance requirements.
The large radial latching area offers secure and easy operation, and the adjustable hose guide arm provides versatile mounting options to suit various installation methods. Its narrow footprint makes it ideal for compact setups, allowing multiple reels to be installed efficiently on the same surface.
Each hose reel comes equipped with a 0.8-metre inlet hose and a 15-metre, 3/8-inch hose designed for grease and hydraulic oil applications, delivering reliable, leak-free performance in demanding industrial settings.
Product Information
- Technical data
- Compatible fluids
- Grease, Oil
- Hose in diameter
- 3/8"
- Hose length
- 15 m (49,21 ft)
- Fluid Inlet
- 3/8" BSP (M)
- Fluid outlet
- 1/4" BSP (M)
- Working Pressure
- 280 bar (4060 psi)
- Installation options
- Floor, Wall, Ceiling, Tank
- Bare reel part number
- 504359
- Weight
- 26 kg (57,3 lb)
