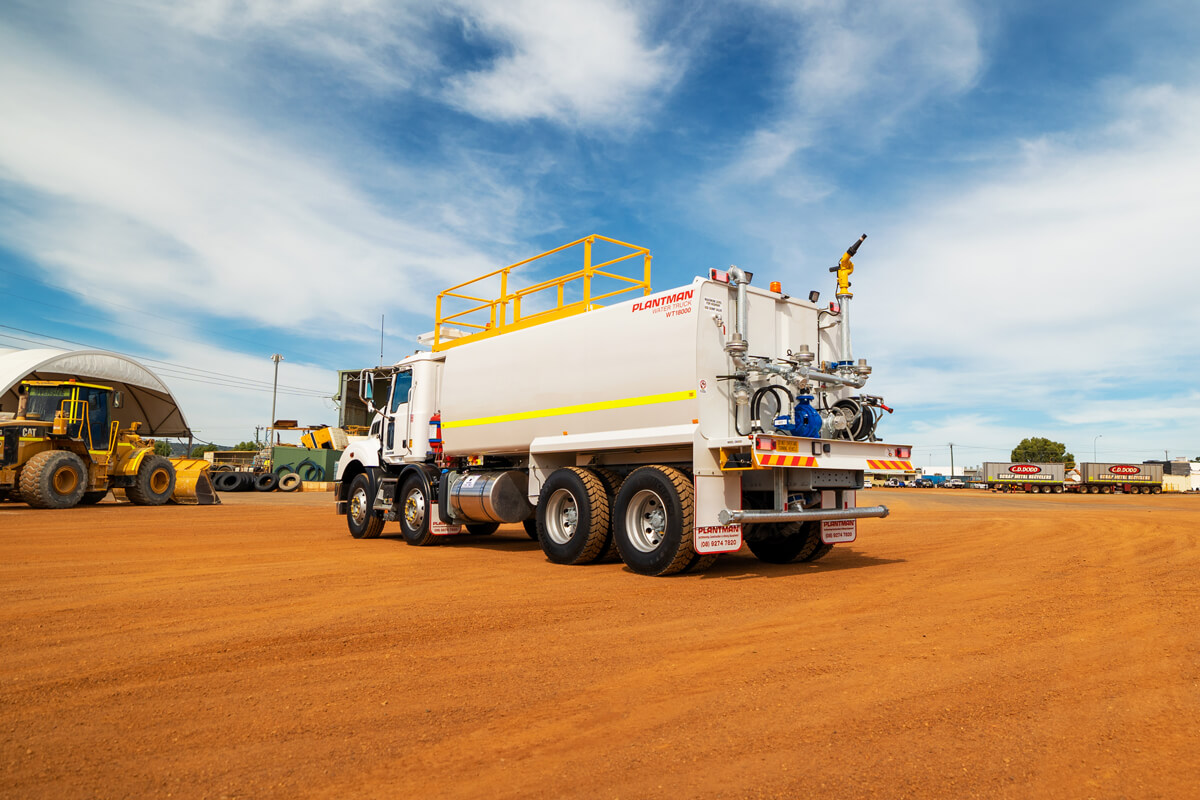

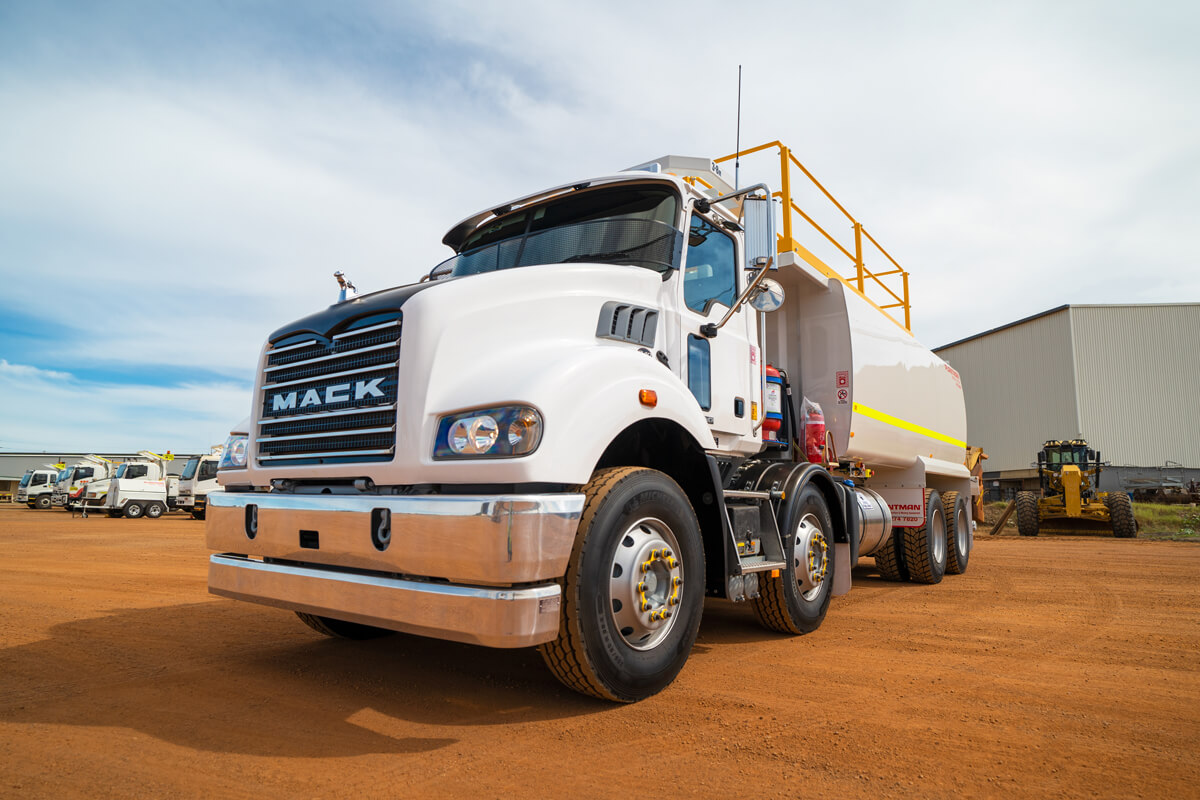

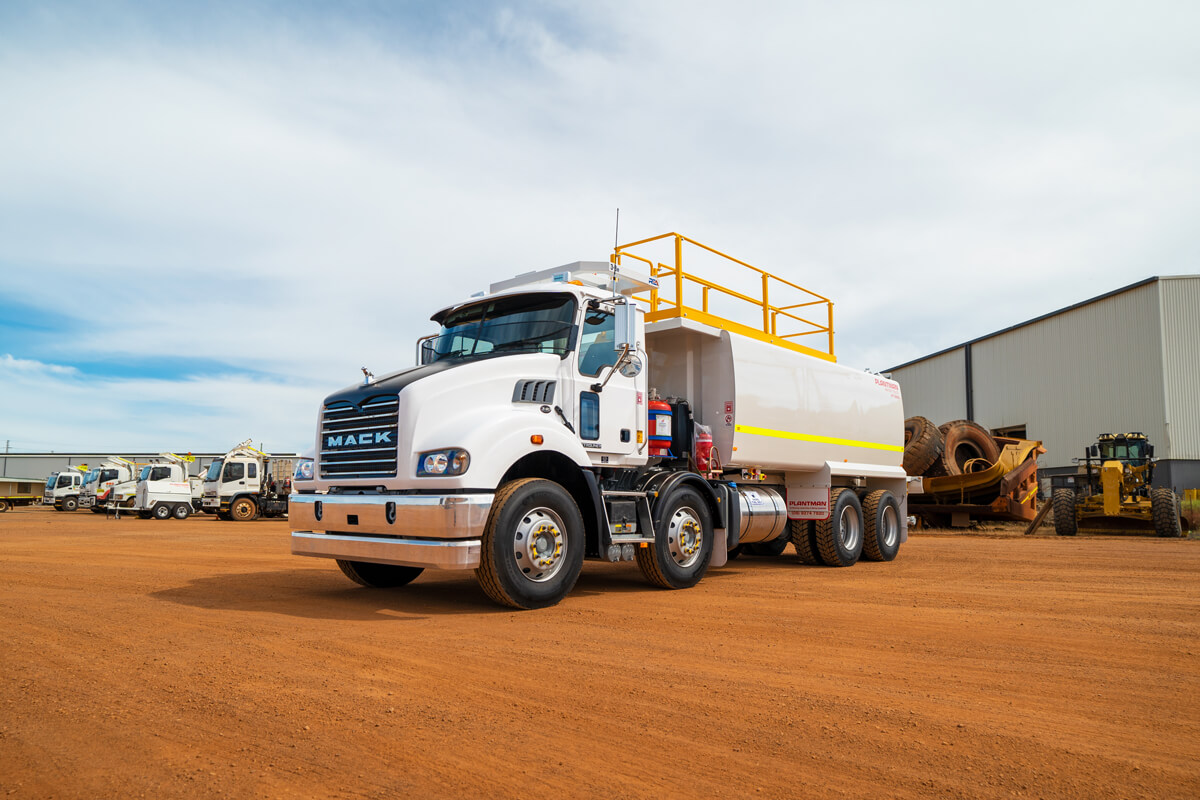

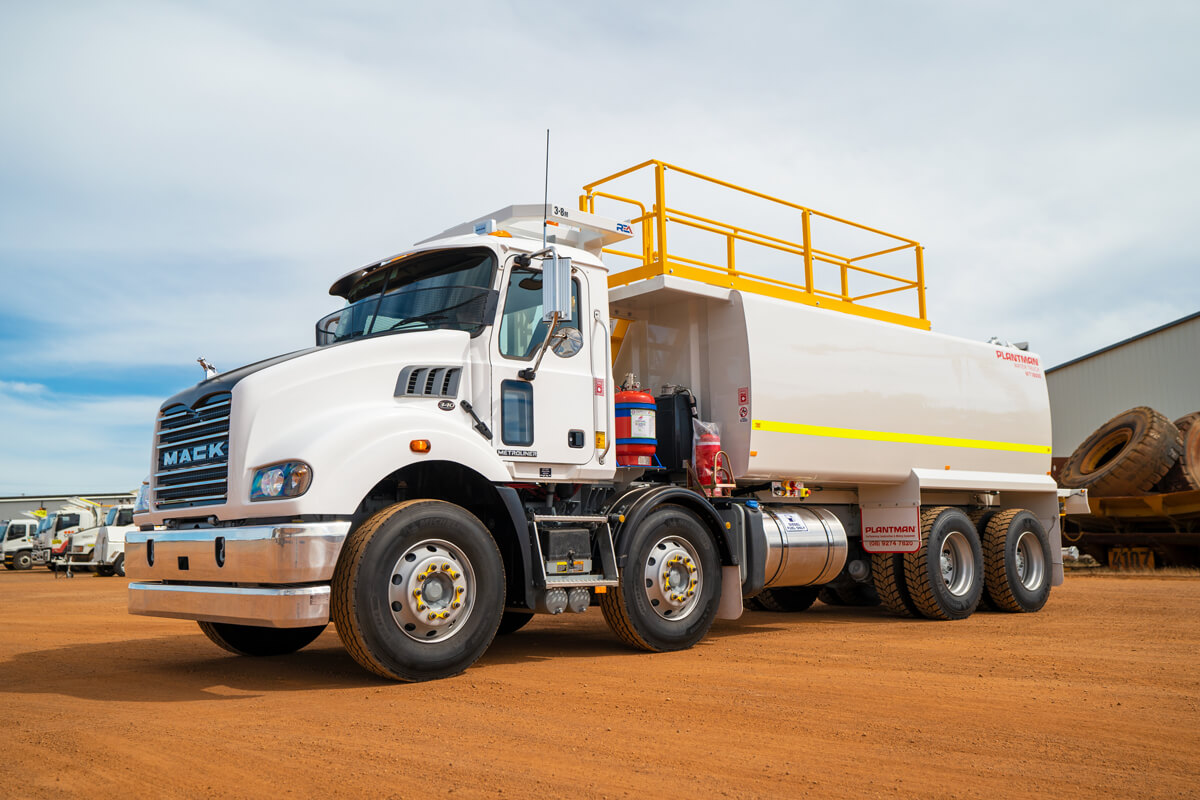

2021 MACK METROLINER 8×4 WATER TRUCK WT18000

PRIVATE COMPANY

INDUSTRY: MINING

LOCATION: PILBARA

TYPE: WATER TRUCK

Download Specs
Product Summary

New Heavy-duty chassis-mounted steel, Plantman WT18000 compartment service module:

Tank#Tank TypeTank Capacity
No 1Water Tank18,000 litres
  • Steel water cart tank constructed from 6mm steel with 10mm floor & tank sides
  • Tank blasted to class 2.5 and painted with 2 pack epoxy tank liner internally, high gloss automotive finish exterior
  • Mudflaps
  • Top fill funnel for standpipe filling, fitted off centre for ease of standpipe alignment, fitted with bolted mesh screen
  • Road legal dump valve at highway level, 1” Ball valve
  • Splash guard around the front of the water tank preventing water run off over front of tank
  • 1x LED taillight on top of tank
  • 1x LED amber revolving beacon, on rear top of tank

Pumping Equipment and Hydraulics

  • Southern Cross water pump size 100 x 65 x 250 hydraulically driven by Permco 48 cc hydraulic motor close coupled, low maintenance with no coupling required
  • Power auto Hot shift PTO and pump for hydraulic circuit
  • Pressure relief valve on hydraulic circuit pressure set on commissioning
  • Behind cab hydraulic tank with 190 L of 68 grade hydraulic oil return filter
  • 3 x 3” Spray Head valves Air operated from in-cab control box. Left, Right, Centre sprays
  • Quick exhausts valves fitted to all valves for quicker action
  • 2.5” Elkhart Brass electric water cannon, straight stream nozzle with stream shaper, joystick controlled WS
  • Heavy duty aluminum hose reel with 1” rubber hose and adjustable firefighting nozzle. Manual rewind 1x
  • 3” discharge outlet with manual valve
  • 3” Rear fill point at chassis level with ball valve, cam lock fitting and cap
  • Pipe work set up with creek suction for self-filling
  • 4” Dribble bar gravity fed roll grooved removable end caps for cleaning
  • Pressure relief valve on water circuit to prevent cavitation of water pump when sprays are closed

Plantman WT18000 – Mack Metroliner 8×4 Water Truck WT18000 Specifications:

  • Automatic transmission
  • Remote gearbox breather
  • ROPS, Air conditioned cabin
  • Canvas seat covers
  • Safety signage
  • Two way radio
  • Reverse alarm, Canvas seat covers
  • Amber rotating beacon
  • Lockable Engine isolator
  • 2 x Emergency stop
  • Side clearance lights
  • Passed road worthy for Western Australia
Read More
Product Specifications
Axles 8x4
Capacity 18000L
Make Mack
Type Water Truck
