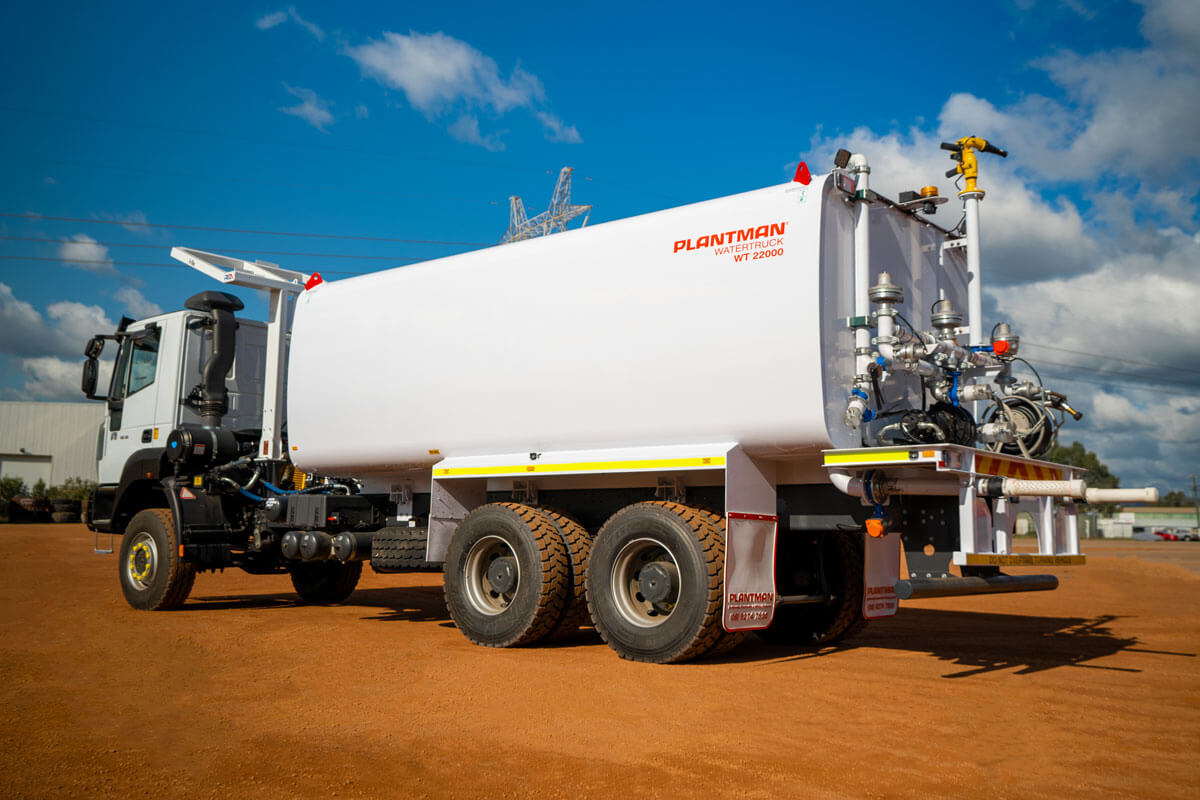

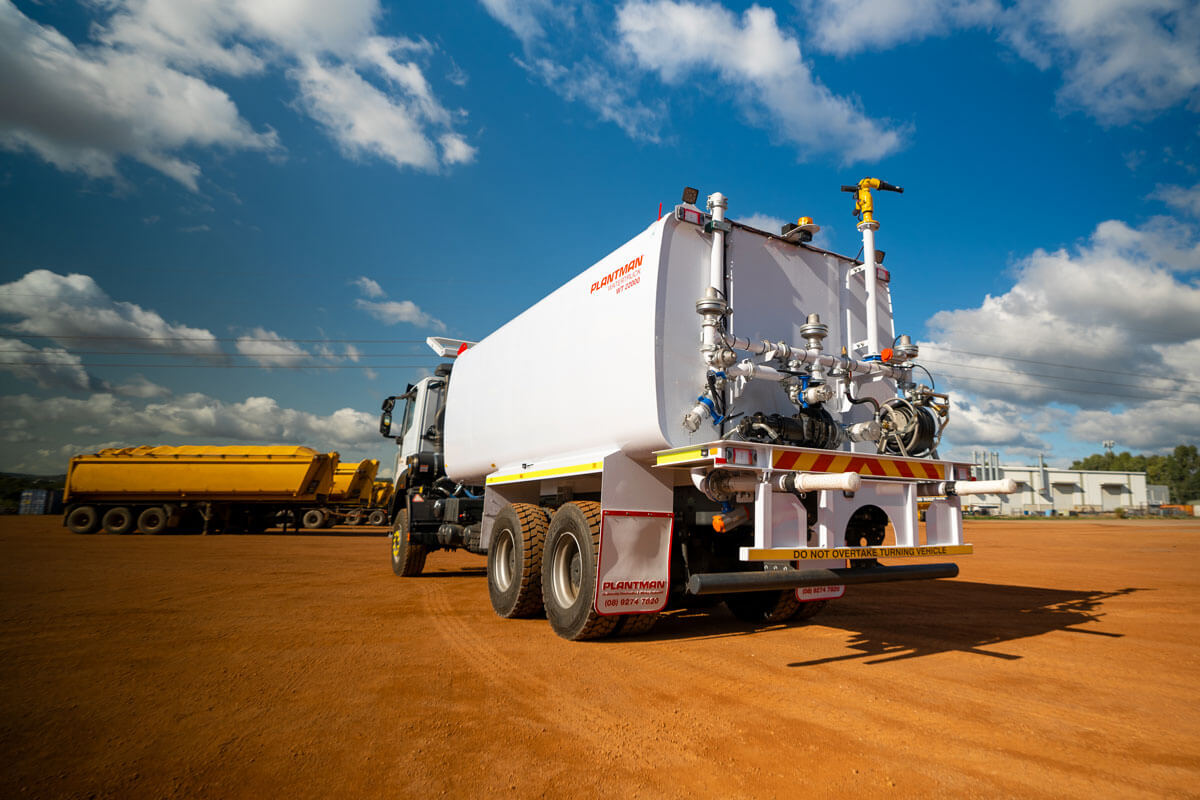

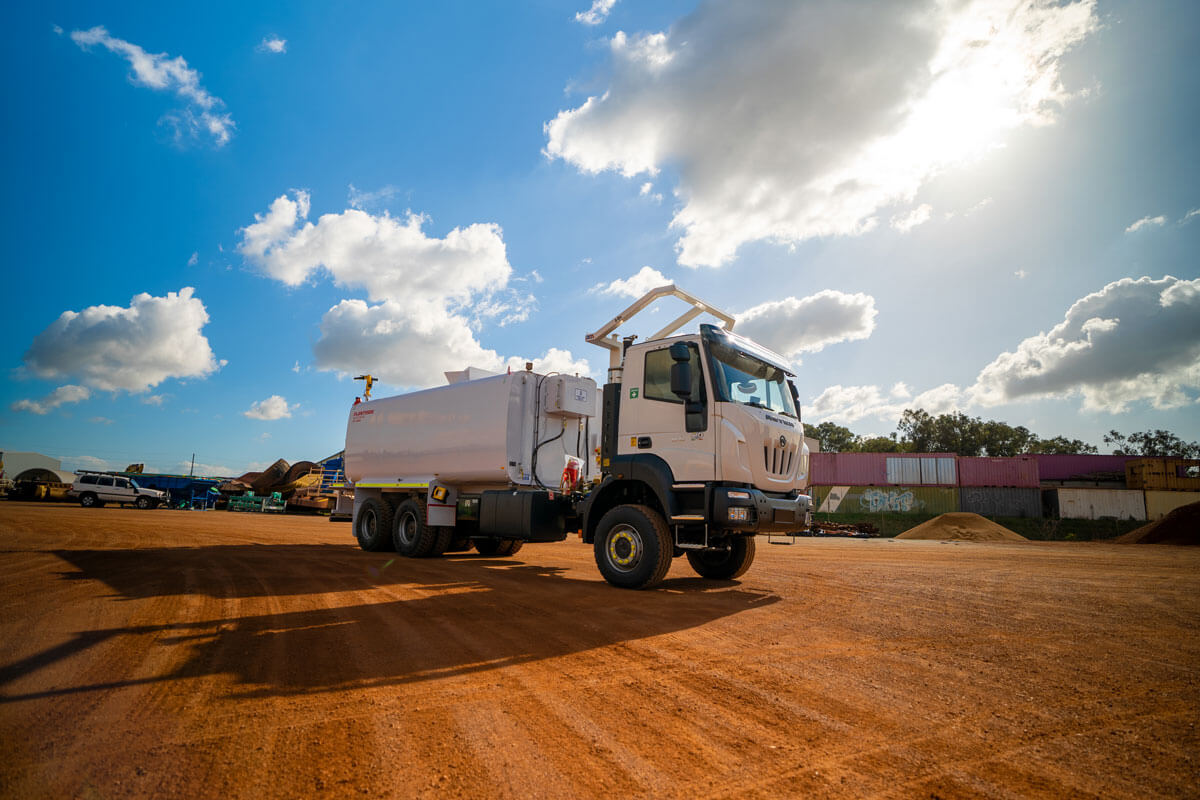

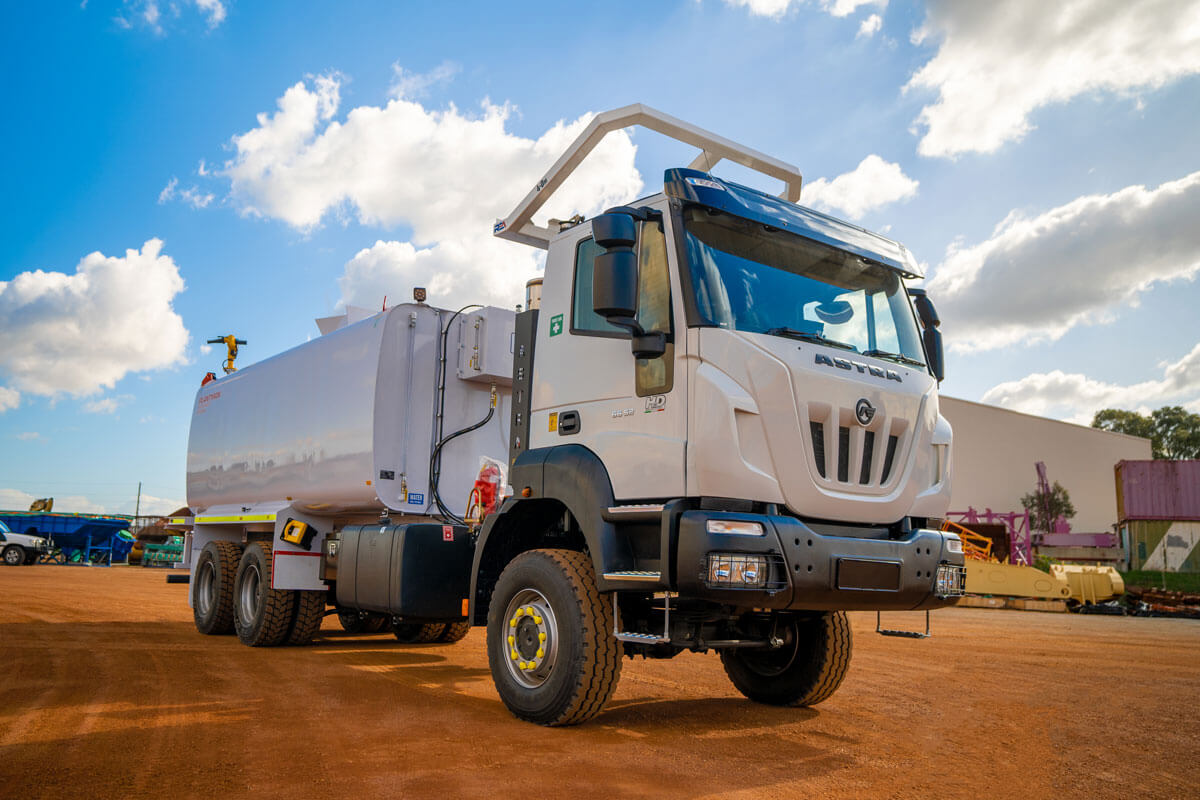

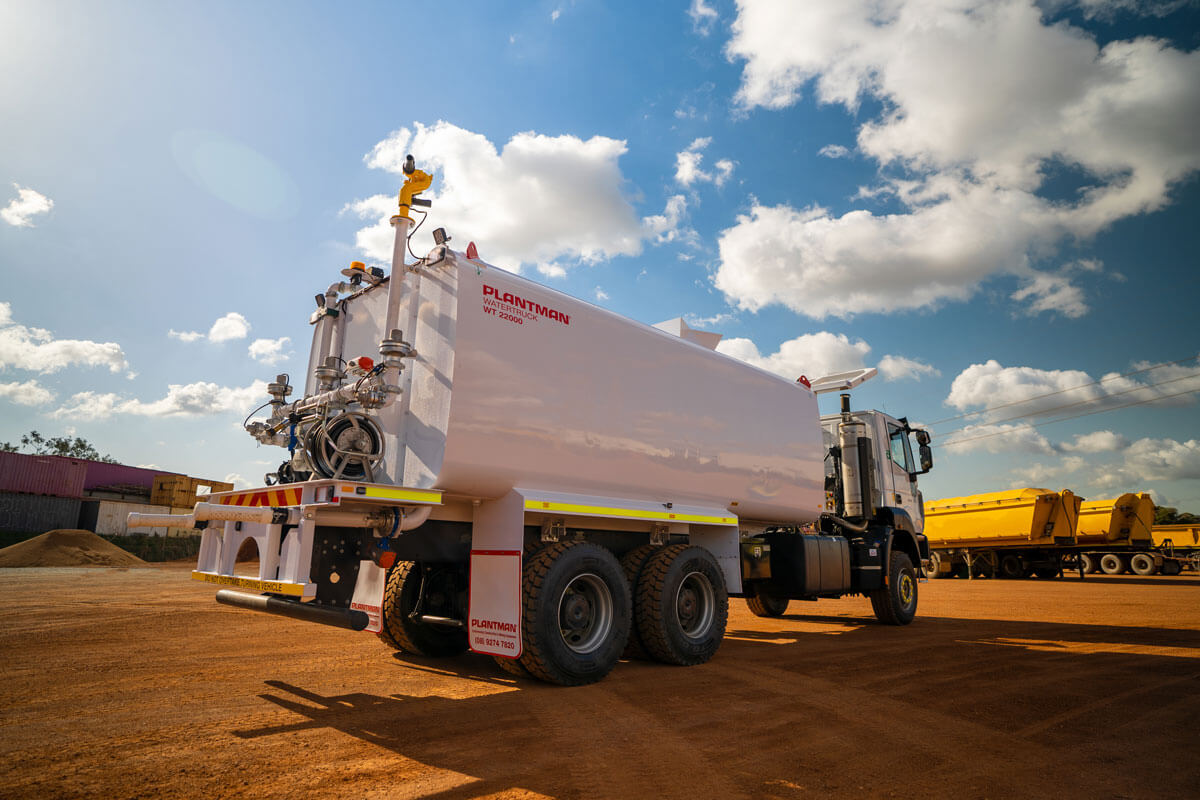

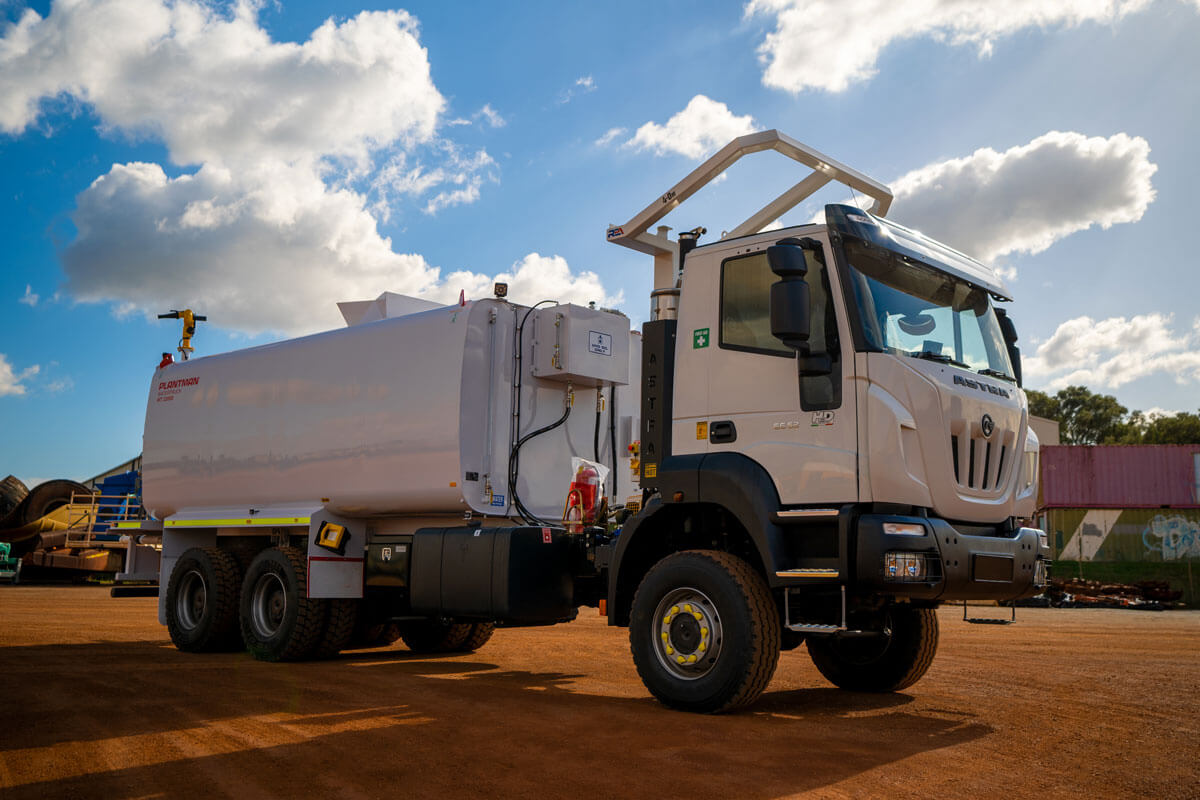

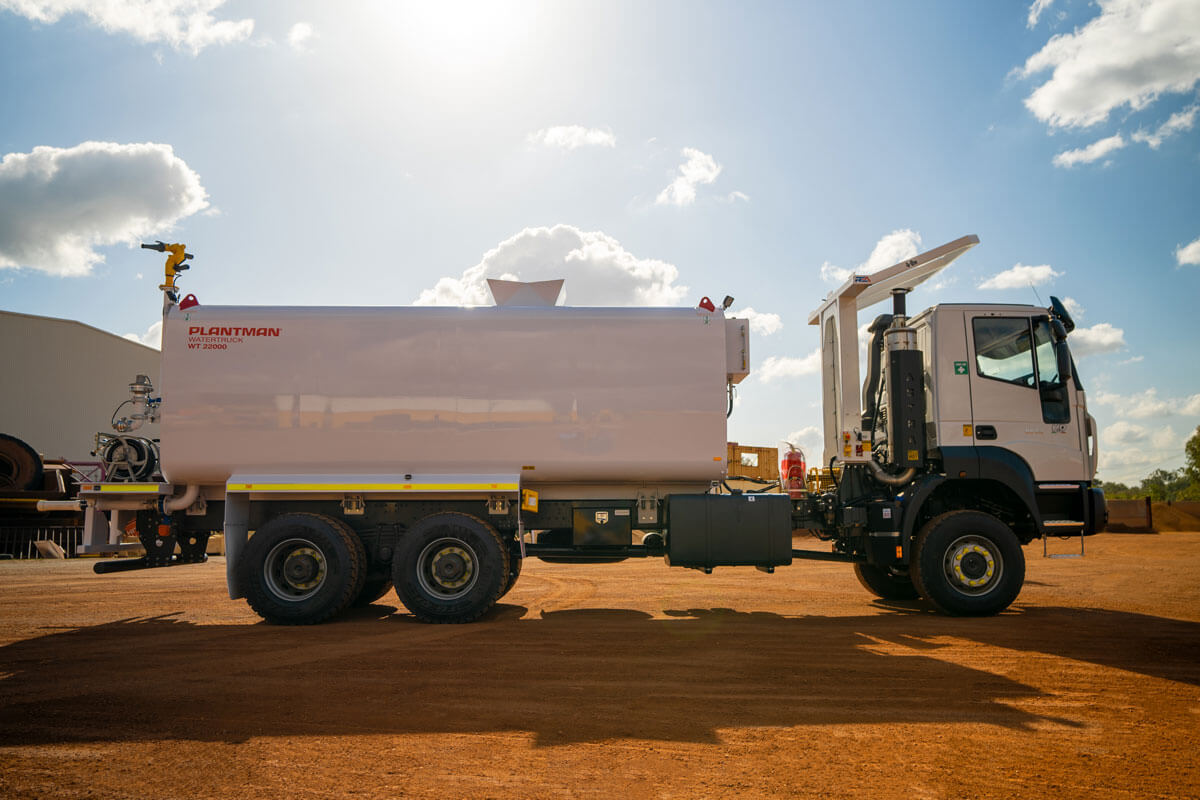

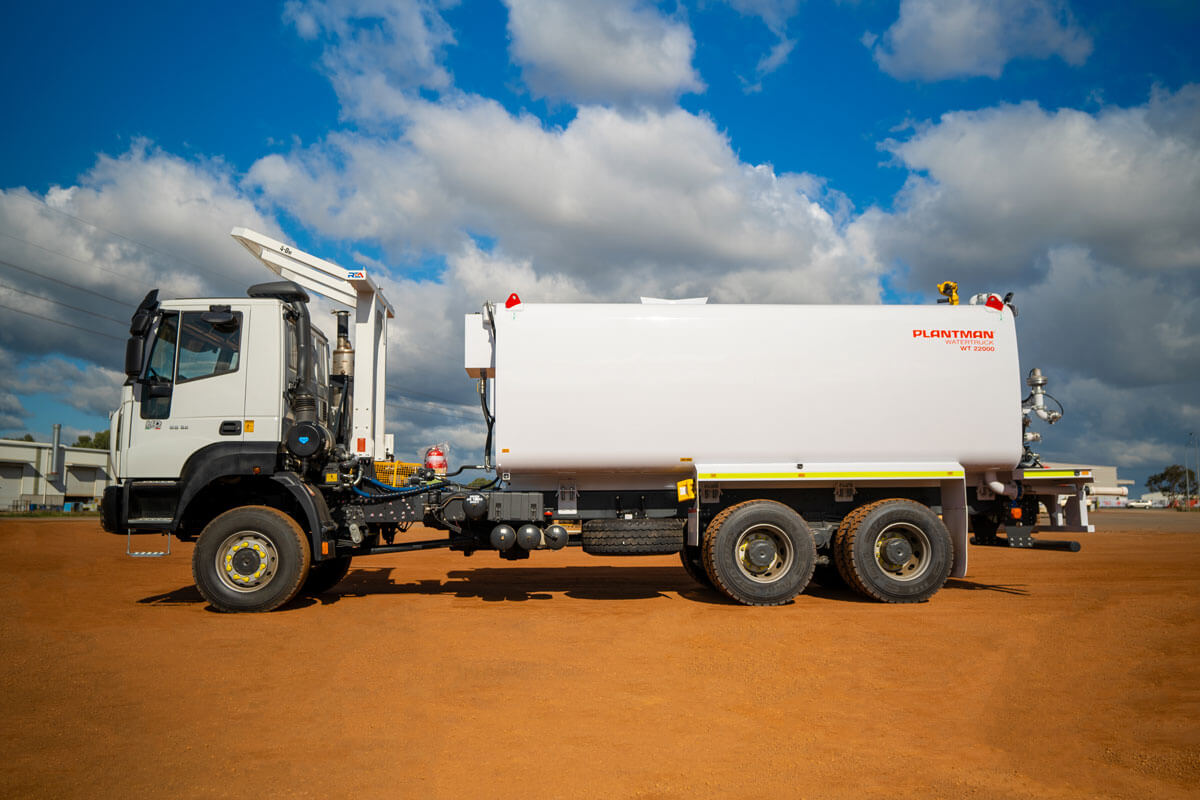

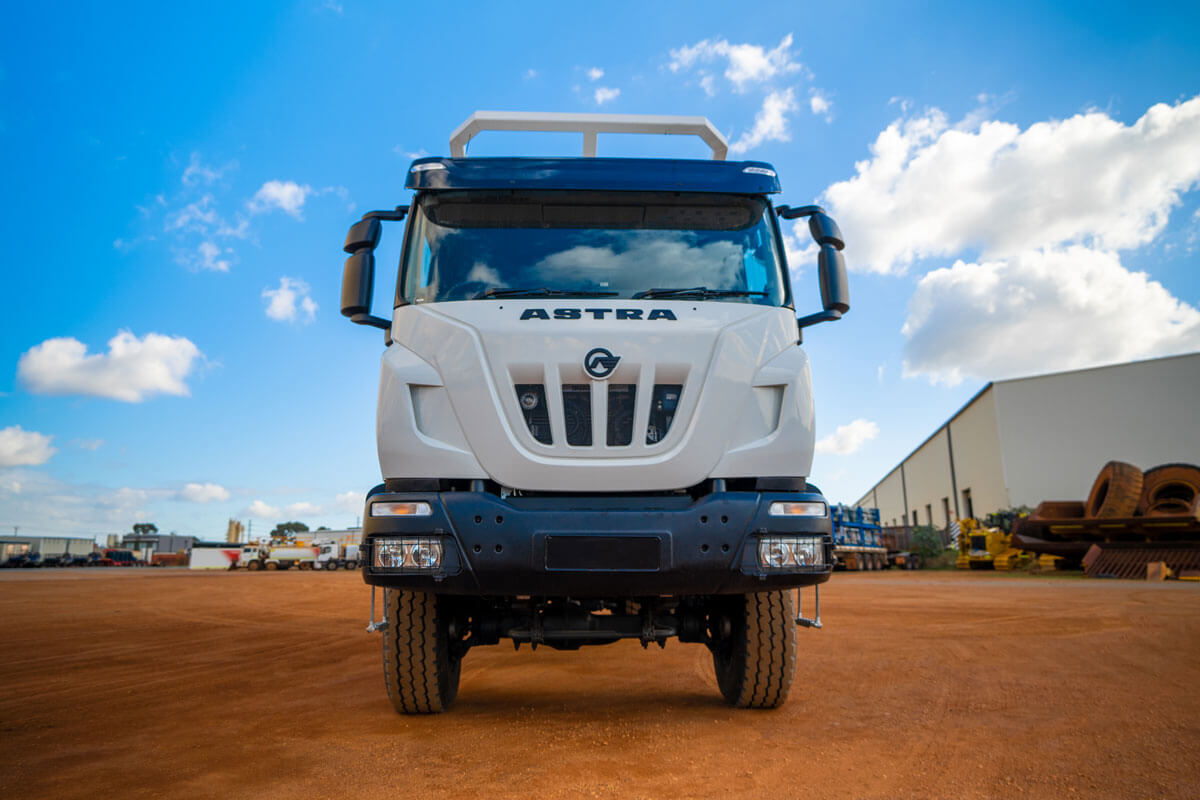

2022 ASTRA HD9 66.52 6×6 WATER TRUCK WT22000

AV TRUCKS

INDUSTRY: MINING

LOCATION: PERTH

TYPE: WATER TRUCK

Download Specs
Product Summary

New Heavy-duty chassis-mounted steel, Plantman WT22000 compartment service module:

Tank#Tank TypeTank Capacity
No 1Water Tank22,000 litres

Plantman WT22000 – ASTRA HD9 66.52 6×6 Water Truck WT22000 Specifications:

Supply & fit to client-supplied chassis:

  • New Steel Water Tank, baffled 22,000 litre capacity
  • Internal Paint Treatment – Tank lined inside with two pack epoxy tank liner
  • External Paint Treatment – outside with two pack automotive finish to match truck colour
  • Site Tube viewable from drivers seated position for tank water level
  • Top fill funnel
  • Highway legal tank level dump valve

Hydraulics:

  • Supply and fit hot-shift PTO and hydraulics to transmission
  • Hydraulic oil tank (200 litres)

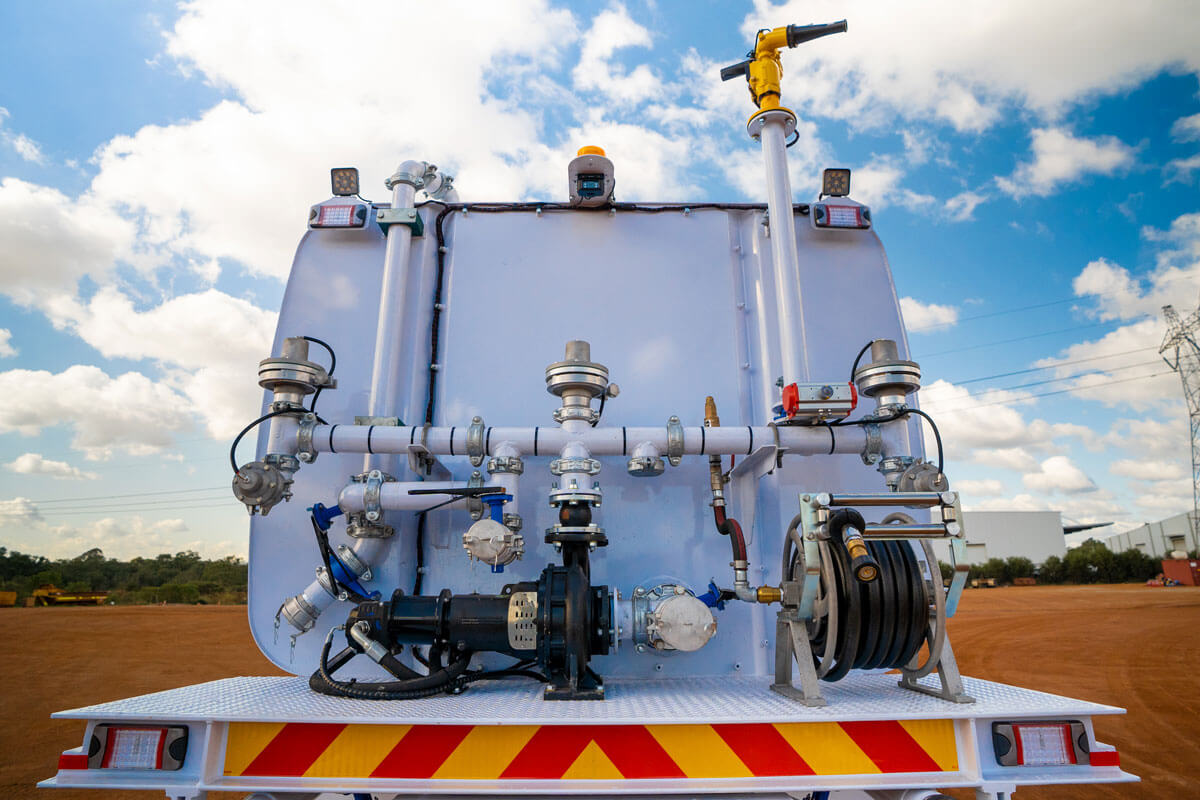

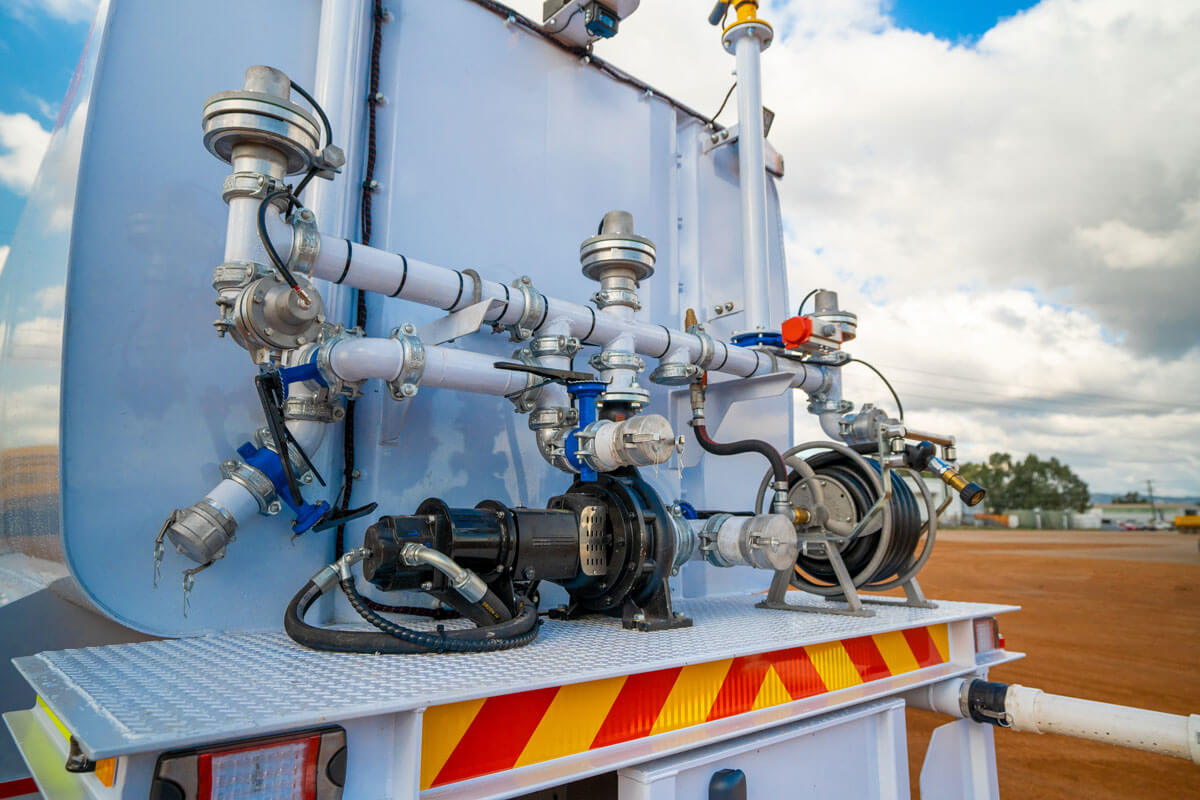

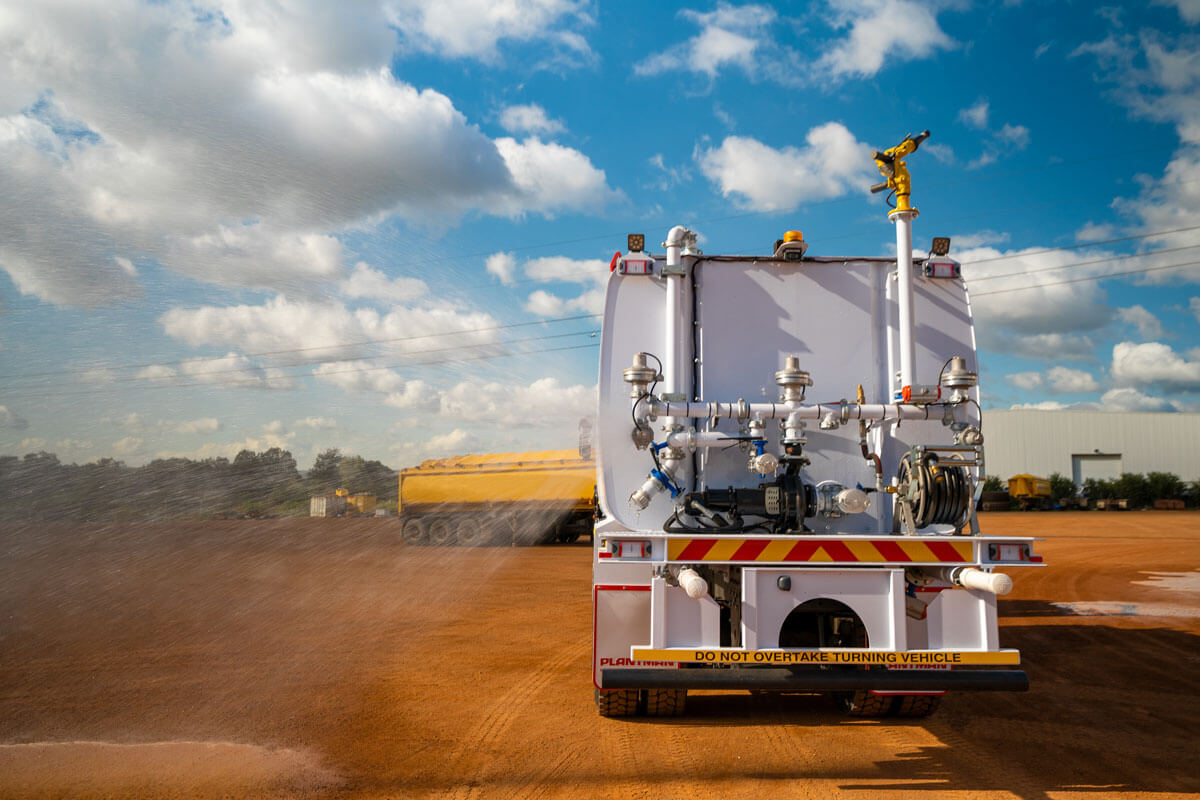

Water dispersal system:

  • Hydraulic powered Southern Cross water pump ISO 100 x 65 x 250
  • Dam Fill System through water pump with camlock

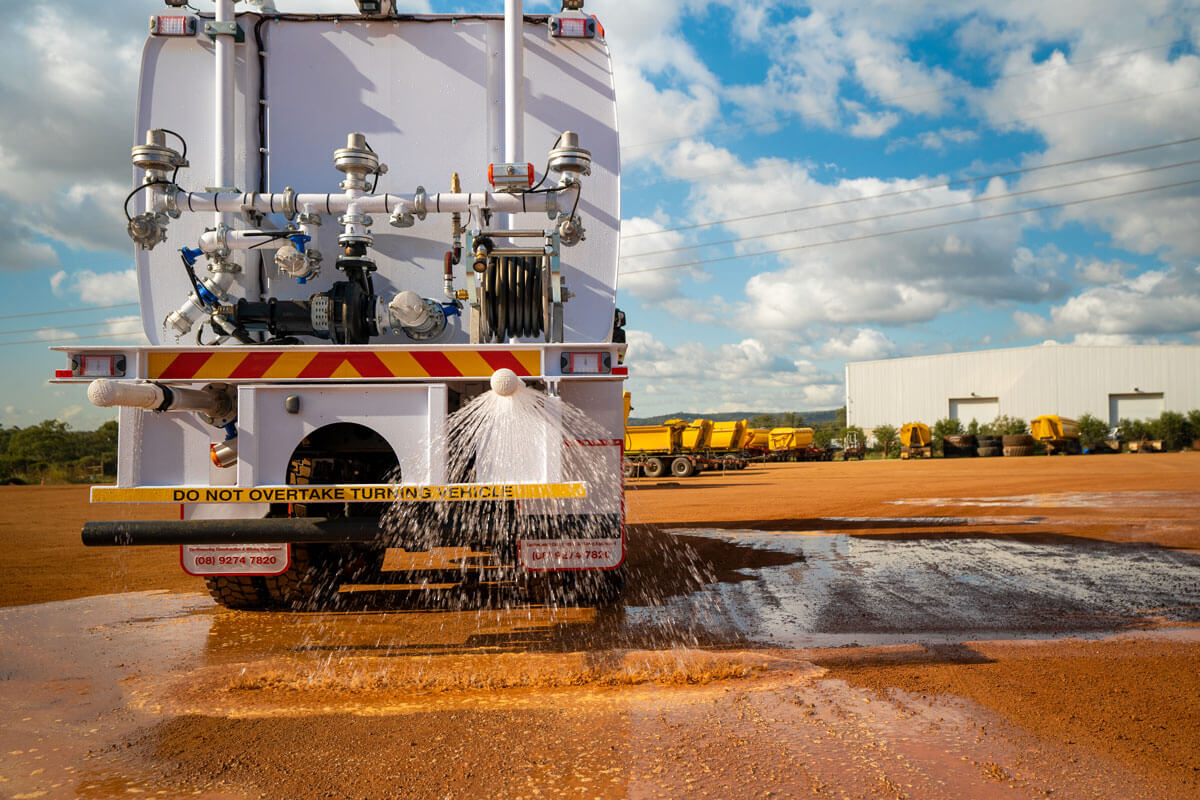

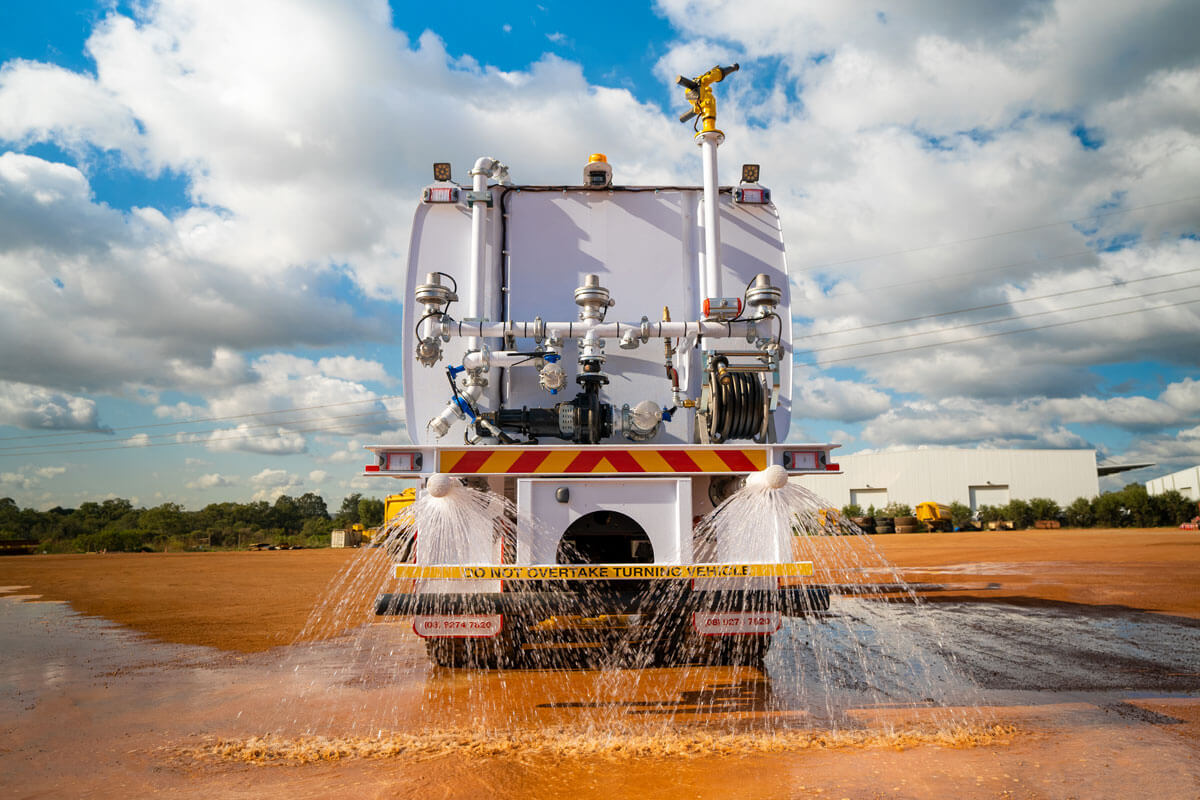

  • 5 x Camlock mounted Spray Heads
  • 3 x Fan Sprays and 2 x Batter Sprays

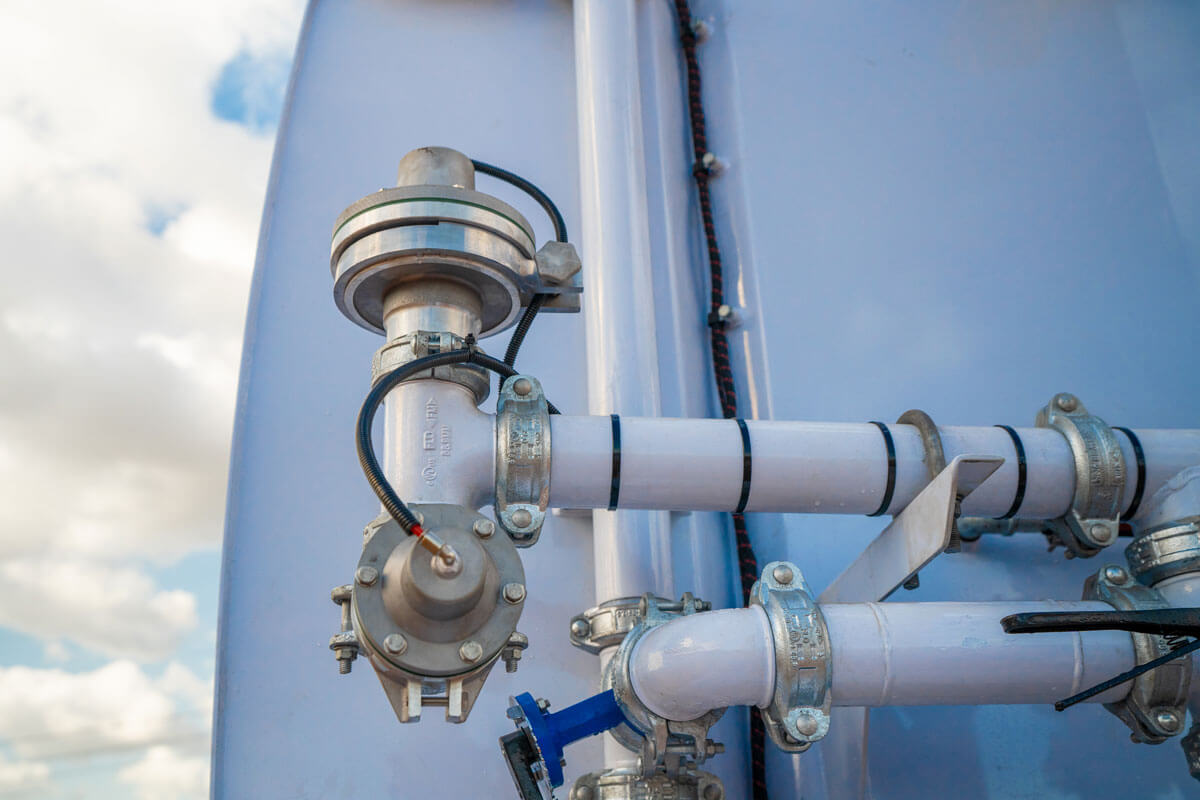

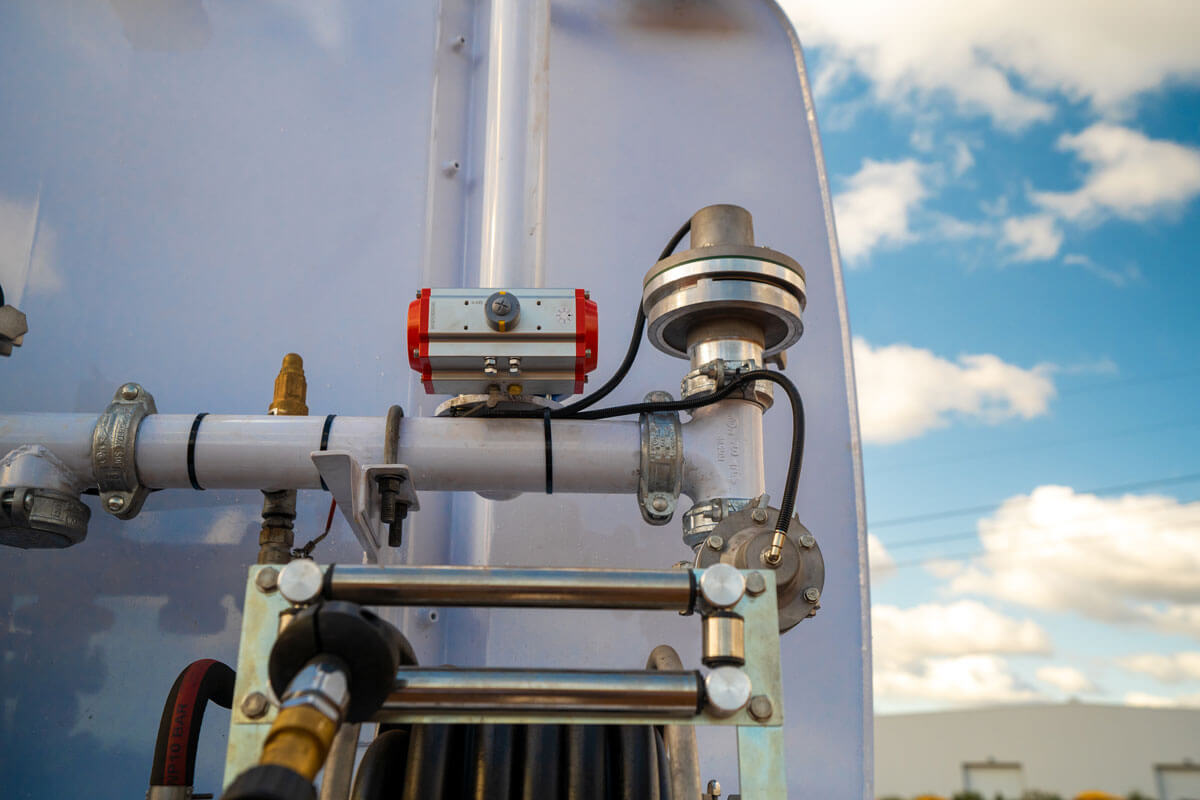

  • Left and right gravity fed drop bars with pneumatic valves
  • Ground level 4” Discharge / Dump valve
  • 15 metre manual rewind Hose Reel with fire nozzle

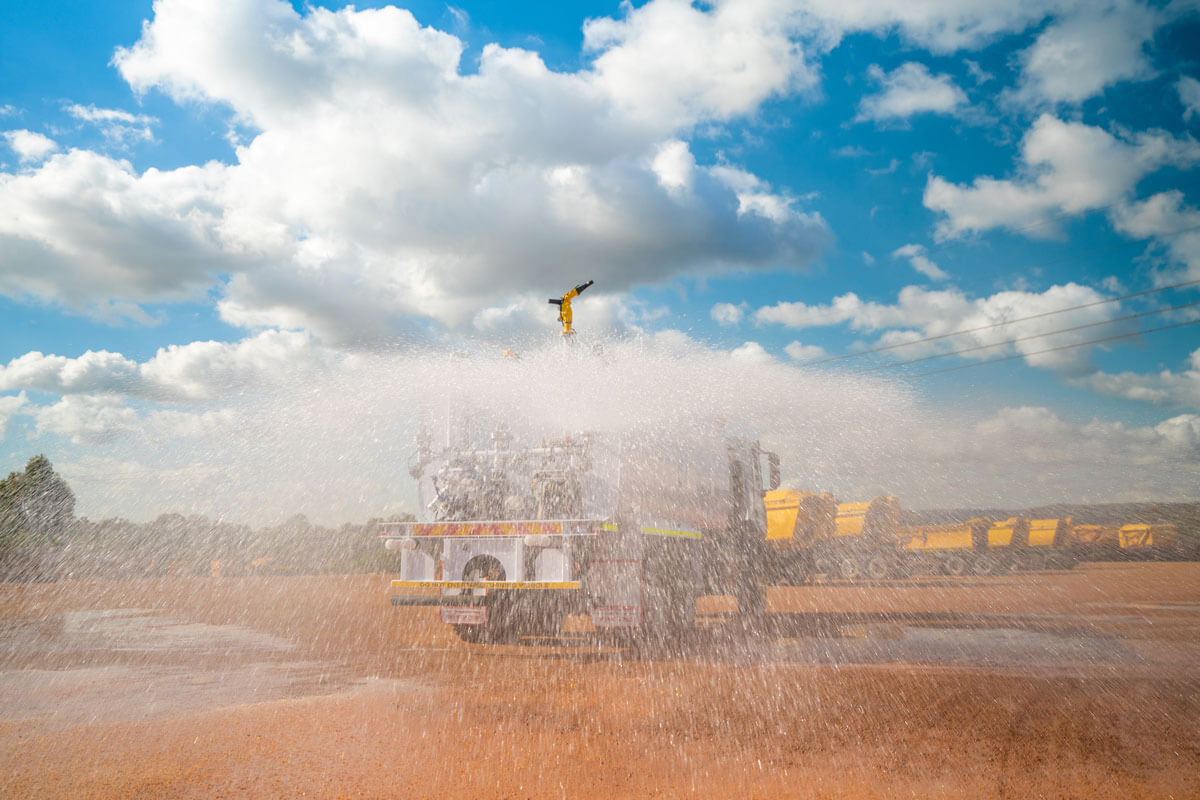

  • Joystick operated Water Cannon fitted to right hand rear top corner of tank with operation from drivers seated position

Electrical:

  • Amber LED rotating beacon
  • Rear Facing LED high and low level tail lights
  • Lockable Battery Isolator and starter isolator
  • Jump start receptacle (Cat or Anderson)
  • 5 x Tank Mounted LED Work Lights
  • All LED work lights, controlled by switch in truck cabin
  • Buggy Whip Flag Pole
  • Reverse camera

Other items:

  • 1 x 9kg fire extinguisher on Quick Release Bracket
  • Company, safety, Reflective tape and fleet numbers
  • Mounted Wheel chocks
  • Chassis Mounted Spare Wheel Carrier
  • Wheel Nut IndicatorsSmall Toolbox
  • Tested and Commissioned
  • Built to WA Specifications
Read More
Product Specifications
Axles 6x6
Capacity 22000L
Make ASTRA
Type Water Truck
