CELEBRATING celebration OF

2022 SERVICE TRAILER P1500

RAUBEX CONSTRUCTION

INDUSTRY: CONSTRUCTION

LOCATION: PERTH

TYPE: FUEL TRAILER

Download Specs
Product Summary

Plantman P1500 Service Trailer Specifications:

  • Heavy duty trailer – Steel Compartment Service Module:
Tank #Tank TypeTank Capacity

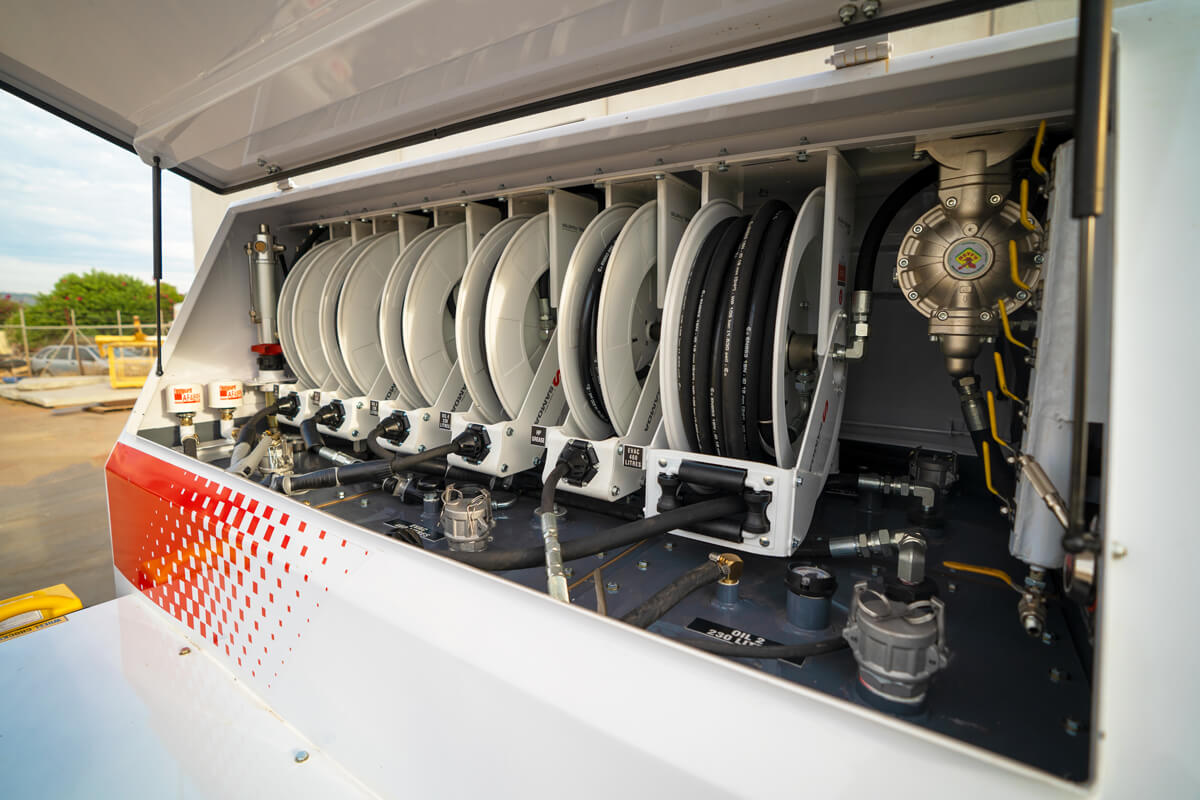

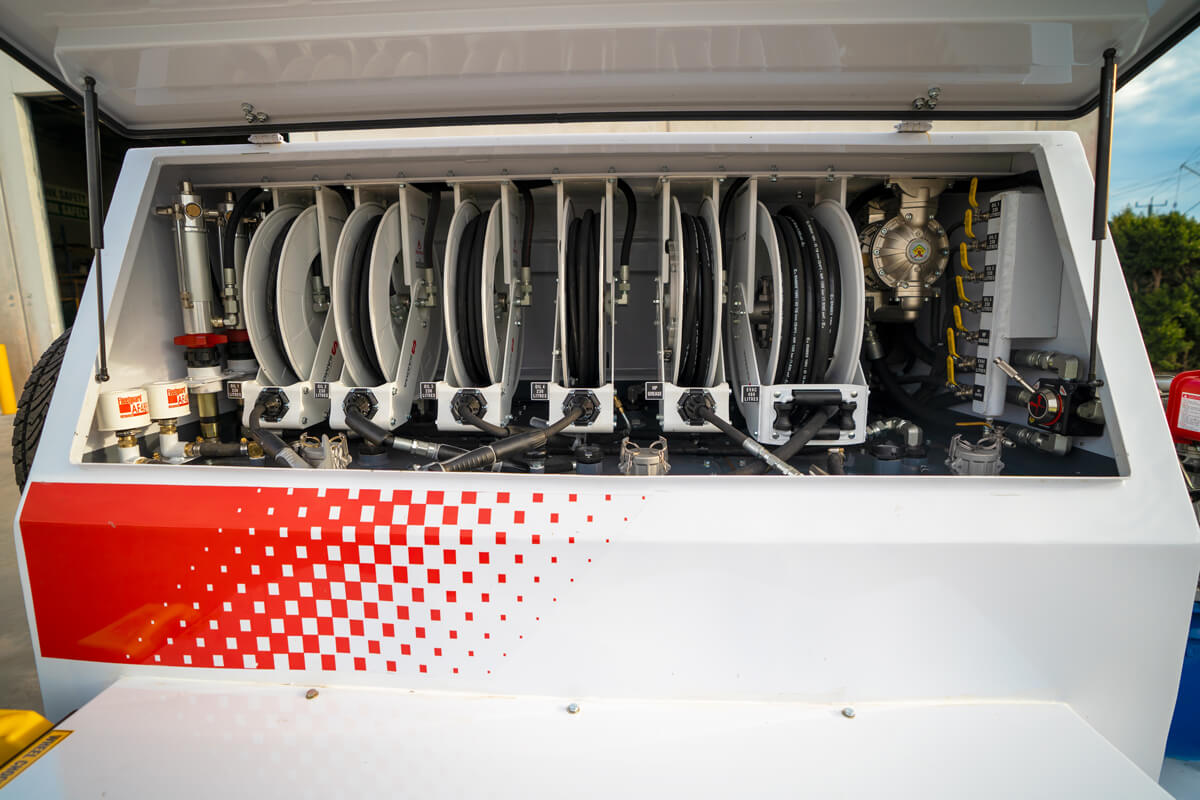

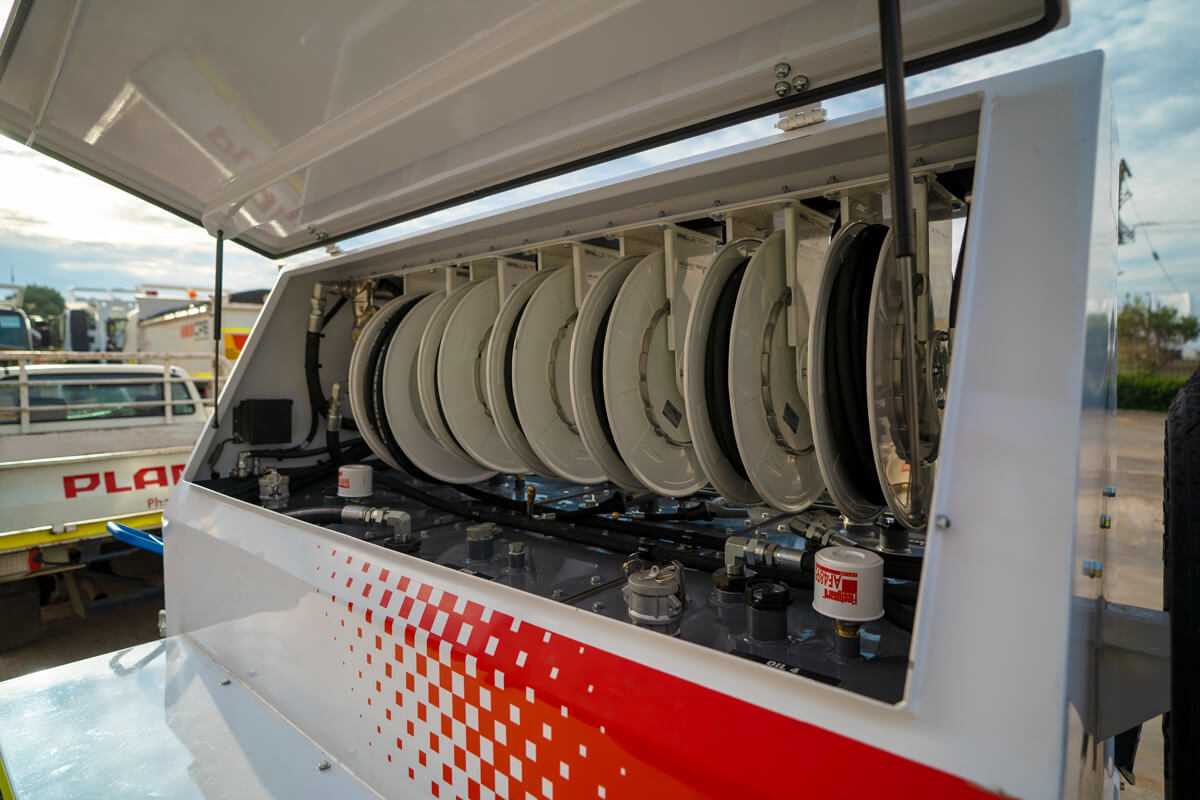

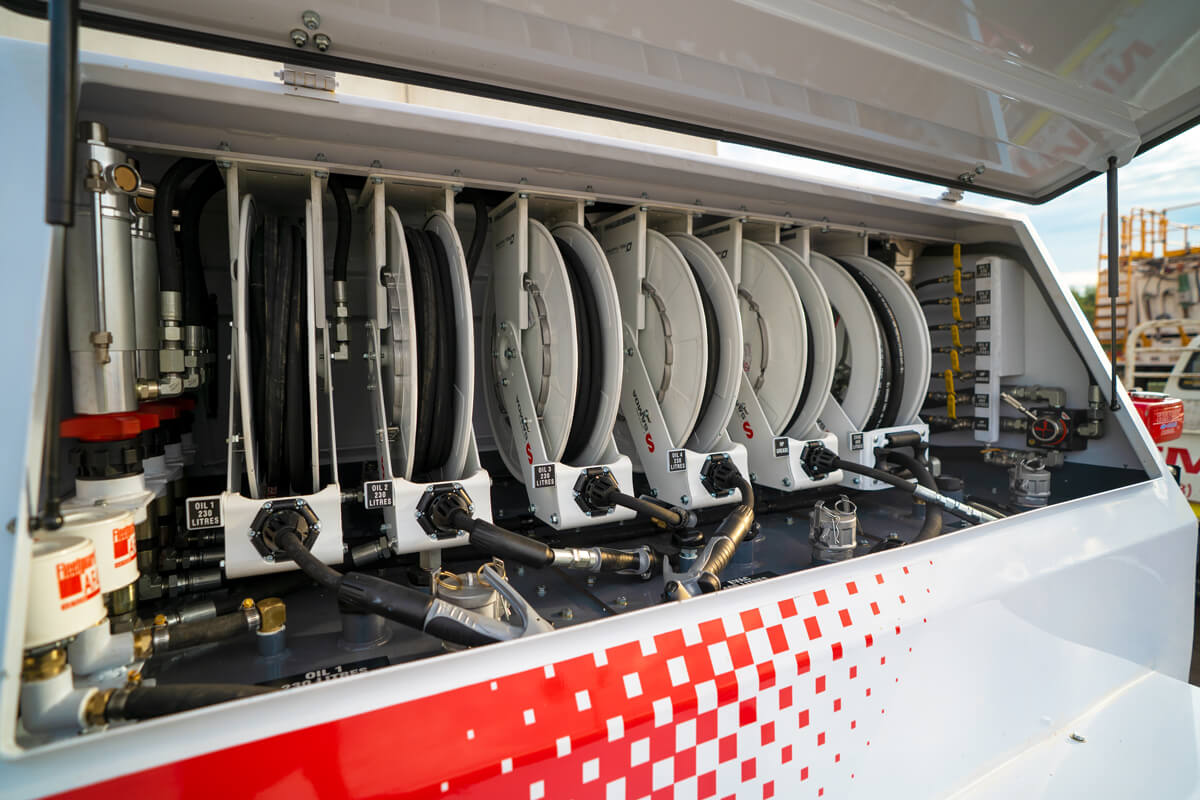

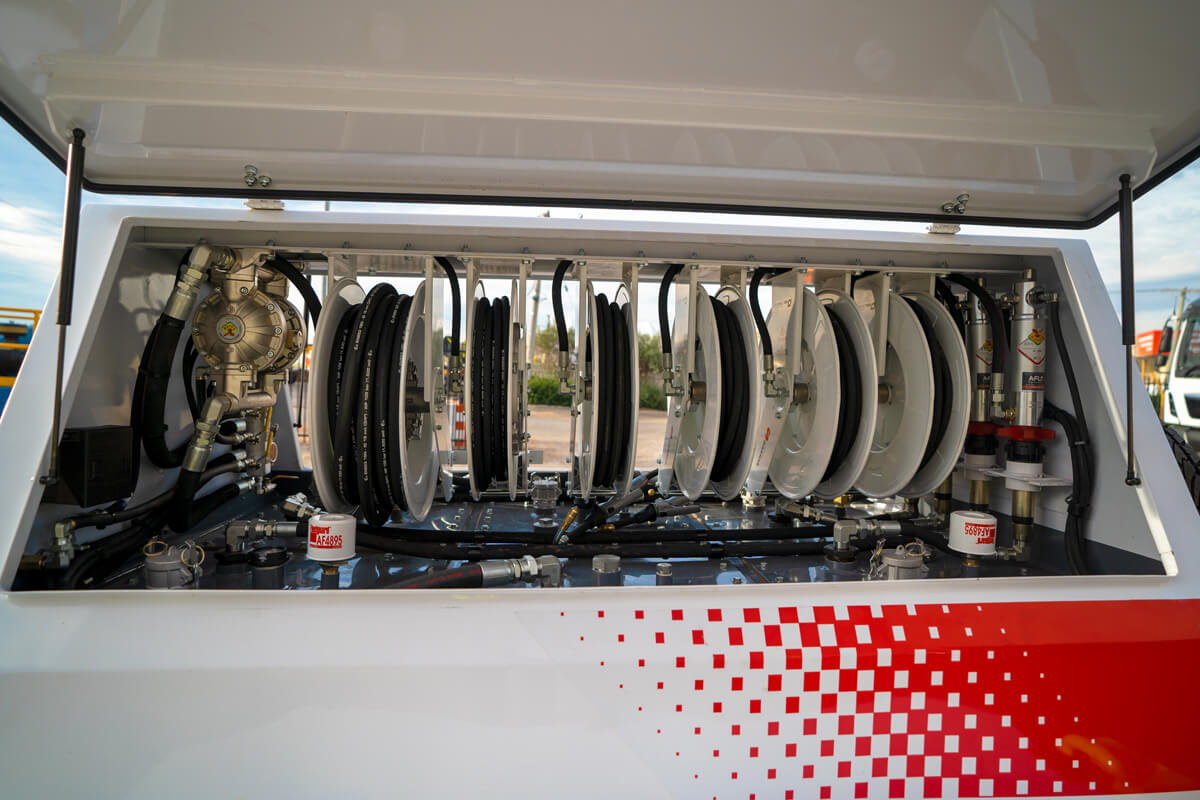

No 1Oil 15m x ½” Spring Retract Reel, Hose & Dripless Hand Piece230 litre
No 2Oil 15m x ½” Spring Retract Reel, Hose & Dripless Hand Piece230 litre
No 3Oil 15m x ½” Spring Retract Reel, Hose & Dripless Hand Piece230 litre
No 4Oil 15m x ½” Spring Retract Reel, Hose & Dripless Hand Piece230 litre
No 5Waste Oil 15m x ¾” Spring Retract Reel, Hose & 4 Way Valve to Evac460 litre
  • HP Grease Kit (replaceable drum style) with Spring Retract Reel 20 kg

P1500 Service Trailer Specifications:

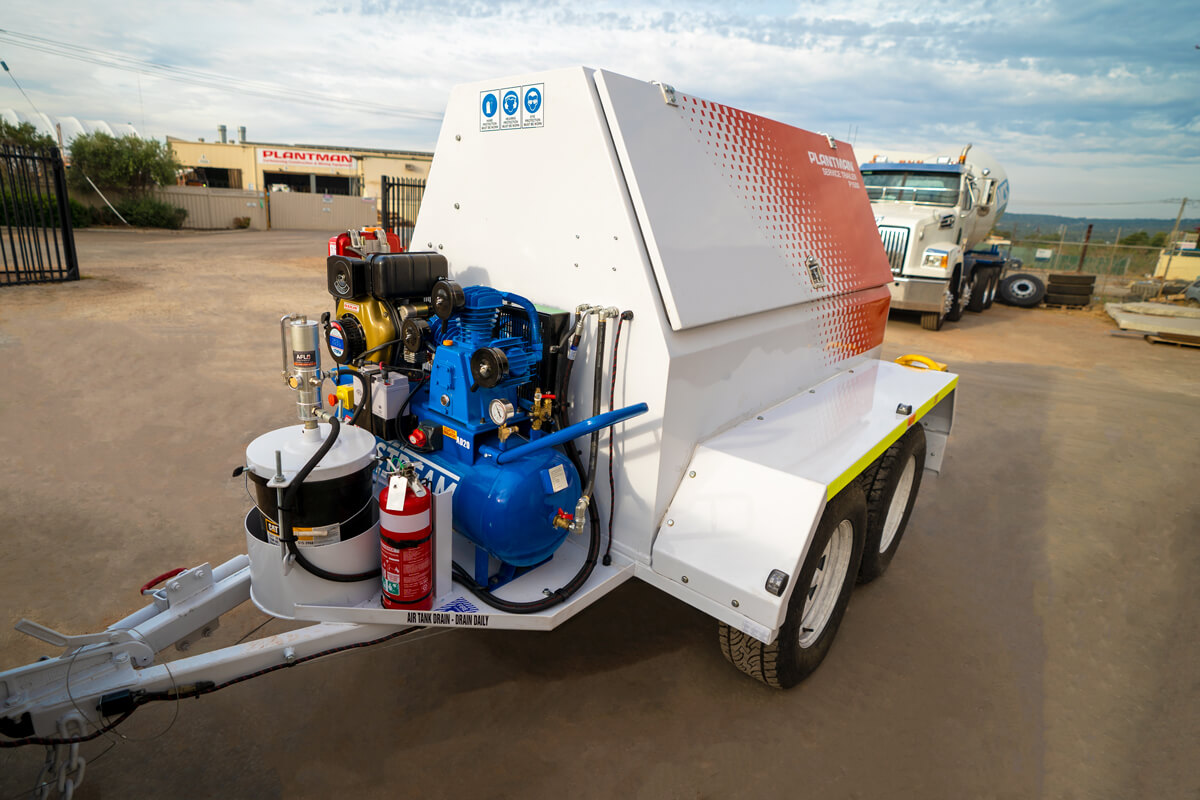

  • New Heavy Duty chassis mounted Service Trailer module

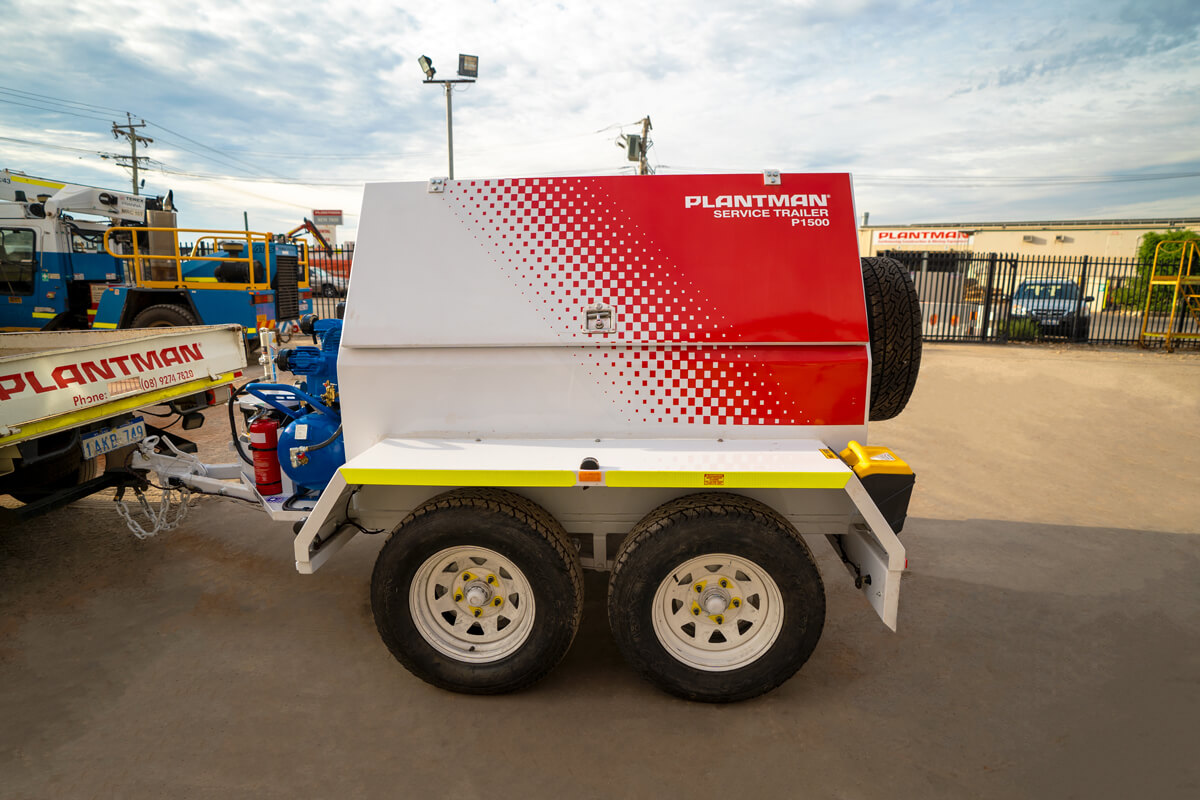

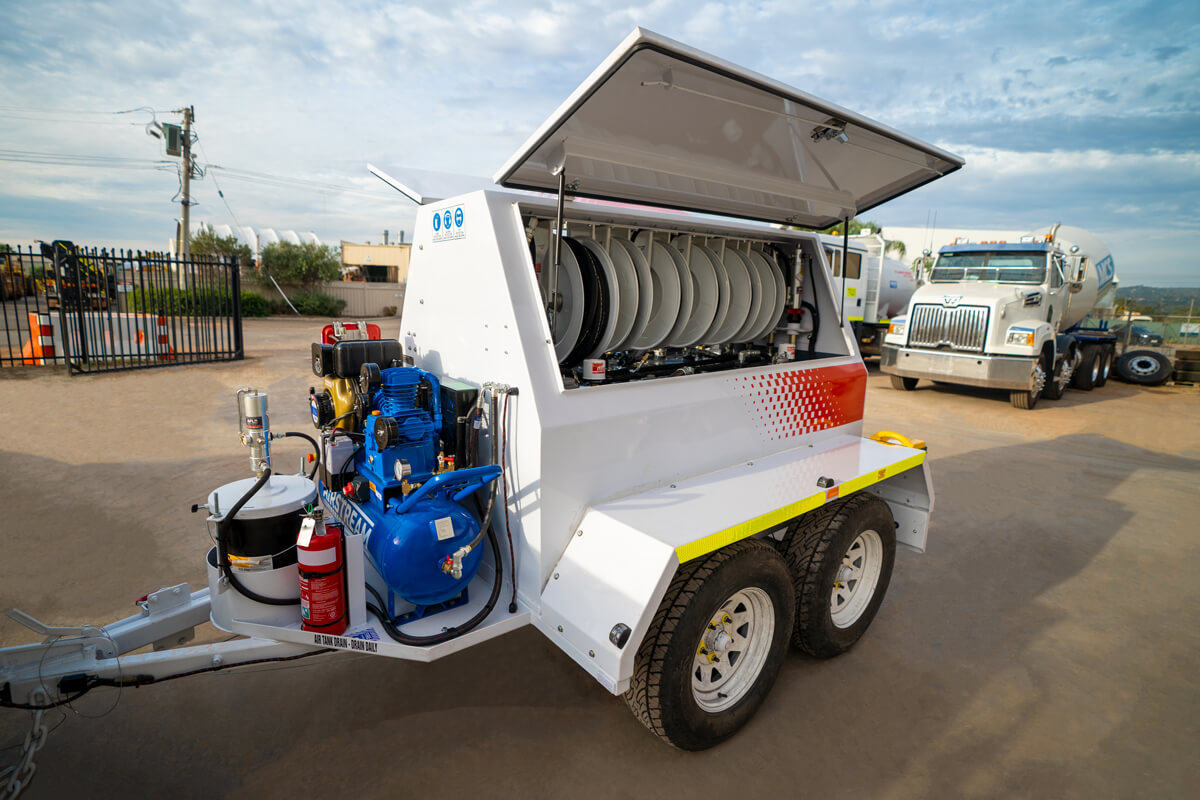

  • Tandem Axle Trailer, Dual Gull Winged Doors with Jockey Wheel
  • Electric Drum Brakes L/Cruiser Hub pattern 5 Stud Rims / 245 x 70 Tyres with Standard Cable Overrun
  • hydraulically operated park brake
  • Spare Tyre, Rim, Jack, Brace & Wheel Nut Indicators
  • Tow Bar suit 50 mm Ball / 7 Pin Plug with Rear LED Tail Lights
  • Diaphragm Pump for Waste Tank – Oil Stub Pumps for Oil Tanks
  • All pumps pneumatically operated Air manifold with couple point
  • Tank Fill from Ground Level into camlocks
  • Wheel Chocks (mounted) and 2.0 kg Fire Extinguisher (mounted)

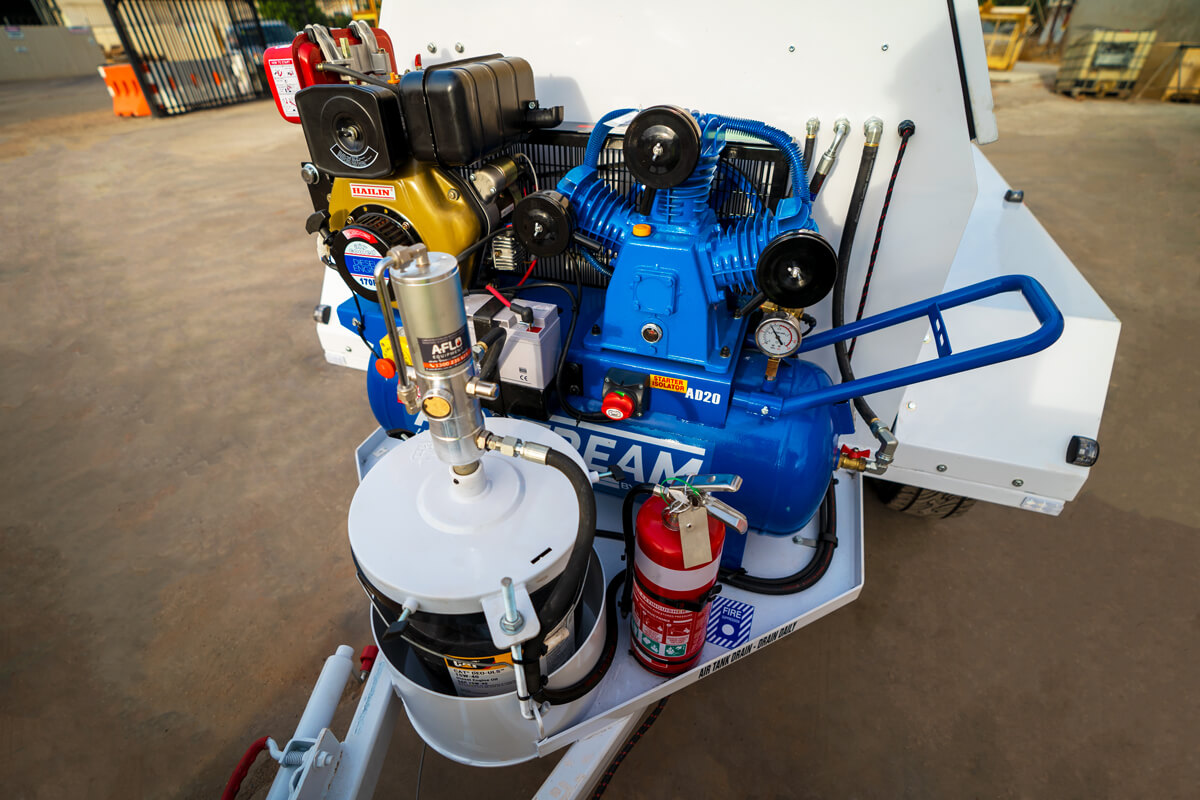

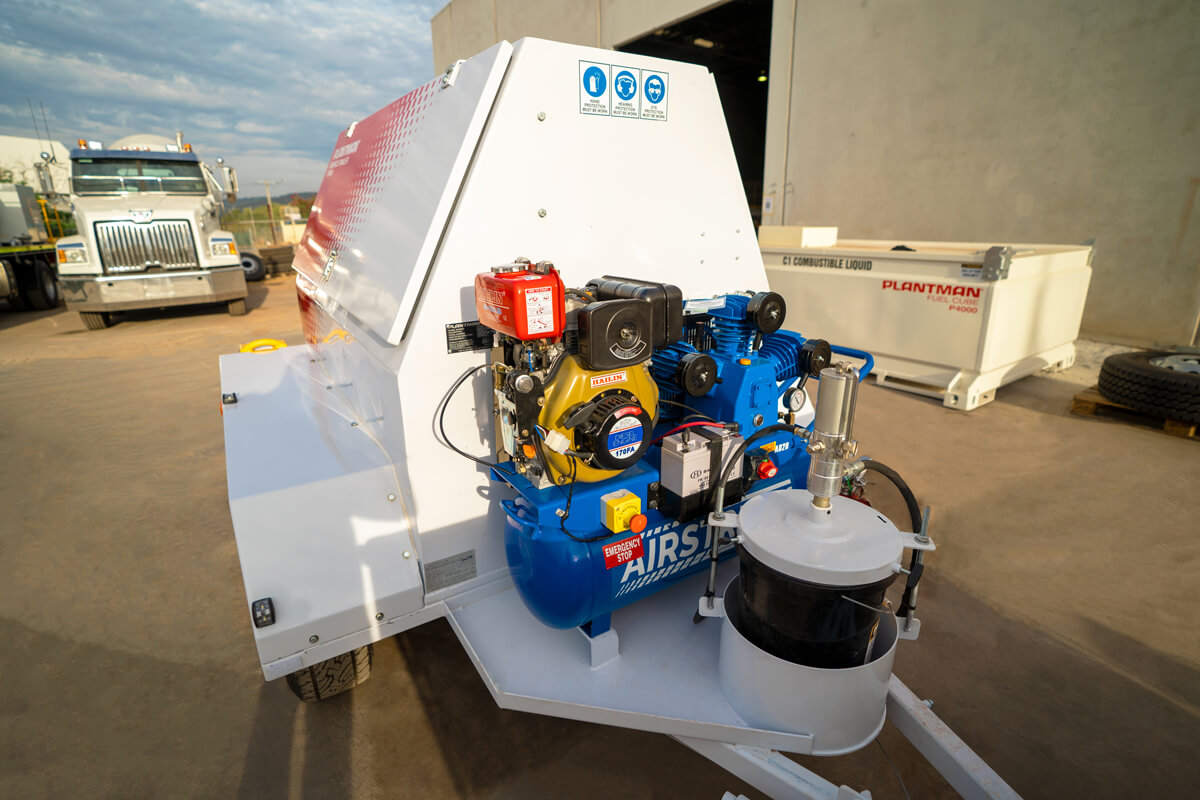

  • Diesel Piston Compressor 20cfm, electric start/stop, battery & Safety valve certification
  • Operating and Safety Signage Decals, DG3 Tape on sides
  • 5 x Tank Level Gauges
  • On Road Costs (Stamp Duty & 12 months License)
  • Emergency Stop on Compressor
  • WA Roadworthy Certificate ready for Licensing

Applications:

  • Open Cut Mining
  • Civil Construction
  • Drill Support Truck

Features:

  • Zero spillage concept
  • Robust construction
  • Hazard reduction design
  • User friendly operation
  • Low running cost
Read More
Product Specifications
Capacity 1500L
Make Plantman
Type Fuel Trailer
