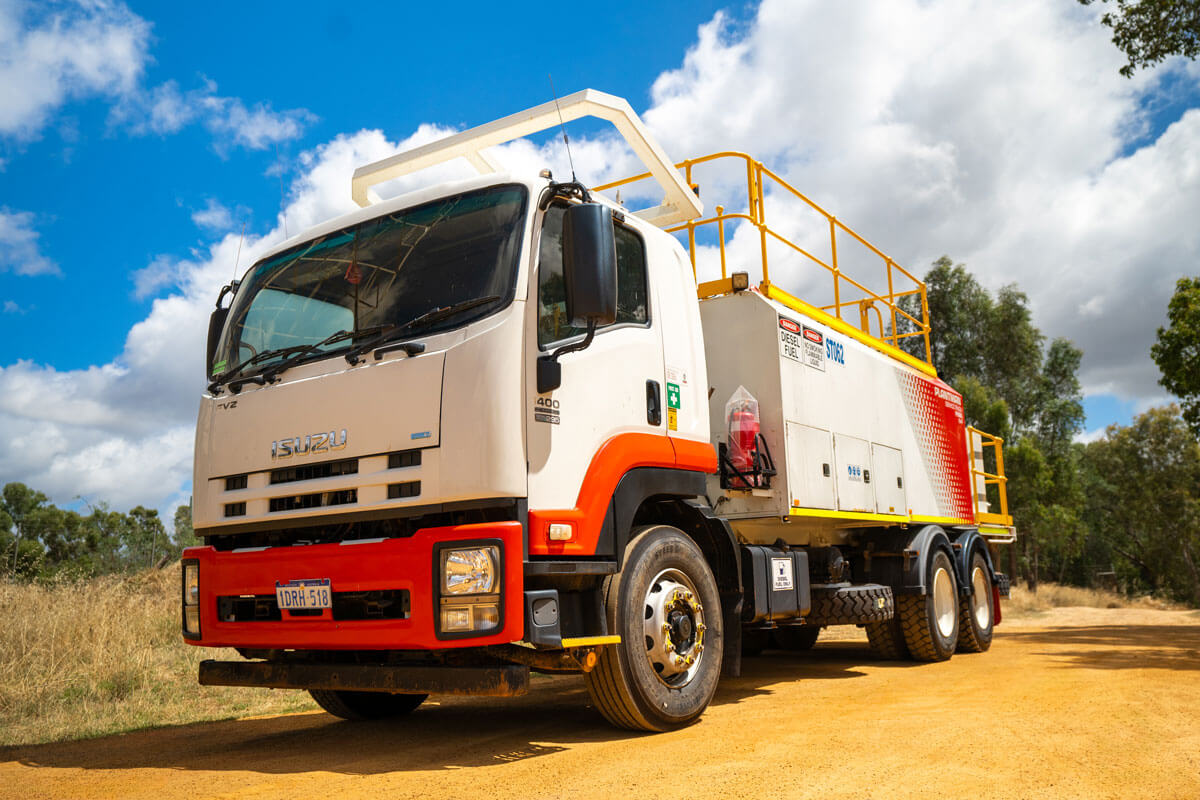

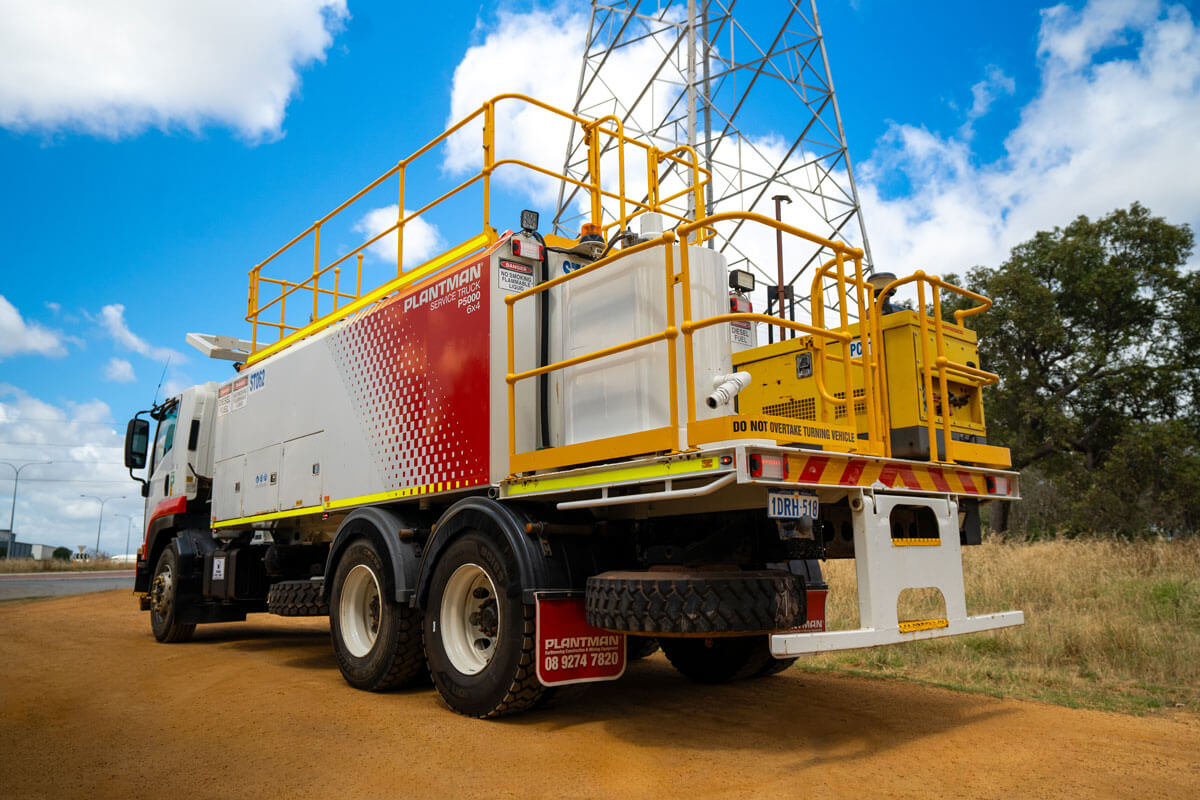

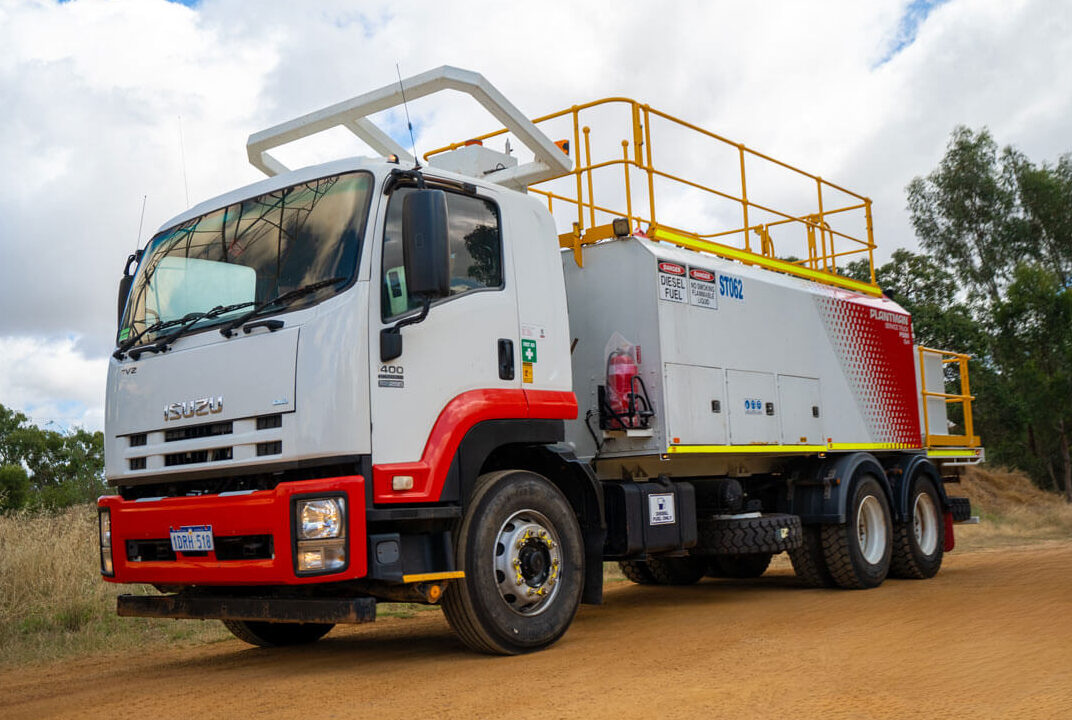

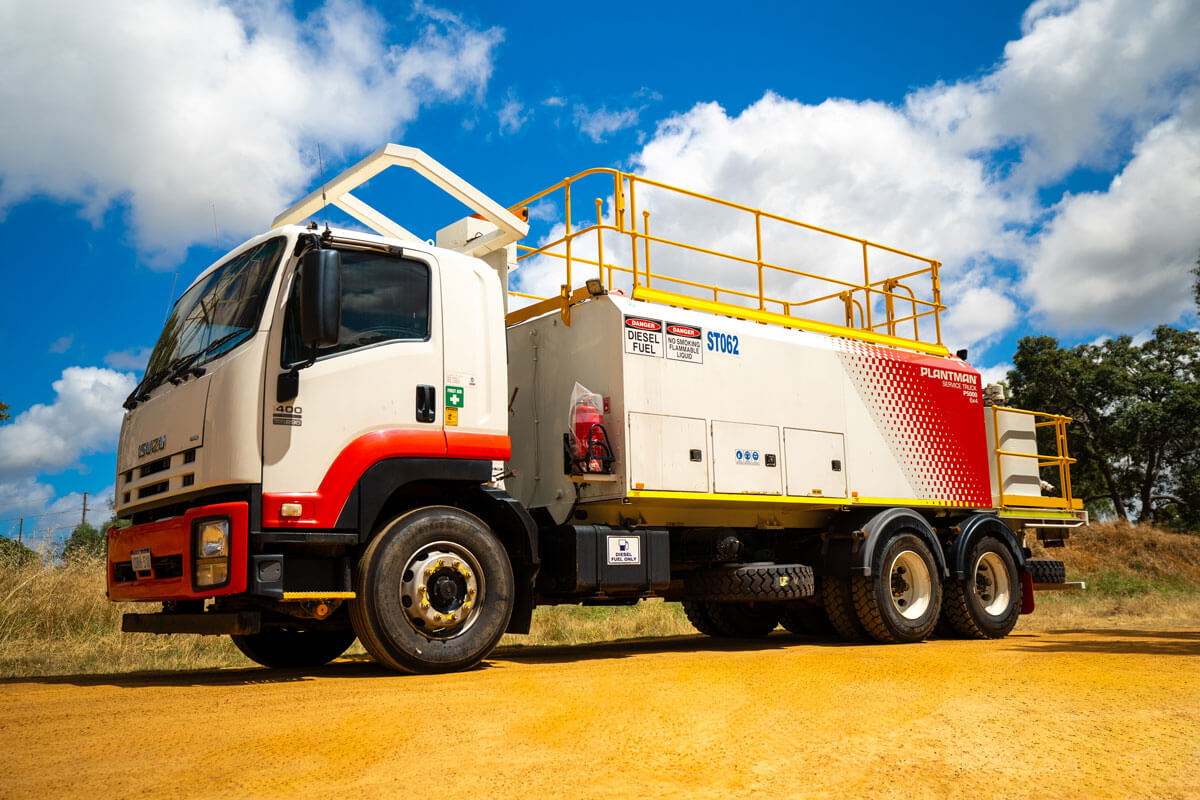

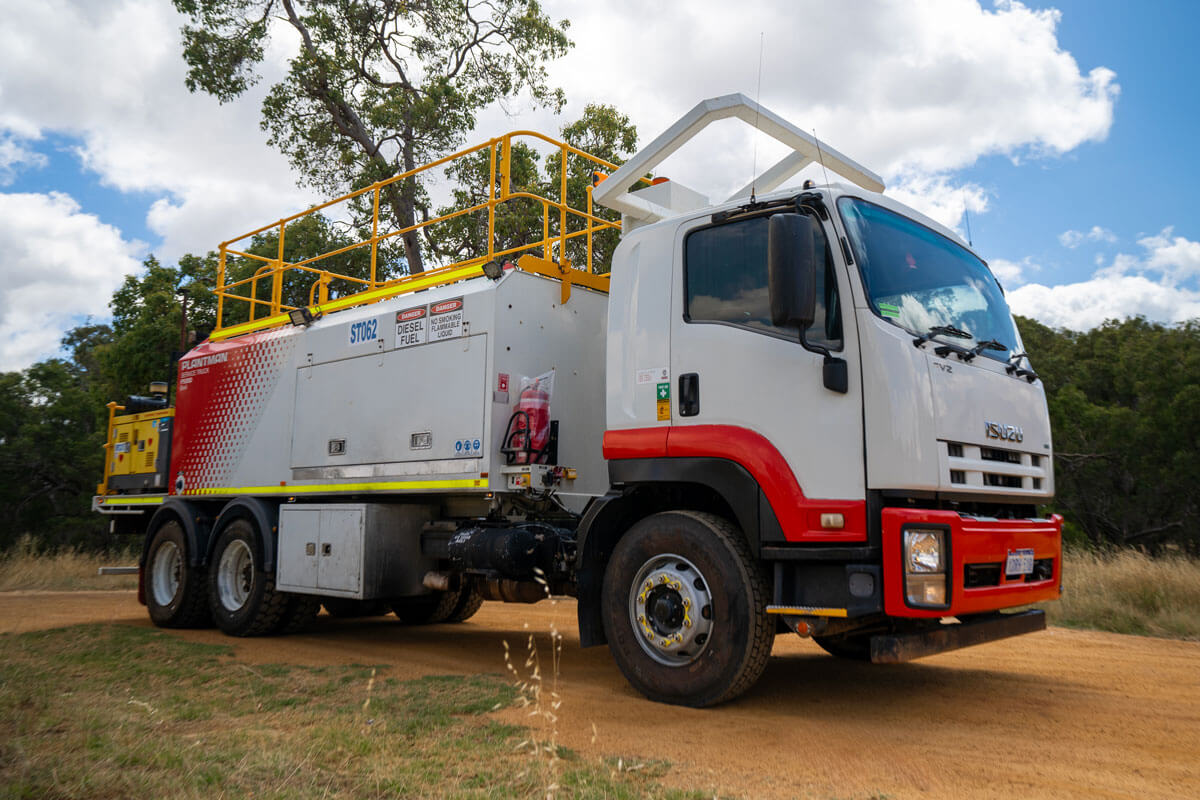

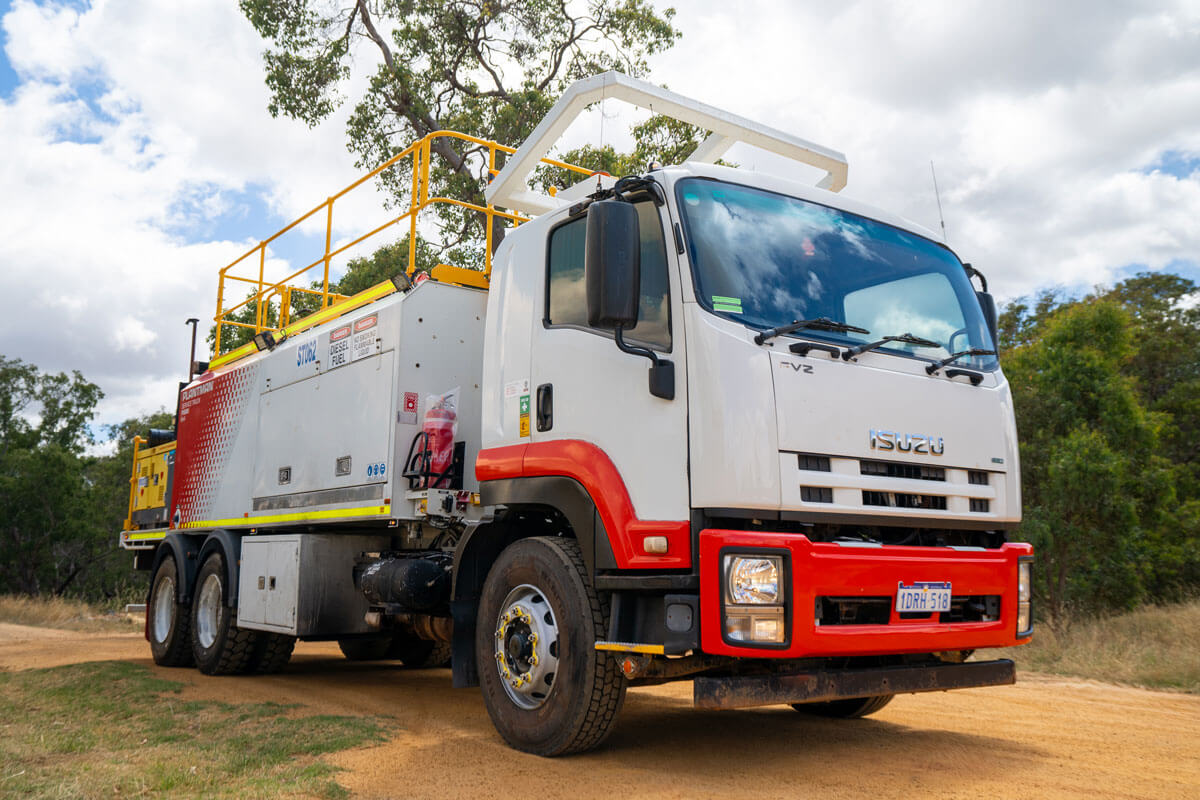

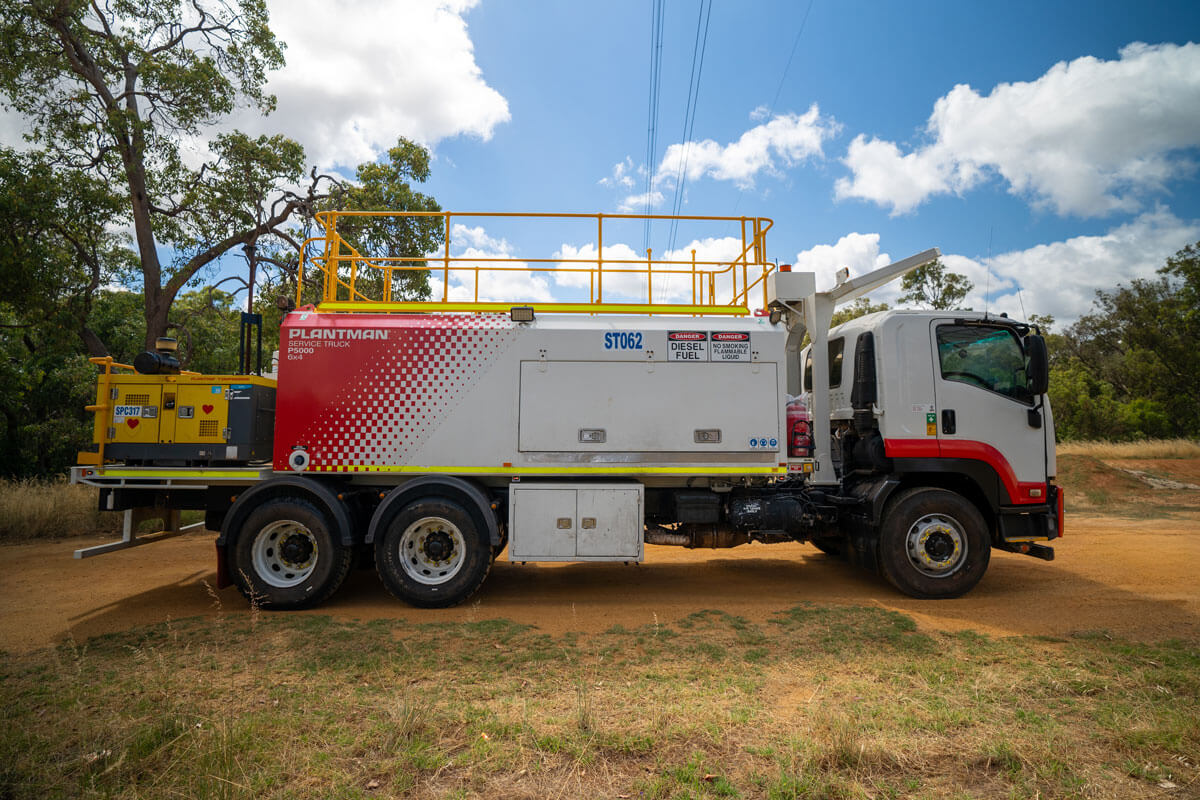

Plantman P5000 – Isuzu FVZ 1400 Service Truck
PLANTMAN P5000 SERVICE MODULE
Specifications:
- Heavy duty chassis mounted – Steel 8 compartment service module:
| Tank # | Tank Type | Tank Capacity |
| No 1 | Diesel – Wiggins & LV Reels, hose, hand pieces | 5,000 litres |
| No 2 | Oil – reel, hose, hand piece, fast and top fill | 750 litre |
| No 3 | Oil – reel, hose, hand piece, fast and top fill | 750 litres |
| No 4 | Oil – reel, hose, hand piece, fast and top fill | 750 litres |
| No 5 | Oil – reel, hose, hand piece, fast and top fill | 750 litre |
| No 6 | Water – reel, hose, hand piece, fast and top fill | 500 litre |
| No 7 | Waste – reel, hose, hand piece, fast and gravity drain | 500 litre |
| No 8 | Coolant tank – reel, hose, hand piece, fast and top fill | 500 litre |
- Bulk grease tank – 2 pumps, reels, hoses, hand piece -500 kg
- High pressure grease system
- Safety signage

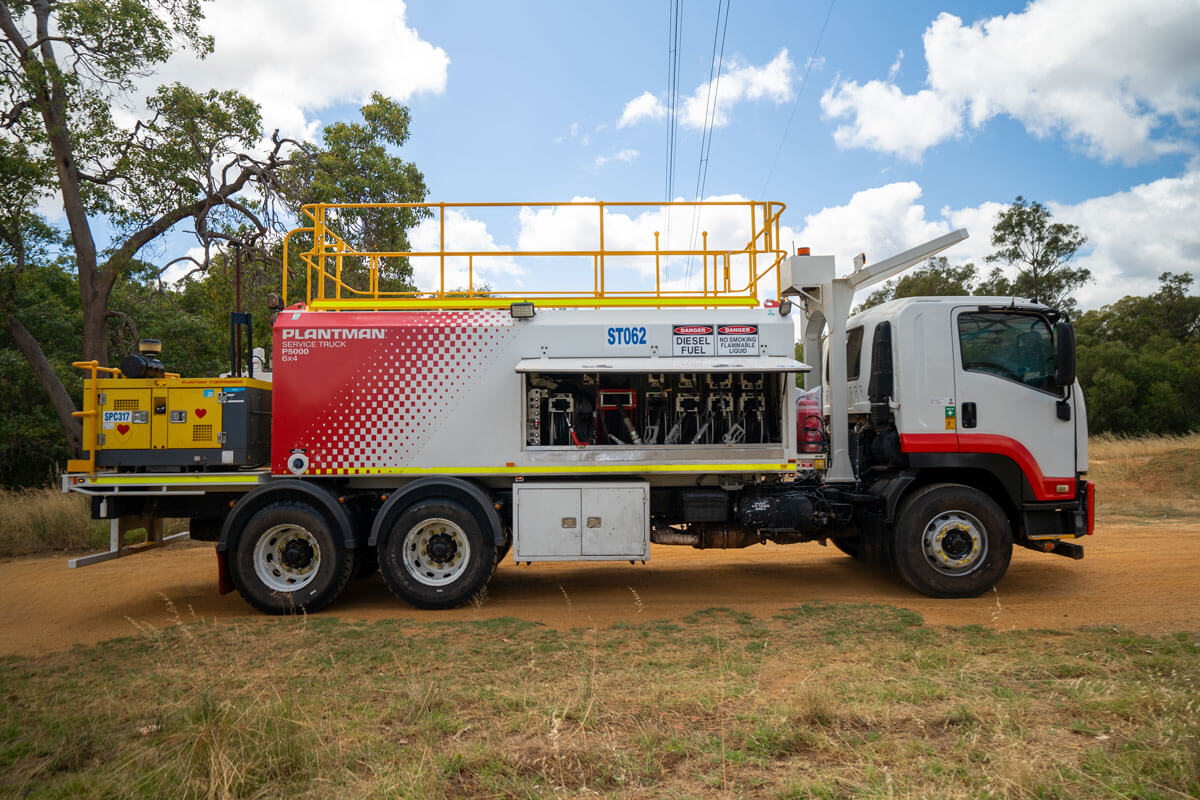

- All pumps are fully enclosed inside RHS pump cabinet

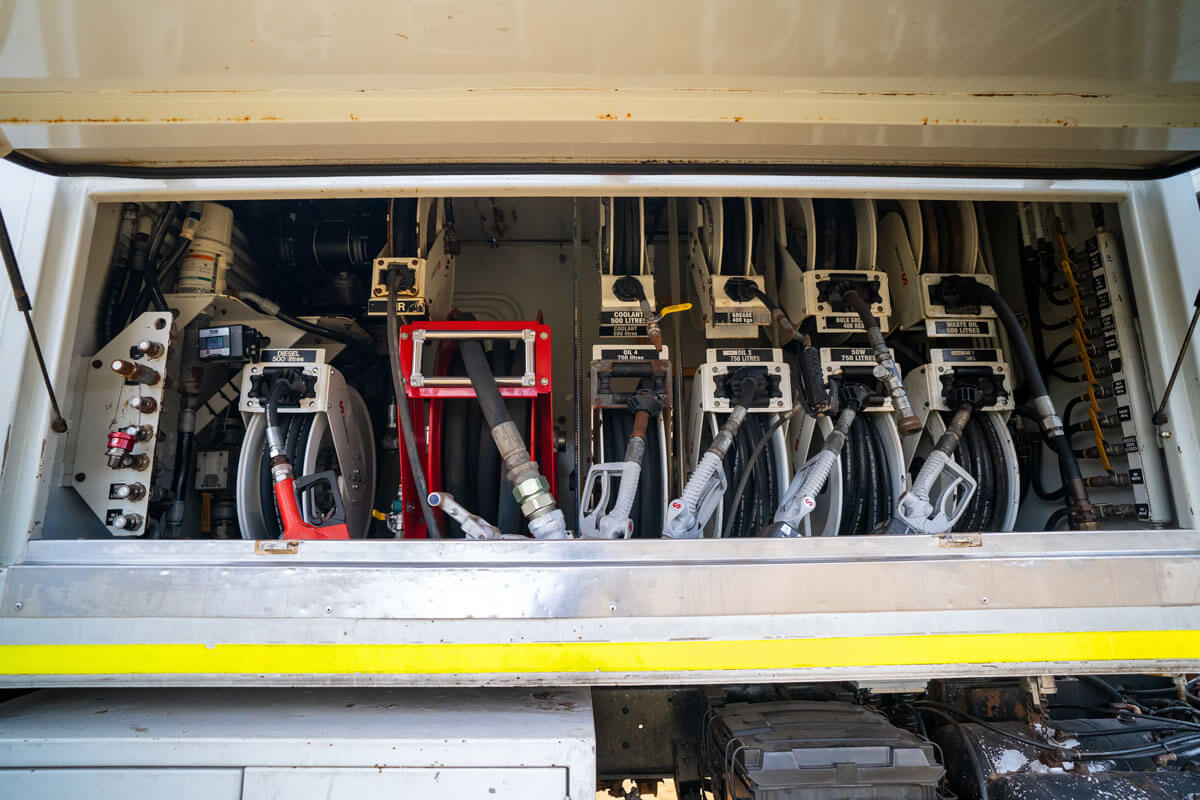

- Hose reels are mounted RHS front
- All systems are air operated
- Dual element amber rotating beacon and 6 service lights
- Polymer lined water and coolant tanks
- Polymer lined waste oil tank
- Top safety rails and steps
- Enclosed steel pipe reticulation lines
- Lockable start isolators to truck and air compressor
- 2″ double diaphragm diesel delivery pump
Specifications:
- 221KW turbo charged and inter cooled 6 cycle diesel engine
- Exhaust retarder Euro IV compliant
- Allison MD World Series 6 speed automatic transmission
- Beka Max autogreaser system
- Air-conditioned high roof cabin
- ROPS canopy
- Operators ISRI suspension seat
- Passenger seat with retractable seat belts
- Buddy seat
- AM/FM radio with compact disc player
- Fabric seats with canvas seat covers
- Electric windows
- Remote control door locks
- East West mirrors and spot mirrors
- Meritor front and rear axle set
- Spring front and rear suspension
- Non asbestos brake linings
- Air dryer
- Spring applied emergency and parking brake
- 11R x 22.5 drive tyres
- 295/80R x 22.5 steer tyres
- 2 x Chassis mounted spare wheels
- Wheel brace and jack
- Wheel Chocks & Bracket
- Chassis mounted 2 Door Toolbox
- Wheel nut indicators
- Standard tint laminated windscreen
- Tropical tinted rear and side windows
- Safety signage
- DG3 Safety Stripping around truck
- ROPS Mounted
- DG3 number box
- Two-way radio wiring and power supply 12 and 24V
- 2 x 9kg Fire extinguishers
- Auxiliary lighting
- High Mounted Reverse alarm
- Reverse Camera
- ROPS mounted amber rotating beacon
- Red lockable battery isolator
- 24 Volt jump start receptacle with Cap
- Yellow lockable starter isolator
- Ground level emergency Stops
- Cabin emergency stop
- Service meter

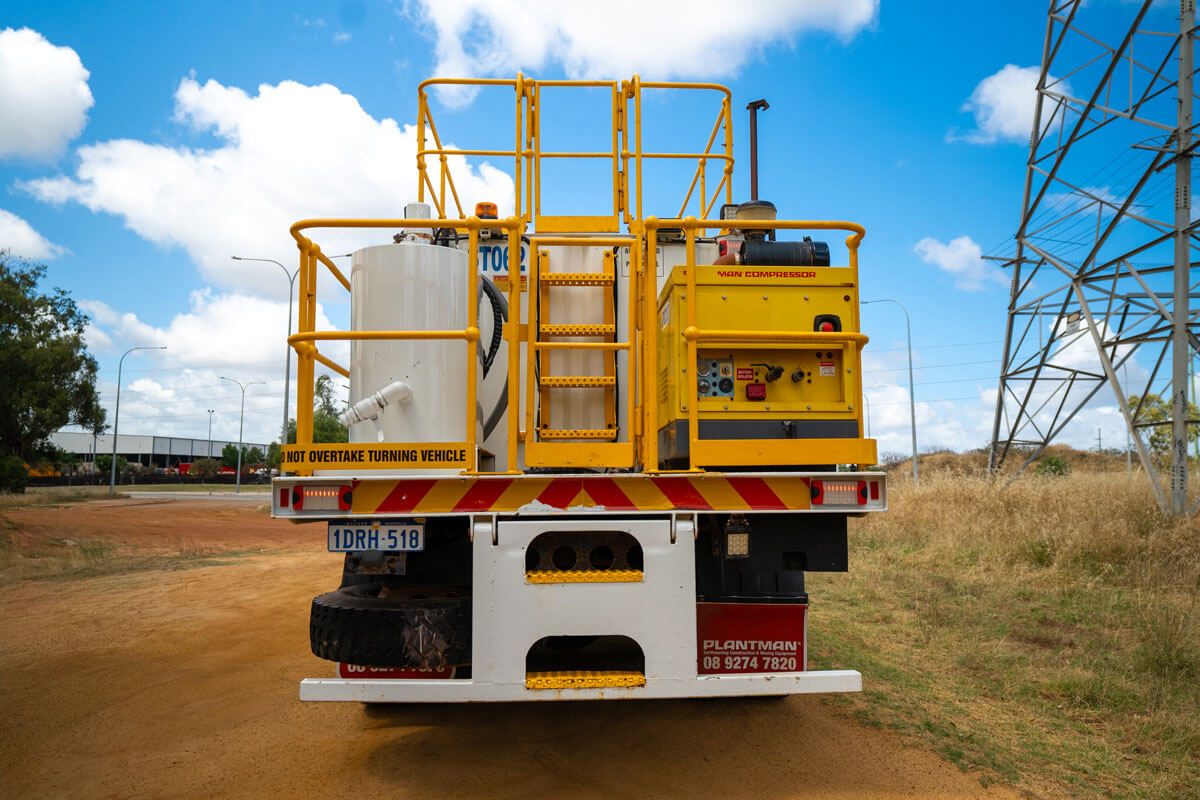

AIRMAN PDS75S COMPRESSOR
Specifications:
- 75CFM diesel driven air compressor
- Automatic shutdown and warning system
- Key start lock
- Donaldson air cleaner system
- Receiver dryer
- Automatic lubricator
- Meets WA Mining Regulations
- WA Road Licensed
