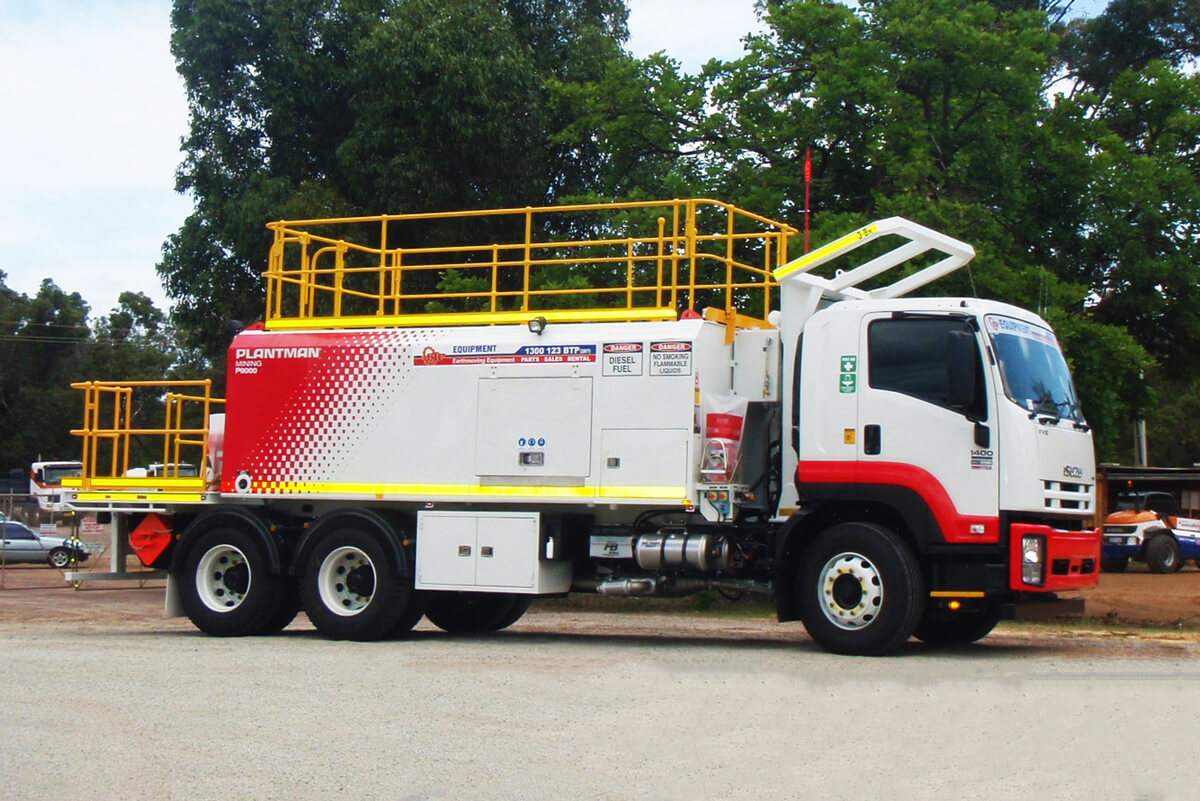

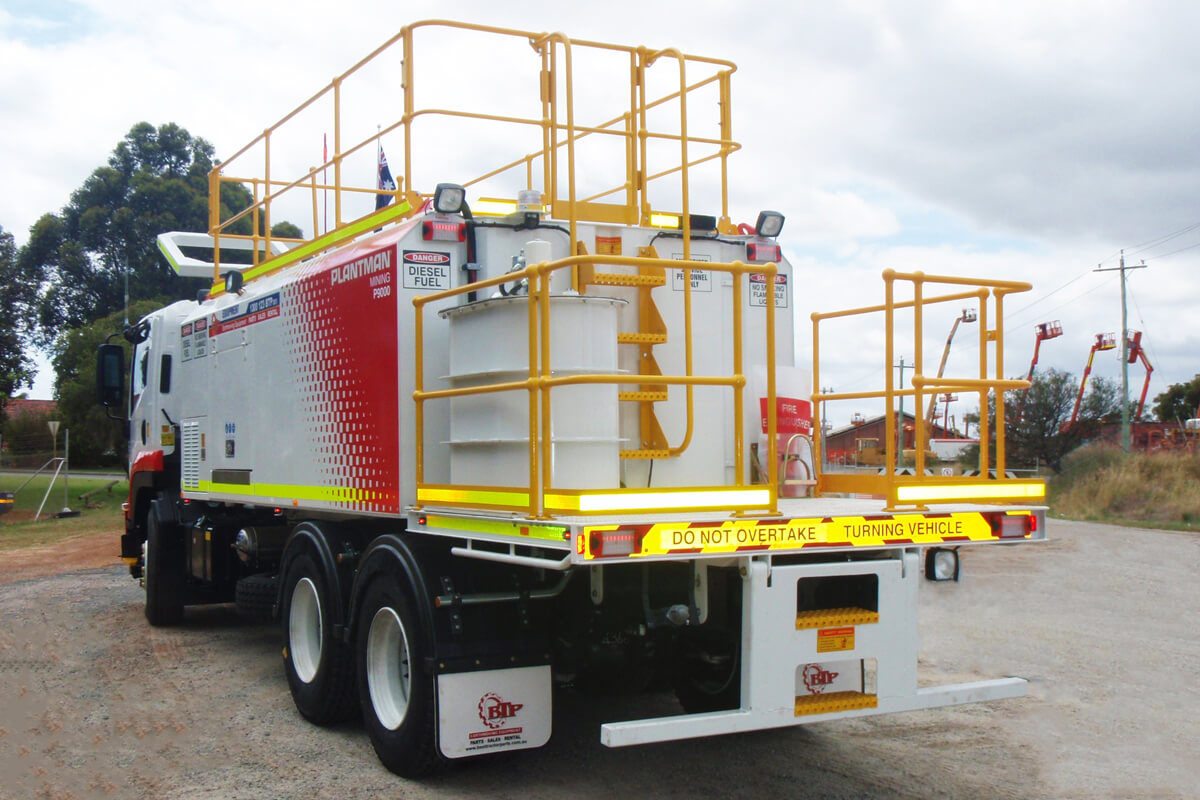

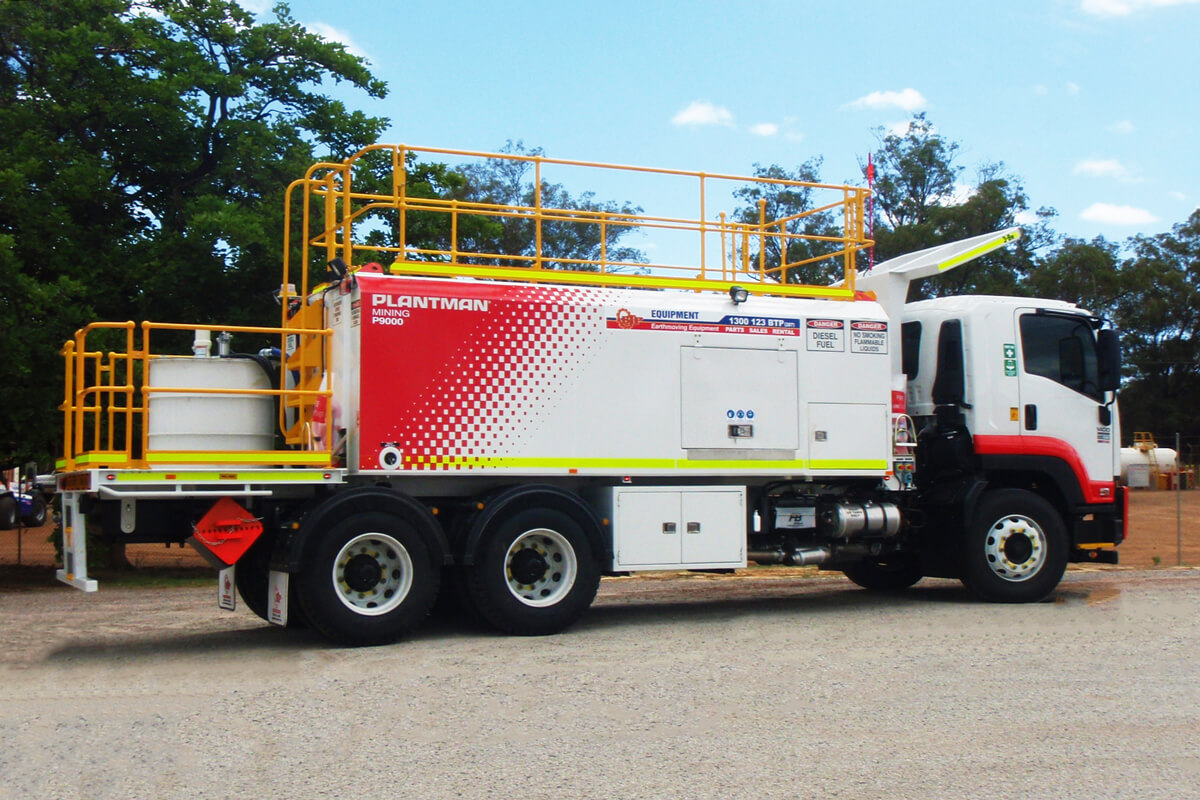

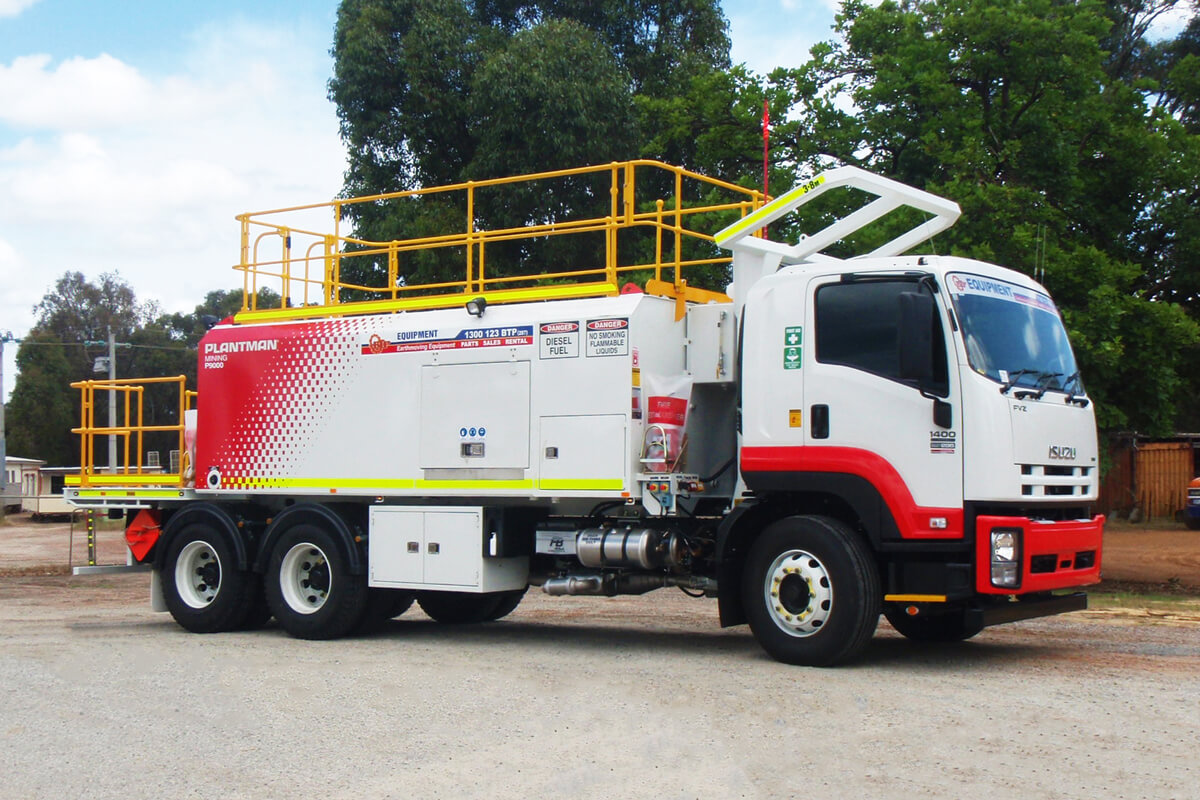

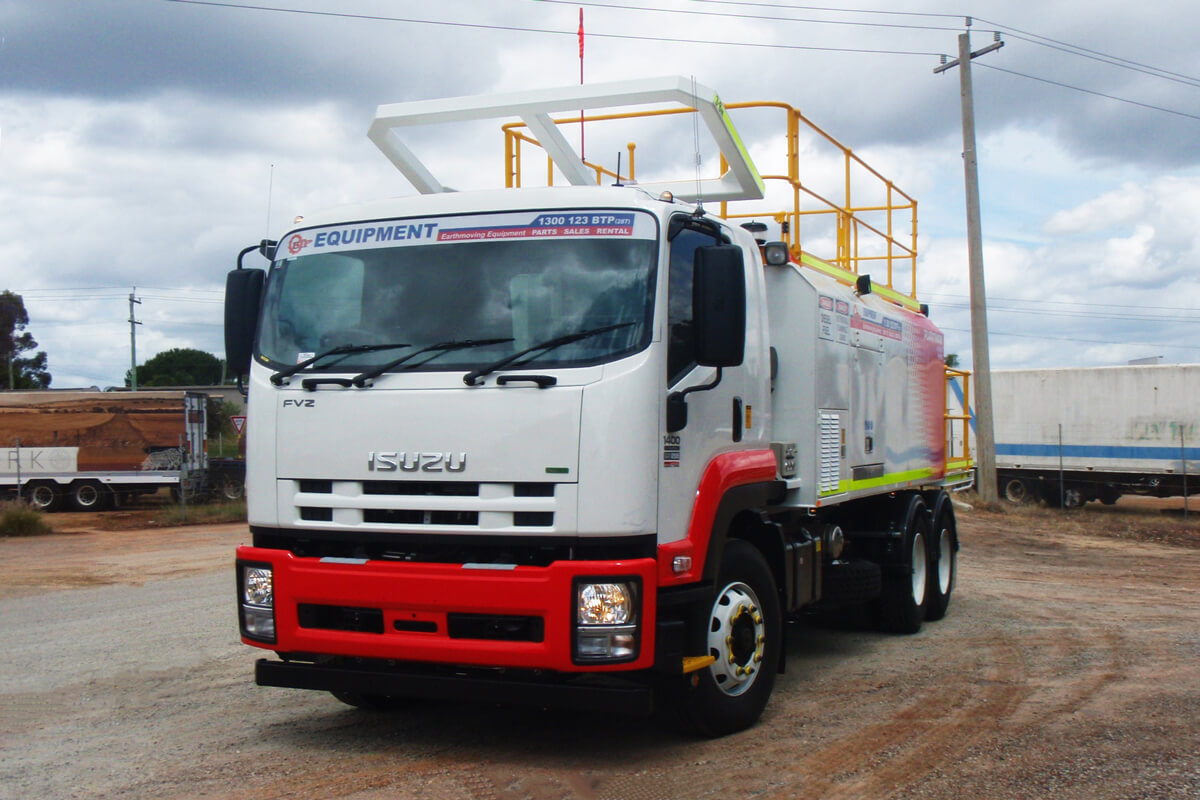

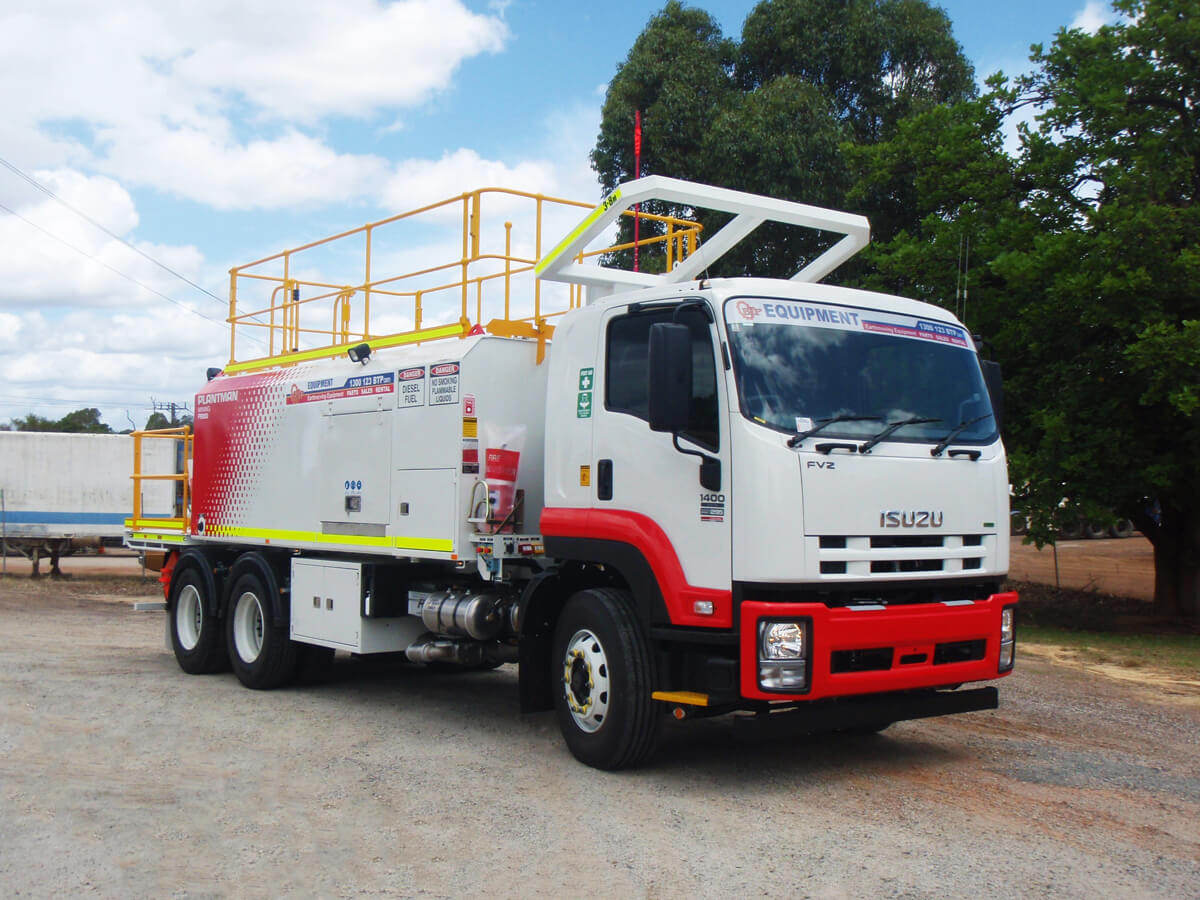

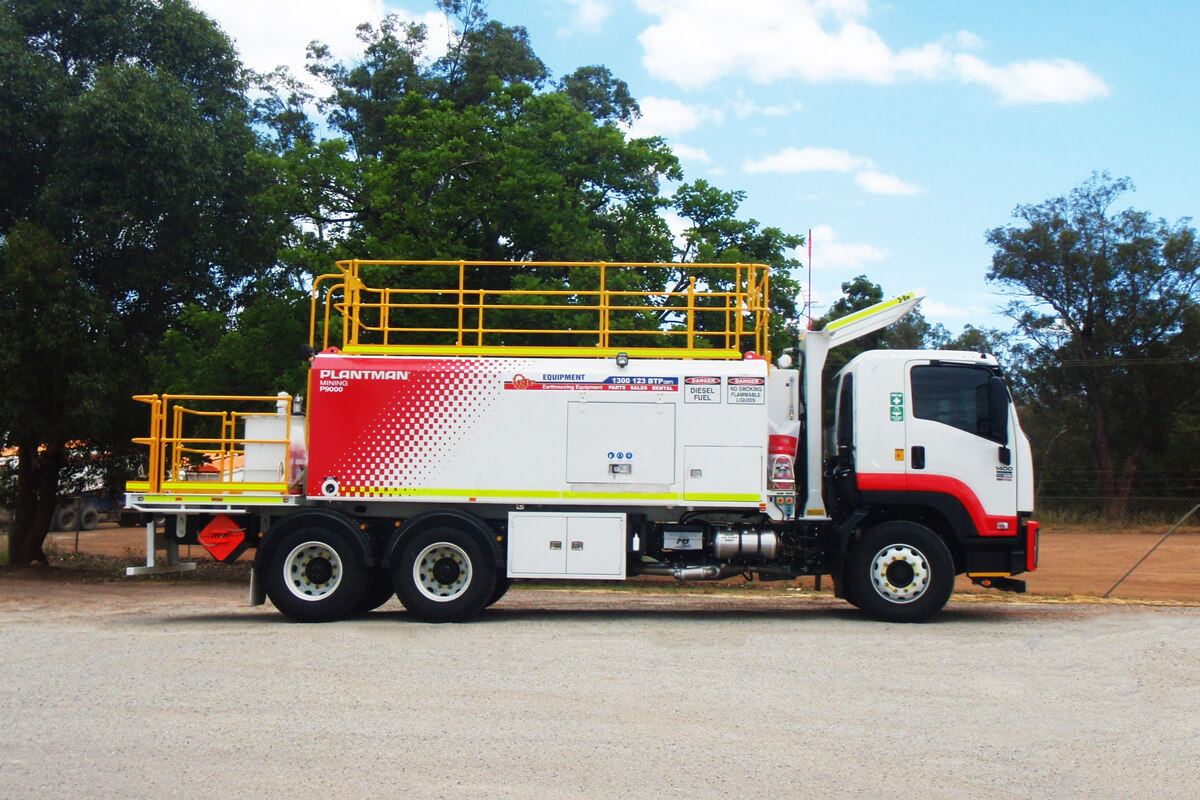

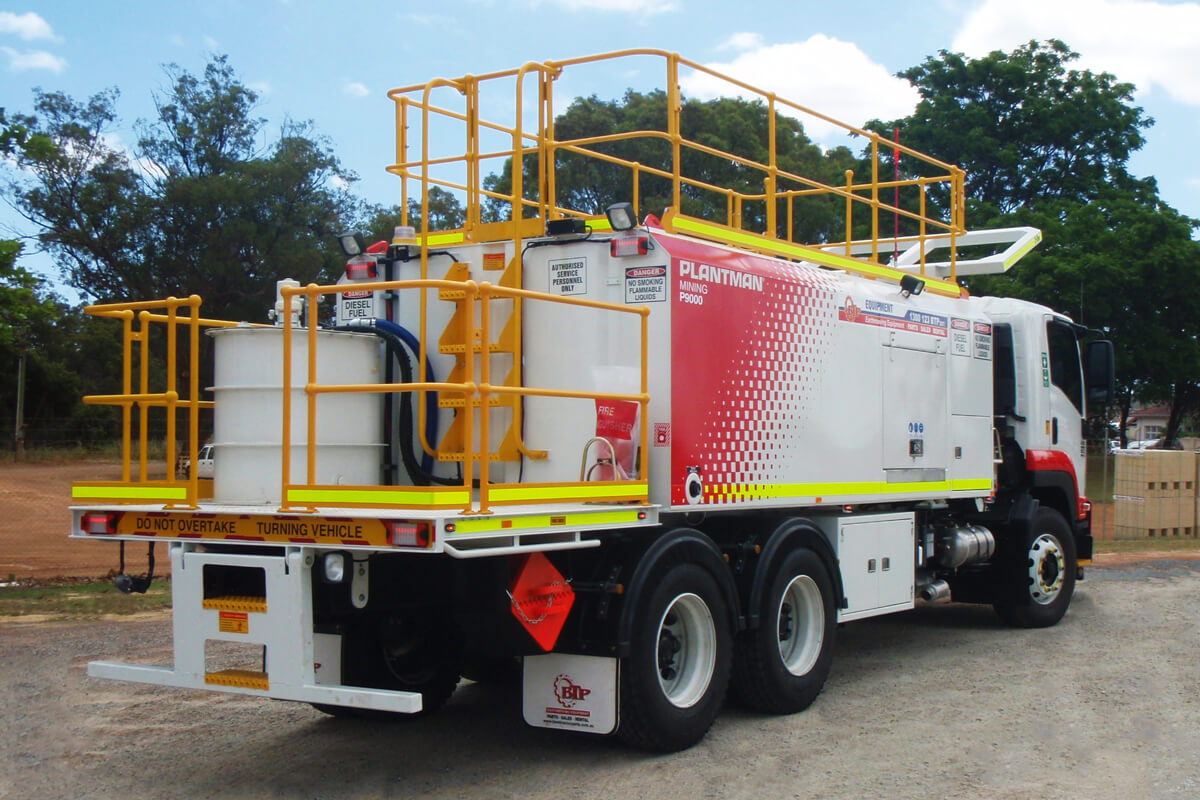

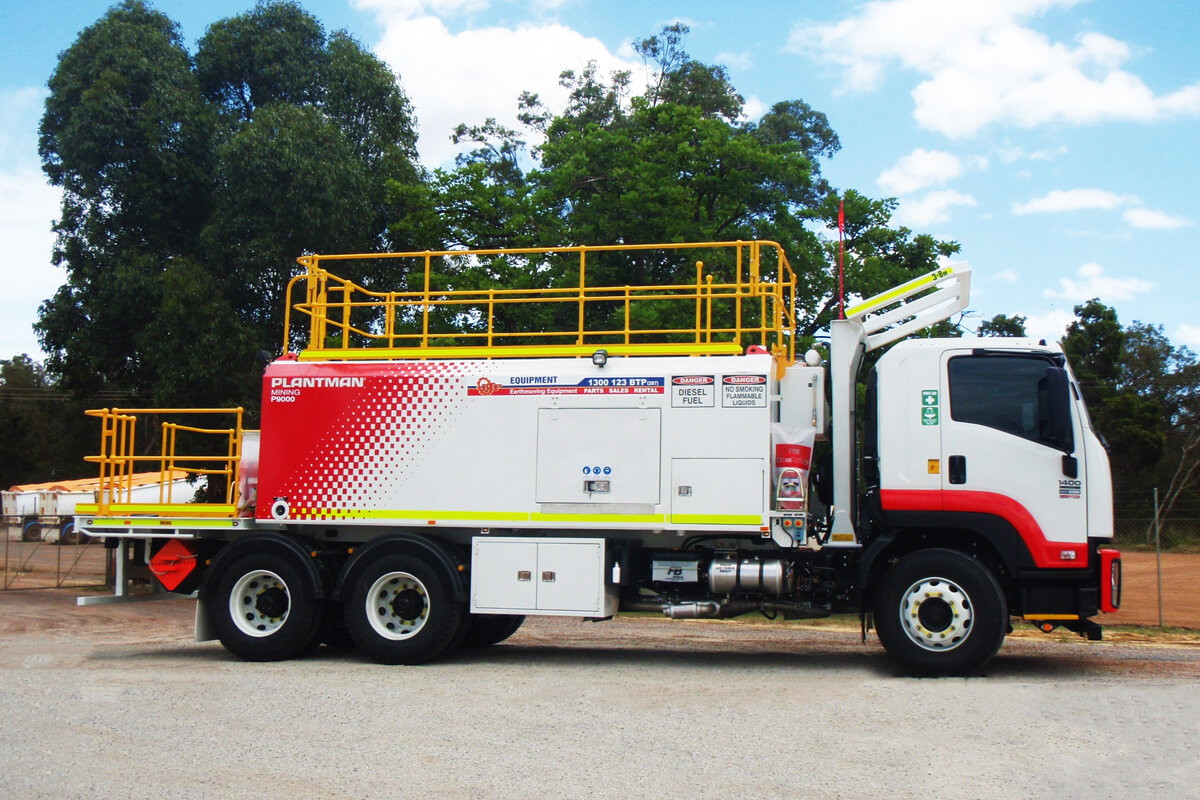

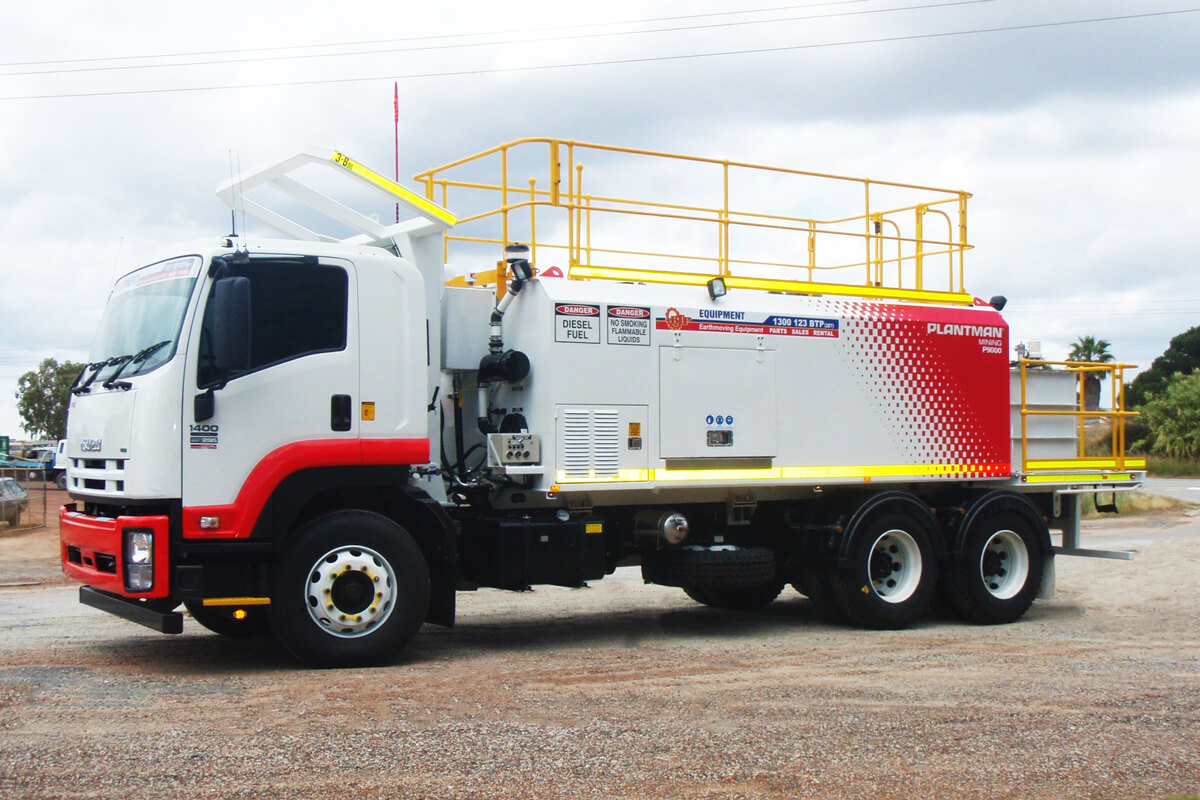

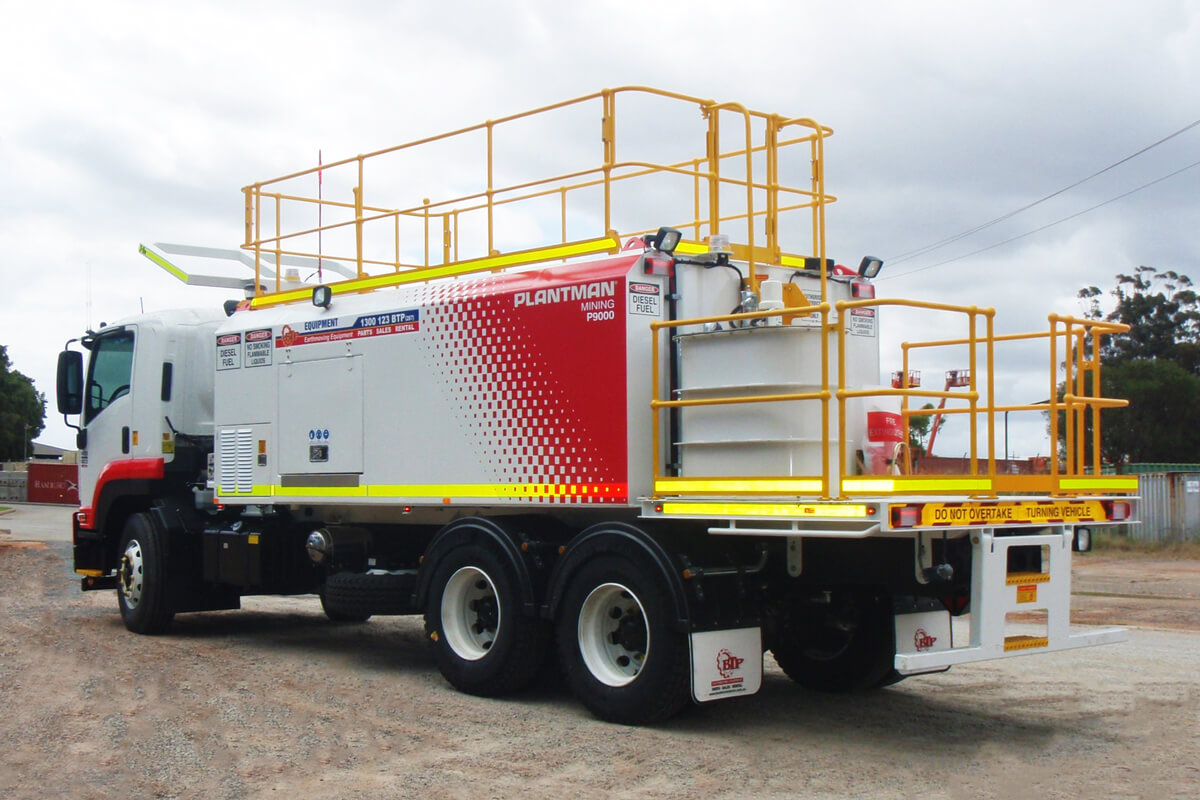

2011 ISUZU FVZ1400 6×4 SERVICE TRUCK P9000

BTP GROUP

INDUSTRY: MINING

LOCATION: PILBARA

TYPE: SERVICE TRUCK

Download Specs
Product Summary

New Heavy-duty chassis-mounted steel, Plantman P9000 compartment service module:

Tank #Tank TypeTank Capacity
No 1Bulk Diesel – Reel, hose, Wiggins fast-fill handpiece9,000 litres
Diesel – Reel, hose, Light Vehicle handpiece
No 2Oil – Reel, hose, handpiece, fast and top fill500 litres
No 3Oil – Reel, hose, handpiece, fast and top fill500 litres
No 4Oil – Reel, hose, handpiece, fast and top fill500 litres
No 5Water – Reel, hose, handpiece, fast and top fill200 litres
No 6Waste – Reel, hose, handpiece, fast and gravity drain500 litres
  • 400kg Bulk grease tank – 2 pumps, reels, hoses, hand piece

BOSS 90CFM Compressor Specifications:

  • Direct Coupled 90 CFM Boss Rotary Compressor
  • Receiver drier
  • 1000kpa deliver pressure maximum
  • Oil separator
  • Cooling via air to oil front mounted cooler
  • Over temperature and load protection system
  • External ground level control system

Plantman P9000 – ISUZU FV1400 6×4 Service Truck P9000 Specifications:

  • 221KW turbo charged & inter cooled 4 cycle diesel engine with exhaust retarder
  • Euro V compliant
  • Allison MD World Series 6 speed automatic transmission
  • Air conditioned high roof cabin
  • ROPS canopy to AS 2294 & ISO 3471.
  • ISRI suspension seat
  • Passenger seat with retractable seat belts
  • AM/FM radio with compact disc player
  • Fabric seats with canvas seat covers
  • Electric windows
  • Remote control door locks
  • East West mirrors & spot mirrors
  • Meritor front & rear axle set with spring front & rear suspension
  • Non asbestos brake linings
  • Air dryer
  • Spring applied emergency & parking brake
  • 11R x 22.5 drive tyres
  • 295/80R x 22.5 steer tyres
  • Rear mounted spare wheel
  • Jack & wheel brace
  • Standard tint laminated windscreen, tropical tinted rear and side windows
  • Safety signage
  • Two way radio wiring and power supply
  • 2 x 9kg fire extinguishers
  • Auxiliary lighting
  • Reverse alarm
  • Roof mounted amber rotating beacon
  • Lockable isolator
  • Jump start receptacle
  • Service meter
  • Passed road worthy for Western Australia
  • High pressure grease system
  • Safety signage, 1x PIUSI Digital fuel meter and 3 x Digital Oil Meters
  • All pumps are fully enclosed inside RHS pump cabinet
  • Hose reels are mounted RHS front
  • All systems are air operated
  • Amber rotating beacon and six (6) service lights
  • Polymer lined water & coolant tanks
  • Polymer lined waste oil tank
  • Top safety rails and steps
  • Enclosed steel pipe reticulation lines
  • Lockable start isolators to truck and air compressor
  • 2″ double diaphragm diesel delivery pump
Read More
Product Specifications
Axles 6x4
Capacity 9000L
Make ISUZU
Type Service Truck
