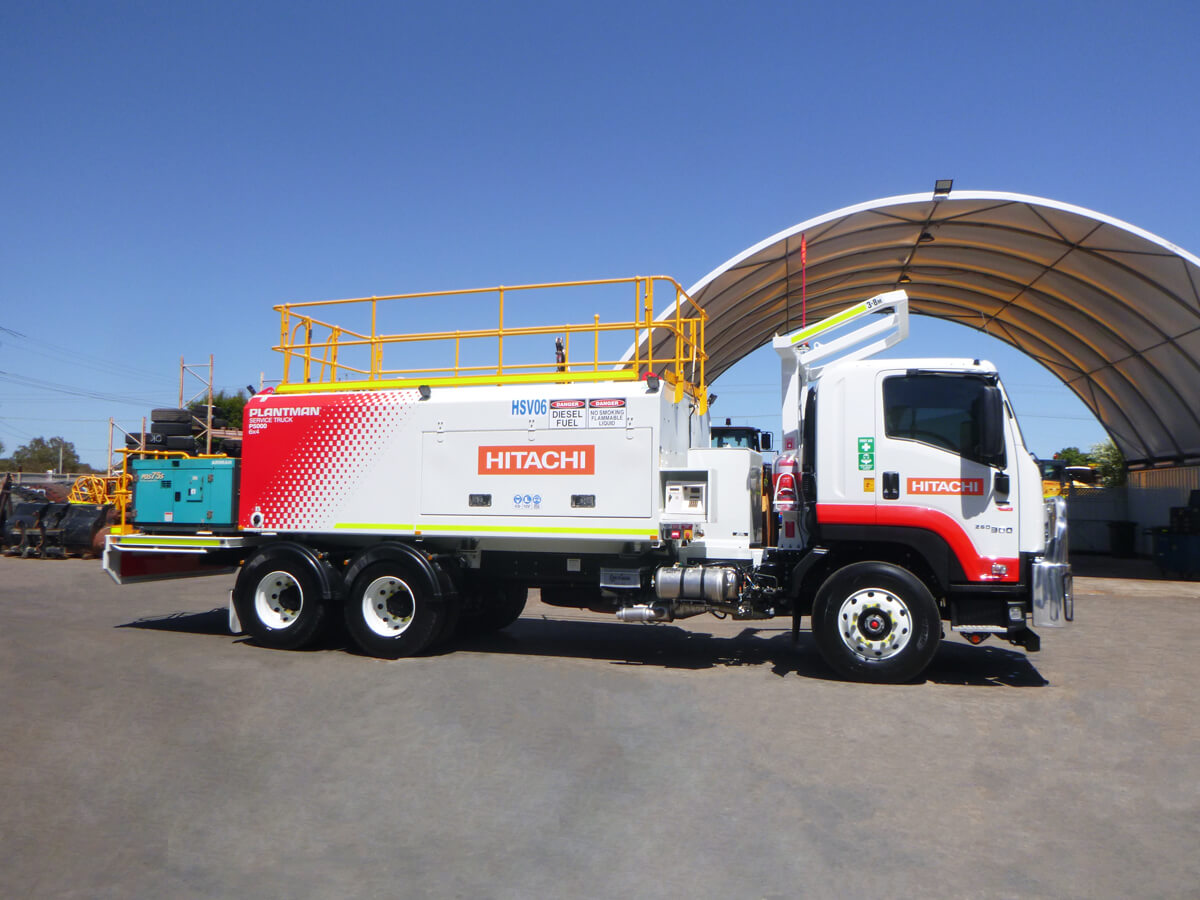

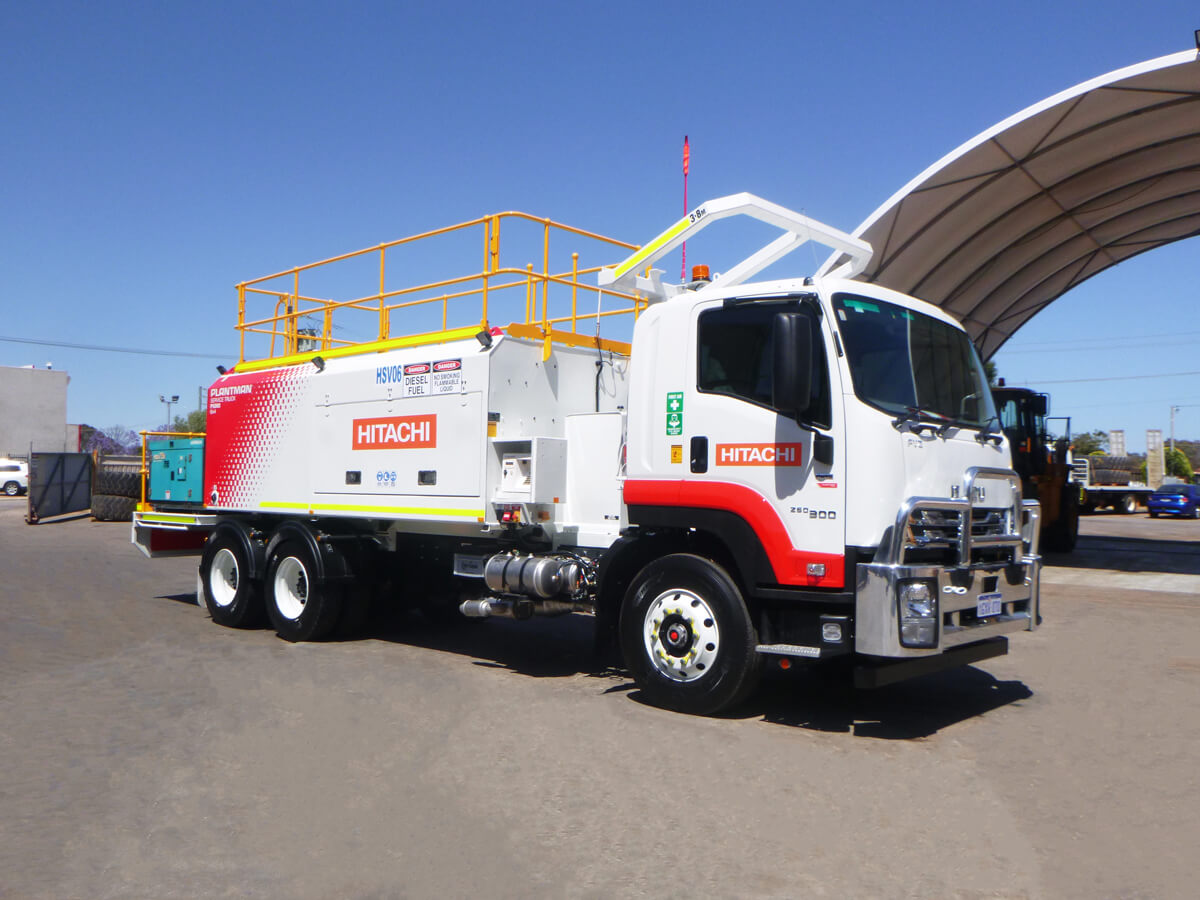

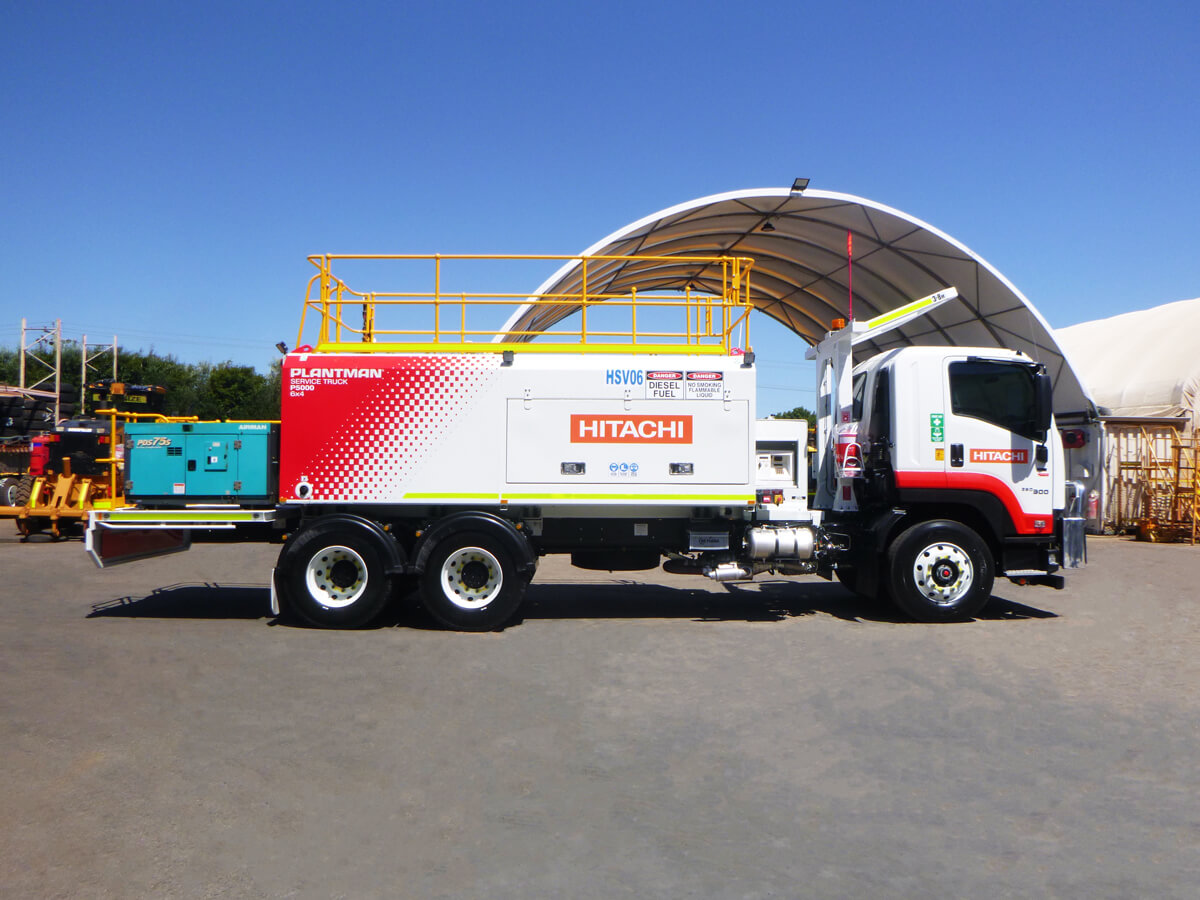

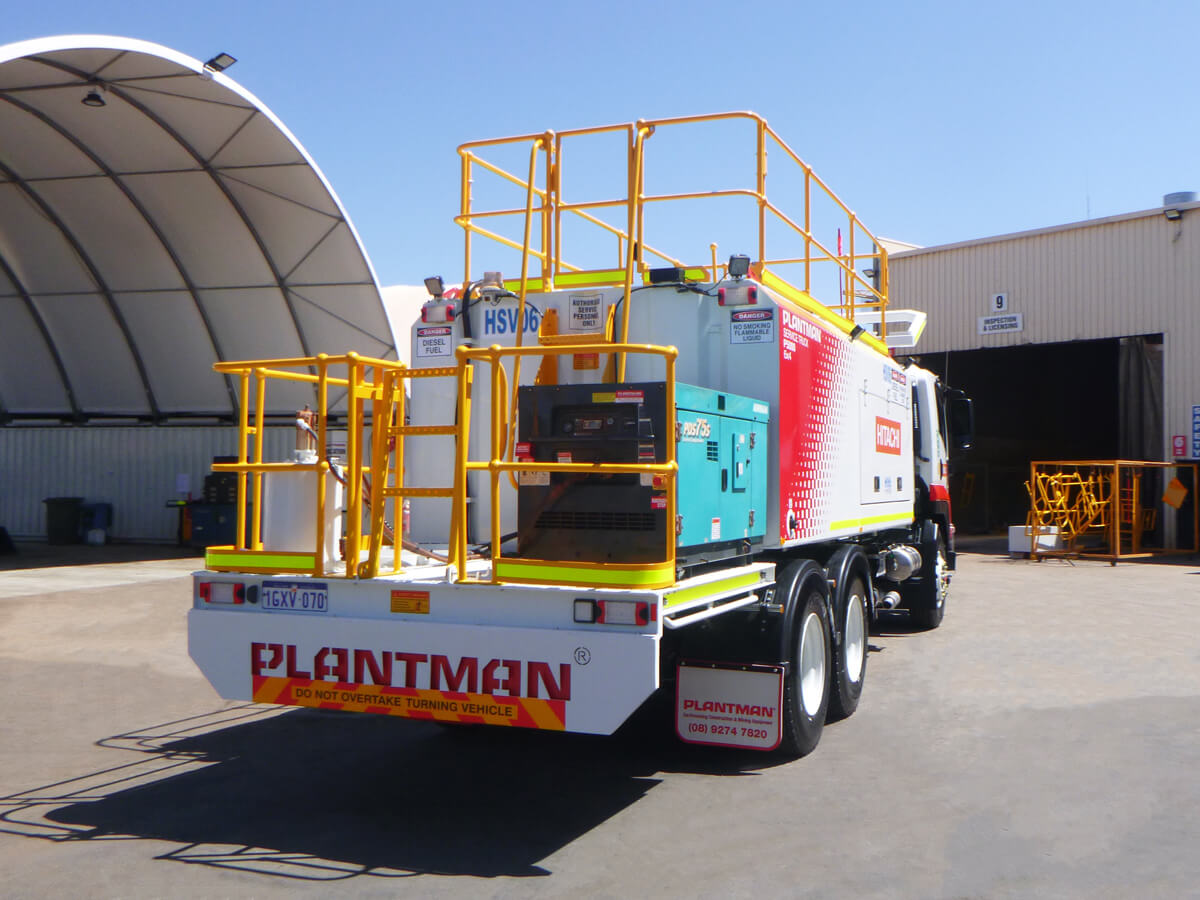

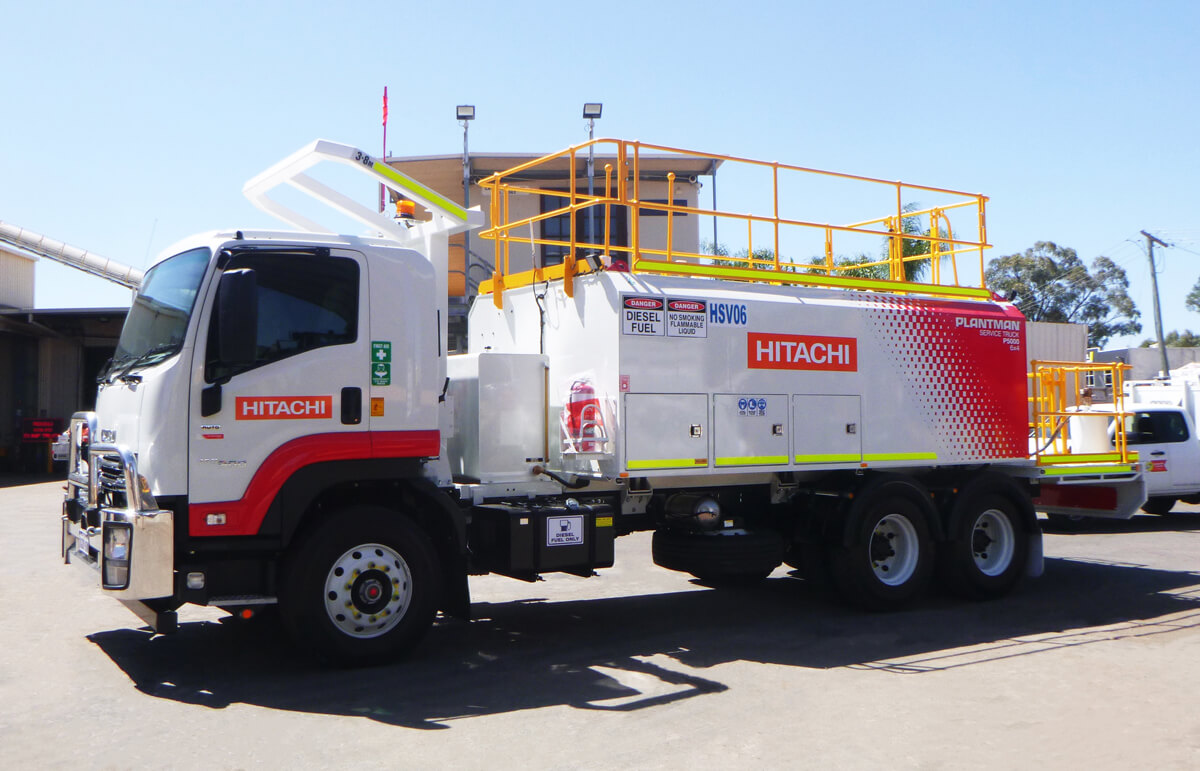

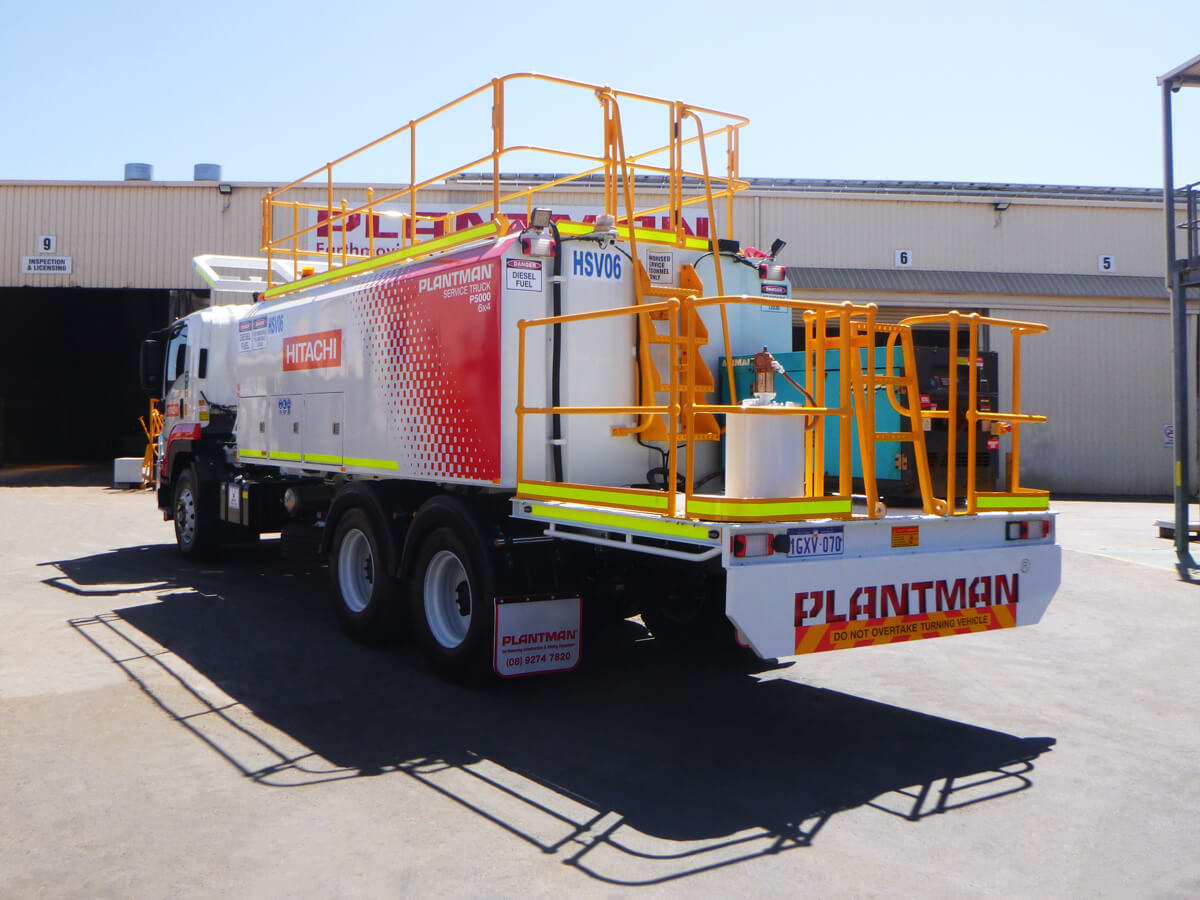

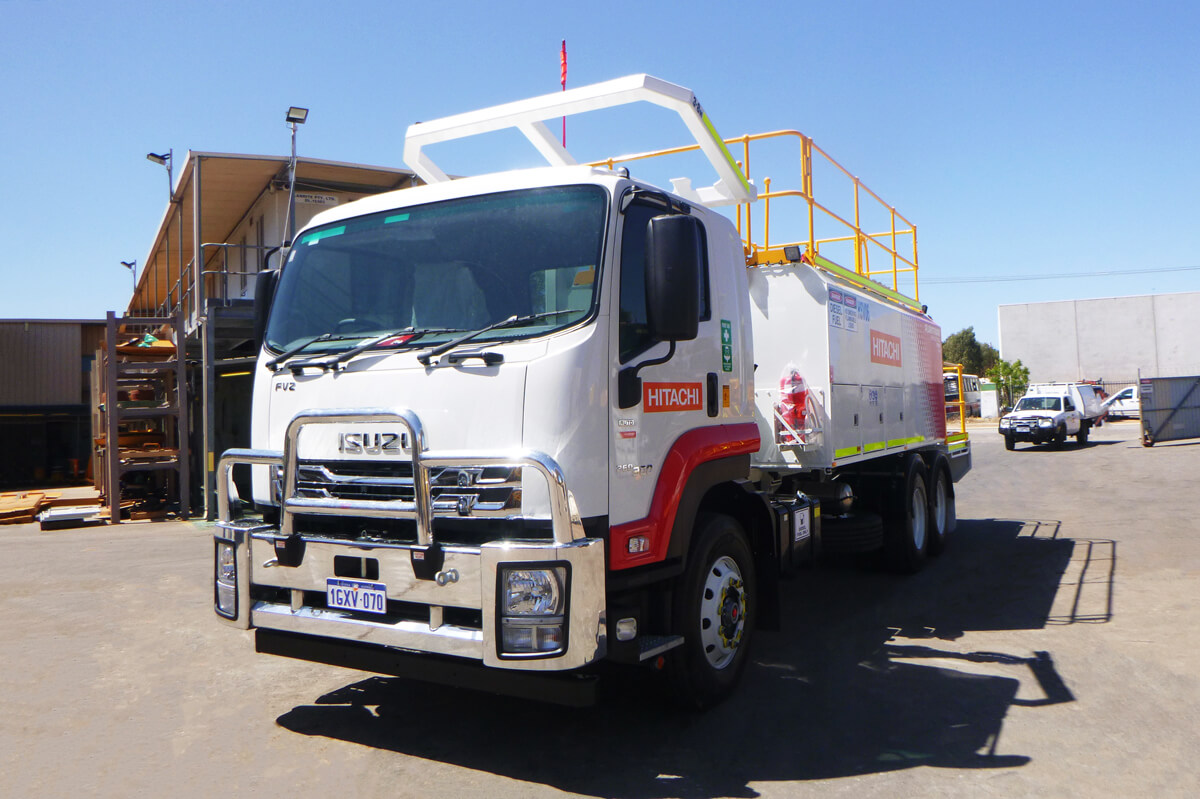

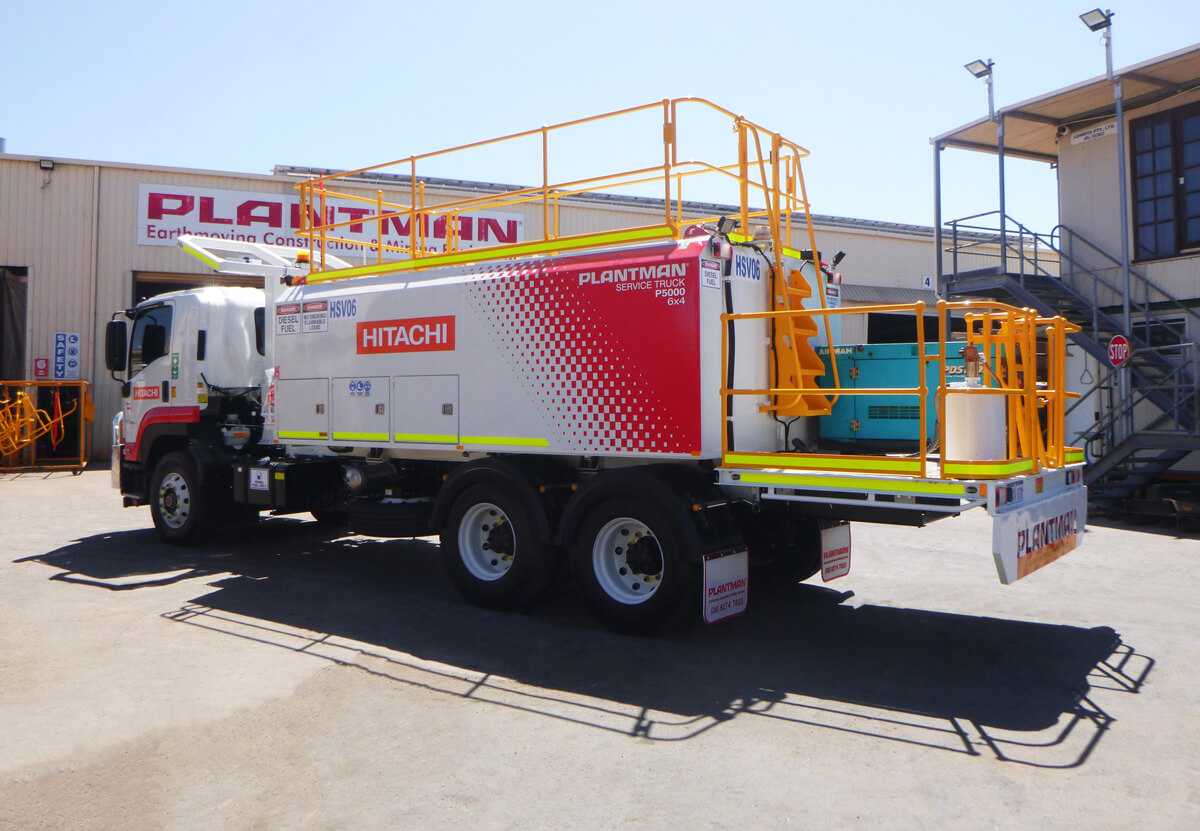

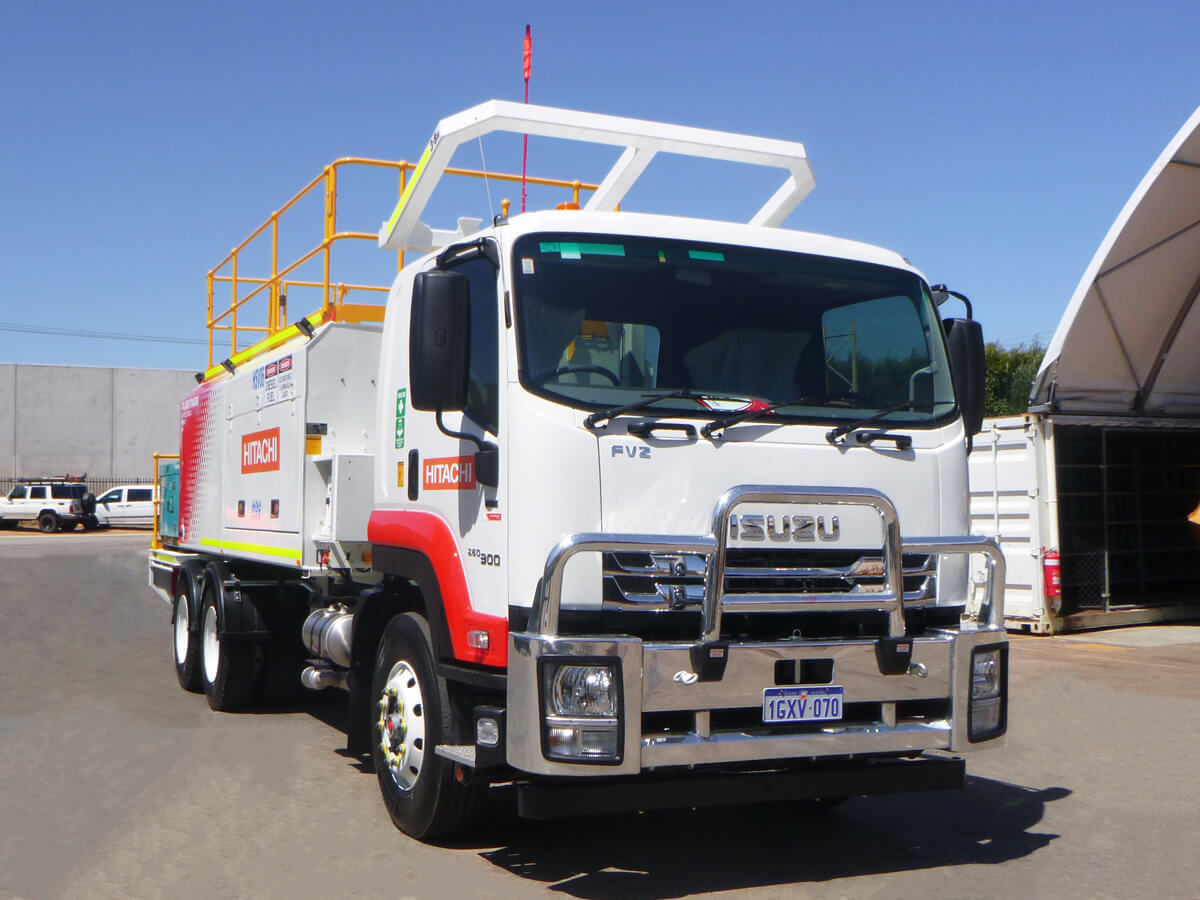

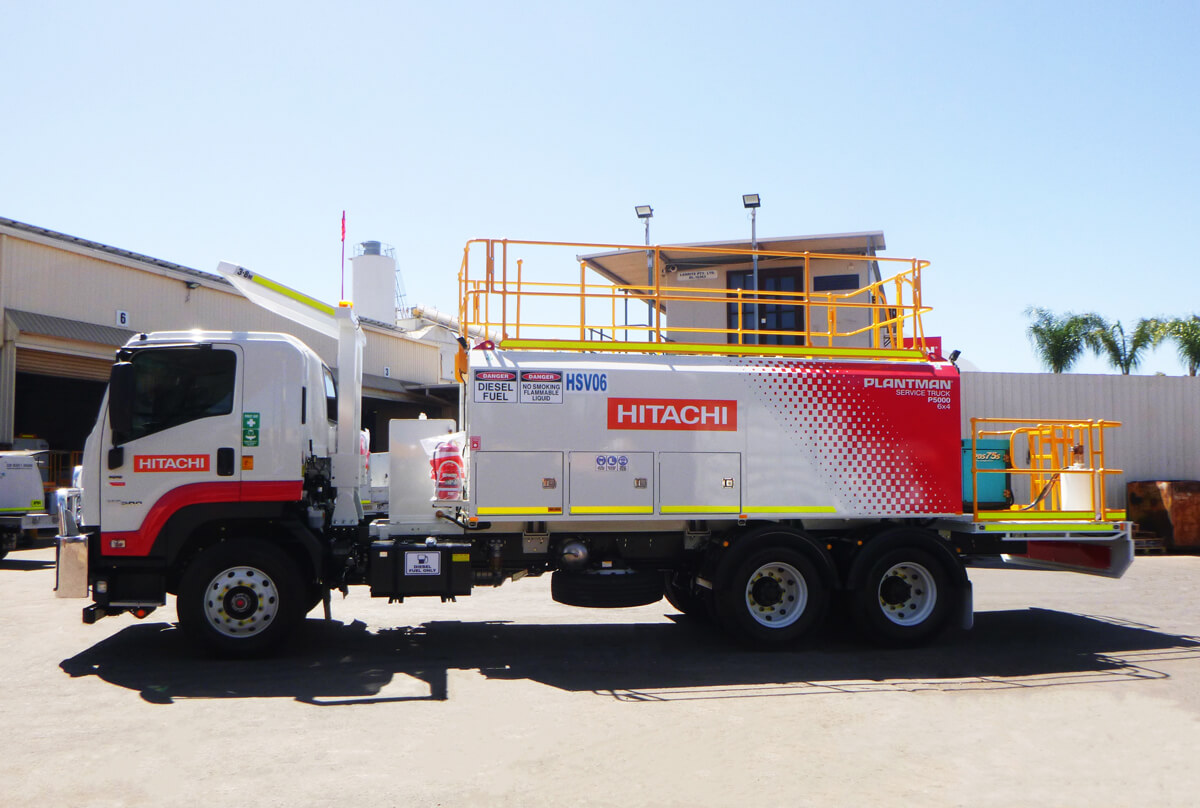

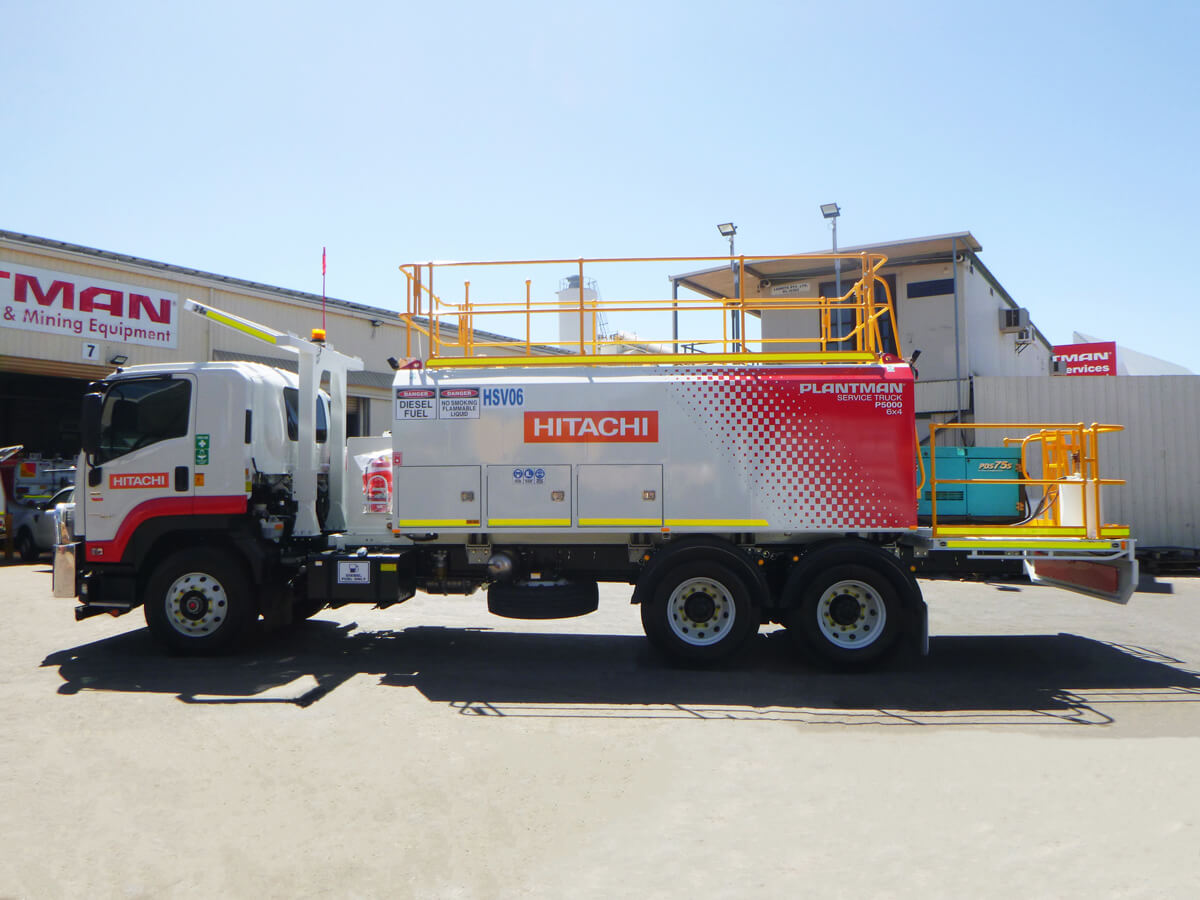

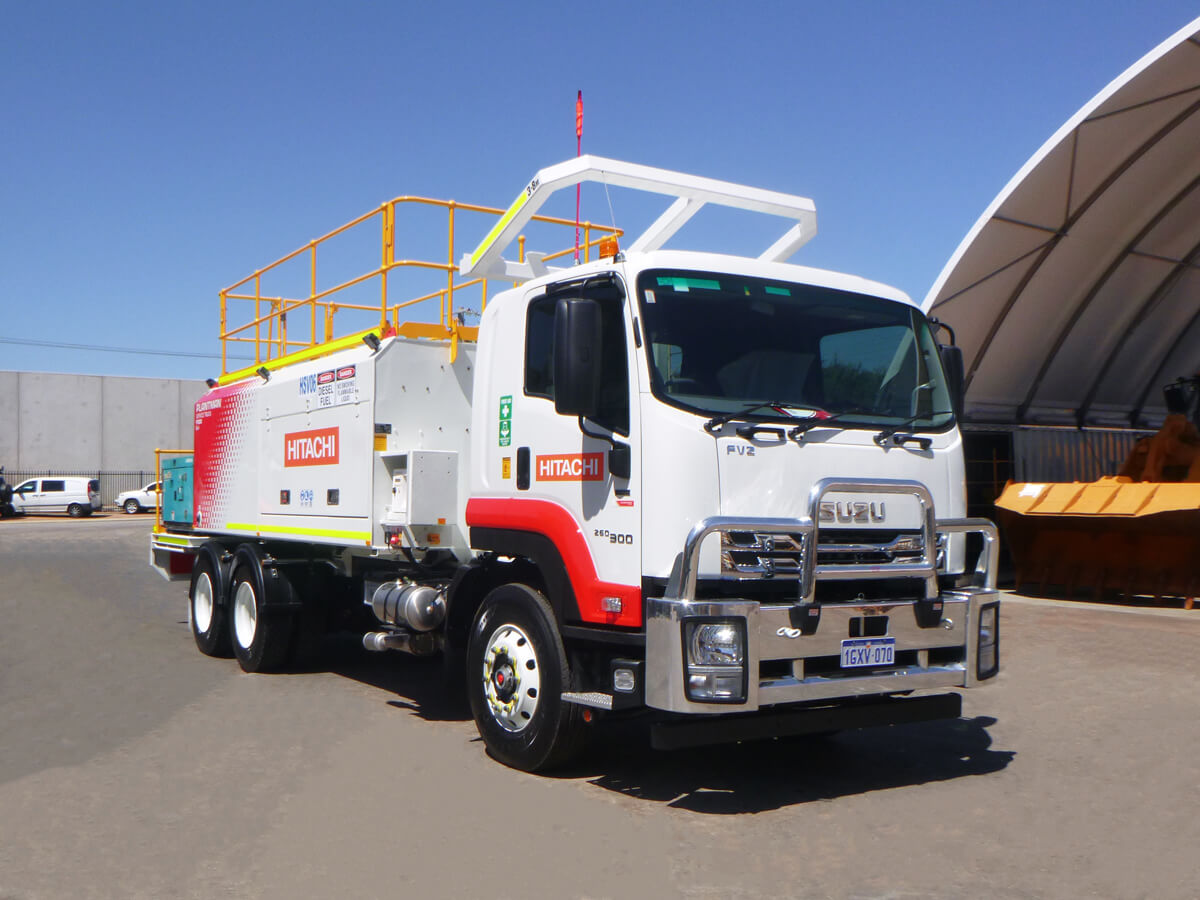

2019 ISUZU FVZ260-300 6×4 SERVICE TRUCK P5000

HITACHI CONSTRUCTION

INDUSTRY: MINING

LOCATION: PILBARA

TYPE: SERVICE TRUCK

Download Specs
Product Summary

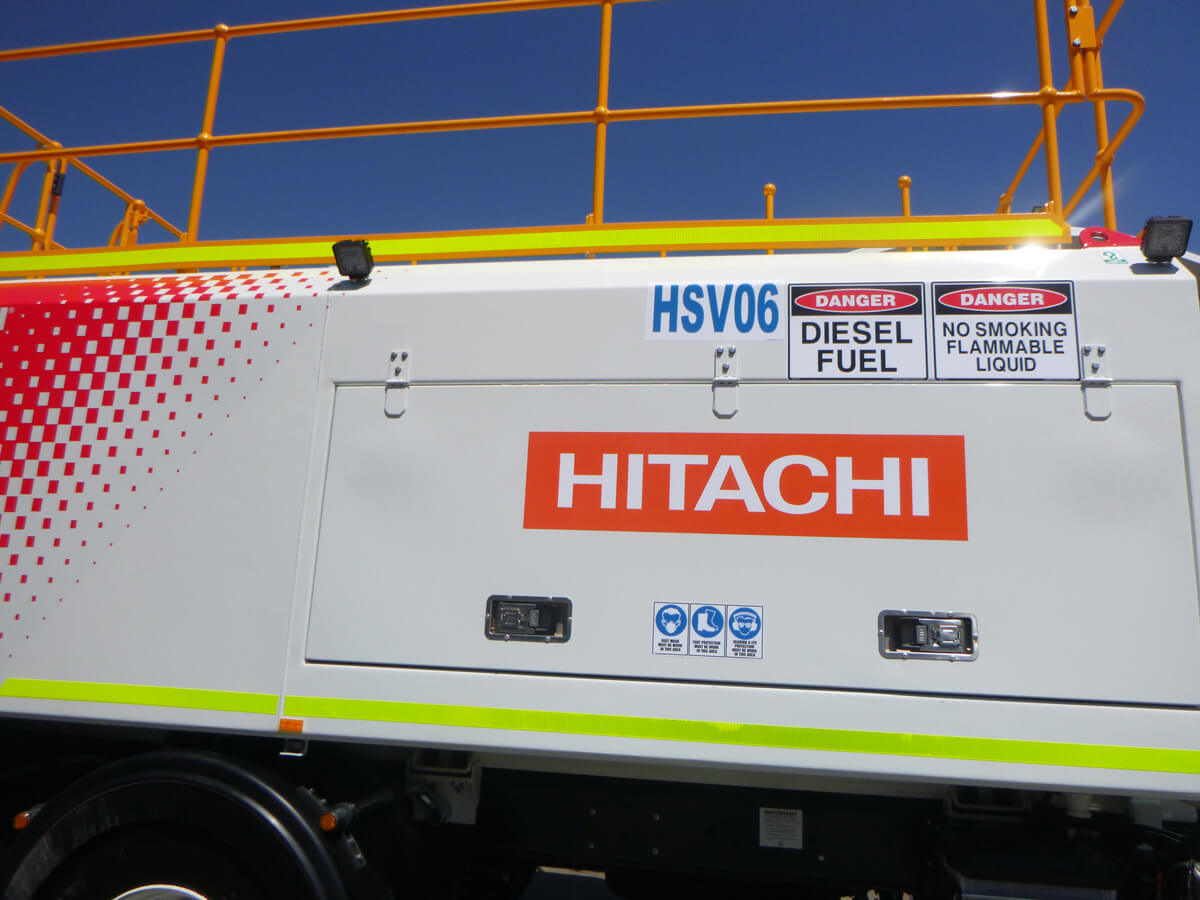

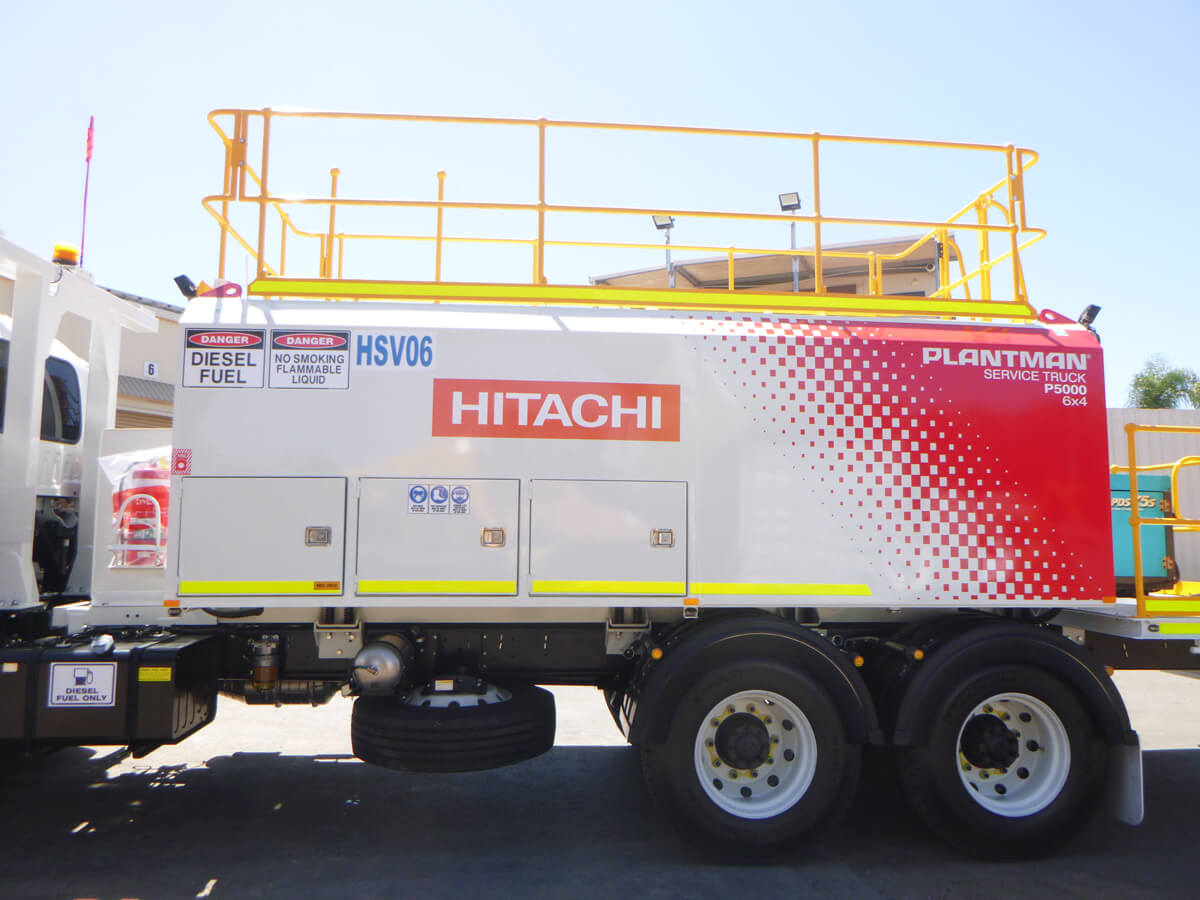

New Heavy-duty chassis-mounted steel, Plantman P5000 compartment service module:

Tank #Tank TypeTank Capacity
No 1Bulk diesel – 1.5″ Wiggins fast-fill gun. Spring retractable reel, 15m hose, 2″ diesel double diaphragm6,000 litres
L/V 1.0″ spring retractable reel, 15m hose, 1.0″ standard nozzle auto shut off handpiece
No 2Oil – Engine 3/4″ spring retractable reel, 15m hose, manual handpiece700 litres
No 3Oil – Transmission 3/4″ spring retractable reel, 15m hose, manual handpiece700 litres
No 4 & 5Oil – Hydraulic 3/4″ spring retractable reel, 15m hose, manual handpiece1,400 litres
No 6 & 7Oil – Waster 1″ spring retractable reel, 15m hose, manual handpiece, fast and gravity drain, Graco 4 way valve for evac1,400 litres
No 8Coolant or Water 1/2″ spring retractable reel, 15m hose, manual handpiece700 litres
  • 180kg Grease drum kit (replaceable drum) with HP pump, spring retractable reel & 15m hose

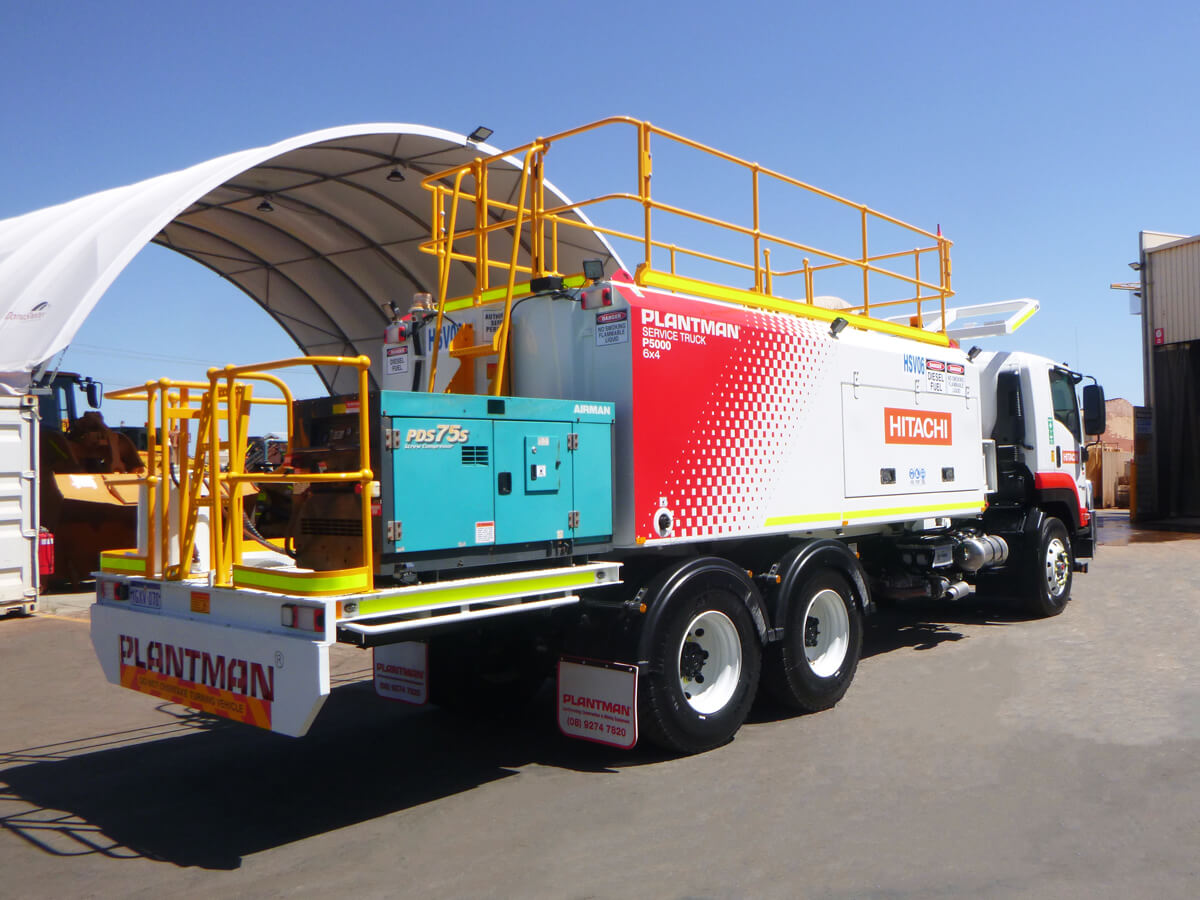

Airman Air Compressor 75PDS Specifications:

  • Automatic Shutdown and warning system
  • Key Start lock
  • Donaldson air cleaner system
  • Receiver Dryer
  • Automatic Lubricator

Plantman P5000 – ISUZU FVZ260-300 6×4 Service Truck P5000 Specifications:

  • Supply & Fit Certified ROPS
  • Supply & Fit Alloy Bull Bar
  • North West Window Tint
  • OE Rubber Floor Mats
  • New Canvas Seat Covers
  • Jack & Brace
  • Wheel Nut Indicators
  • Safety Triangle Kit
  • Wheel Chocks
  • Two Way Radio GME TX3500
  • Upgraded Reverse Alarm & Speaker
  • ROPS mounted Amber LED Beacon
  • Headlights on with Ignition
  • Lockable Battery & Starter Isolator – Truck
  • 24v Jump Start Receptacle – Truck
  • High Mount Flag with Light in top
  • 1 x E-Stop in truck cabin
  • 1 x E-Stop external
  • Reverse Camera
  • Module to Truck Mine Specification Wiring Harness for all electrical components
  • 2 x 9kg Fire Extinguishers
  • Supply Module, Coolant Tank & Rear Tray Mounts
  • Mount Module, Coolant Tank & Rear Tray to chassis
  • VSB plate for licensing
  • Weighbridge, Pit Passed ready for WA Licensing.
Read More
Product Specifications
Axles 6x4
Capacity 6000L
Make ISUZU
Type Service Truck
