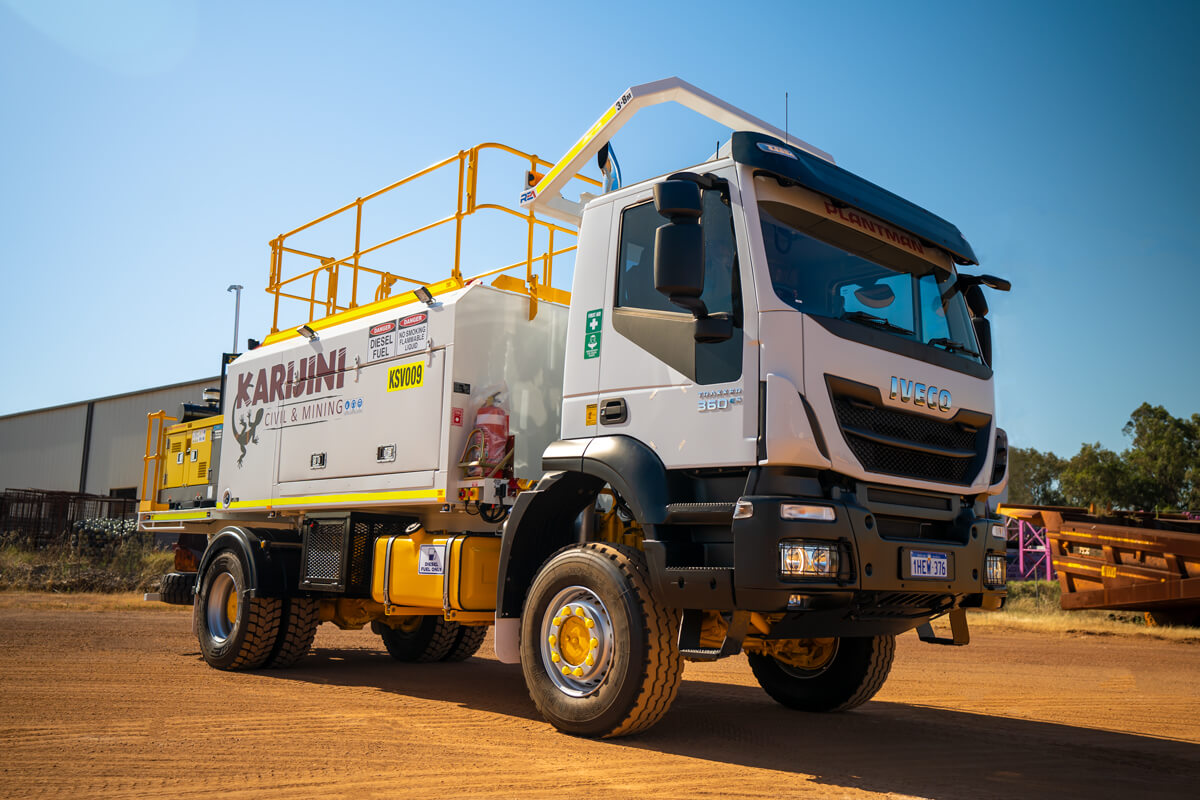

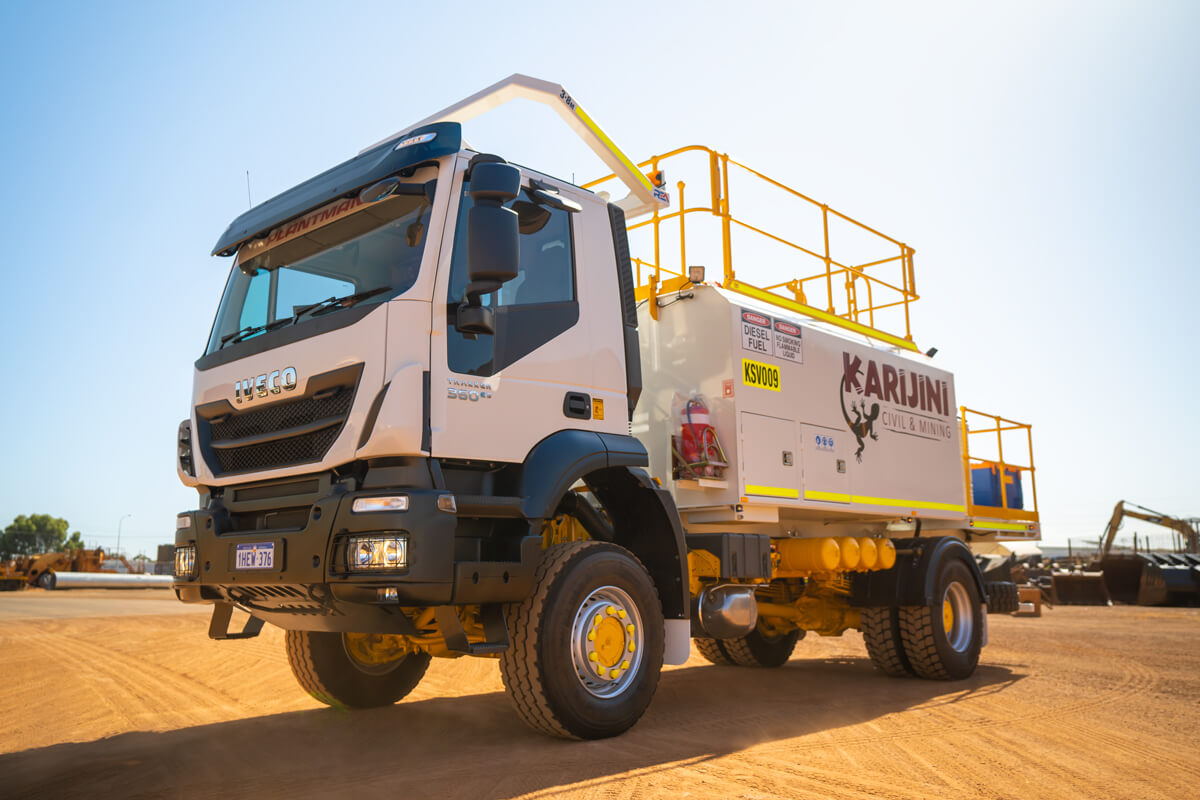

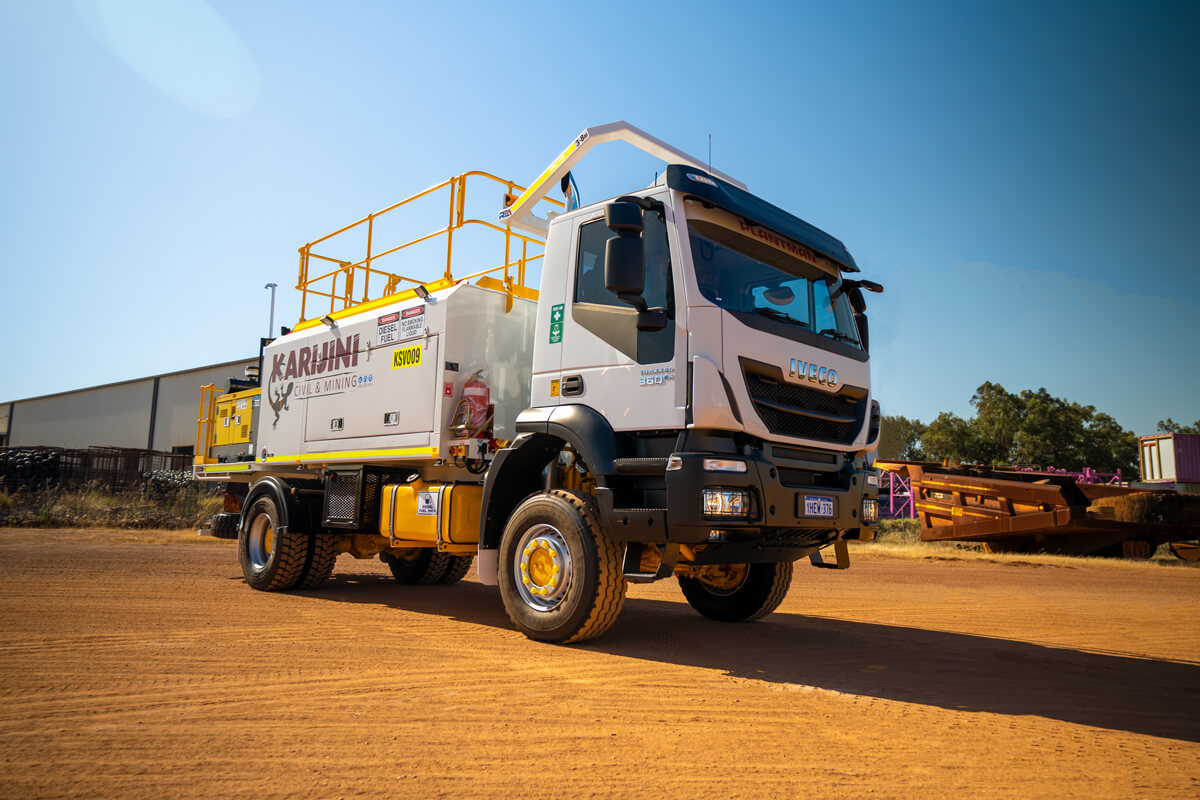

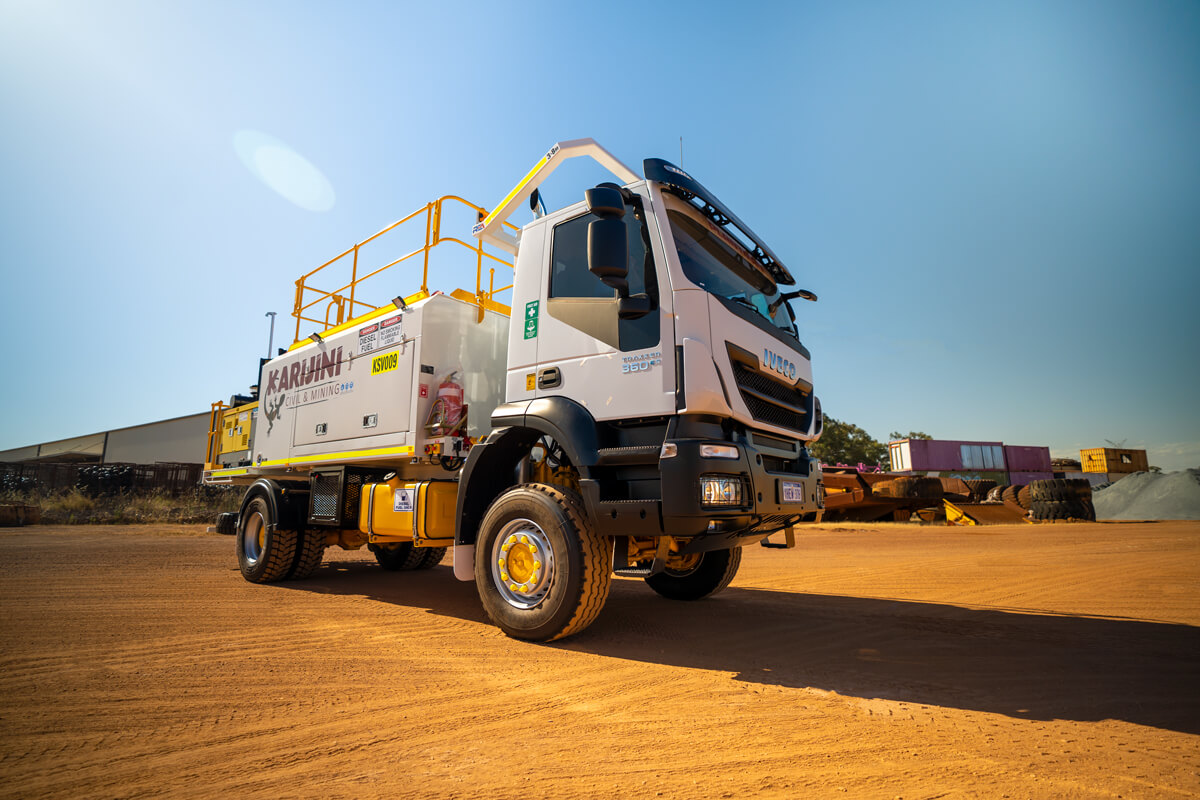

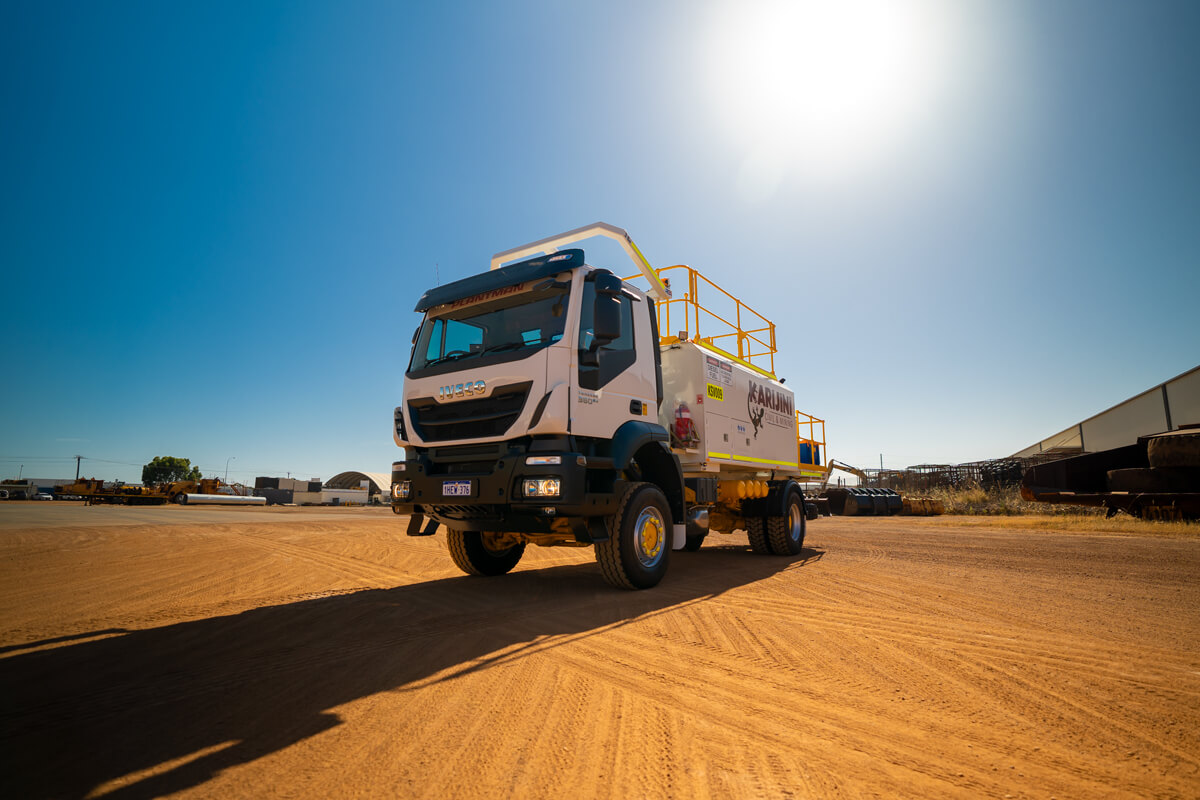

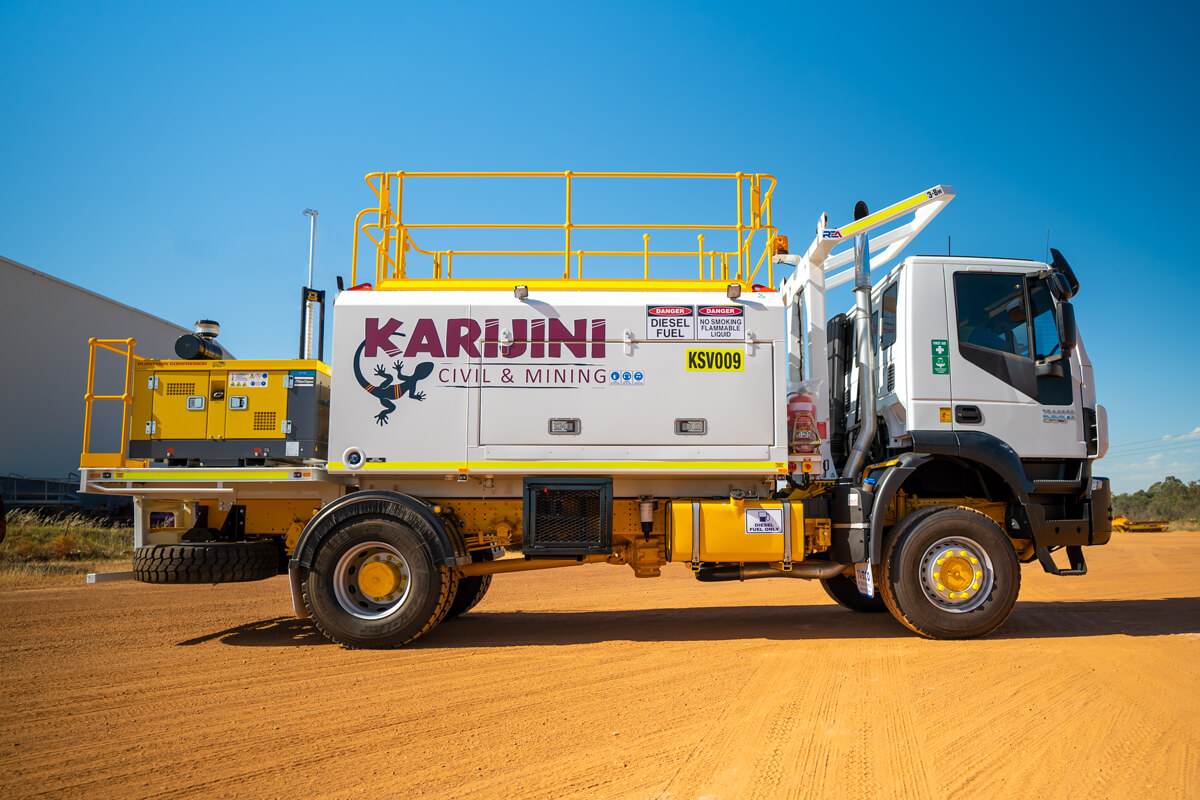

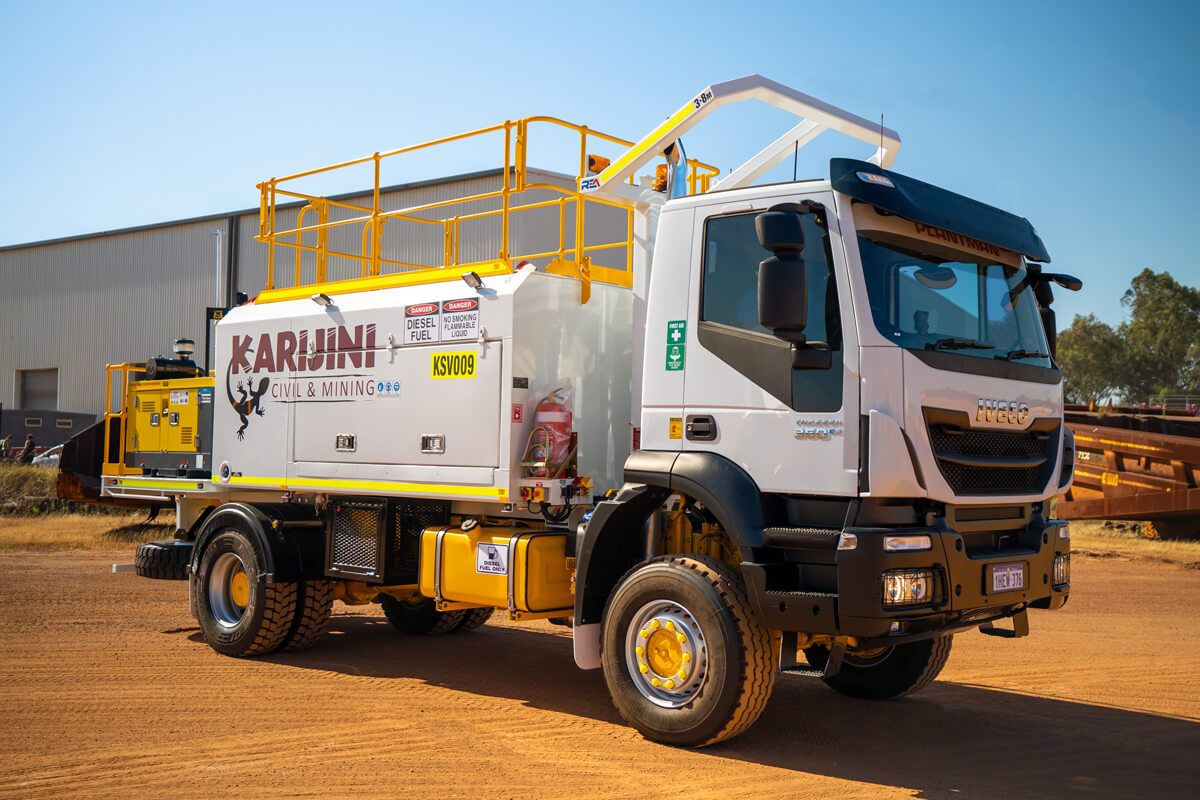

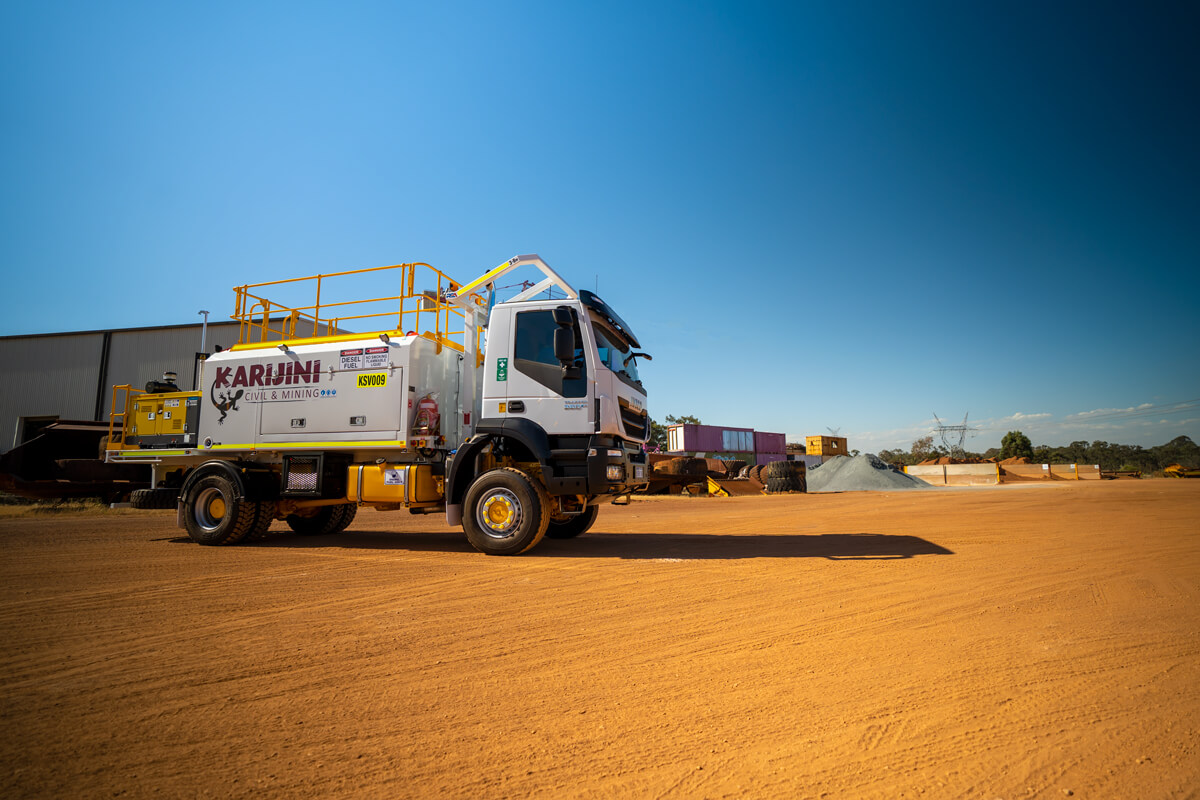

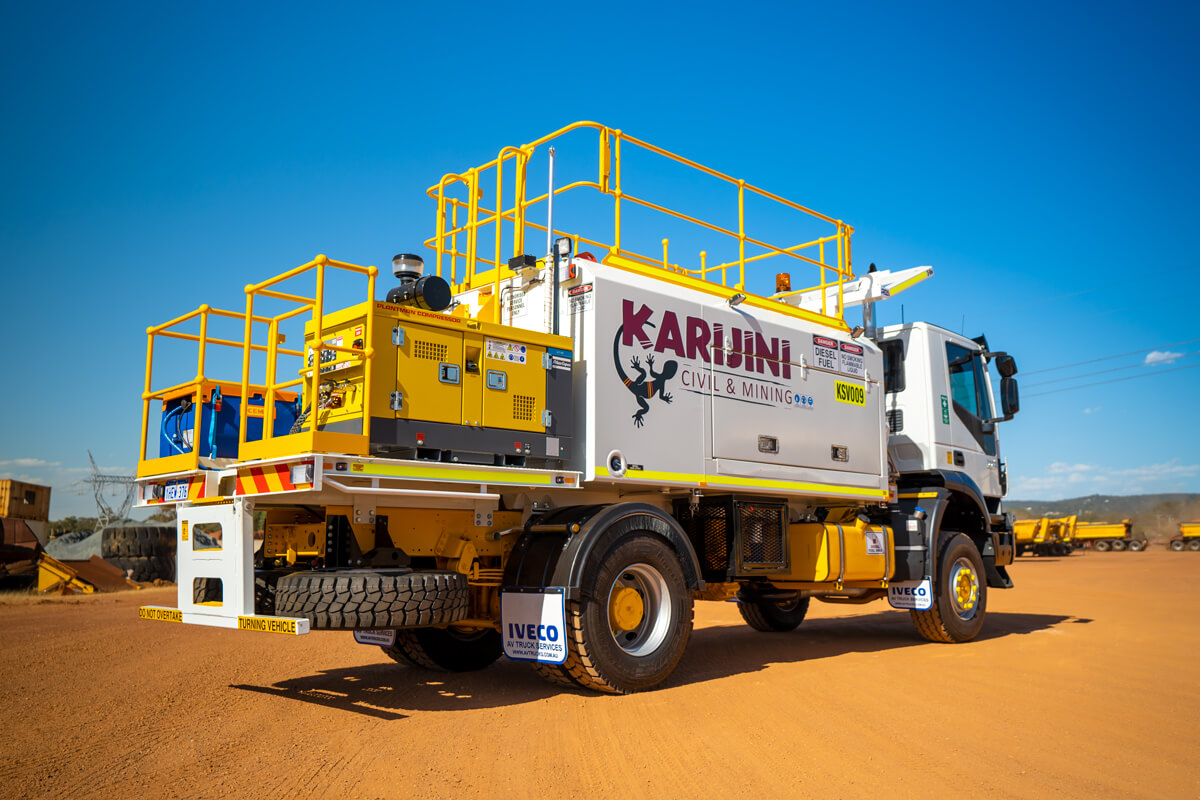

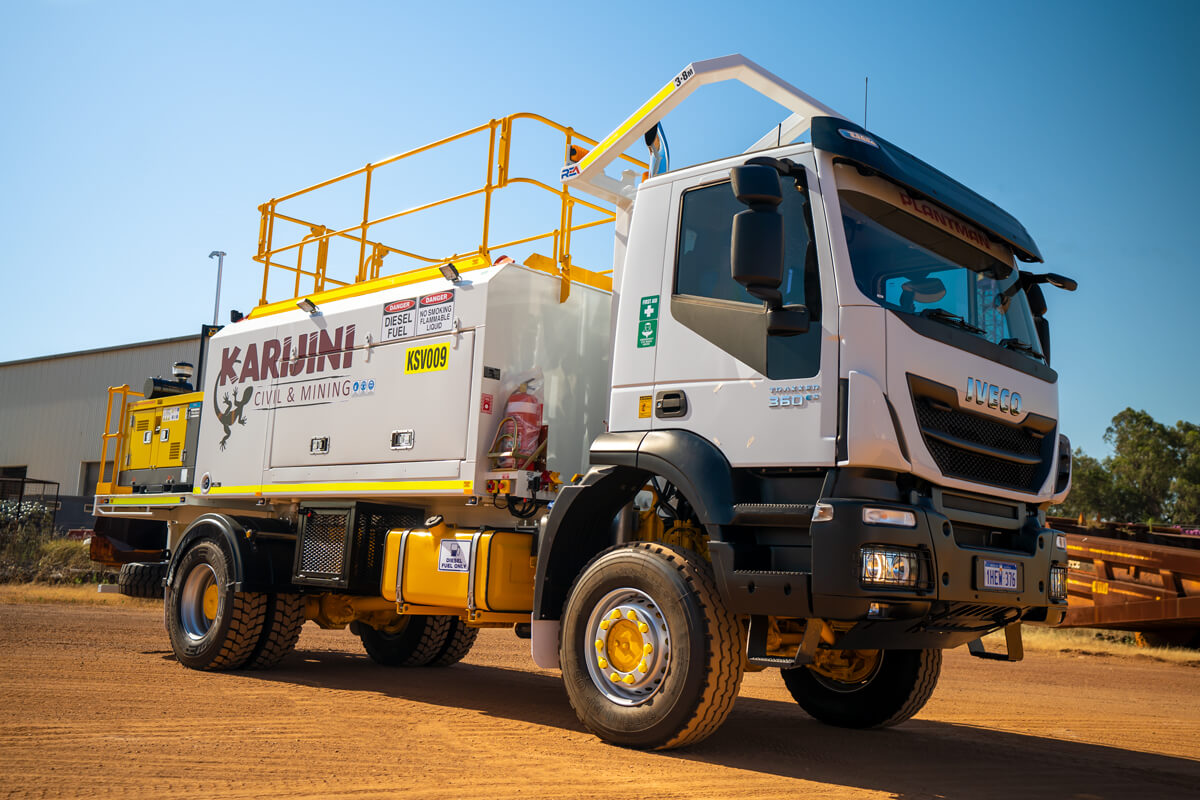

2021 IVECO TRAKKER 4×4 SERVICE TRUCK P3500

YOUNGS EARTHMOVING

INDUSTRY: MINING

LOCATION: PILBARA

TYPE: SERVICE TRUCK

Download Specs
Product Summary

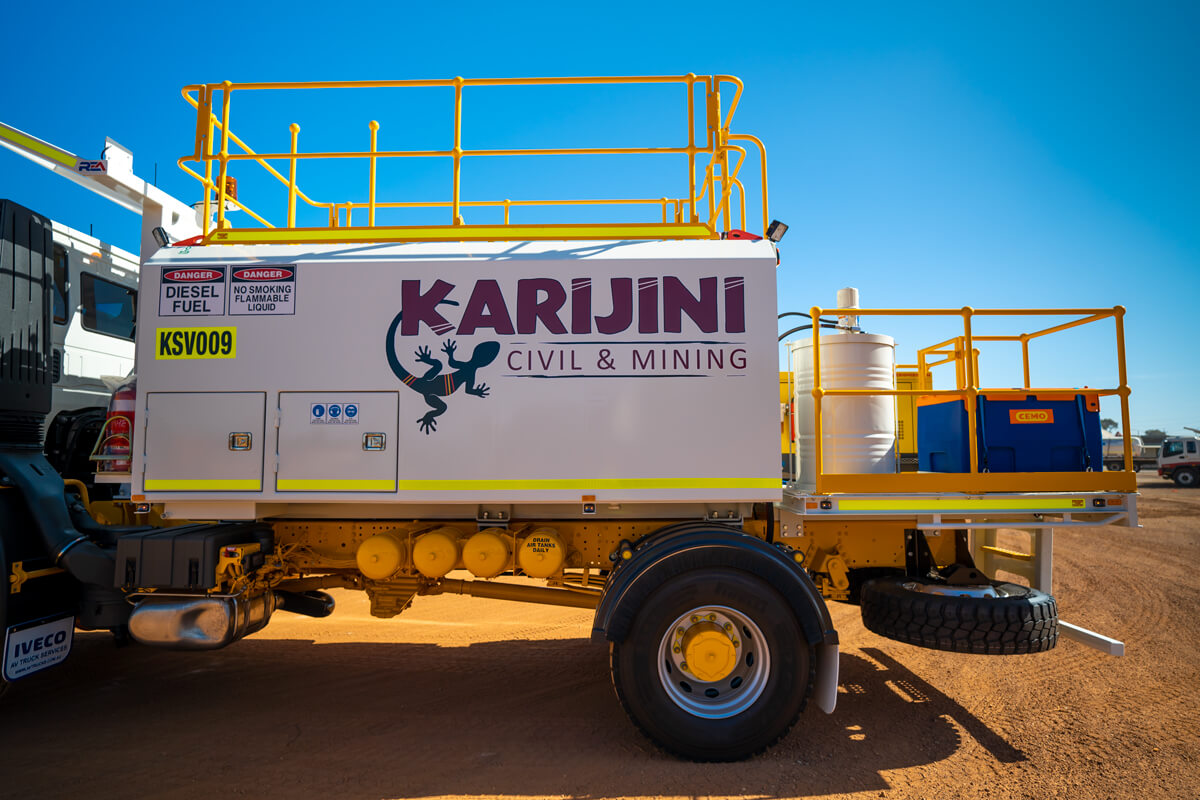

New Heavy-duty chassis-mounted steel, Plantman P3500 compartment service module:

Tank#Tank TypeTank Capacity
No 1Bulk diesel with Wiggins fast-fill gun, hose, and auto rewind reel4,000 litres
L/V Diesel auto shut off gun, hose, and spring retractable reel
No 2Oil with spring retractable reel & 15m hose with dripless dispenser500 litres
No 3Oil with retractable reel & 15m hose with dripless dispenser500 litres
No 4Water or Coolant with spring retractable eel & 15m hose500 litres
No 5Waste with spring retractable reel & 15m hose and with 4-way valve for evac500 litres
  • 180kg Grease drum kit (replaceable drum) with HP pump, spring retractable reel & 15m hose

Atlas Copco Air Compressor U75 Specifications:

  • Extended exhaust stack and bracket
  • Air dryer and air lubricator
  • External air cleaner and filter
  • Safety decal kit
  • Lockable battery isolator
  • Emergency Stop

Plantman P3500 – IVECO TRAKKER 4×4 Service Truck P3500 Specifications:

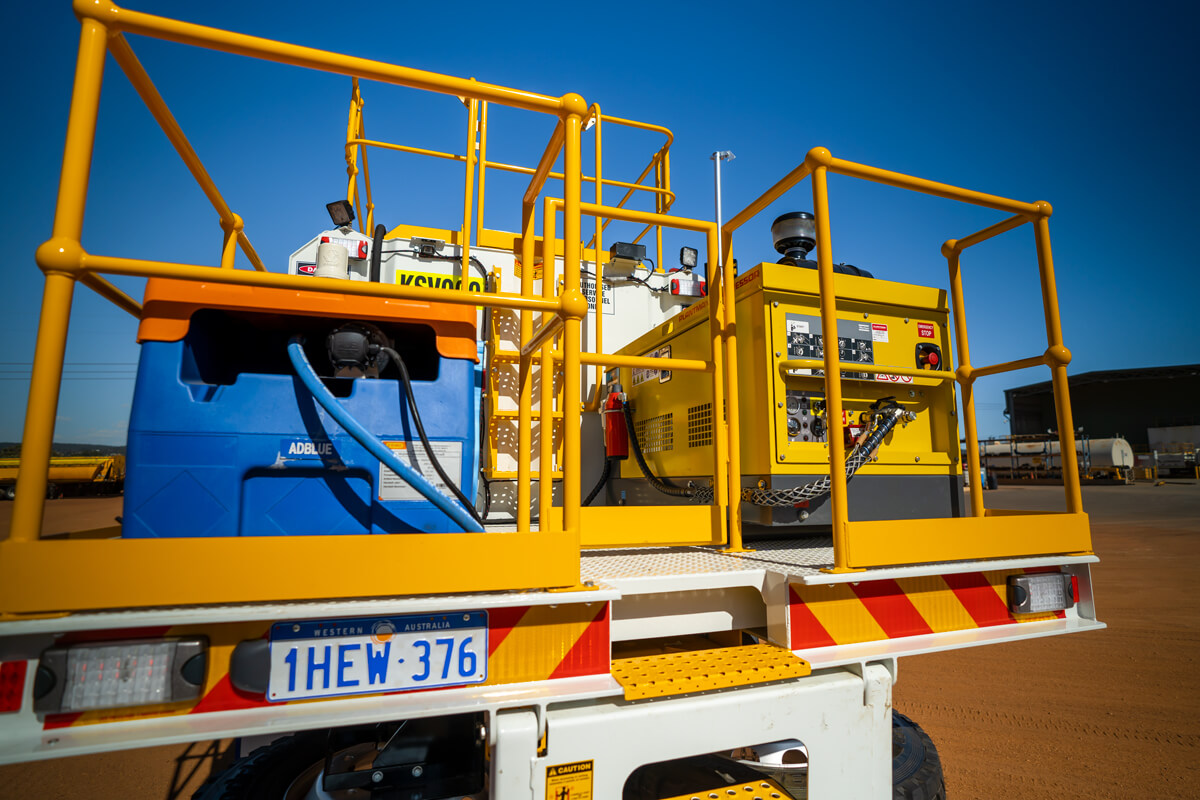

  • Rear Mounted Ad Blue tank with 24v electric pump, 8m hose, Spring Retractable Reel and Manual Nozzle – 200 Litres
  • Remote Mounted Digital Displays for oil’s and diesel
  • Wiggins Fast Fill Coupling for diesel tank fill
  • All pumps are fully enclosed inside pump cabinet
  • All systems are air operated Polymer lined water / coolant tank
  • Reels are accessed from ground level at the RHS front of the service module
  • New Atlas Copco U110 Diesel Screw Compressor with certified safety valve

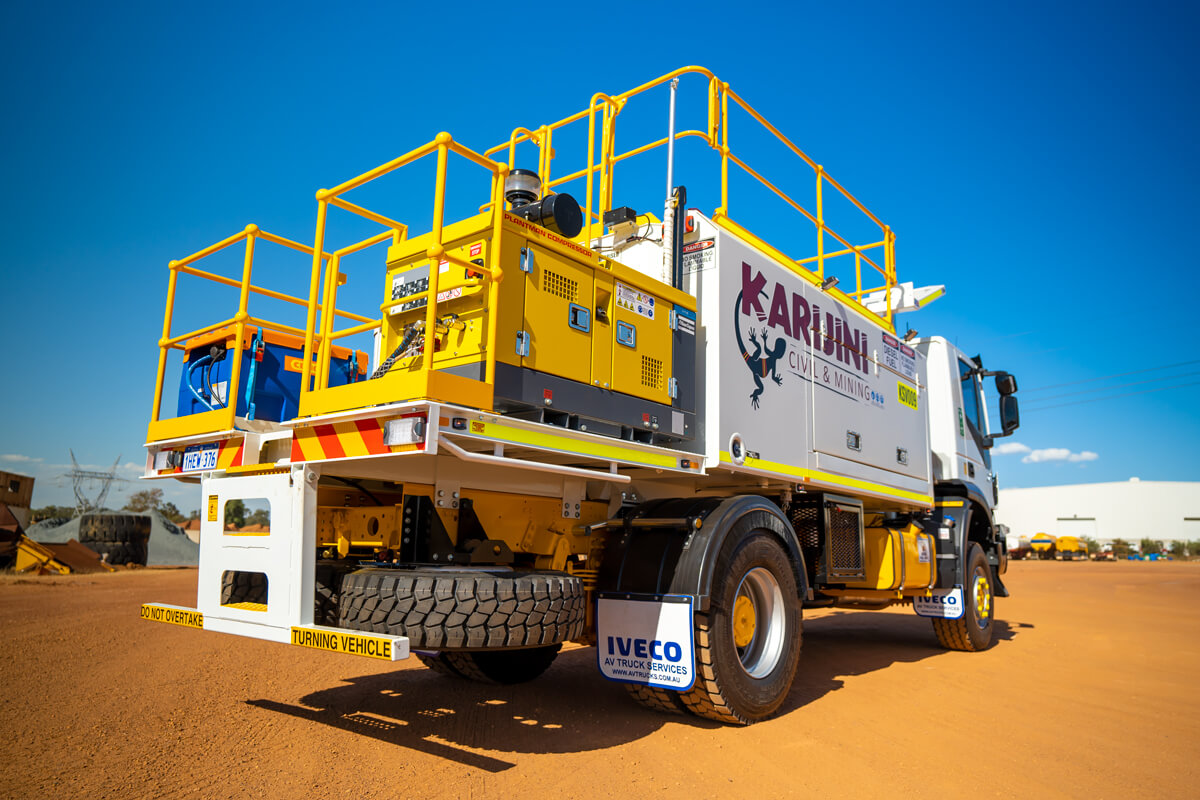

  • Rear Tray for compressor and grease with Ladder access to the tray from ground level and the module roof with fold
  • down handrails.

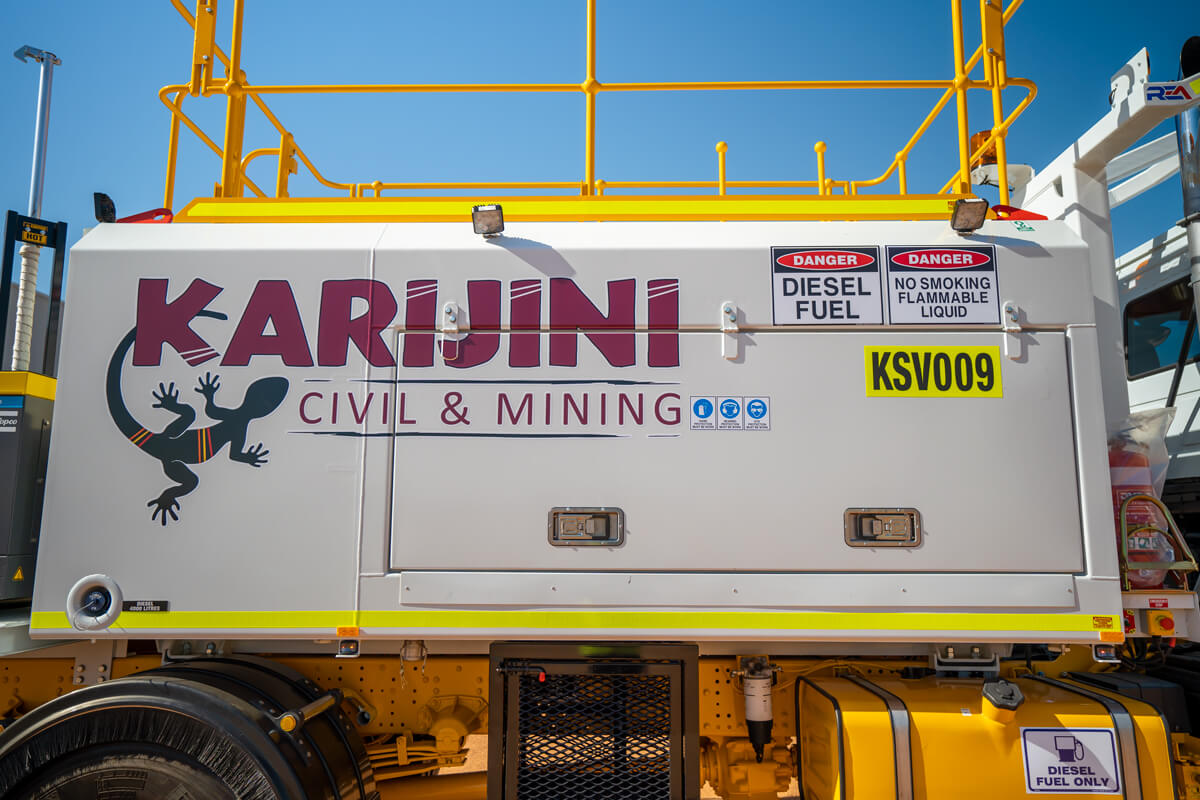

  • Storage Space in Module on LHS 1 x Toolbox , 1 x Dirty Filter Sump with Lockable Doors
  • Headlights on with ignition
  • Rear Facing High Lights
  • 5 x External Module roof mounted LED Worklights
  • 2 x Internal LED Strip Lights
  • High Mount Flag with Light in Top
  • ROPS mounted amber rotating beacon
  • Headlights on with Ignition
  • 1 x Lockable Battery Isolator – Truck
  • 1 x Lockable Battery Isolator – Compressor
  • Jump Start Receptacle – Truck
  • 1 x E-Stop in cabin
  • 1 x E-Stop on front of module
  • 1 x E-Stop on Compressor
  • 2 x 9kg Fire extinguishers & Brackets & 2kg In Cabin
  • High Vis Tape to side of service module
  • Safety Signage & Operating Decals
Read More
Product Specifications
Axles 4x4
Capacity 4000L
Make IVECO
Type Service Truck
