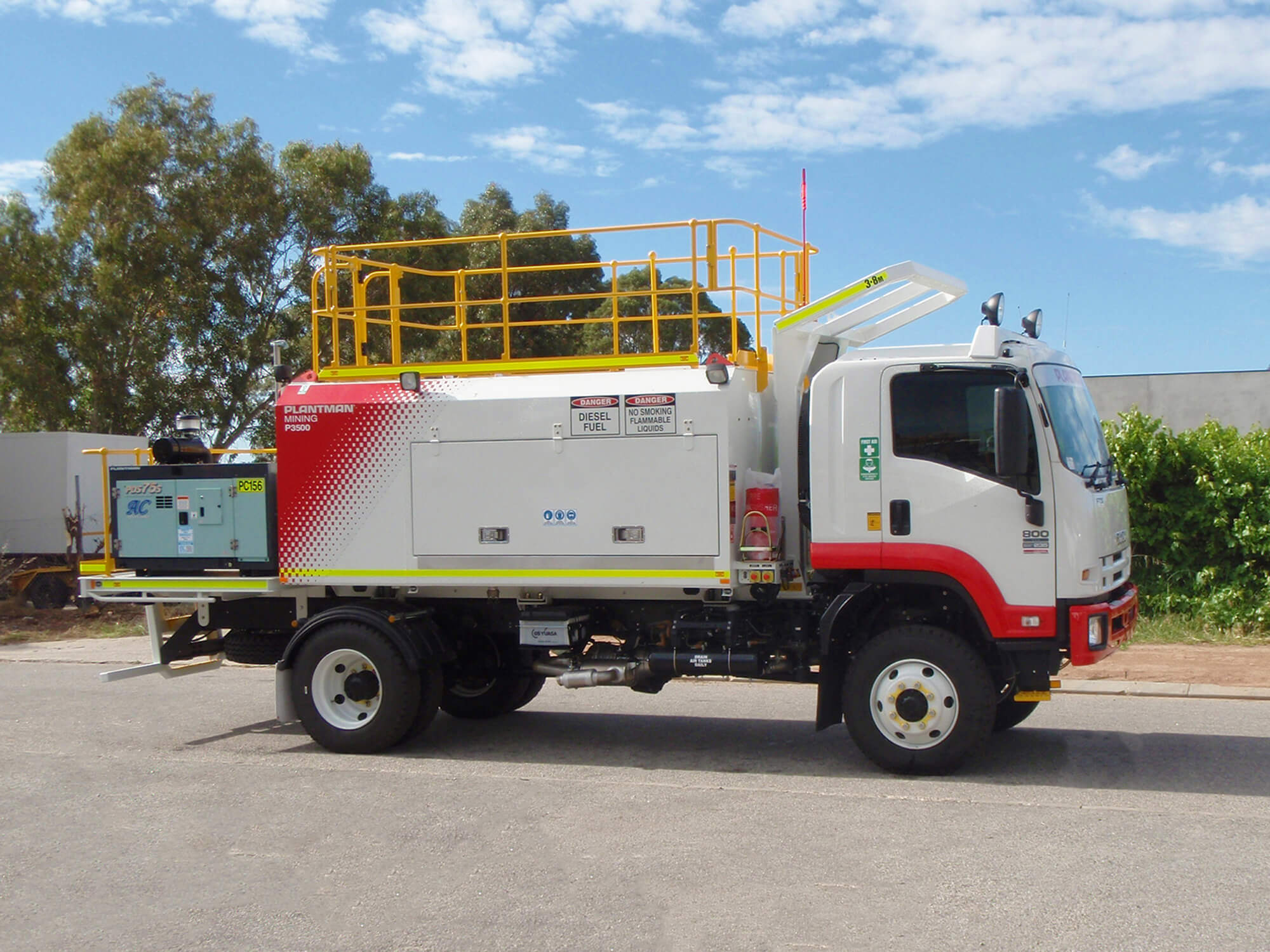

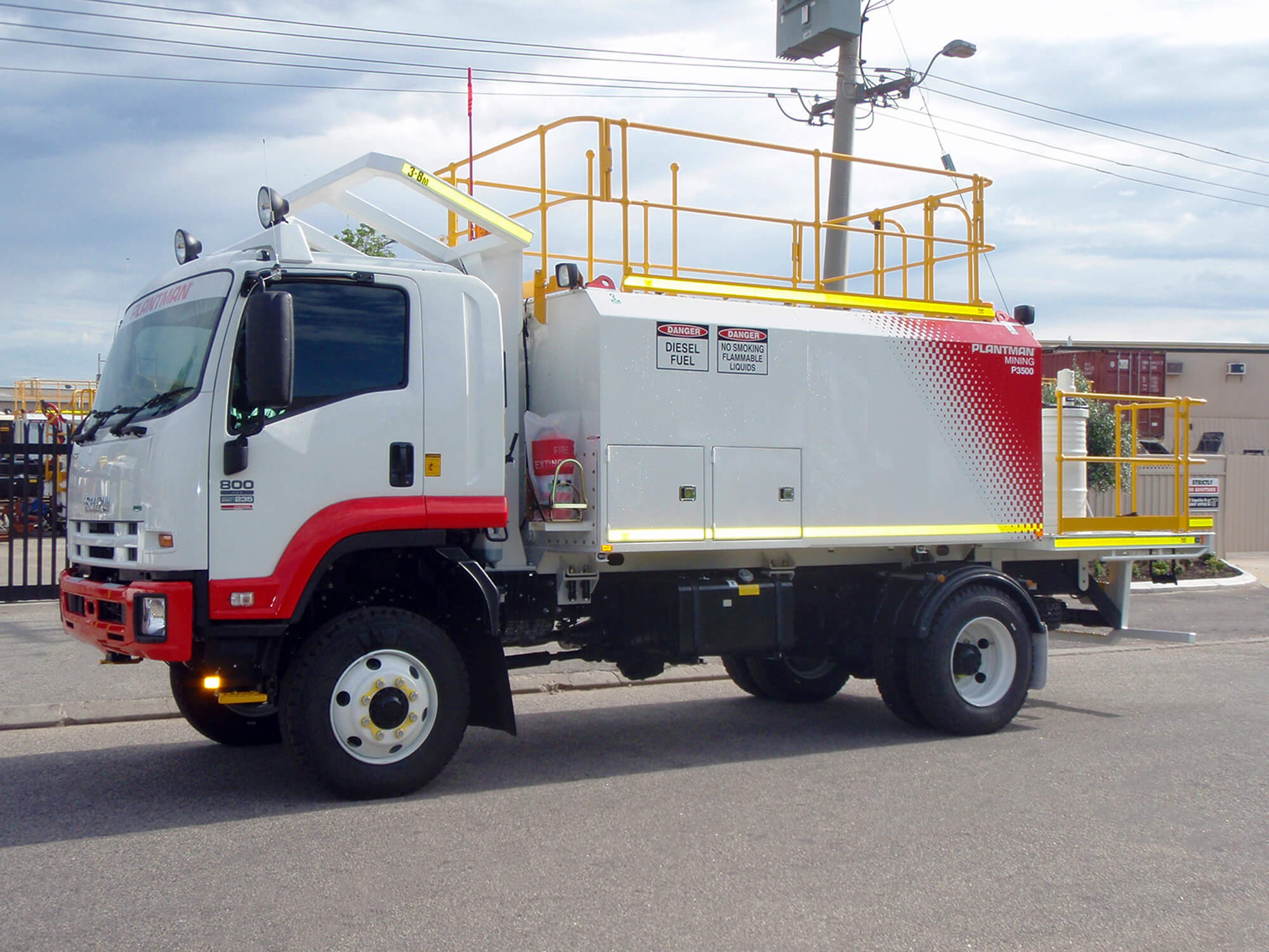

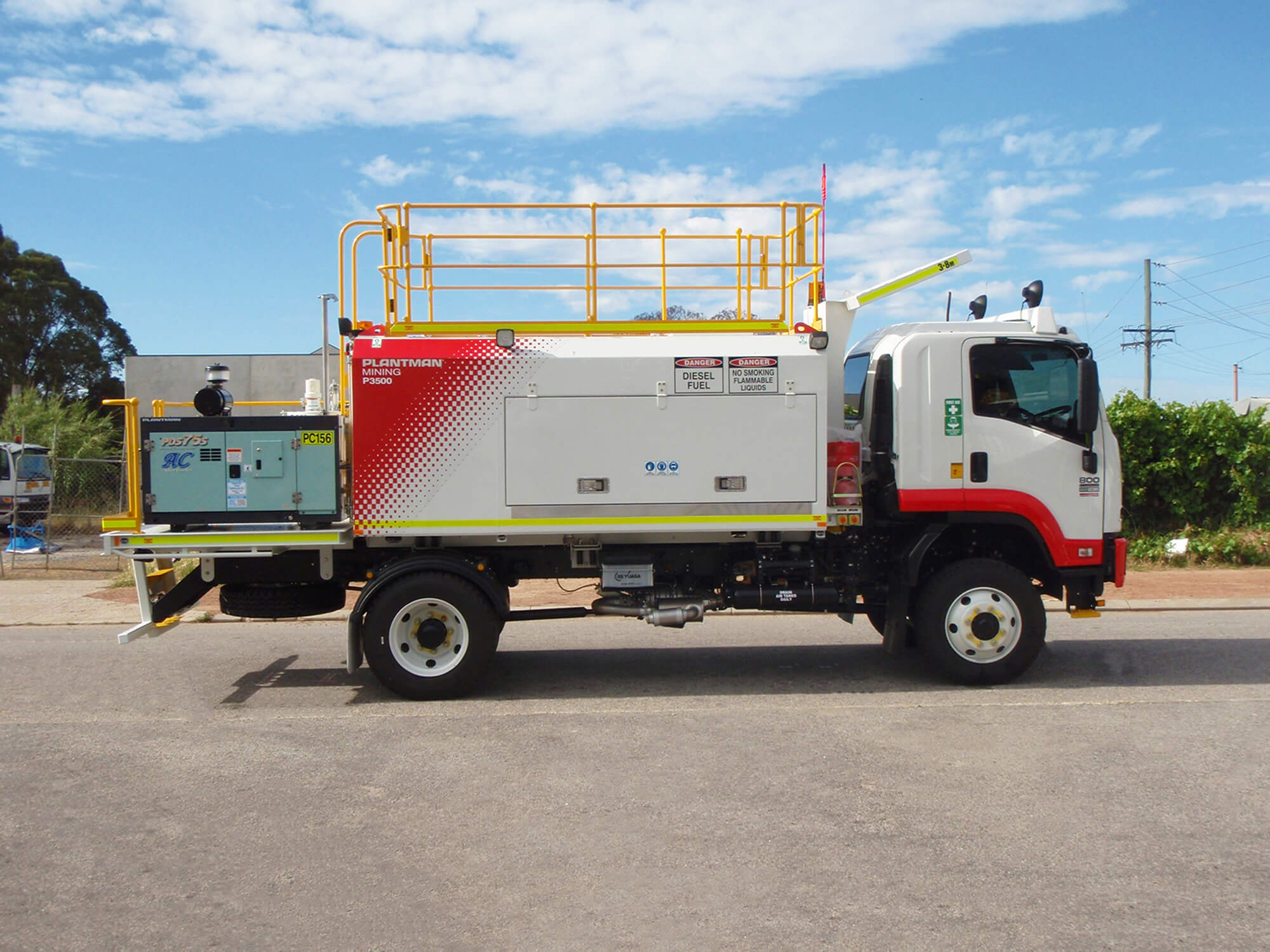

2011 ISUZU FTS800 4×4 SERVICE TRUCK P3500

NEWCREST MINING

INDUSTRY: MINING

LOCATION: TELFER

TYPE: SERVICE TRUCK

Download Specs
Product Summary

New Heavy-duty chassis-mounted steel, Plantman P3500 compartment service module:

Tank#Tank TypeTank Capacity
No 1Oil reel, hose, handpiece, fast-fill1,000 litres
No 2Oil reel, hose, handpiece, fast-fill1,000 litres
No 3Oil reel, hose, handpiece, fast-fill500 litres
No 4Coolant reel, hose, handpiece, fast-fill500 litres
No 5Coolant reel, hose, handpiece, fast-fill500 litres
No 6Waste reel, hose, hand piece, fast-fill1,500 litres
  • Bulk grease tank, 2 pumps, reels, hoses, handpiece 180 kg

Airman Air Compressor 75PDS Specifications:

  • Automatic Shutdown and warning system
  • Key Start lock
  • Donaldson air cleaner system
  • Receiver Dryer
  • Automatic Lubricator

Plantman P3500 – ISUZU FTS800 4×4 Service Truck P3500 Specifications:

  • Turbo charged & intercooled 4 cycle diesel engine with exhaust retarder
  • Manual transmission
  • Air conditioned high roof cabin with ROPS to AS 2294
  • ISRI suspension seat, passenger seat with retractable seat belts
  • AM/FM radio
  • Fabric seats with canvas seat covers
  • East West mirrors & spot mirrors
  • spring front & rear suspension
  • Non asbestos brake linings
  • Air dryer
  • Spring applied emergency & parking brake
  • 11R x 22.5 tyres, spare wheel, jack & wheel brace, wheel chocks
  • Standard tint laminated windscreen, tropical tinted rear and side windows
  • Safety signage
  • Two way radio power supply
  • 2 x 9kg fire extinguishers
  • Auxiliary lighting
  • Reverse alarm
  • Roof mounted amber rotating beacon
  • Lockable isolator
  • Jump start receptacle
  • Safety triangles
  • Emergency stops
  • Side access step and rails
  • Hand brake applied – warning audible alarm
  • Meets WA Mining Regulations
  • All pumps are fully enclosed inside RHS pump cabinet
  • All systems are air operated
  • Polymer lined water & coolant tanks
  • Top safety rails and steps fitted
  • Reels are accessed from ground level at the RHS front of the service module
Read More
Product Specifications
Axles 4x4
Capacity 3500L
Make ISUZU
Type Service Truck
