2020 IVECO TRAKKER 4×4 SERVICE TRUCK P3000

WOOD GROUP

INDUSTRY: MINING

LOCATION: PAPA NEW GUINEA

TYPE: SERVICE TRUCK

Download Specs
Product Summary

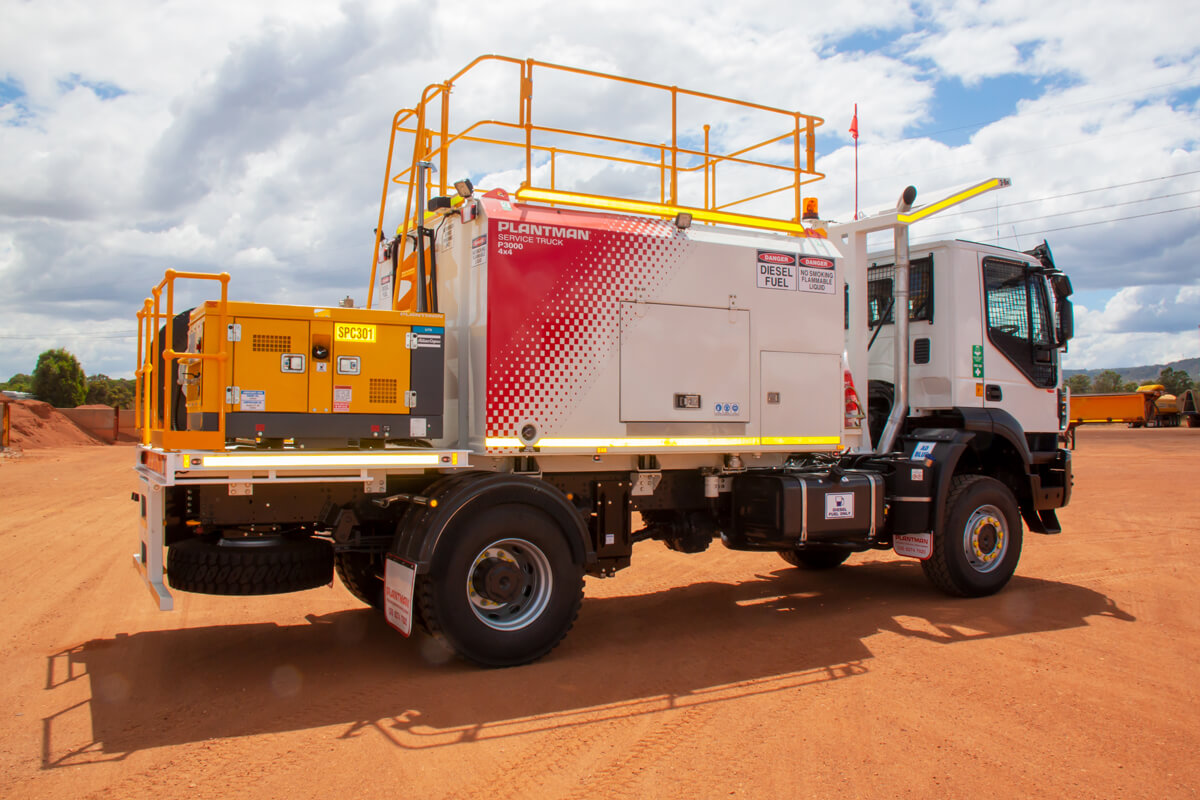

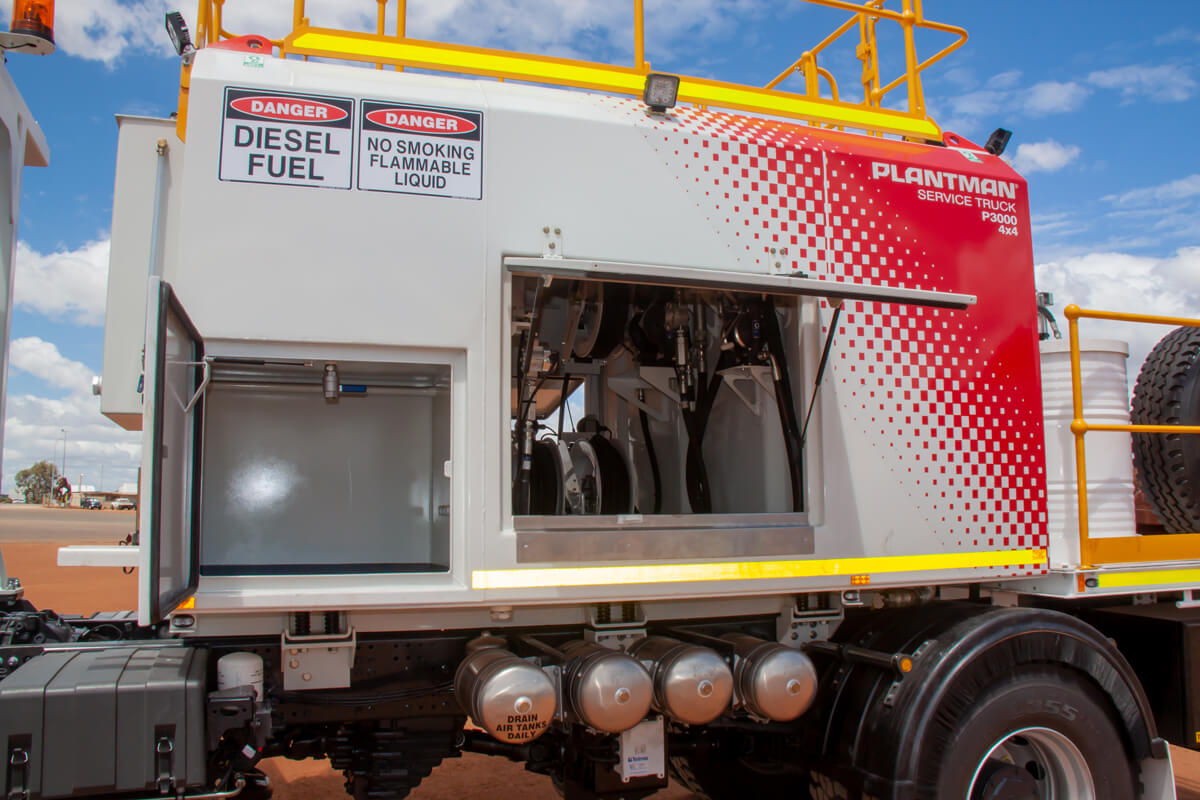

New Heavy-duty chassis-mounted steel, Plantman P3000 compartment service module:

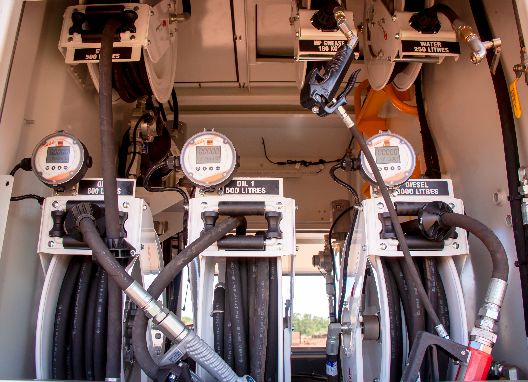

Tank#Tank TypeTank Capacity
No 1Diesel spring retract reel, hose, digital display & auto shut off nozzle3,000 litres
No 2Oil with spring retract reel & 15m hose with manual dripless dispenser500 litres
No 3Waste oil with spring retractable reel & 15m hose500 litres
No 4Oil with spring retractable reel & 15m hose with manual dripless dispenser800 litres
No 5Water/Coolant with spring retractable reel & 15m hose250 litres
  • Bulk grease tank, reels, hoses, handpiece 180 kg

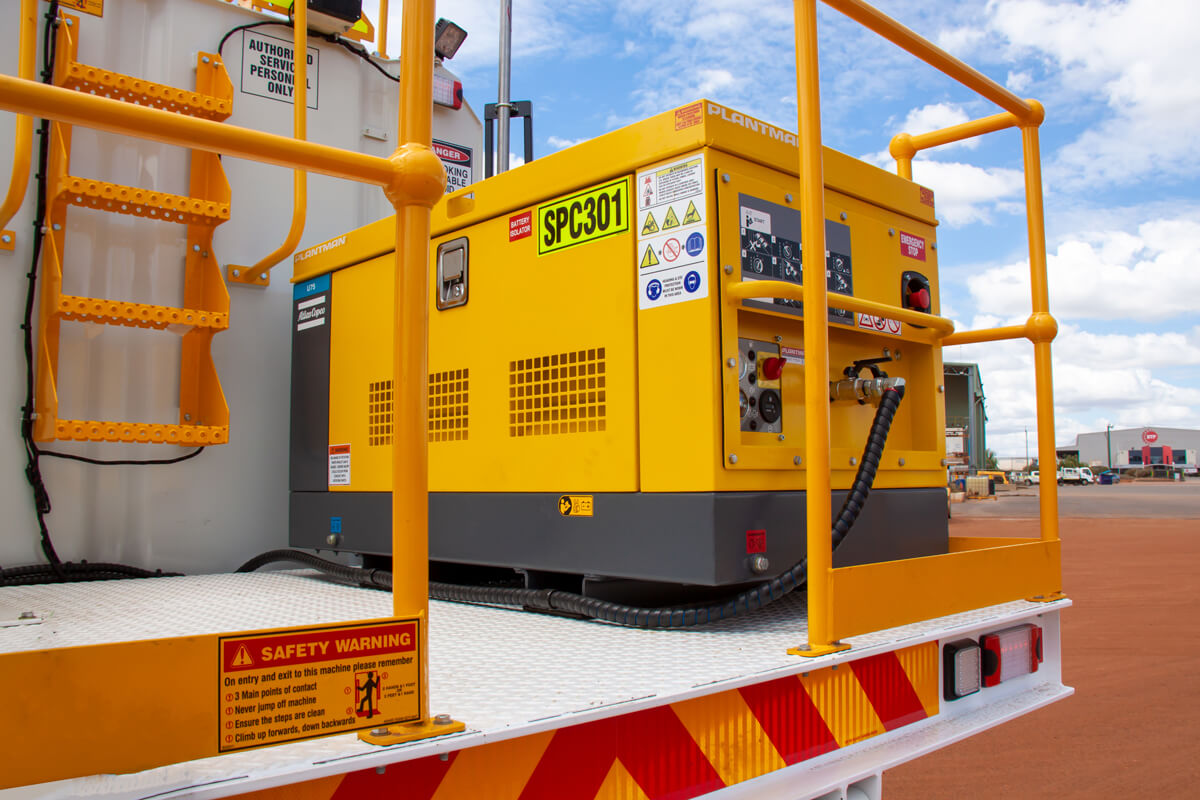

Atlas Copco Air Compressor U75 Specifications:

  • Extended exhaust stack and bracket
  • Air dryer and air lubricator
  • External air cleaner and filter
  • Safety decal kit
  • Lockable battery isolator
  • Emergency Stop

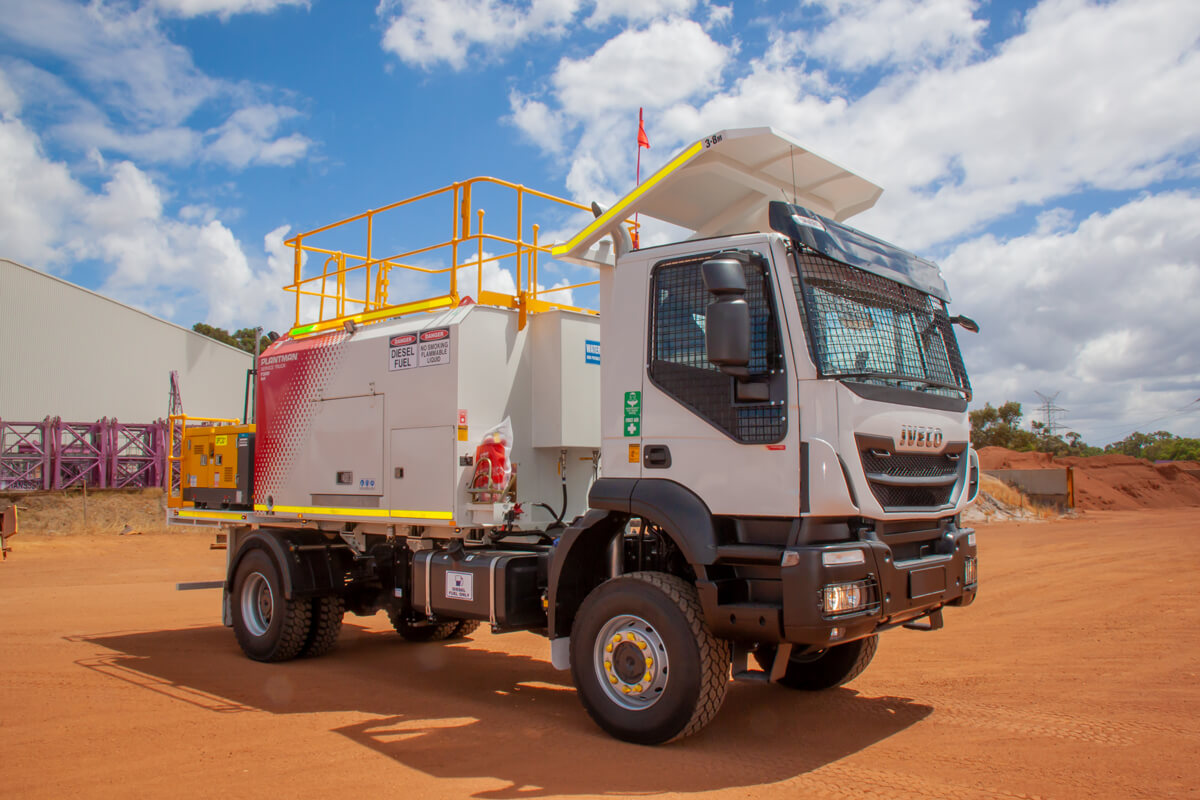

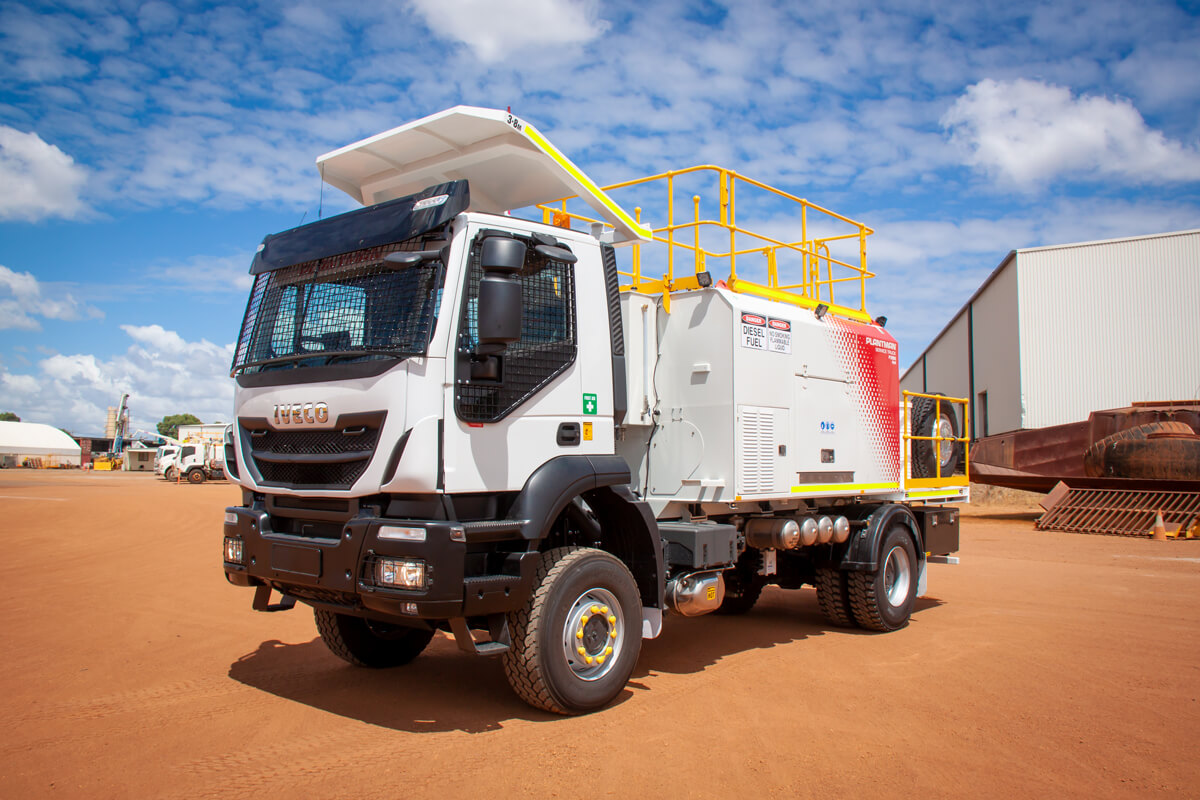

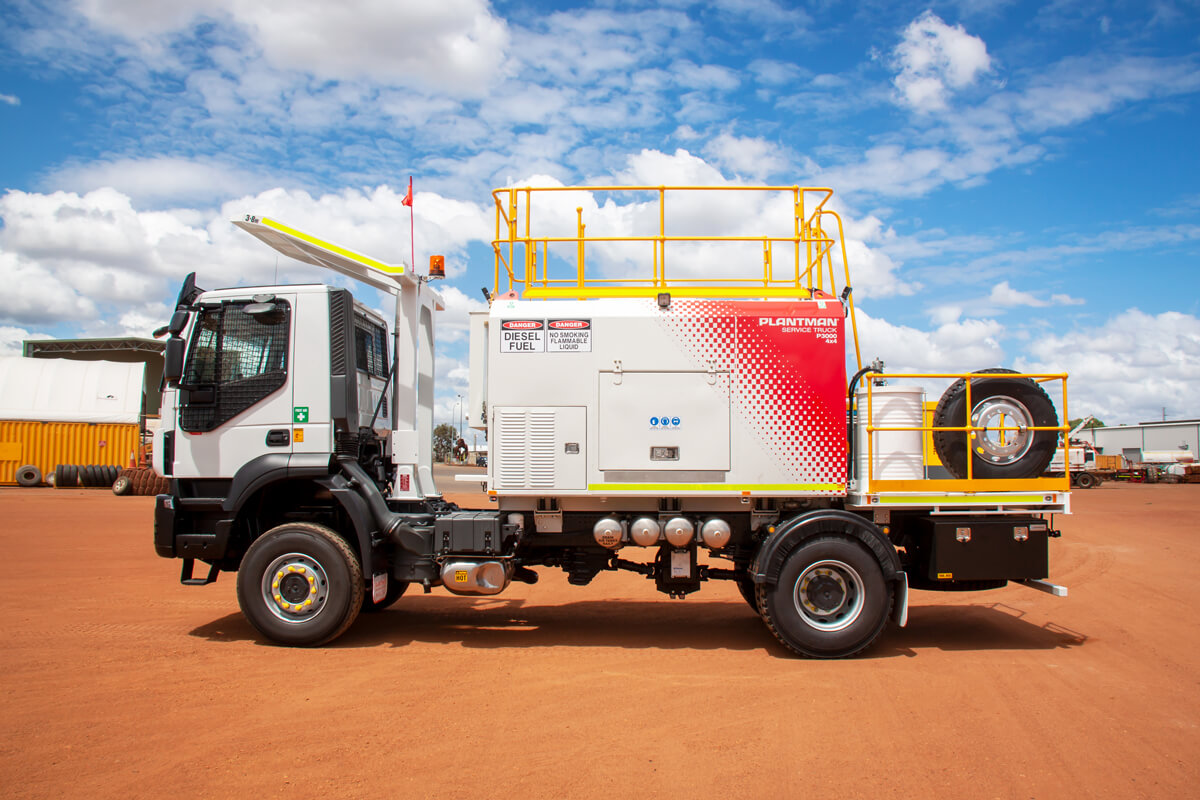

Plantman P3000 – IVECO TRAKKER 4×4 Service Truck P3000 Specifications:

  • Fully Air Conditioned Day Cab – Diff Lock for front & rear axle and transfer box –
  • Steel Front Bumper along with front & rear anti roll bars – Iveco Cursor 8 360 hp Diesel engine –
  • ZF Eurotronic Transmission – Air Suspension Drivers seat, static passenger seat –
  • Front & Rear Parabolic Spring Suspension – Full Air Brake System with Drum Brakes and ABS –
  • Truck Diesel tank 300 Litres with Lockable Fuel Cap – 24v Electrical System – Off Road Tyres,
  • Front – 385/65 R22.5 & Rear 315/80 R22.5 – 2 x Spare Tyre / Wheel Assemblies – Maxi Brakes –
  • Front and Rear Tow Hitch – Vertical Exhaust pipe – Factory windows (no tint)
  • Canvas Seat Covers
  • Jack & Brace – Wheel Nut Indicators – Safety Triangle Kit – Wheel Chocks
  • ROPS / FOPS
  • 1 x 9 kg Fire extinguisher on Q/R bracket
  • Two Way Radio UHF GME TX3100
  • Reverse Alarm & Speaker
  • Reverse Camera & Screen
  • High Mount Flag with Light in Top
  • ROPS mounted amber rotating beacon
  • Headlights on with ignition
  • Rear Facing High & Low Mounted LED Lighting
  • Cat Style Jump Start Receptacle
  • 1 x Lockable battery Isolator – Truck
  • 1 x Lockable battery Isolator – Compressor

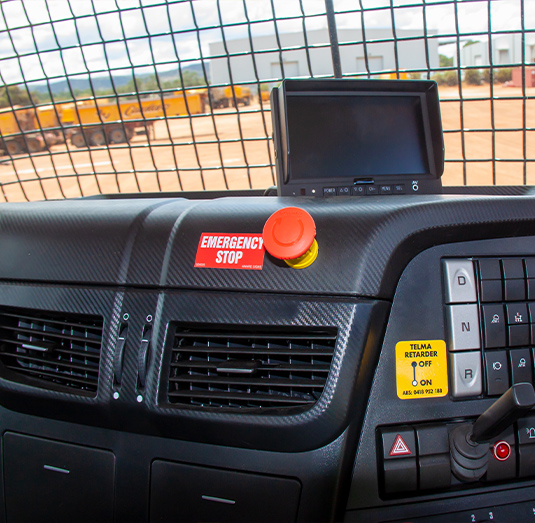

  • 1 x E-Stop in cabin
  • 1 x E-Stop on compressor
  • 5 x External LED Work Lights on module
  • 2 x Internal LED Strip Lights within reel bay

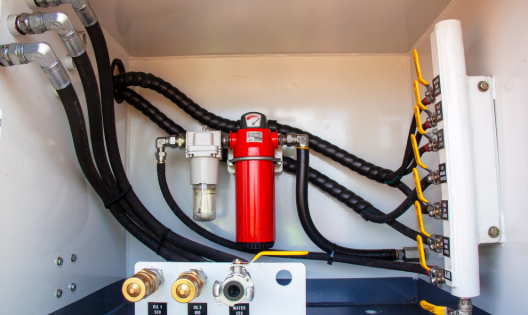

  • Supply Wiggins Fill Couplings for oil, diesel & Minsup fitting for water tank fill points
  • Supply Lockable Camlock fill points on roof
  • All reels to have isolation valves
  • All systems are air operated.

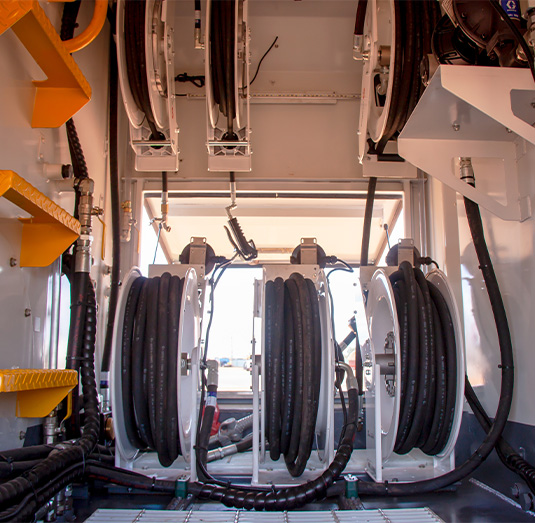

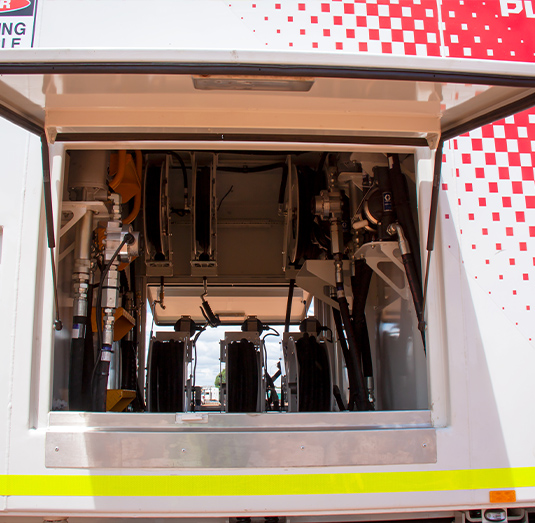

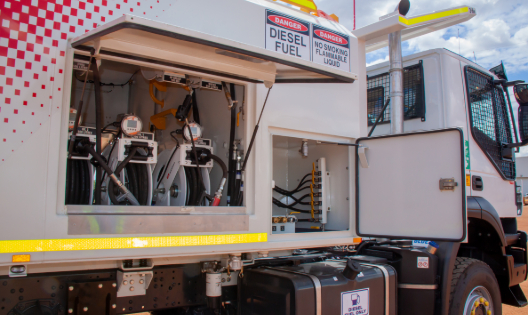

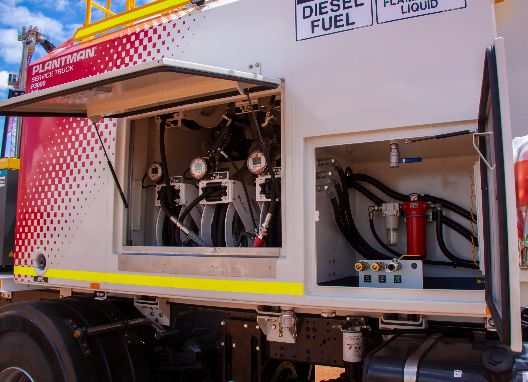

  • Reels are accessed from ground level at the RHS front of the service module and fully enclosed

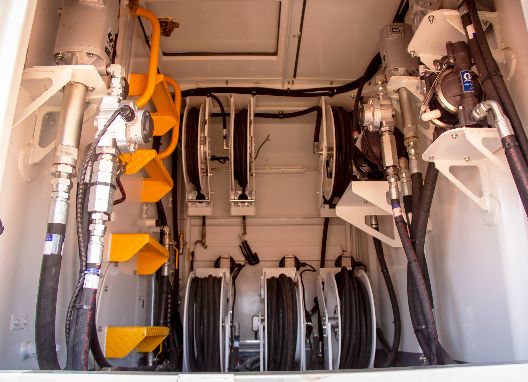

  • Inside pump cabinet
  • Exhaust with cap

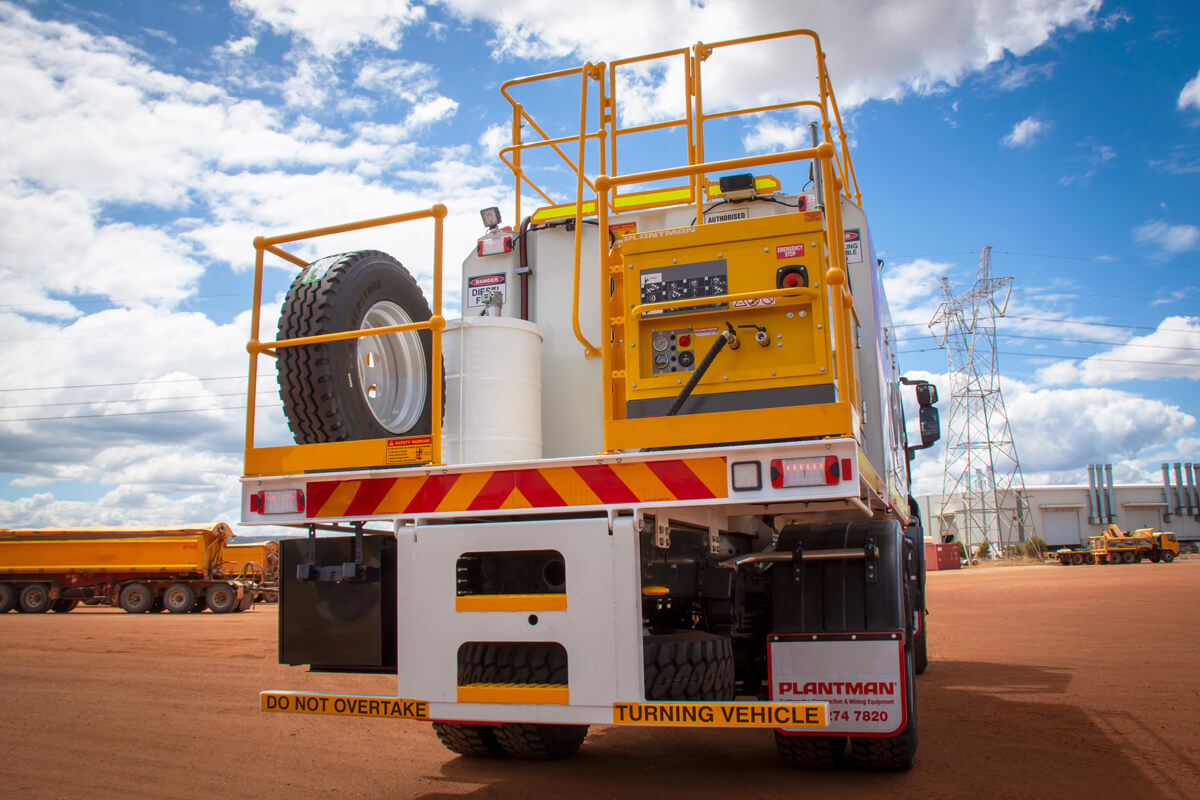

  • Rear Tray with Step / Ladder access and handrails
  • Toolbox Storage in Module LHS
  • Company, Safety & Operating Decals

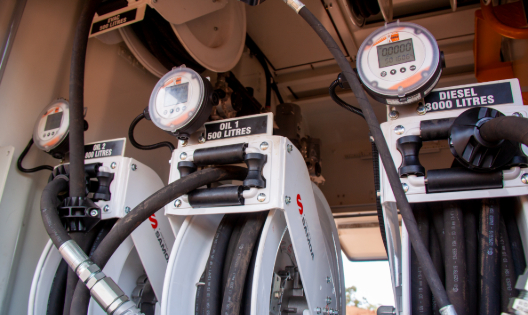

  • NMI approved diesel & oil flow meters with remote mounted digital displays and
  • One Way Valve for backflow prevention
  • Threaded Tank Drain Valves to all tanks
  • Weighbridge truck for records but no inspection
Read More
Product Specifications
Axles 4x4
Capacity 3000L
Make IVECO
Type Service Truck
