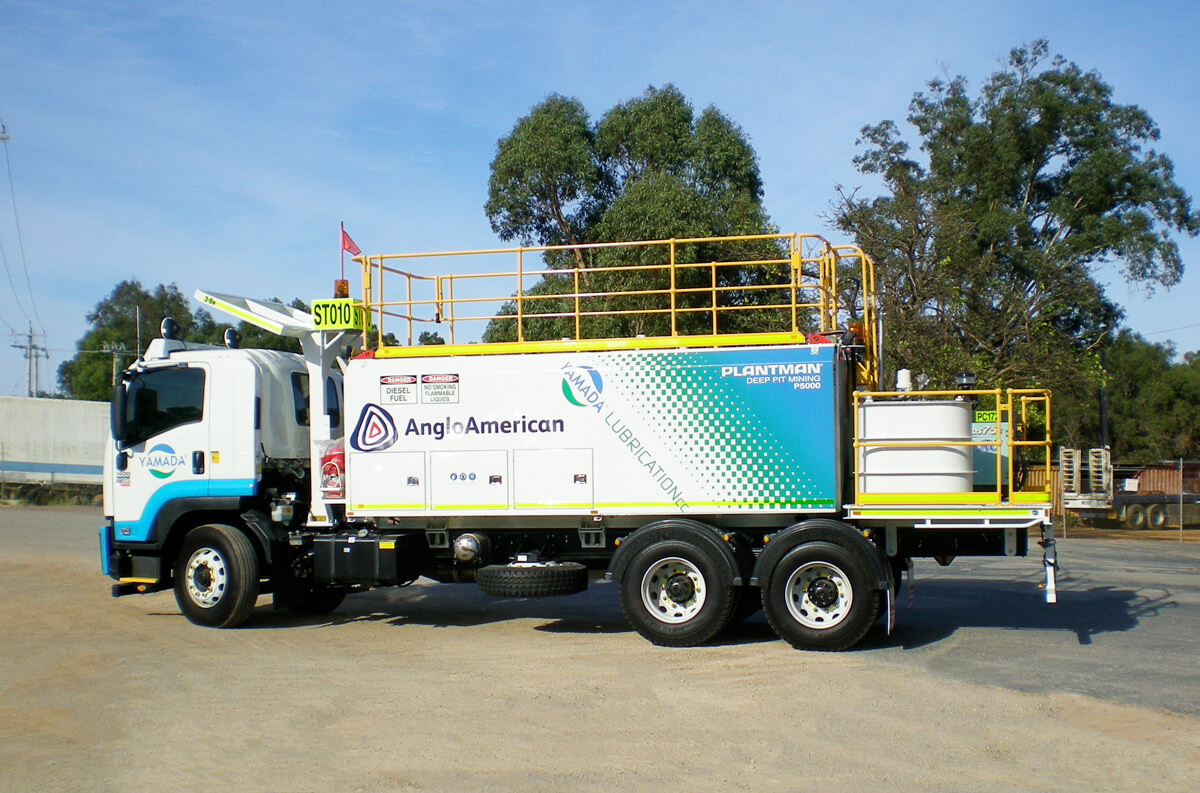

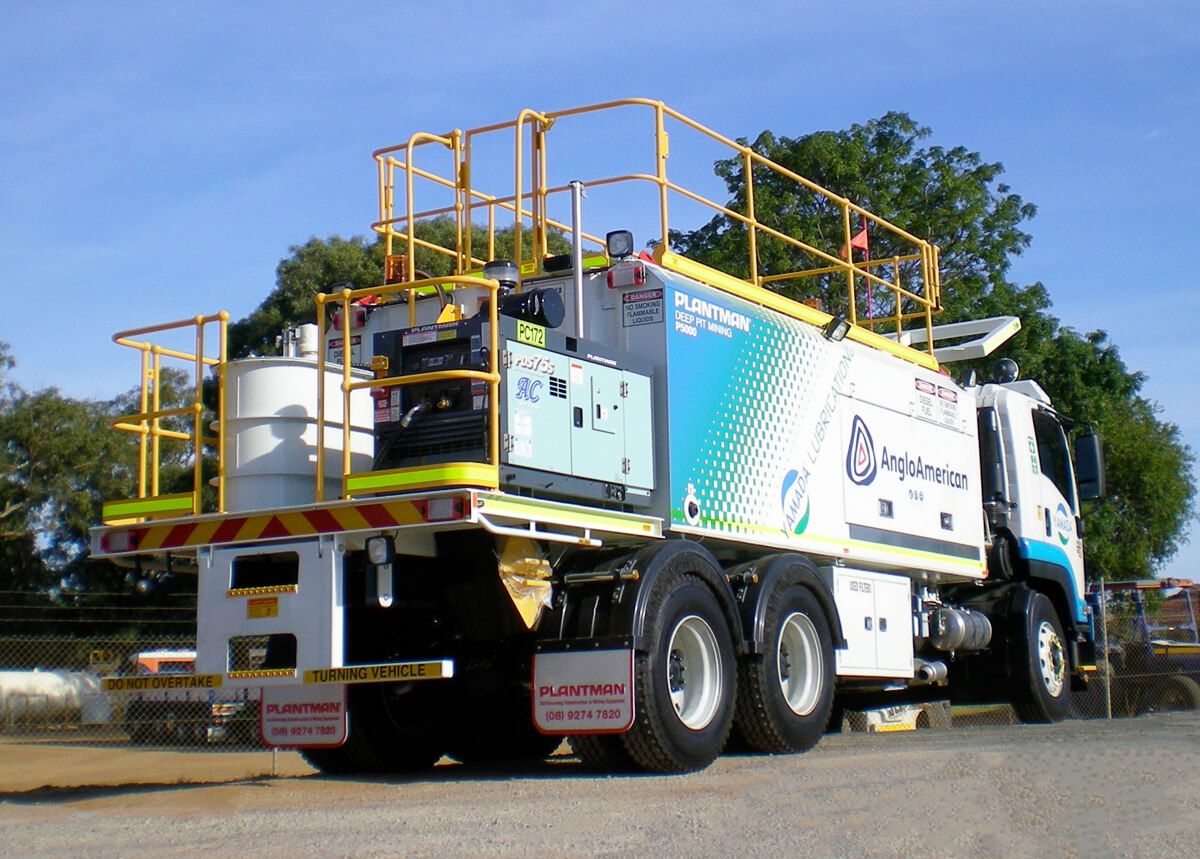

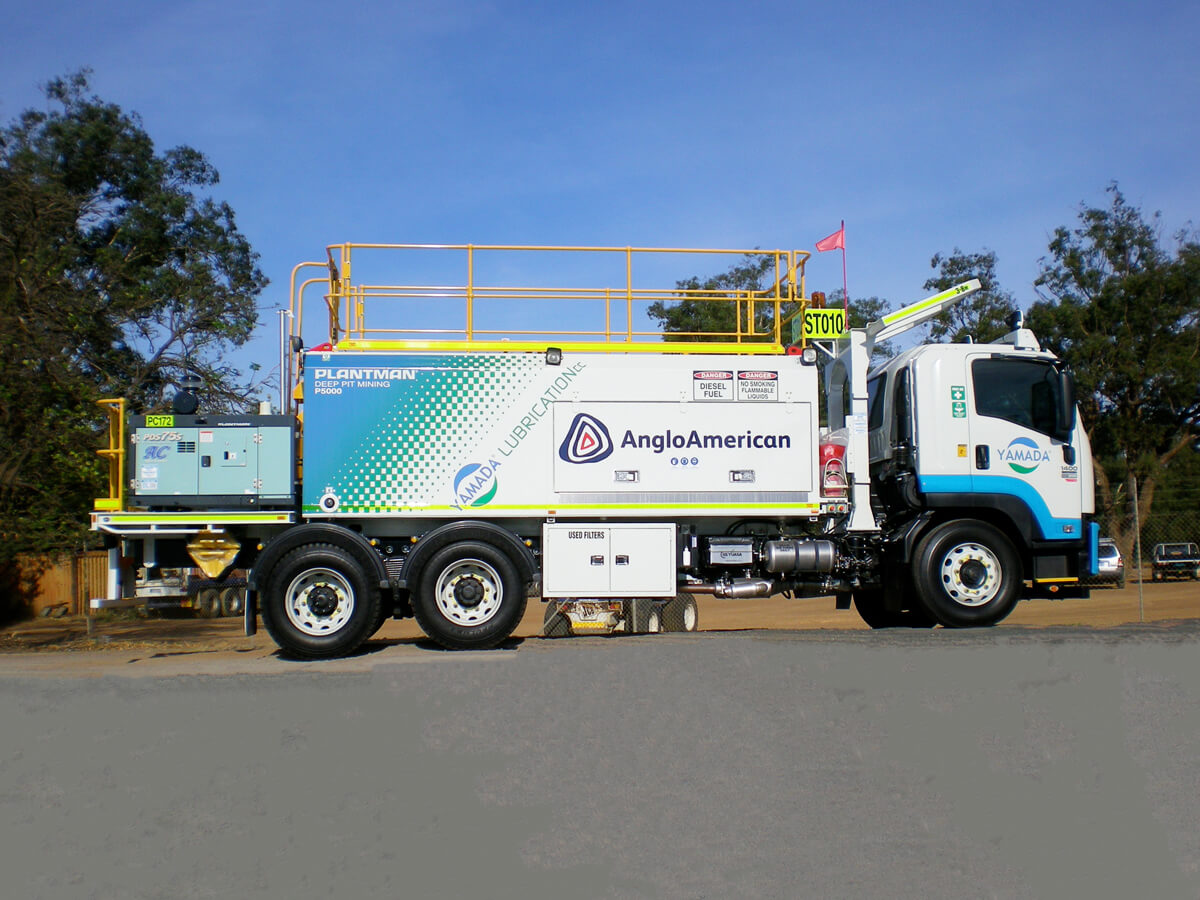

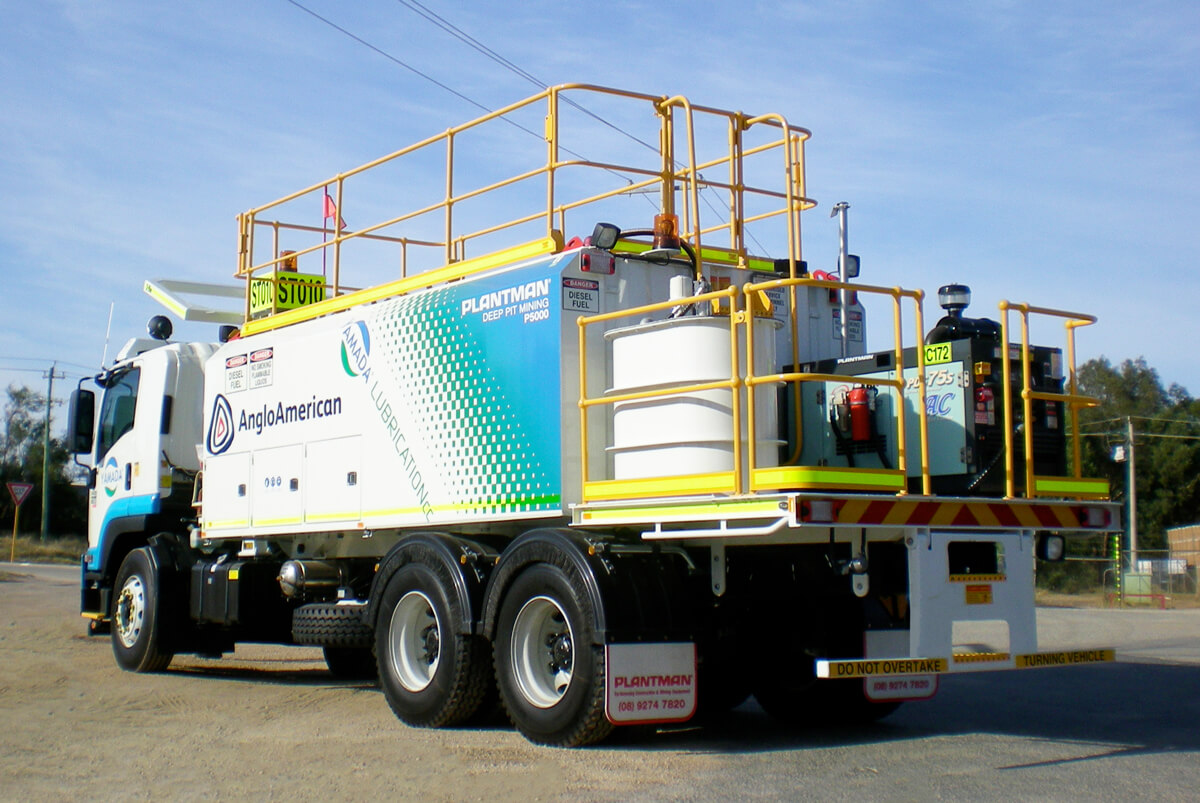

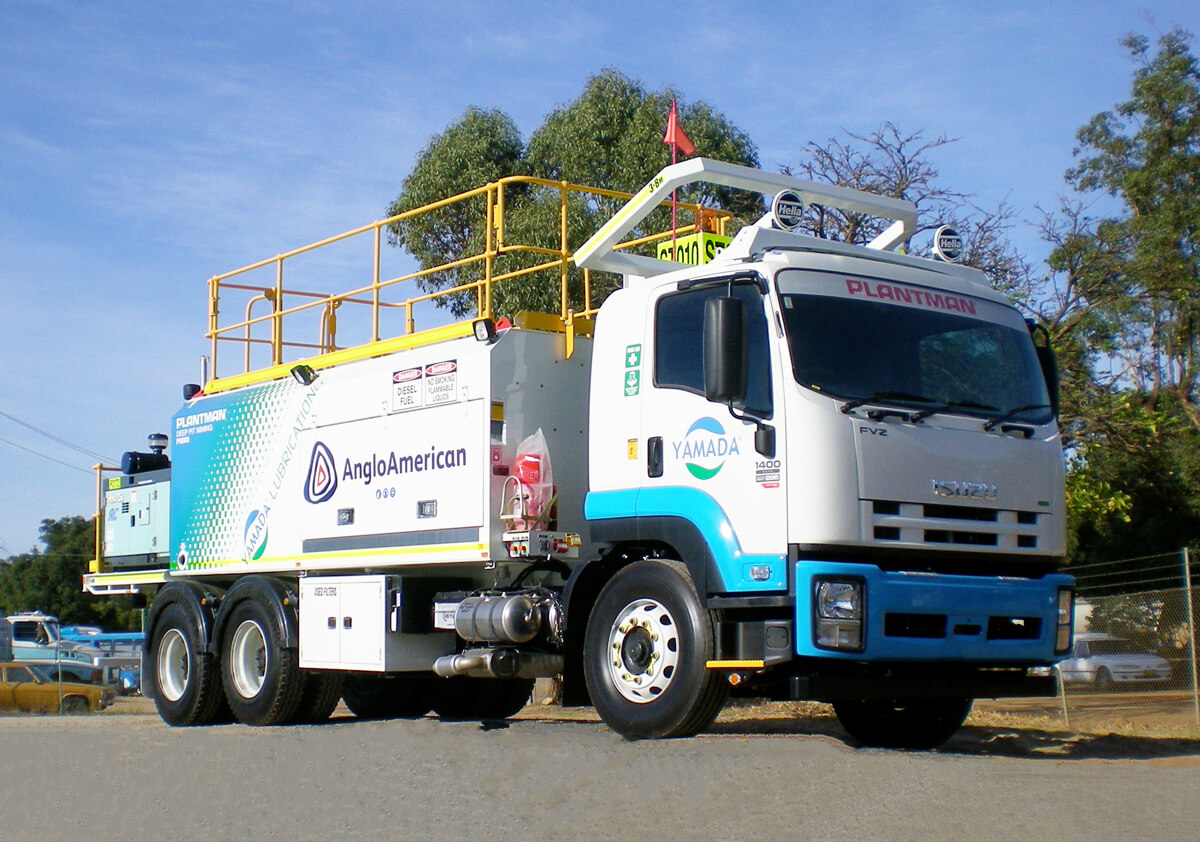

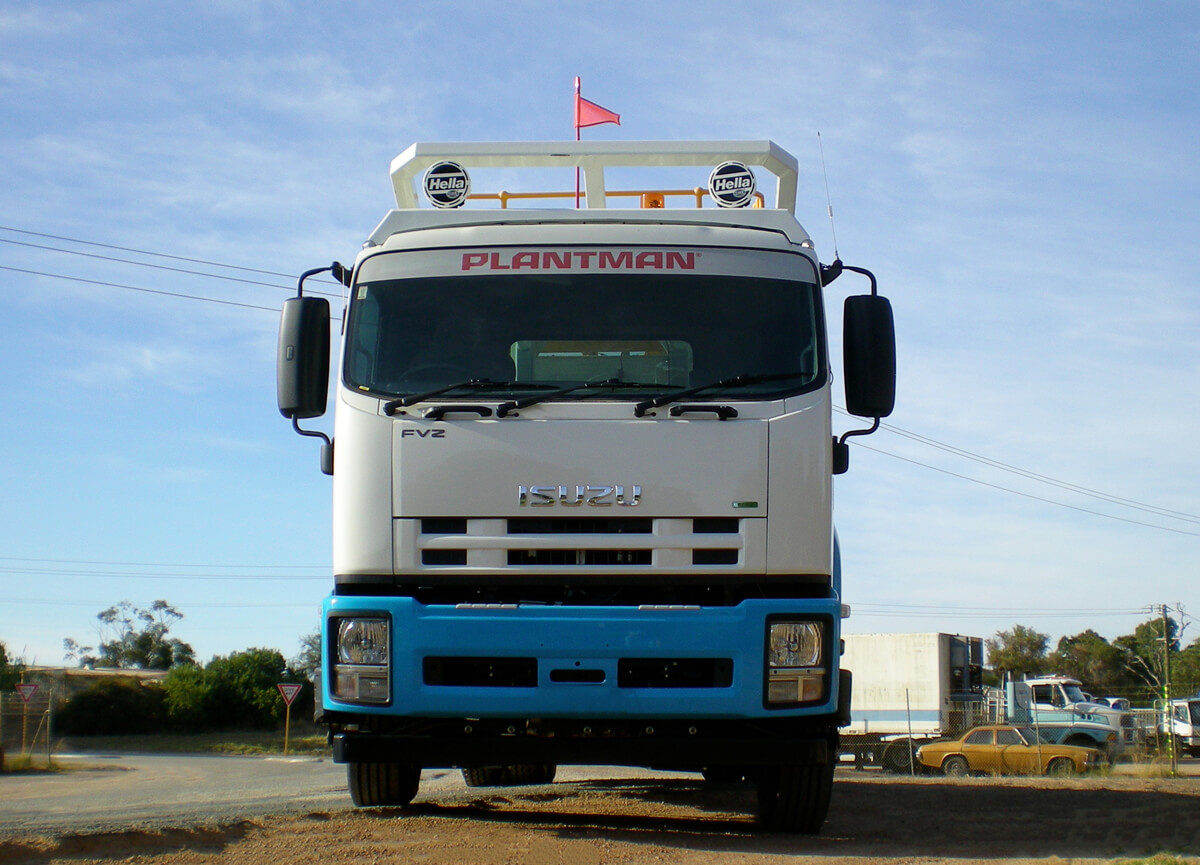

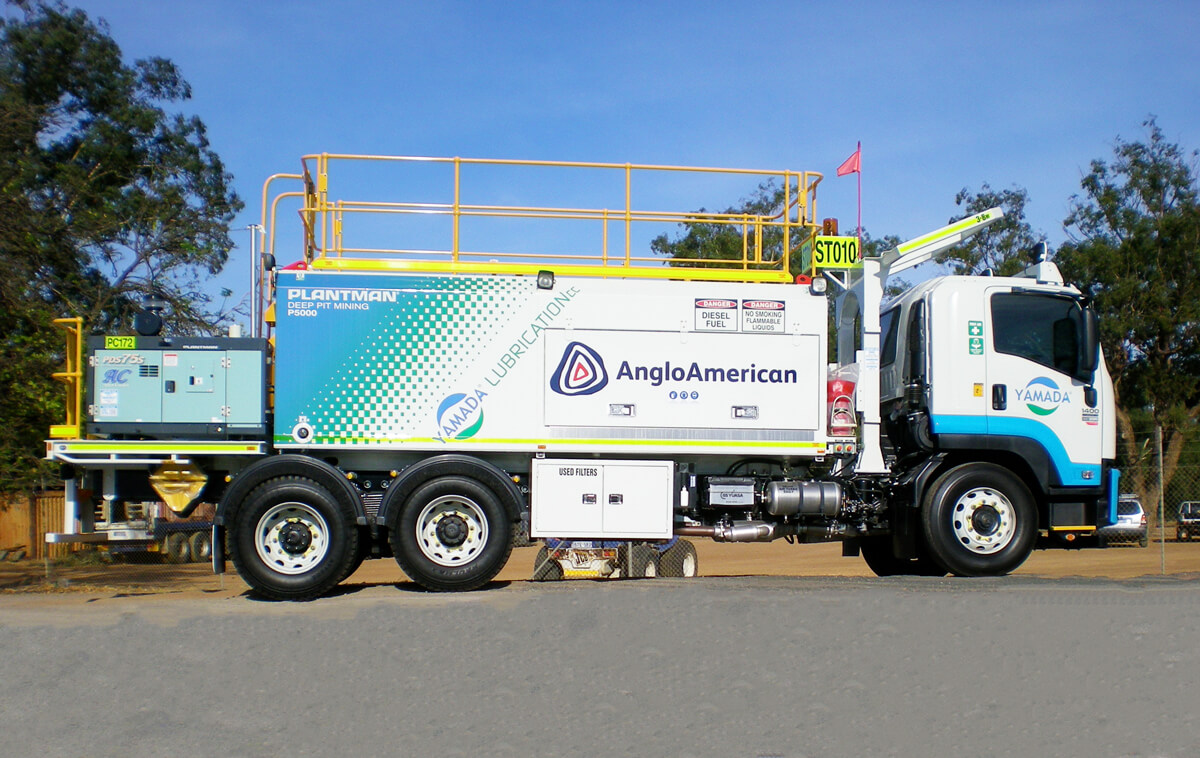

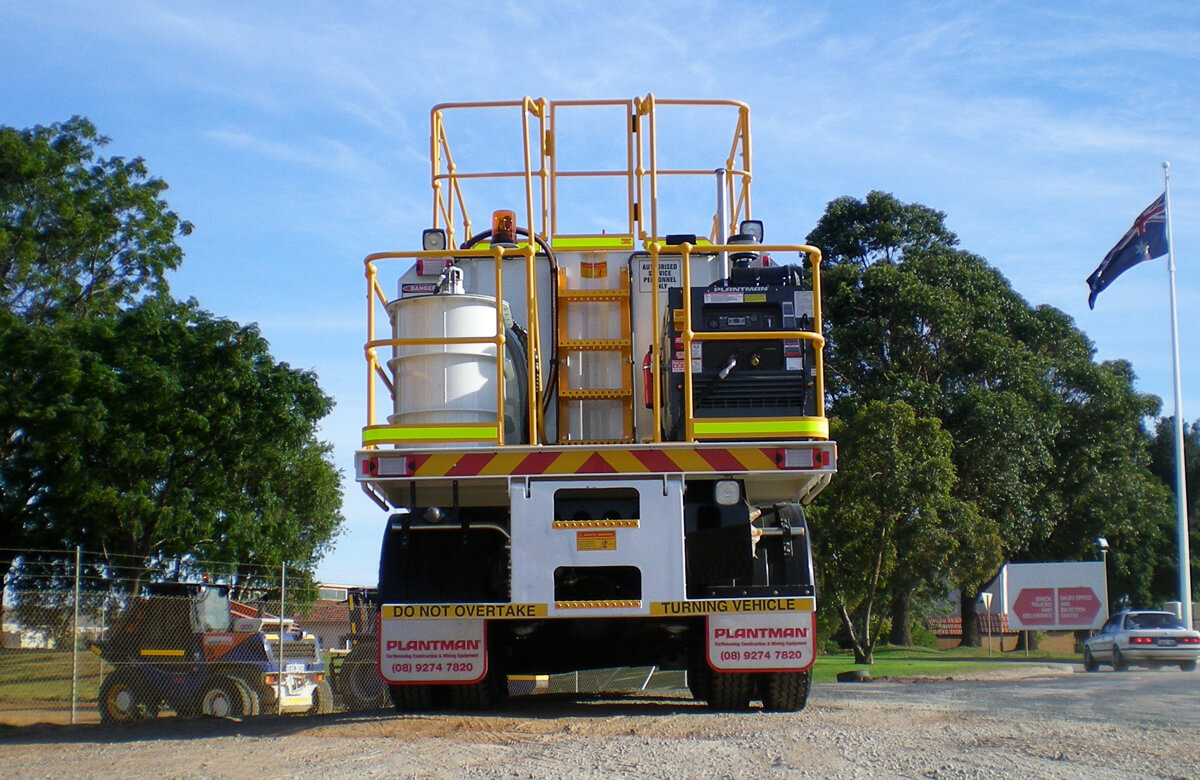

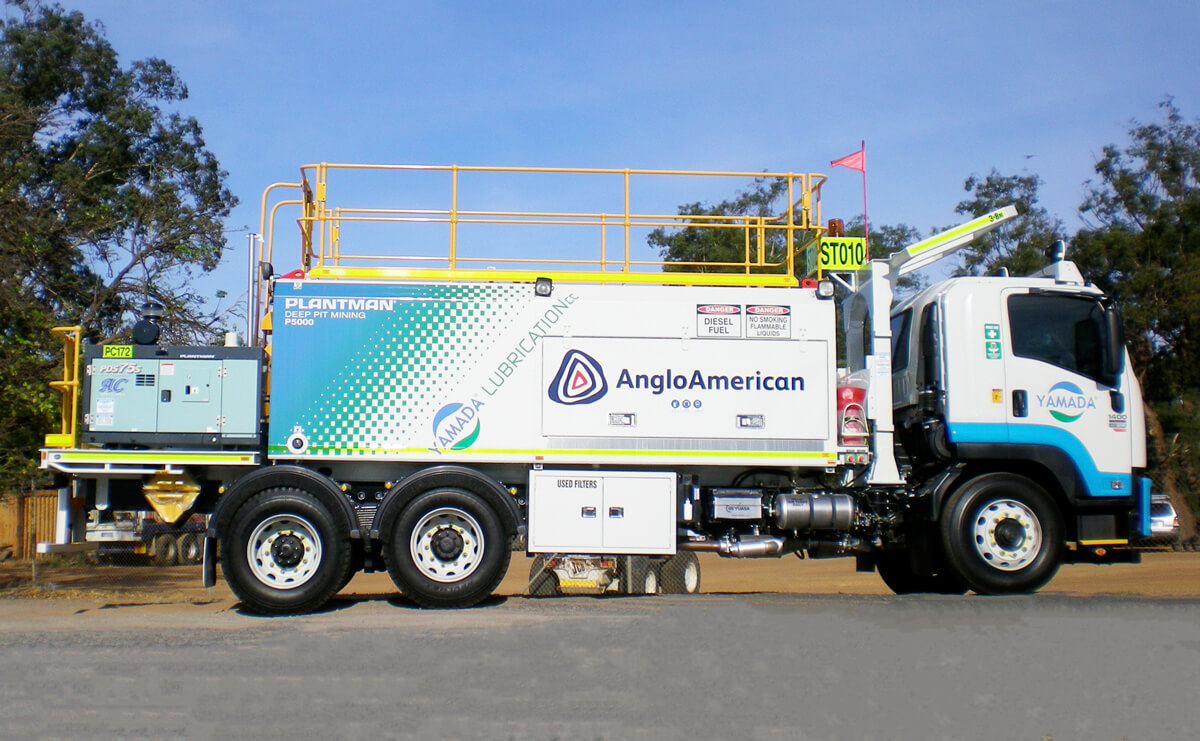

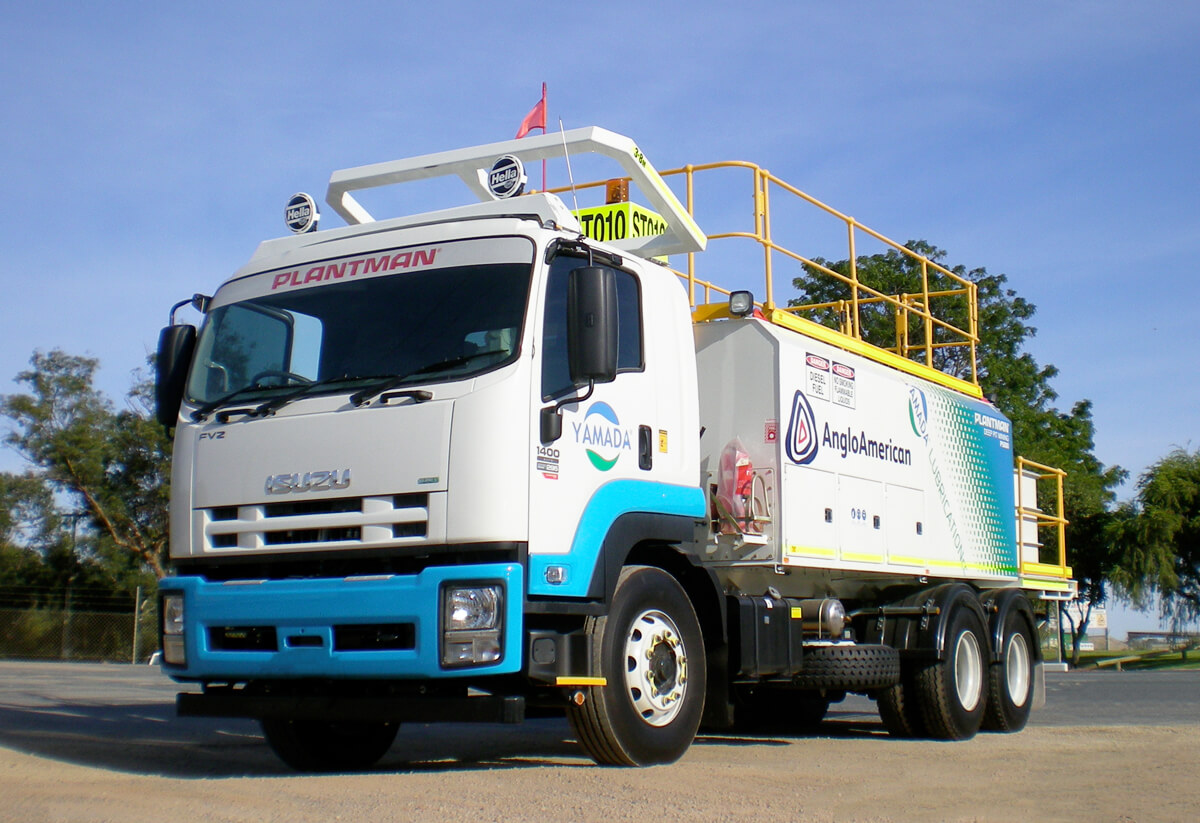

2012 ISUZU FVZ1400 6×4 SERVICE TRUCK P5000

YAMADA LUBRICATION

INDUSTRY: CIVIL

LOCATION: SOUTH AFRICA

TYPE: SERVICE TRUCK

Download Specs
Product Summary

New Heavy-duty chassis-mounted steel, Plantman P5000 compartment service module:

Tank #Tank TypeTank Capacity
No 1Bulk diesel – Reel, hose, Wiggins fast-fill handpiece5,000 litres
Diesel – Reel, hose, Light Vehicle handpiece
No 2Oil – Reel, hose, handpiece, fast and top fill750 litres
No 3Oil – Reel, hose, handpiece, fast and top fill750 litres
No 4Oil – Reel, hose, handpiece, fast and top fill750 litres
No 5Oil – Reel, hose, handpiece, fast and top fill750 litres
No 6Oil – Reel, hose, handpiece, fast and top fill500 litres
No 7Oil – Reel, hose, handpiece, fast and gravity drain500 litres
No 8Coolant Tank – Reel, hose, handpiece, fast and top fill500 litres
  • 500kg Bulk grease drum 2 pumps, reeels, hoses, hand piece

Airman Air Compressor 75PDS Specifications:

  • Automatic Shutdown and warning system
  • Key Start lock
  • Donaldson air cleaner system
  • Receiver Dryer
  • Automatic Lubricator

Plantman P5000 – ISUZU FVZ1400 6×4 Service Truck P5000 Specifications:

  • 221KW turbocharged & inter-cooled 4 cycle diesel engine with exhaust retarder
  • Euro V compliant
  • Allison MD World Series 6 speed automatic transmission
  • Air-conditioned high roof cabin
  • ROPS canopy to AS 2294 & ISO 3471.
  • ISRI suspension seat
  • Passenger seat with retractable seat belts
  • AM/FM radio with compact disc player
  • Fabric seats with canvas seat covers
  • Electric windows
  • Remote control door locks
  • East-West mirrors & spot mirrors
  • Meritor front & rear axle set with spring front & rear suspension
  • Non-asbestos brake linings
  • Air dryer
  • Spring applied emergency & parking brake
  • 11R x 22.5 drive tyres
  • 295/80R x 22.5 steer tyres
  • Rear-mounted spare wheel
  • Jack & wheel brace
  • Standard tint laminated windscreen, tropical tinted rear and side windows
  • Safety signage
  • Two-way radio wiring and power supply
  • 2 x 9kg fire extinguishers
  • Auxiliary lighting
  • Reverse alarm
  • Roof-mounted amber rotating beacon
  • Lockable isolator
  • Jumpstart receptacle
  • Service meter
  • Passed roadworthy for Western Australia
  • High-pressure grease system
  • Safety signage
  • All pumps are fully enclosed inside RHS pump cabinet
  • Hose reels are mounted RHS front
  • All systems are air operated
  • Amber rotating beacon and five (5) service lights
  • Polymer lined water & coolant tanks
  • Polymer lined waste oil tank
  • Top safety rails and steps
  • Enclosed are steel pipe reticulation lines
  • Lockable start isolators to the truck and air compressor
  • 2″ double diaphragm diesel delivery pump
Read More
Product Specifications
Axles 6x4
Capacity 5000L
Make ISUZU
Type Service Truck
