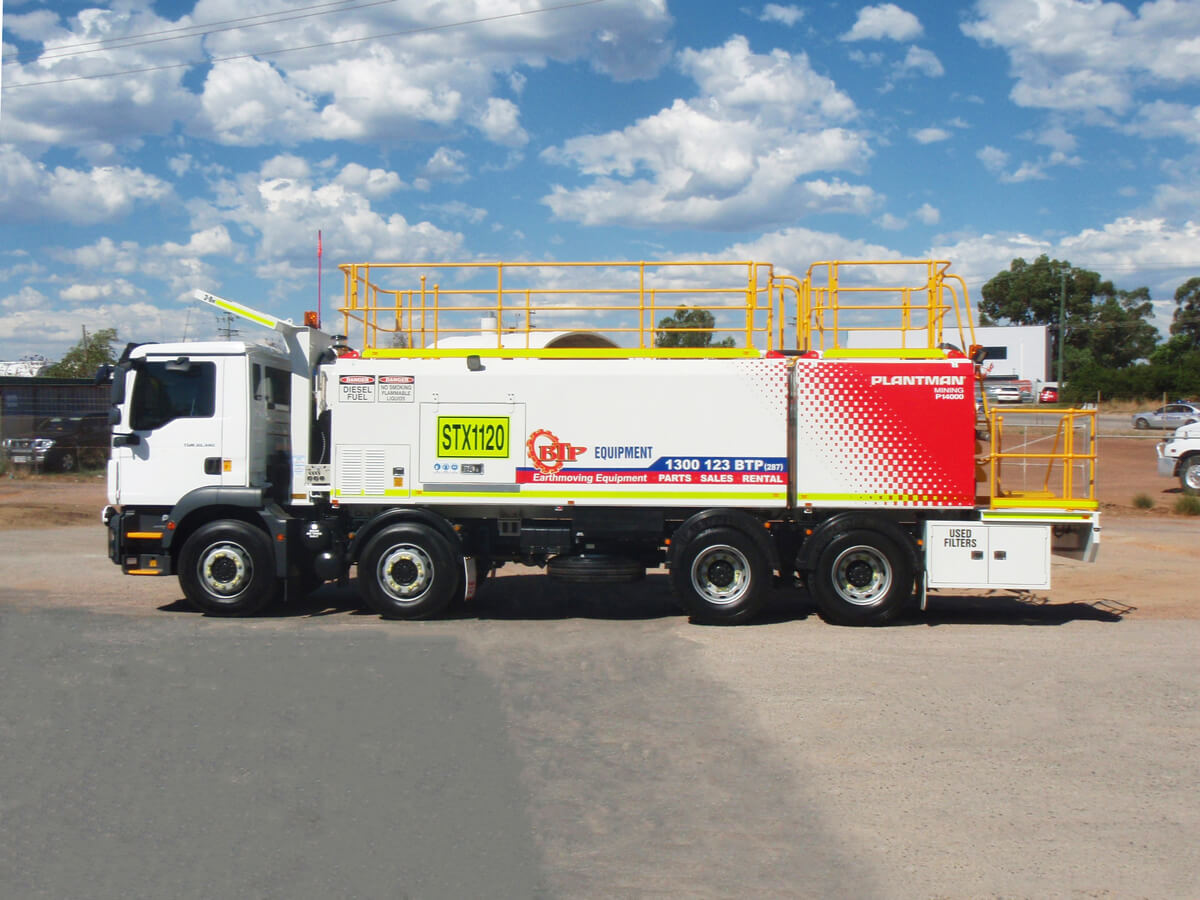

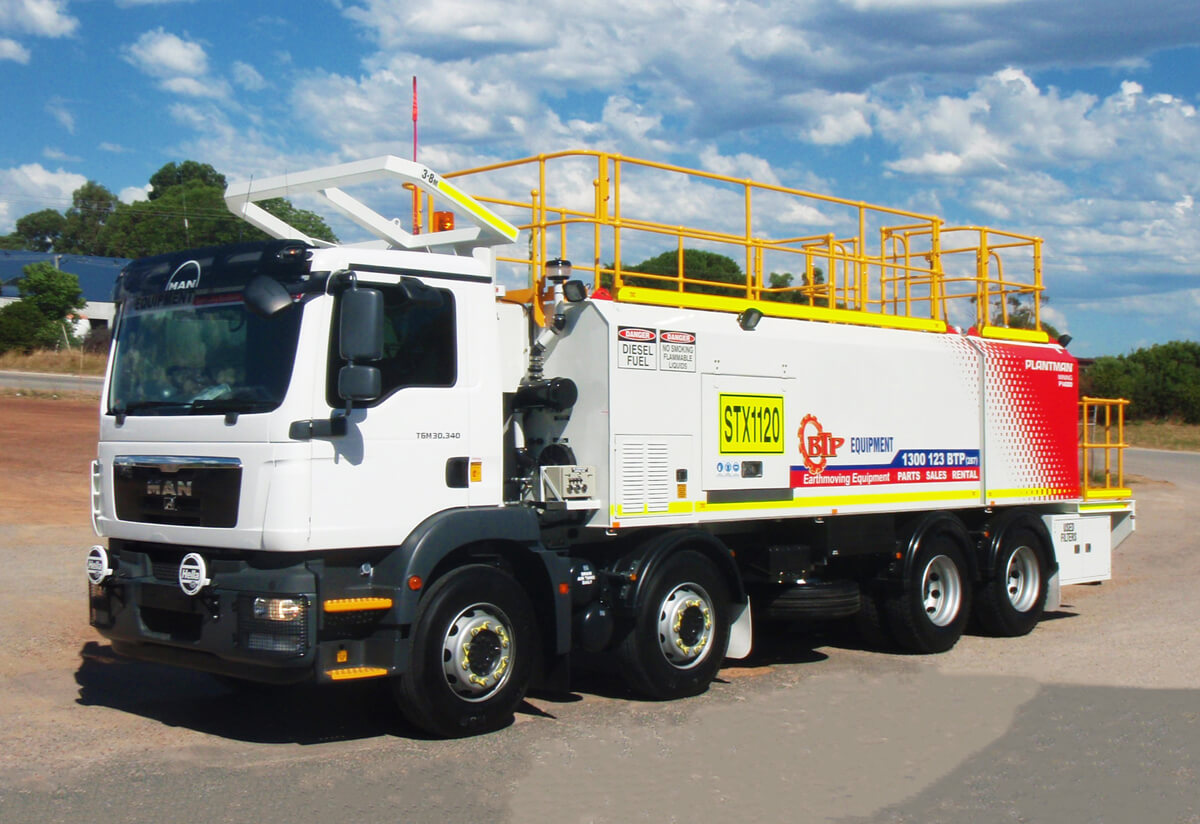

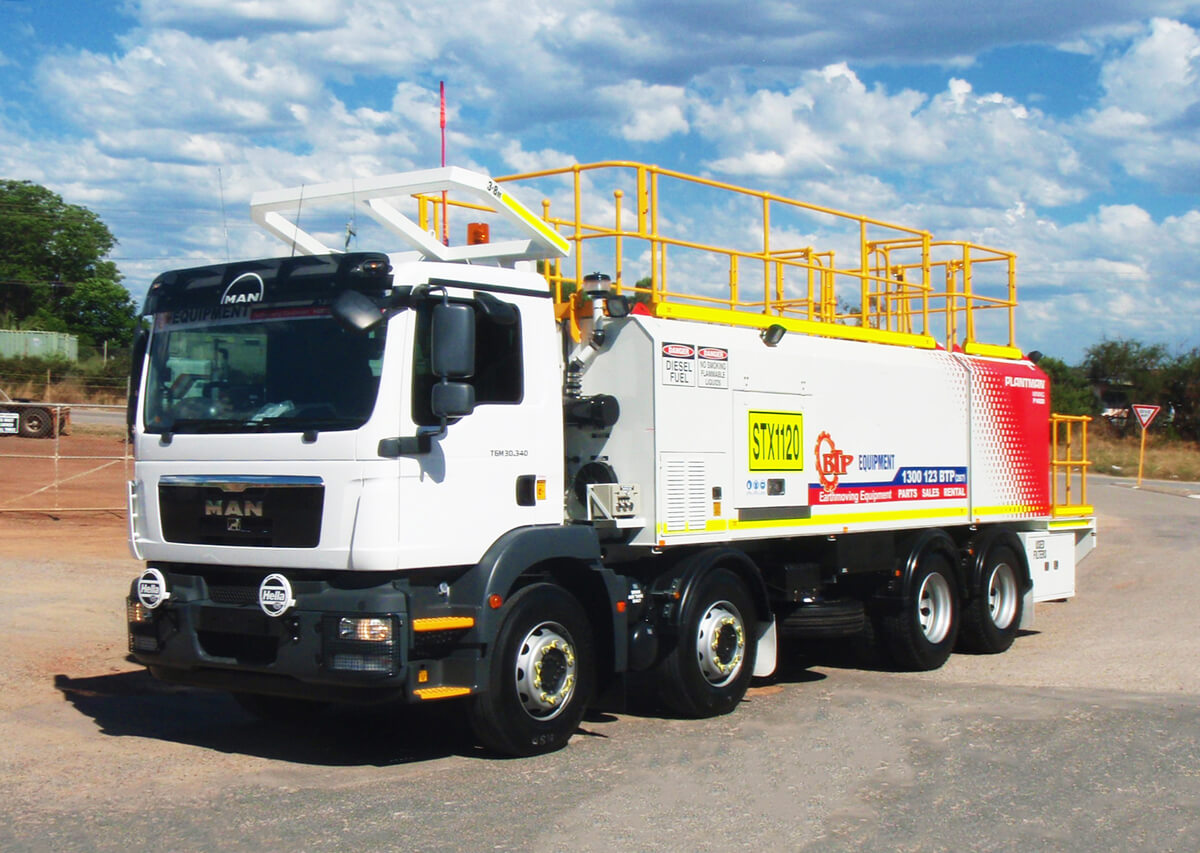

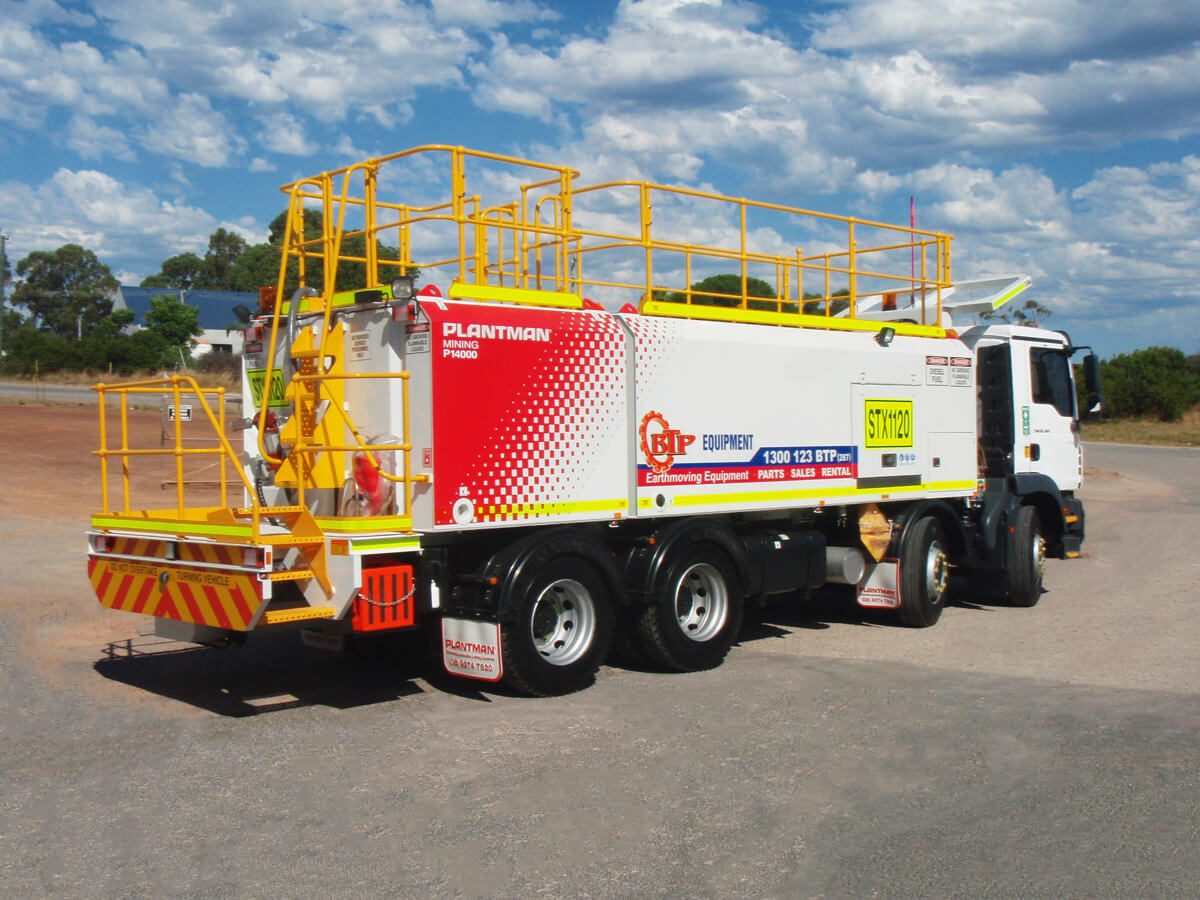

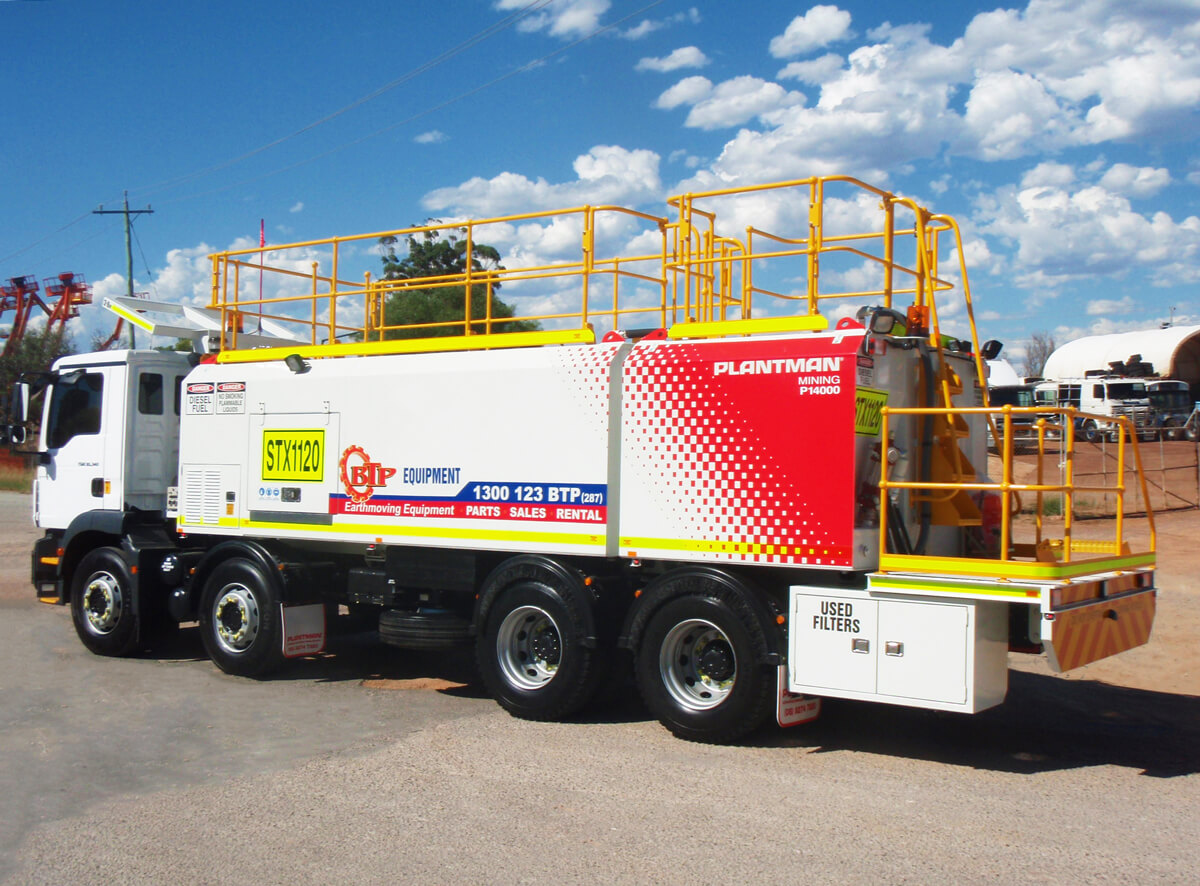

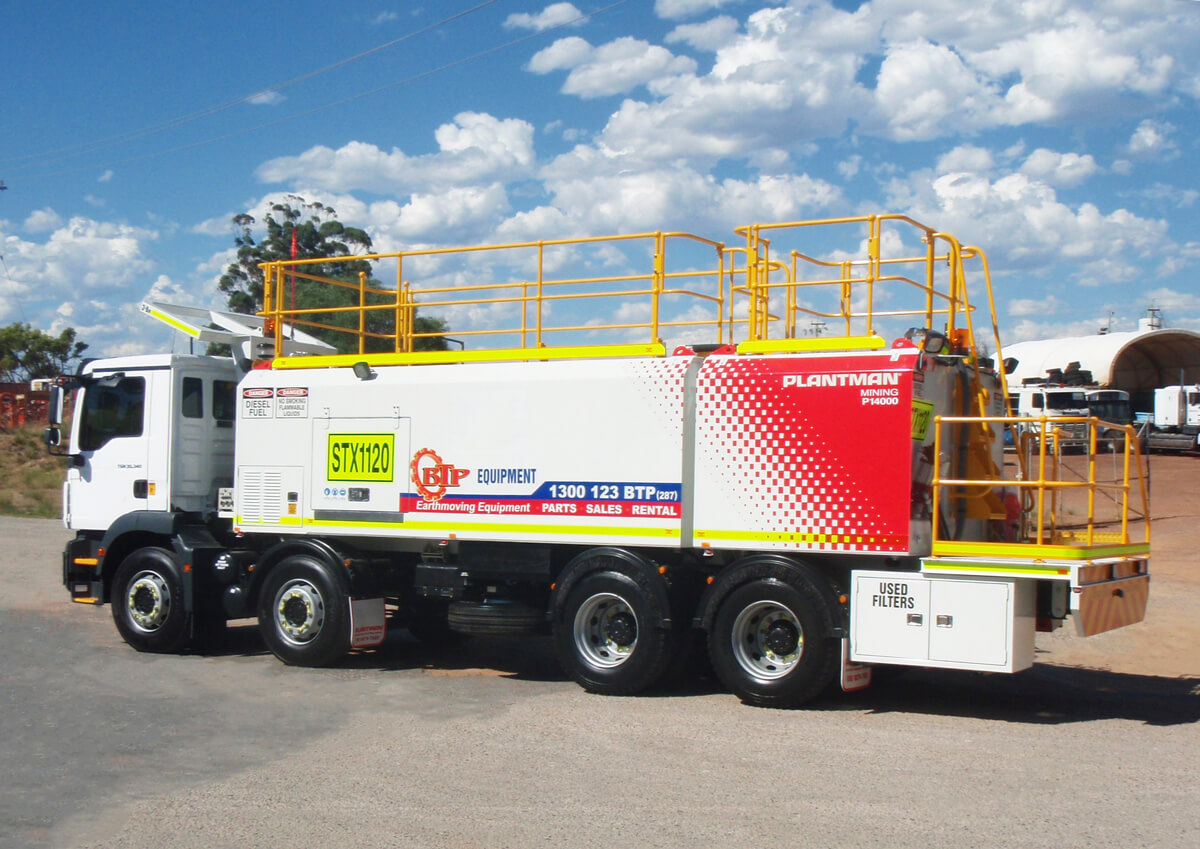

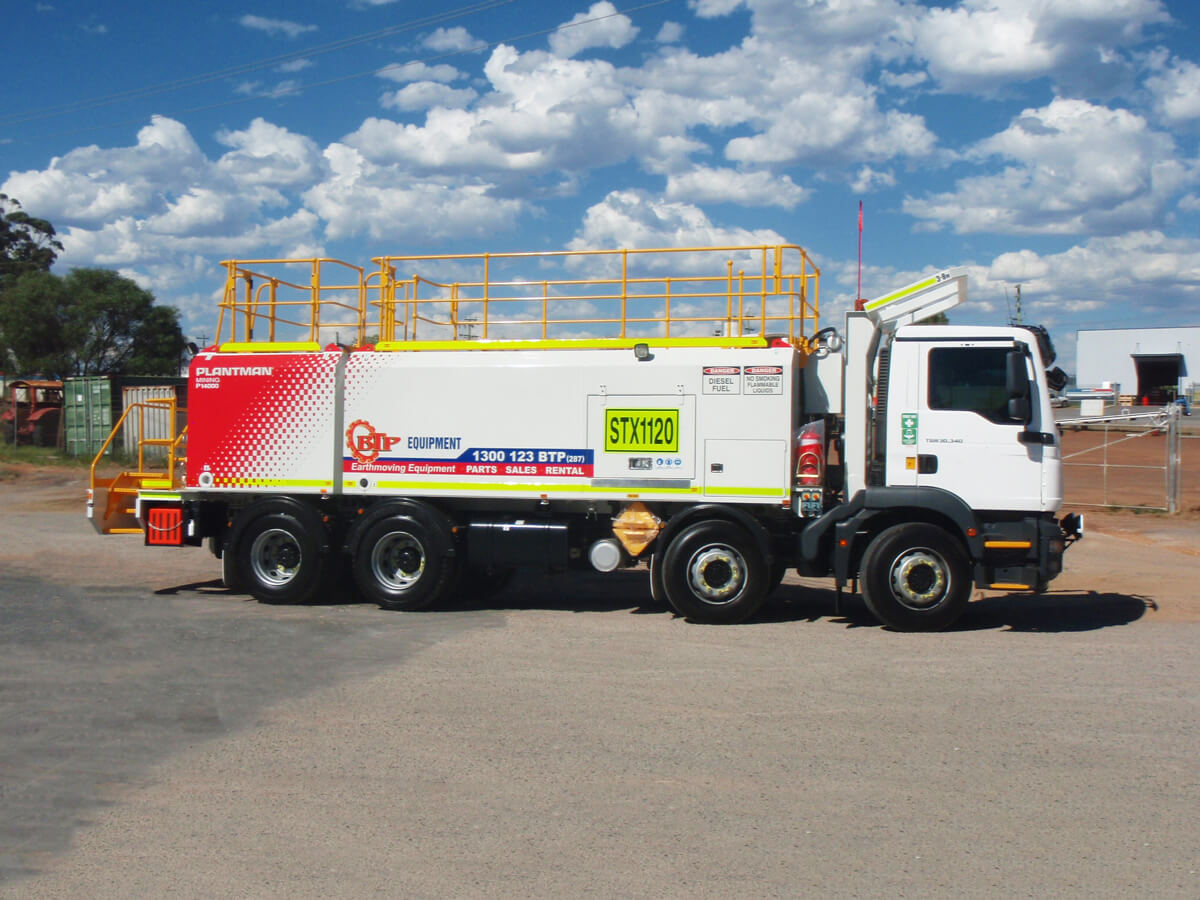

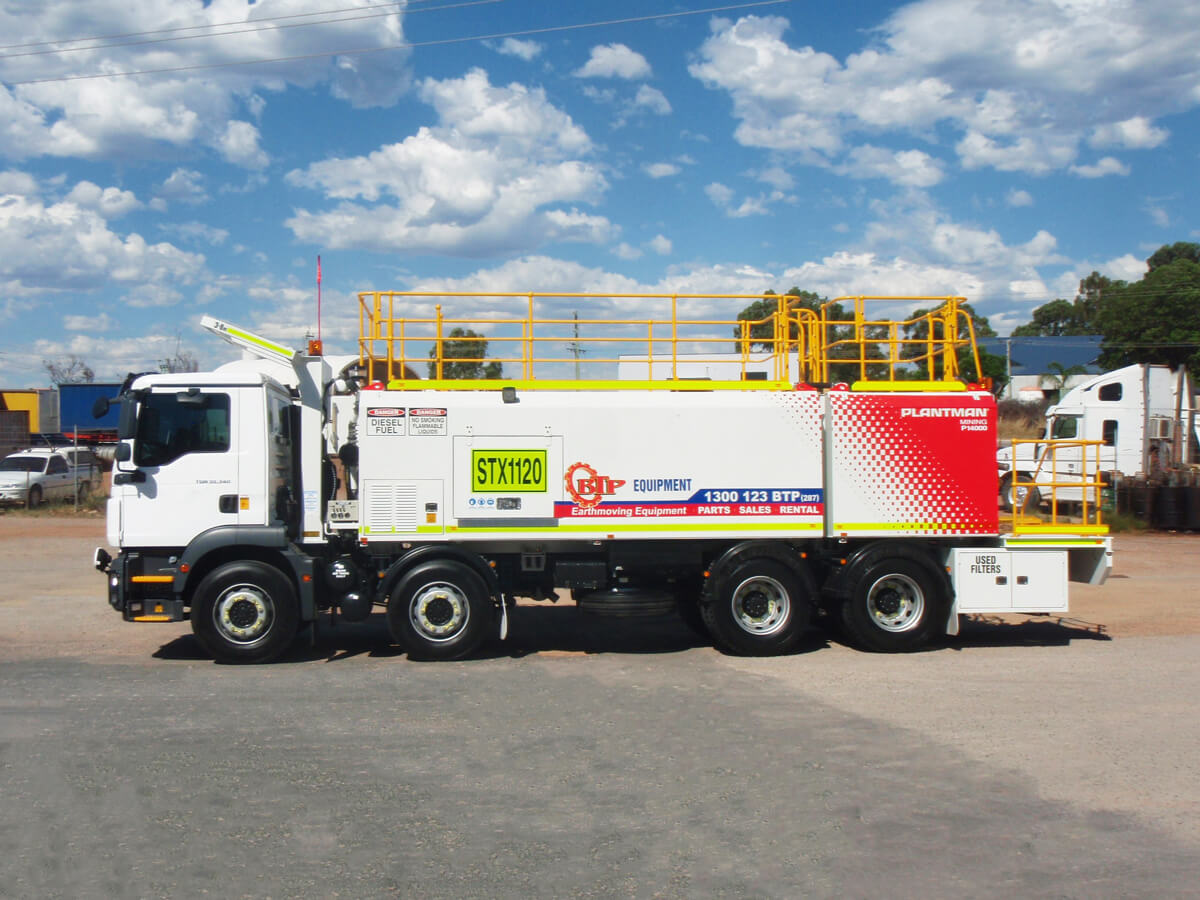

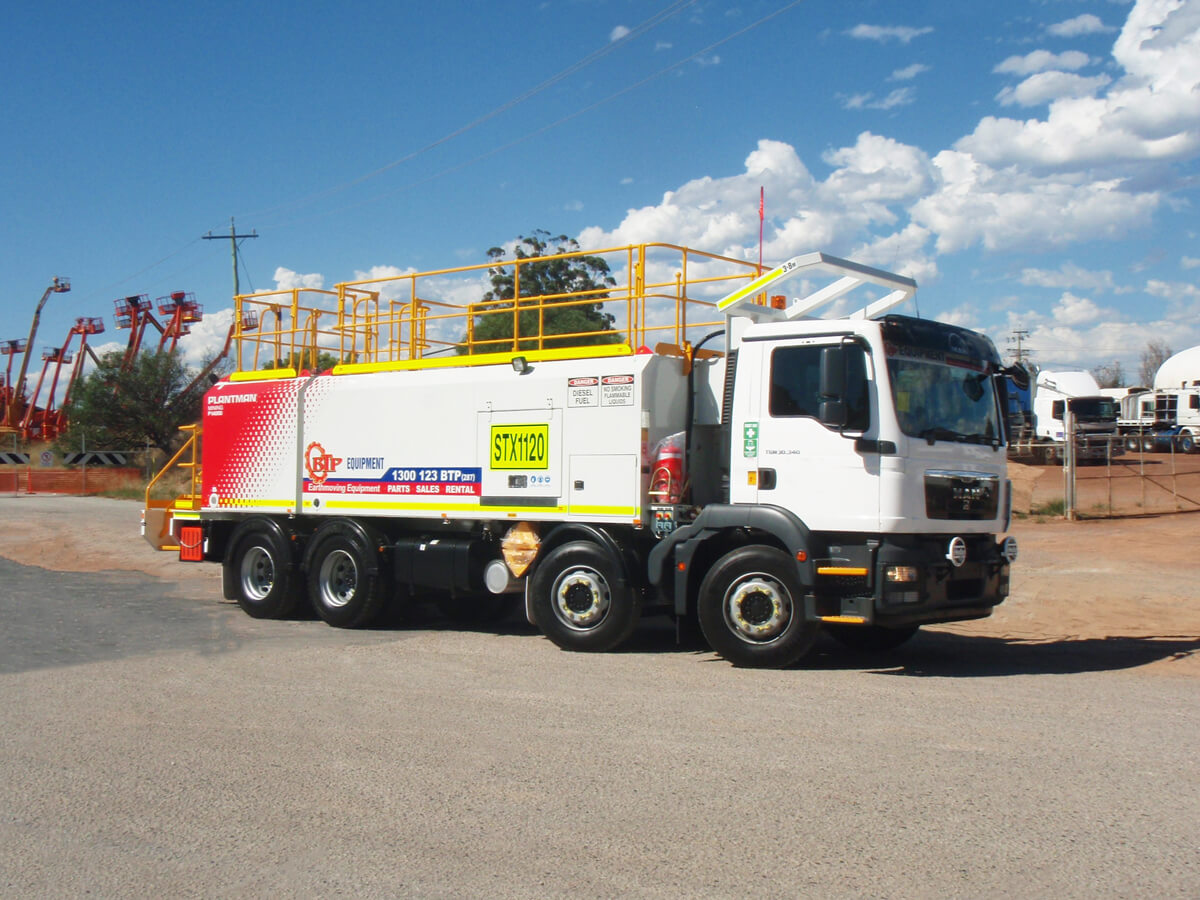

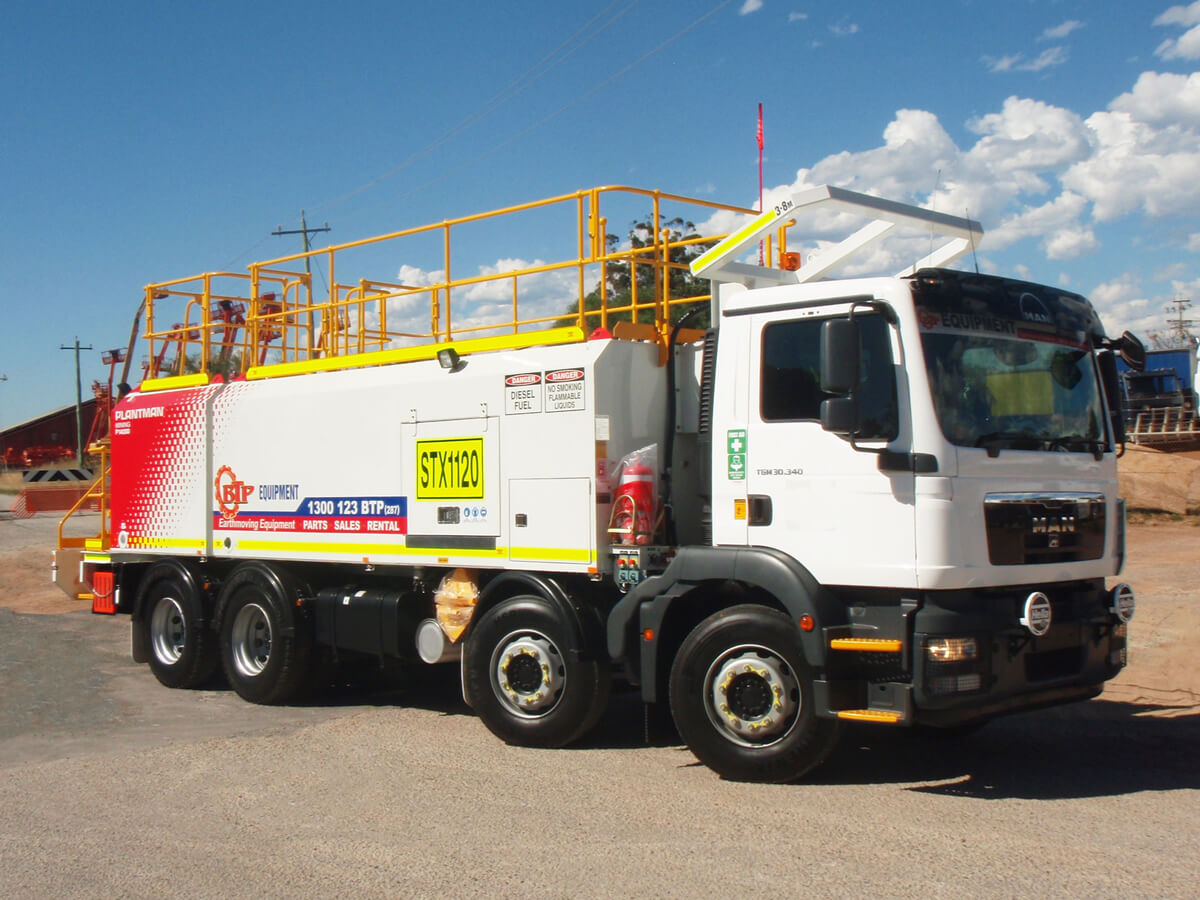

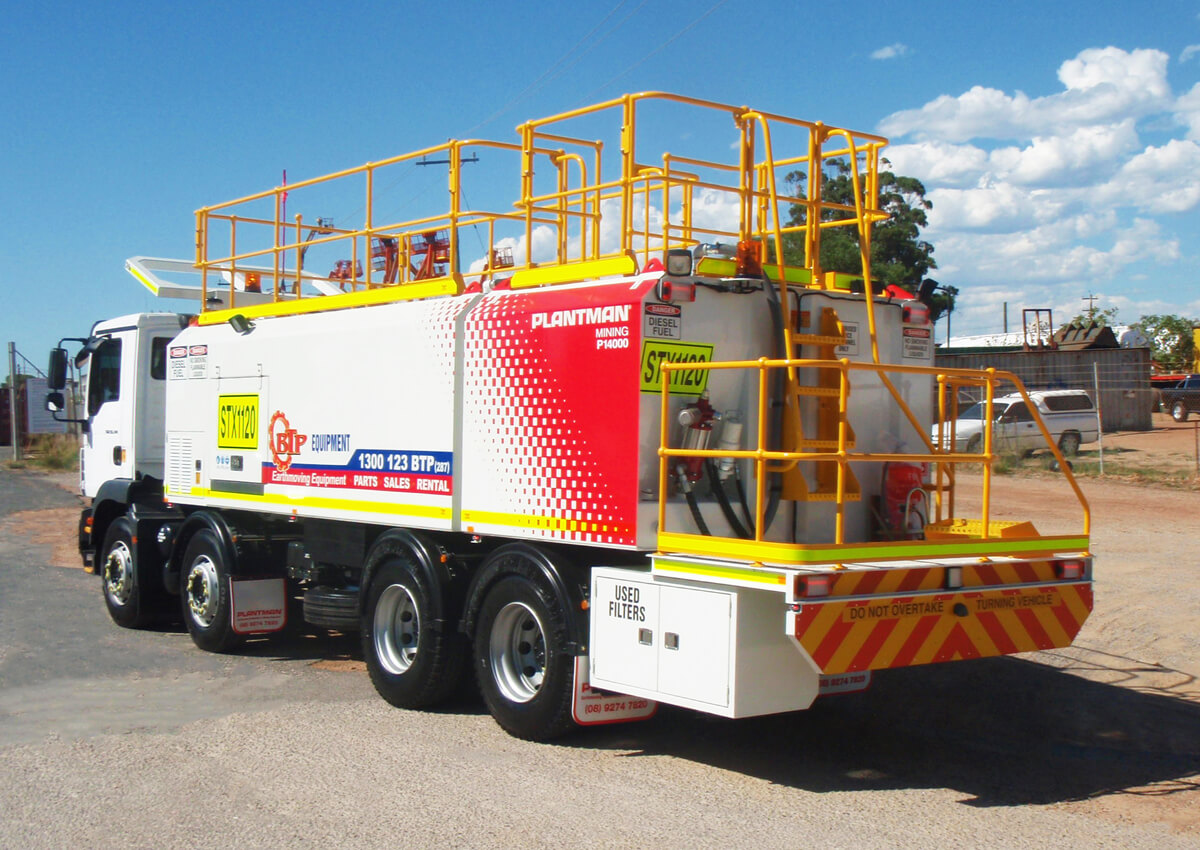

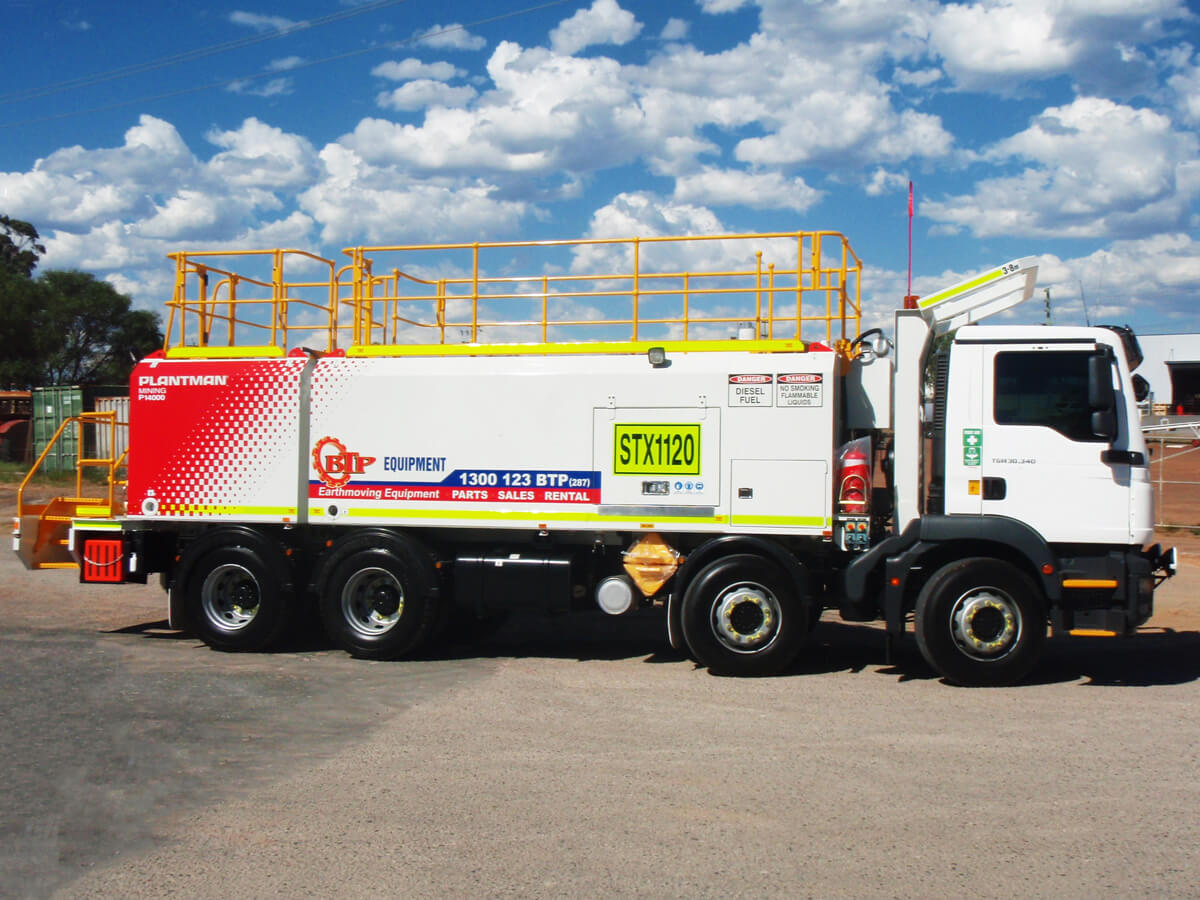

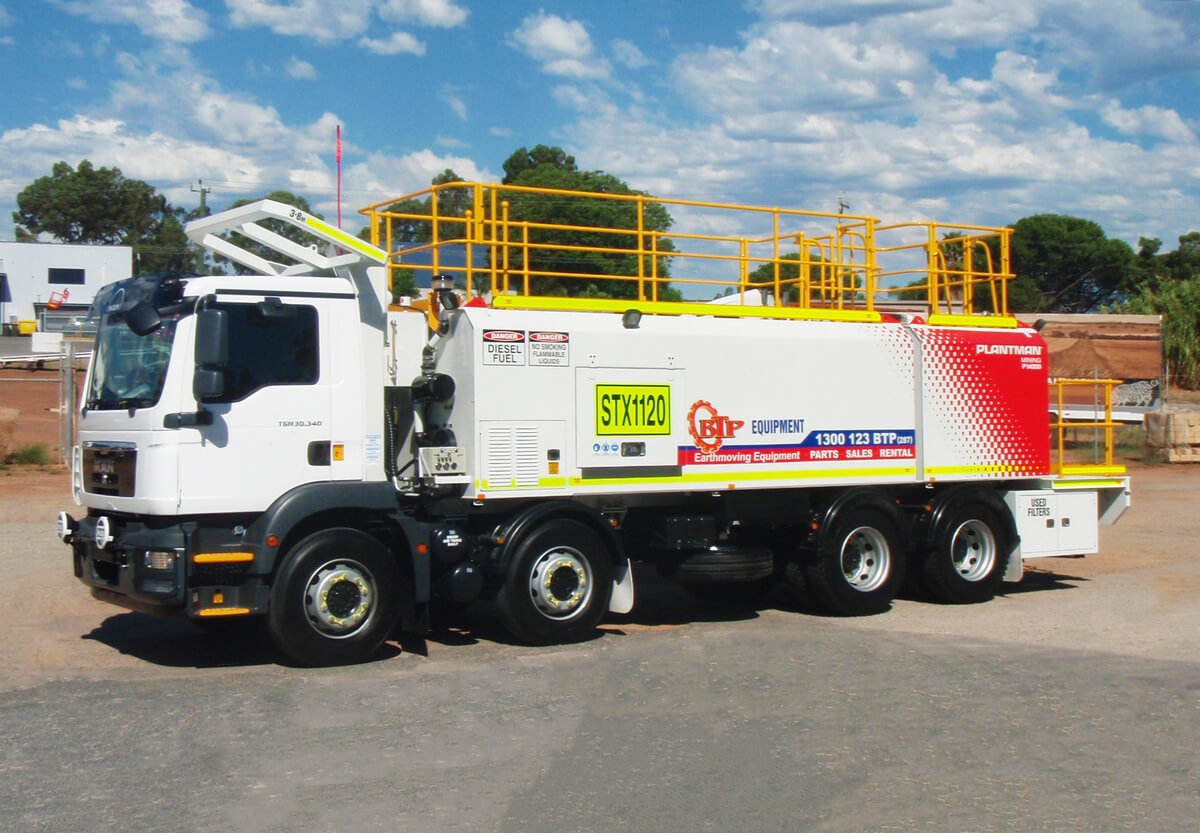

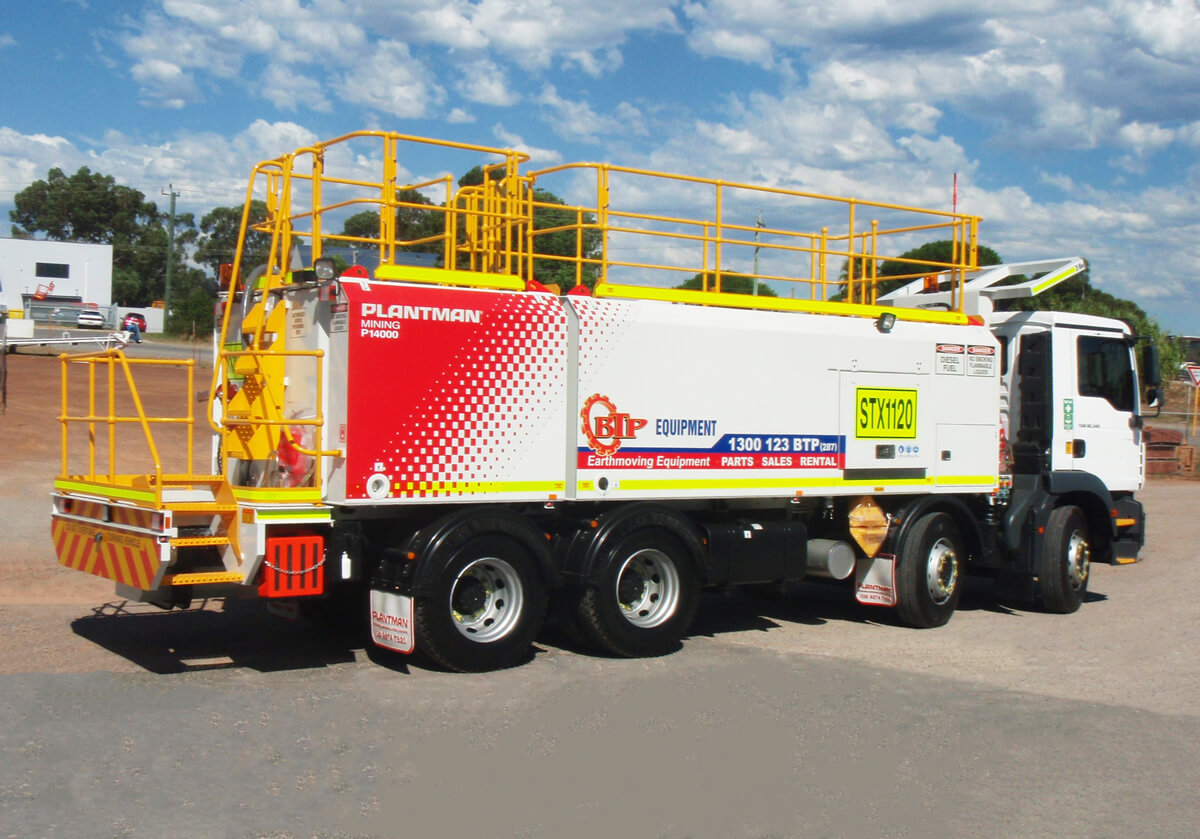

2012 MAN TGM 30.340 8×4 SERVICE TRUCK P14000

BTP GROUP

INDUSTRY: MINING

LOCATION: PILBARA

TYPE: SERVICE TRUCK

Download Specs
Product Summary

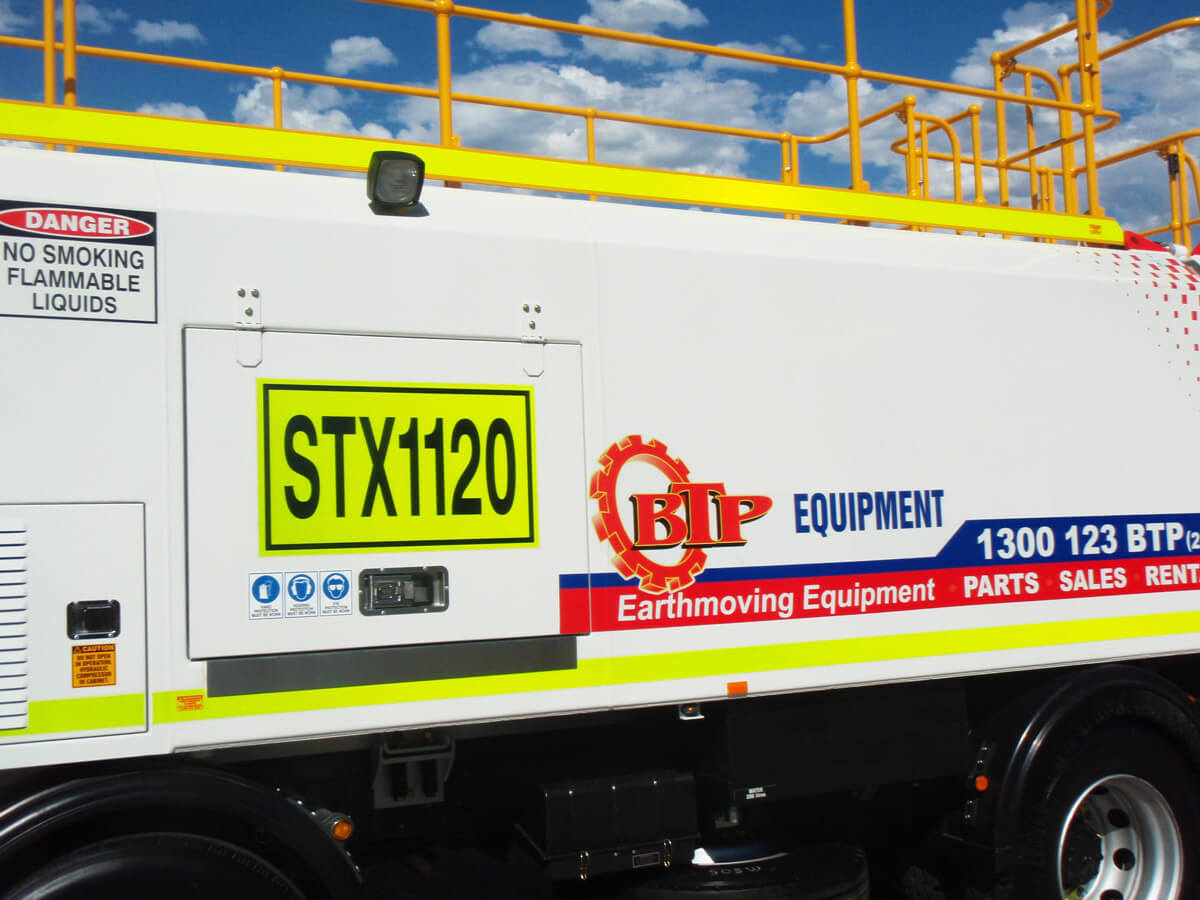

New Heavy-duty chassis-mounted steel, Plantman P14000 compartment service module:

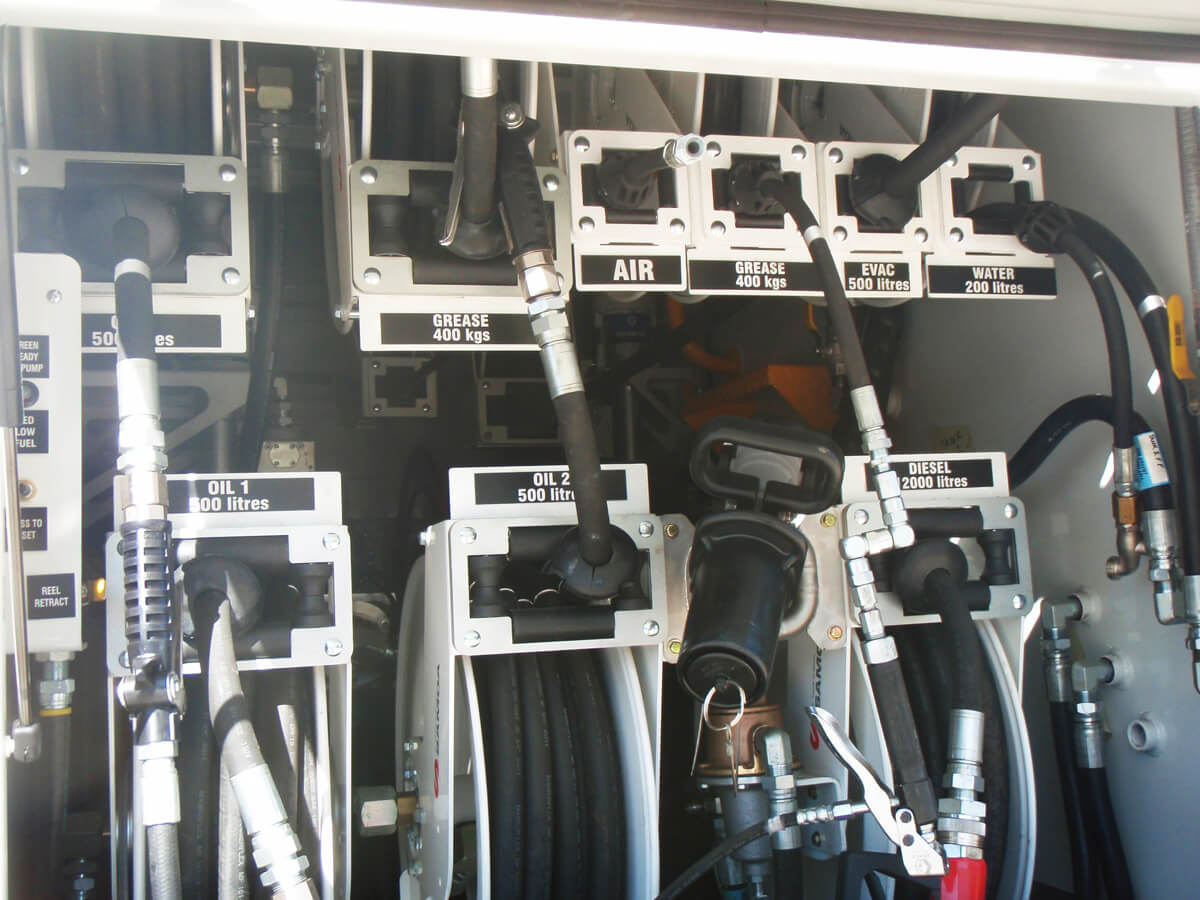

Tank#Tank TypeTank Capacity
No 1Bulk Diesel – Reel, hose, Wiggins handpiece, fast-fill12,500 litres
No 2Oil – Reel, hose, handpiece, fast-fill500 litres
No 3Oil – Reel, hose, handpiece, fast-fill500 litres
No 4Oil – Reel, hose, handpiece, fast-fill500 litres
No 5Waste – Reel, hose500 litres
No 6Coolant/Water – Reel, hose, handpiece, fast-fill200 litres

Boss 90CFM Air Compressor Specifications:

  • Direct Coupled 90 CFM Boss Rotary Compressor
  • Receiver drier
  • 1000kpa deliver pressure maximum
  • Oil separator
  • Cooling via air to oil front mounted cooler
  • Over temperature and load protection system

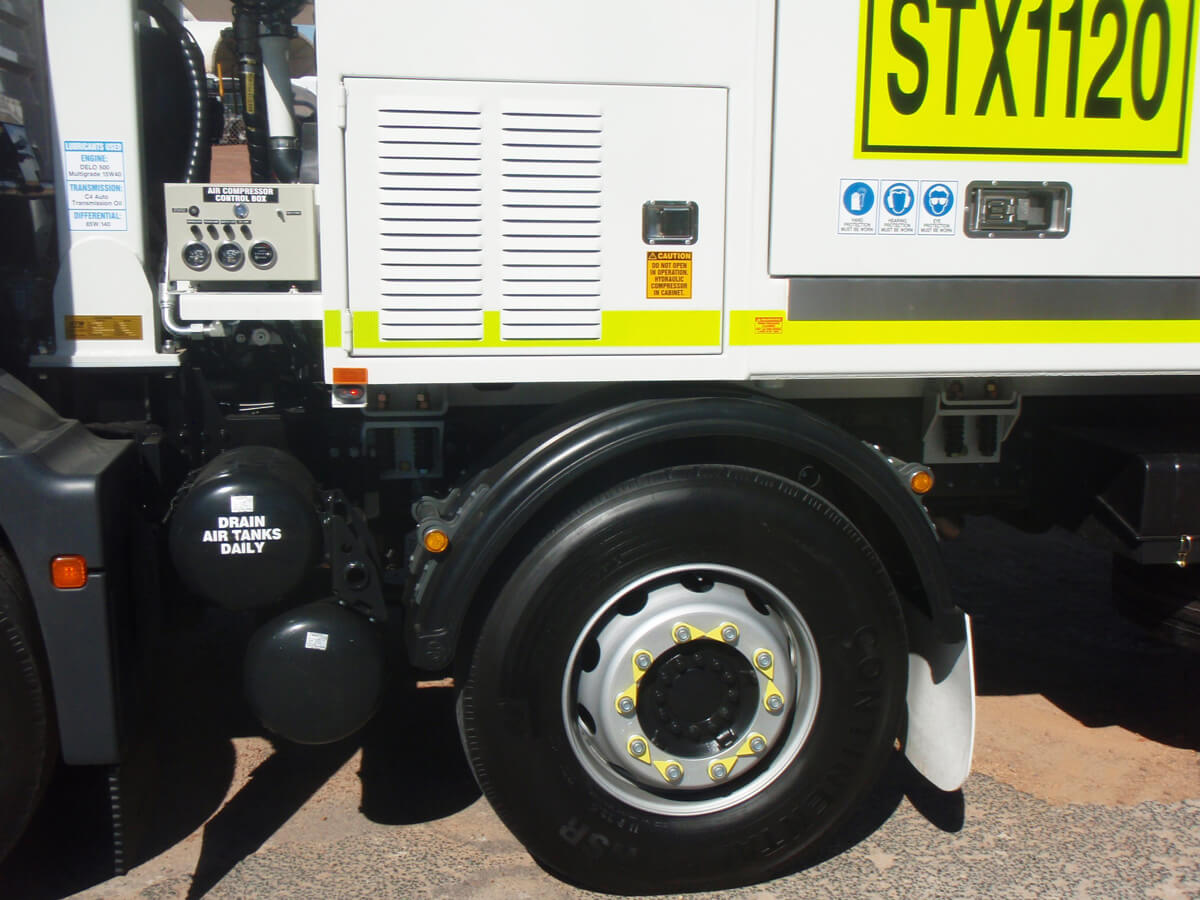

  • External ground level control system

Plantman P14000 – MAN TGM 30.340 8×4 Service Truck P14000 Specifications:

  • Turbo charged & inter cooled 4 cycle diesel engine with exhaust retarder
  • Pre cleaner
  • Automated transmission
  • Engine retarder
  • Power take off
  • High ambient transmission cooler
  • Tropical cooling system package
  • Air conditioned high roof cabin, ROPS canopy
  • Suspension seat, passenger seat with retractable seat belts
  • AM/FM radio with compact disc player
  • Fabric seats with canvas seat covers
  • Electric windows
  • Remote control door locks
  • East West mirrors & spot mirrors
  • Heavy duty front guard spring front and rear suspension
  • Non asbestos brake linings
  • Air dryer
  • Spring applied emergency & parking brake

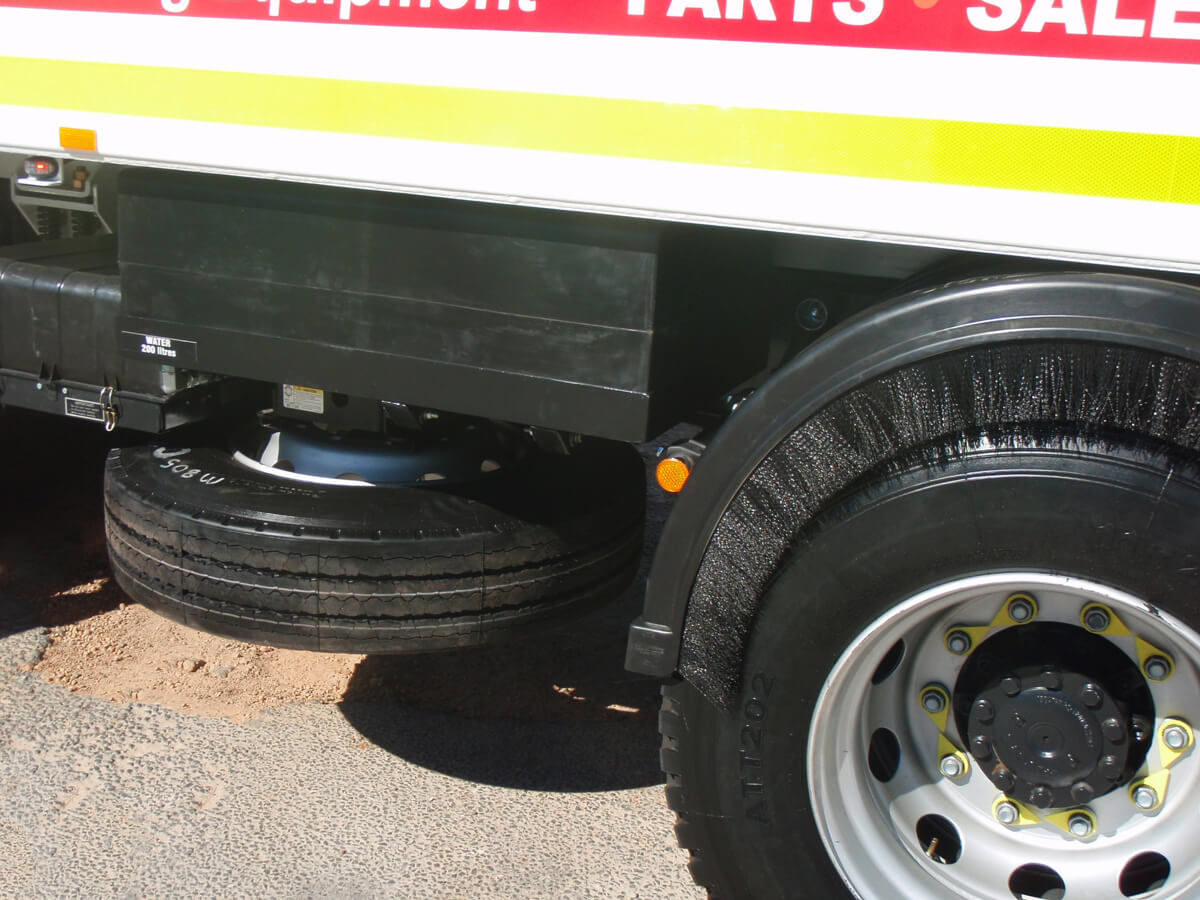

  • 11R x 22.5 tyres x 13, individual wheel covers and heavy duty mud flaps, rear mounted spare wheel, jack & wheel brace
  • Standard tint laminated windscreen, tropical tinted rear and side windows
  • 1.2 meter aerial and warning flag
  • Safety signage
  • Two way radio power supply
  • 2 x 9kg fire extinguishers
  • 1x 1 kg extinguisher
  • Auxiliary lighting
  • Reverse alarm
  • Roof mounted dual element amber rotating beacon
  • Lockable isolator
  • Jump start receptacle
  • Remote shut downs
  • Electric service meter
  • PTO service meter
  • LED tail lights
  • Passed road worthy for Western Australia
  • All oil & grease systems are air operated

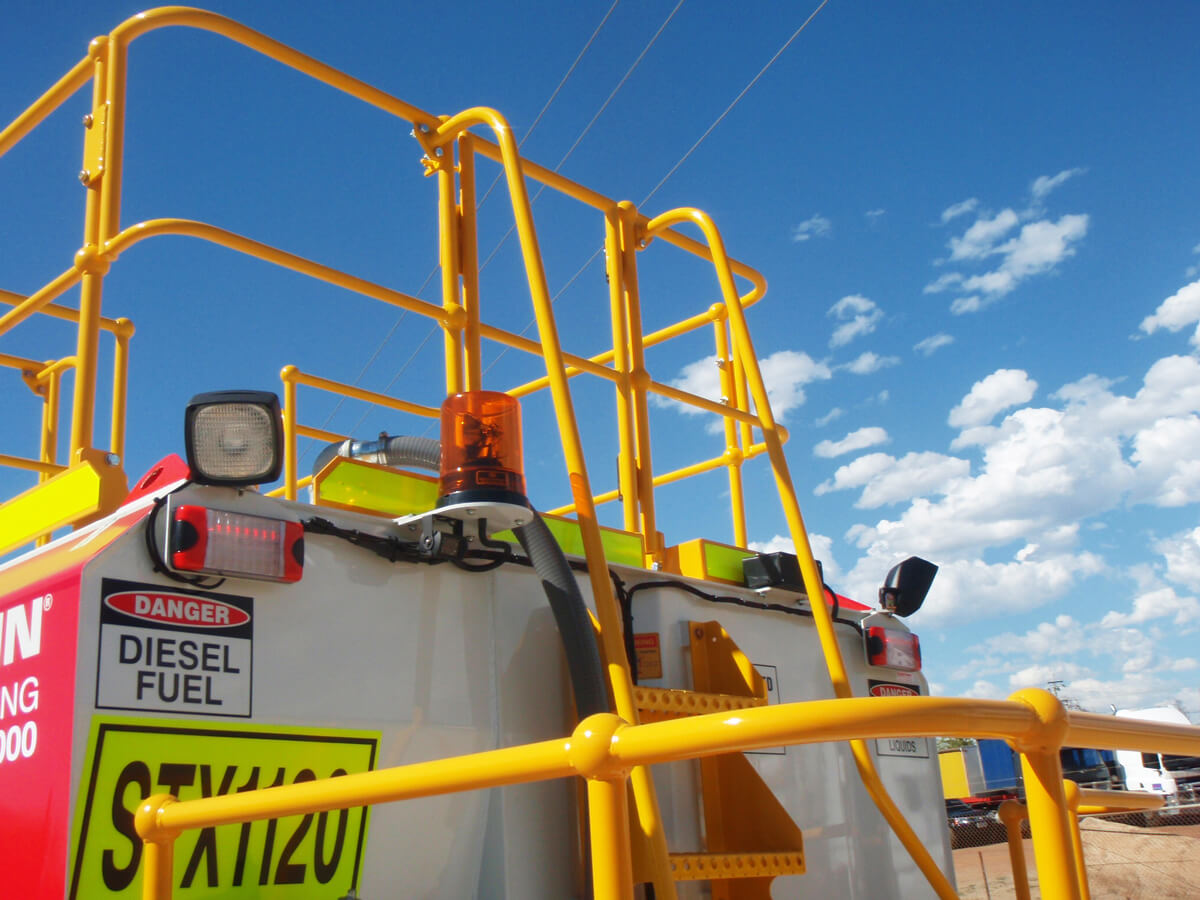

  • Auxiliary air reel Top safety rails and steps fitted
  • Reels are accessed from ground level at the RHS front of the service module
  • Piusi digital display meters
  • 3″ PTO driven Rotary diesel delivery pump option
  • Remote radio speaker connection
  • Hella LED amber rotating beacon
  • High Volume and High Pressure grease system
  • Full length sight gauges
  • Digital display oil meters
Read More
Product Specifications
Axles 8x4
Capacity 14000L
Make MAN
Type Service Truck
