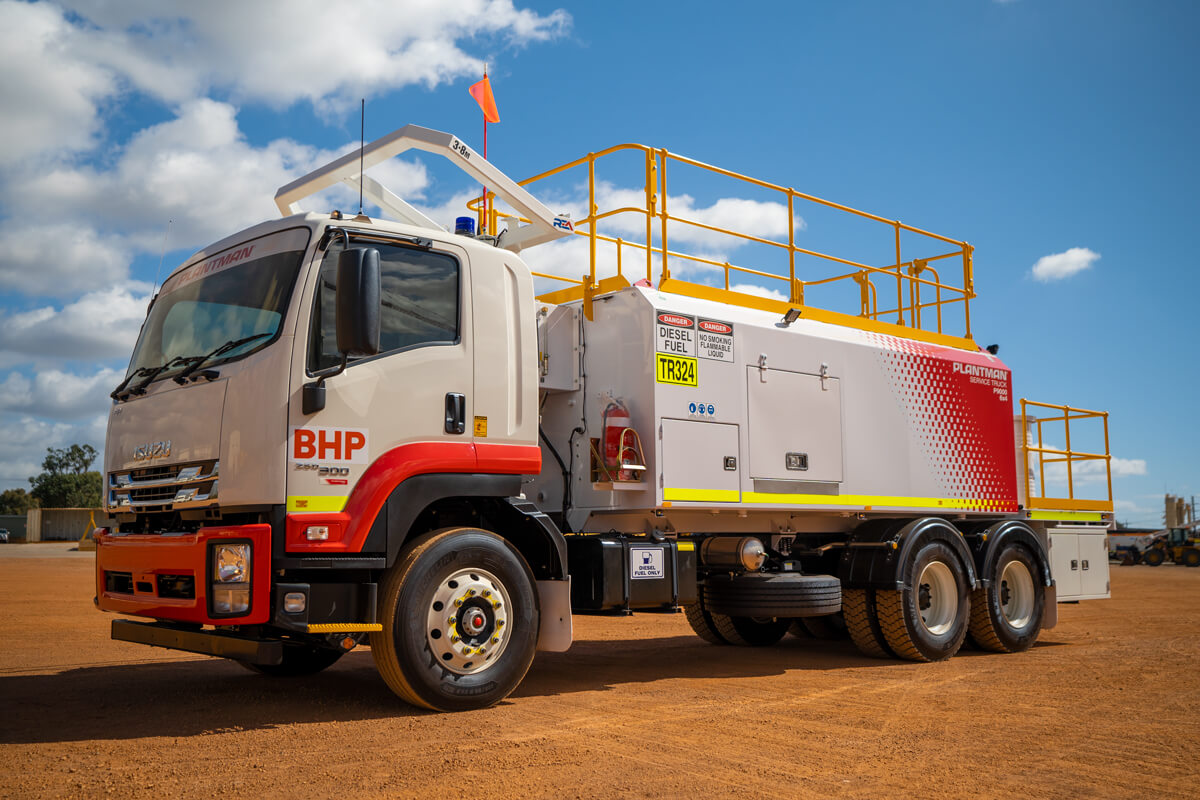

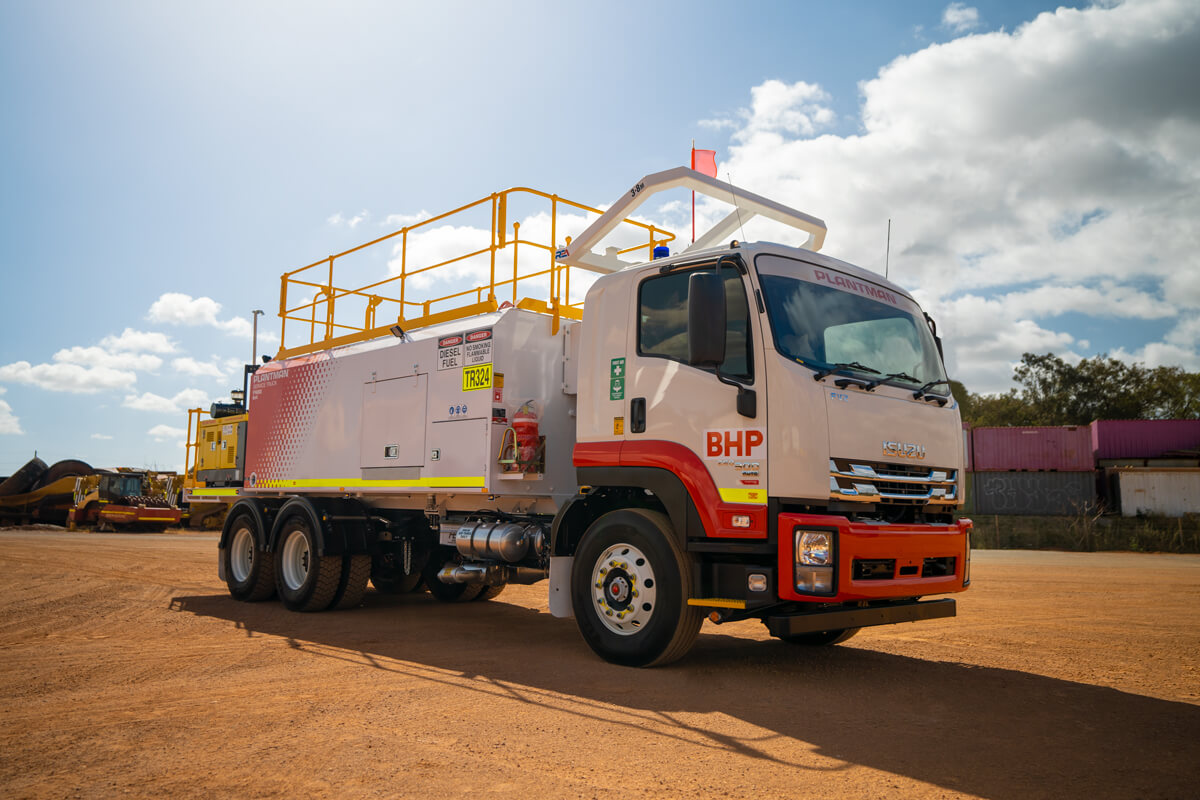

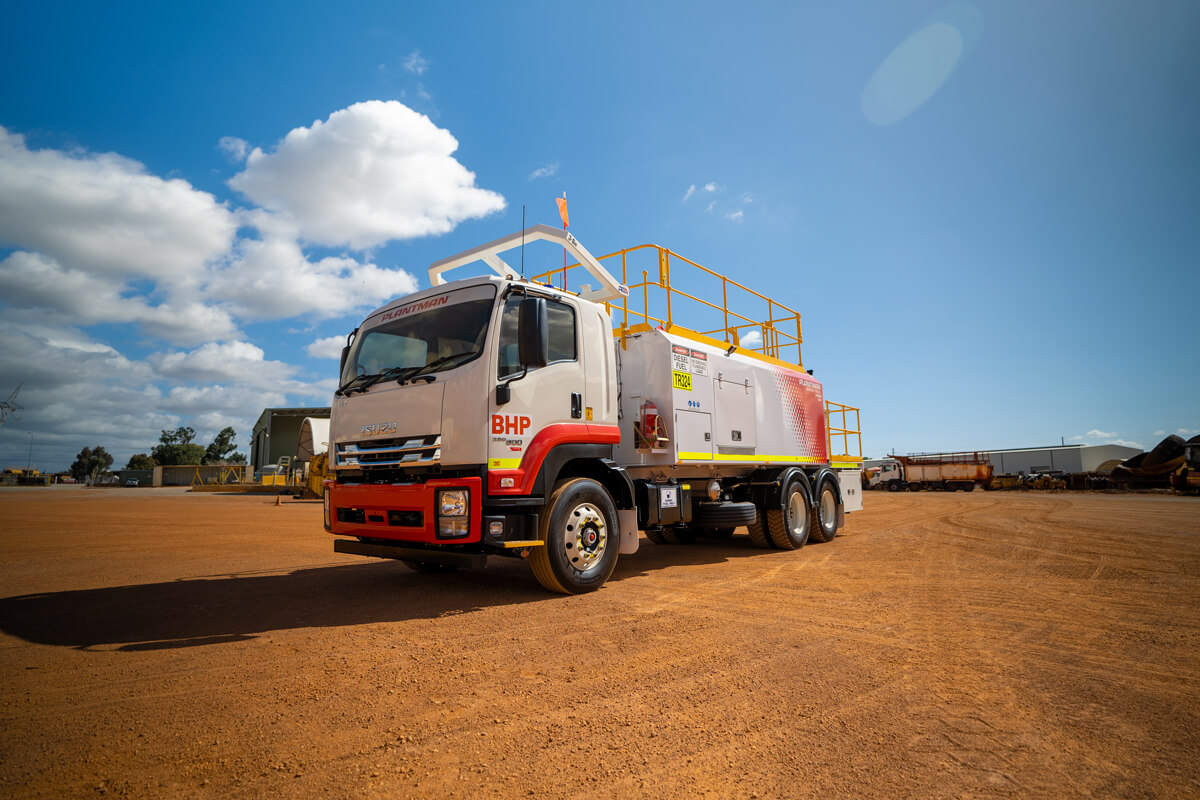

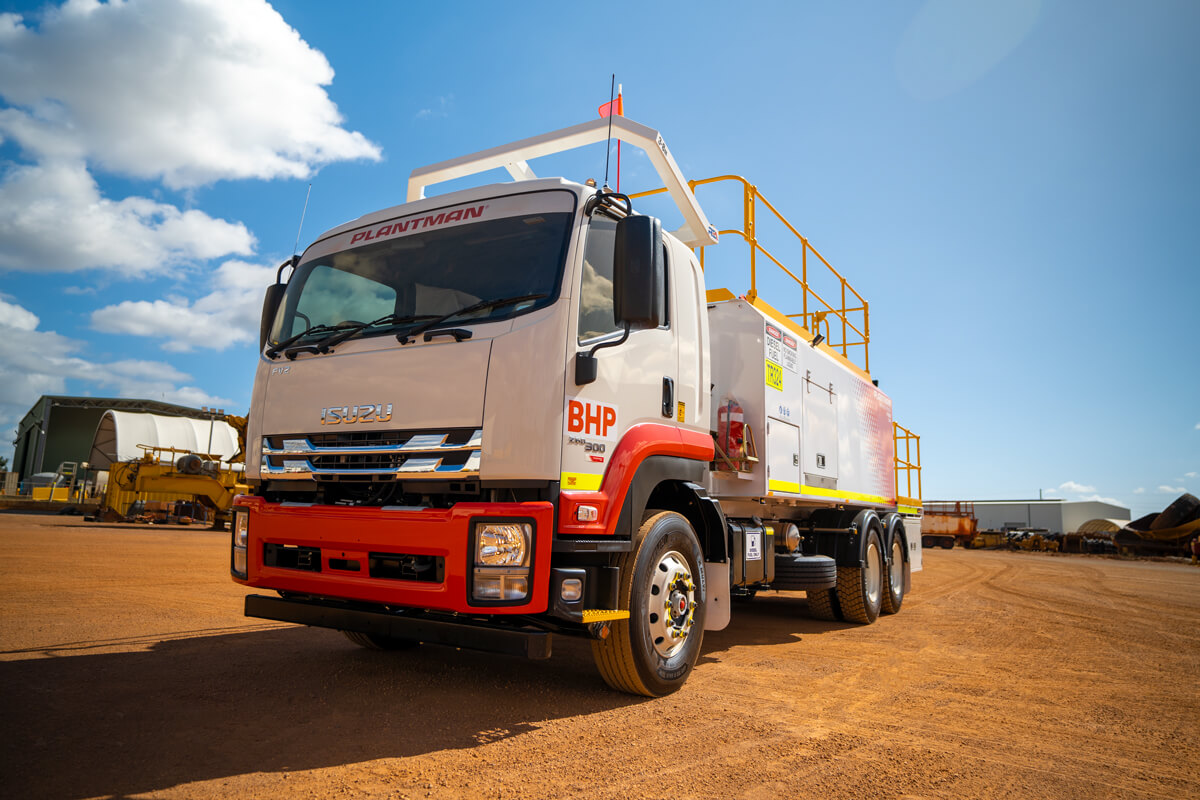

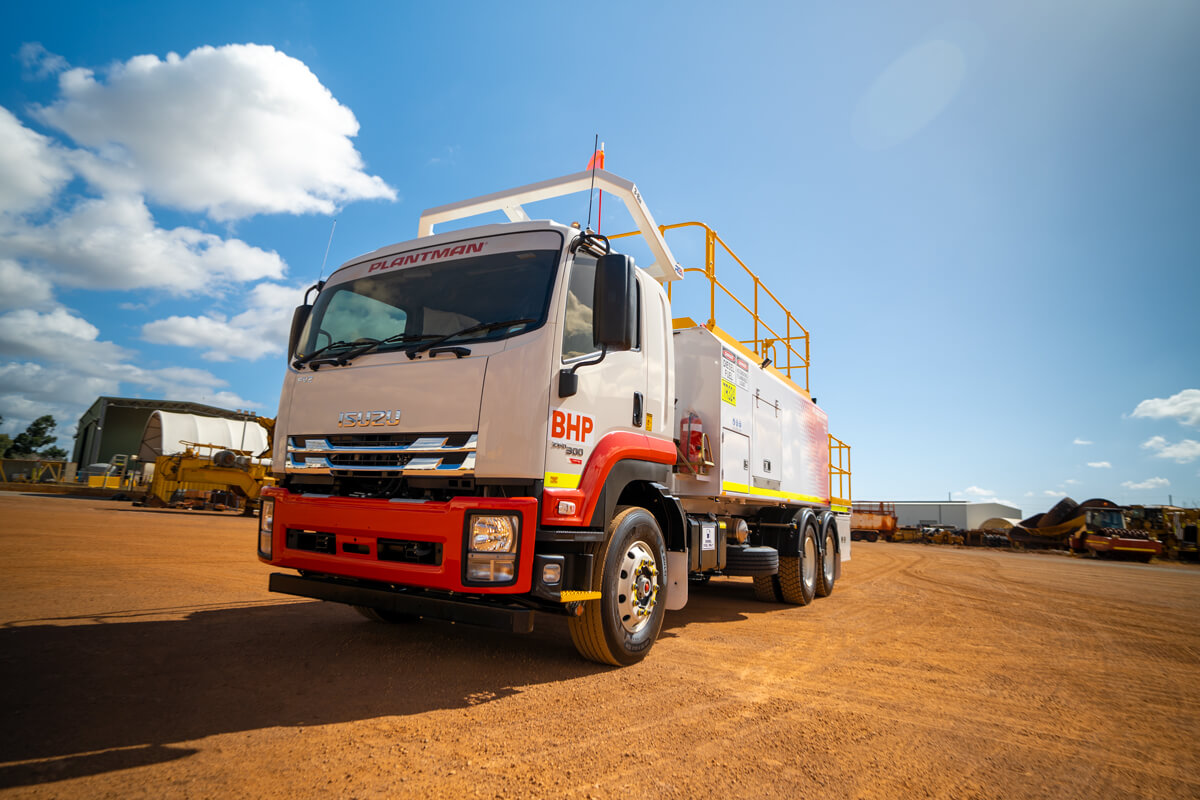

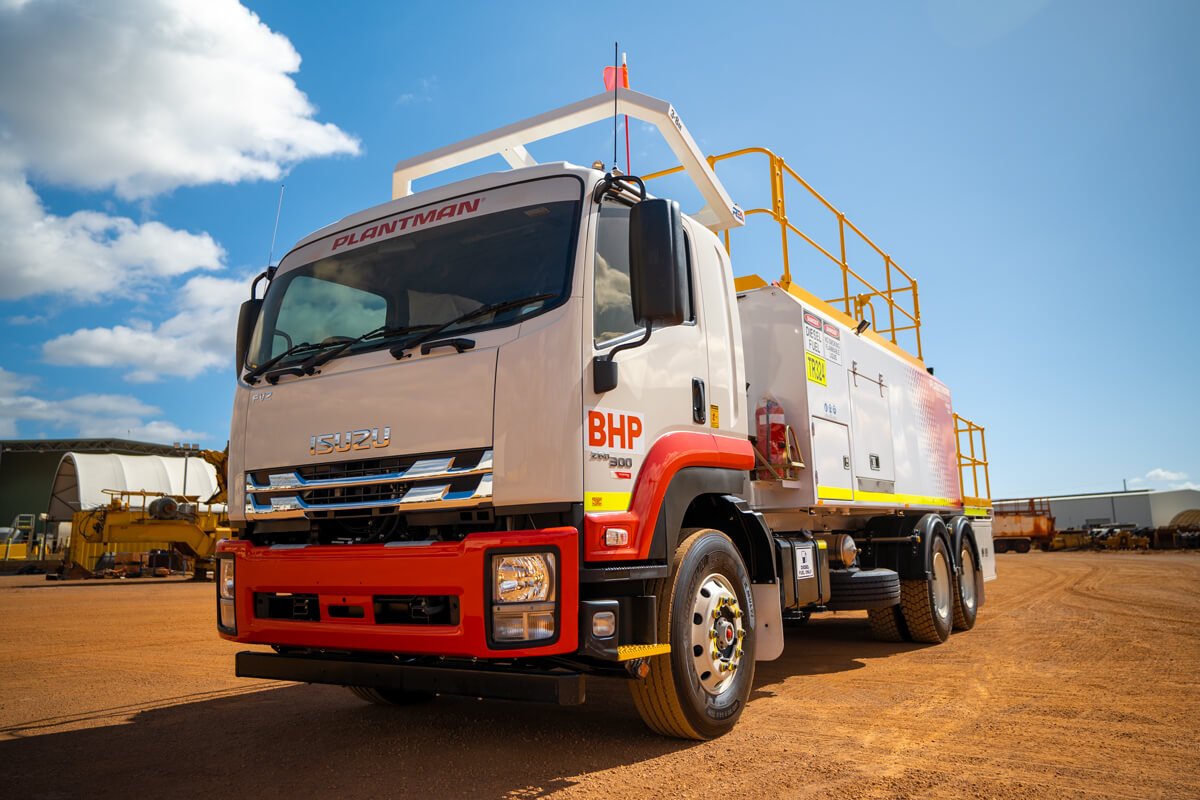

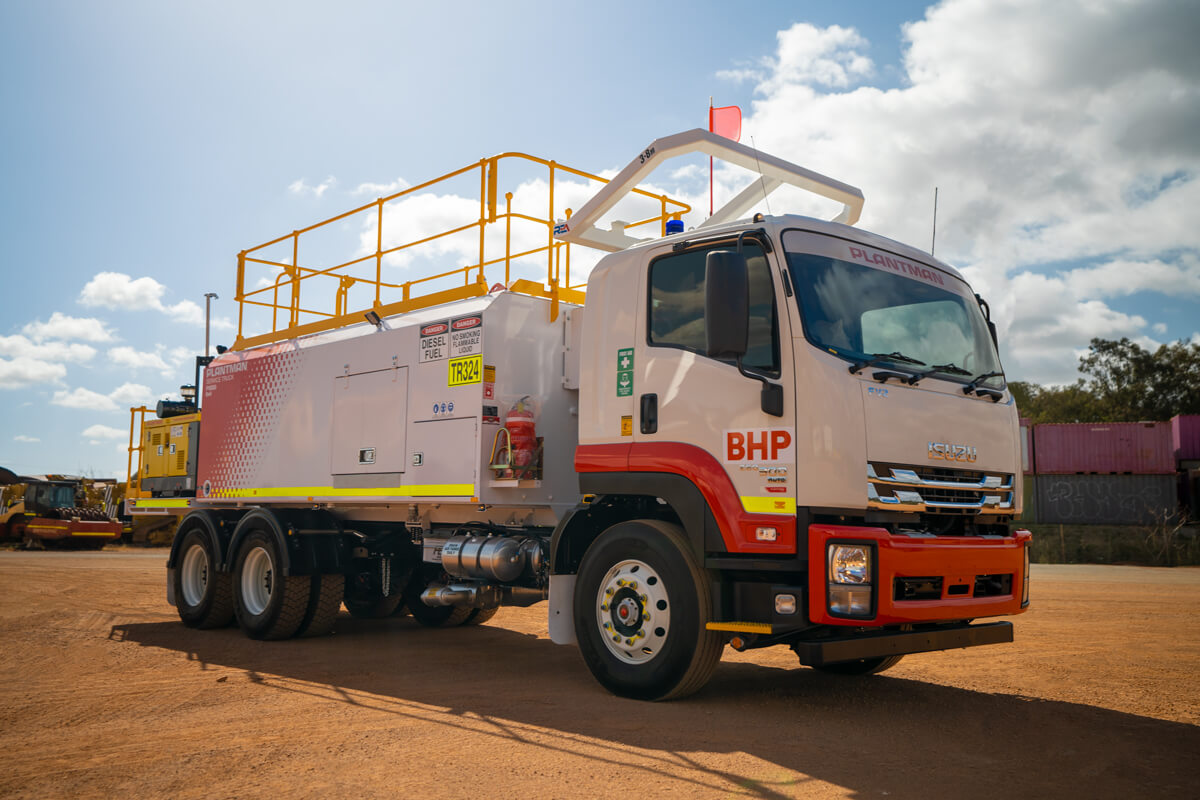

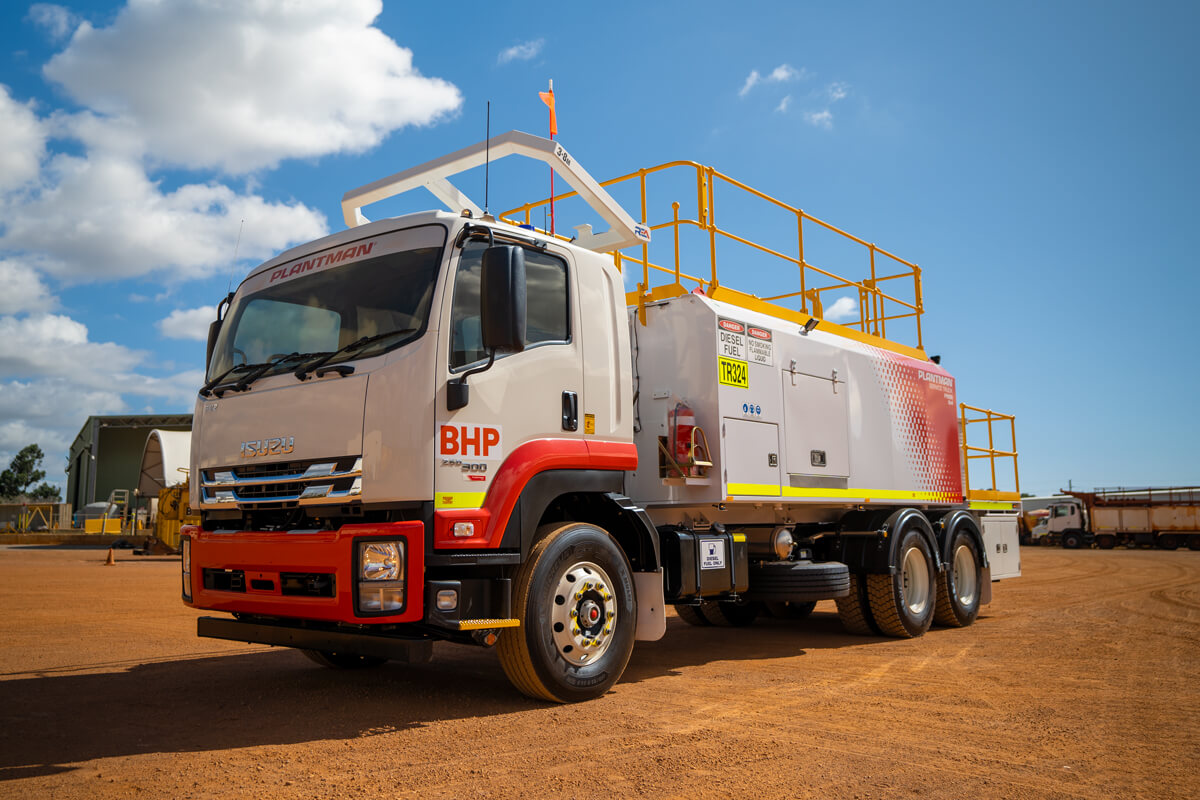

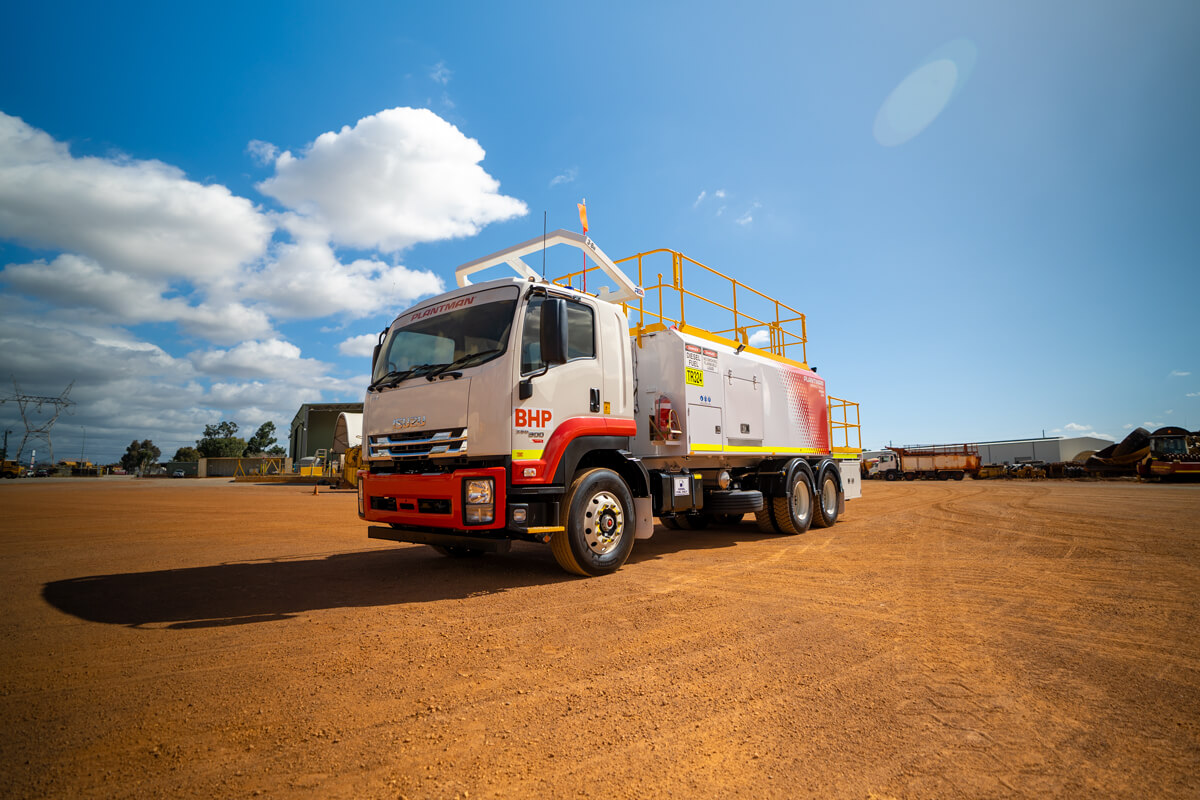

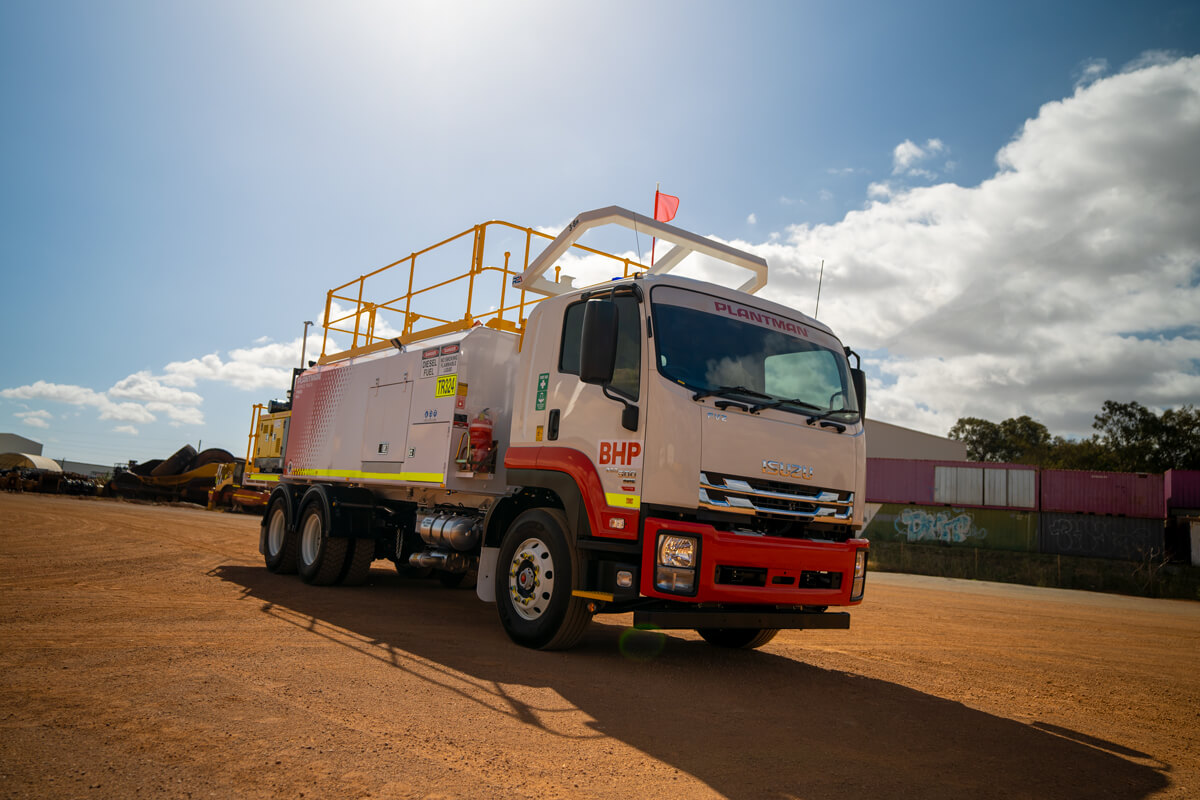

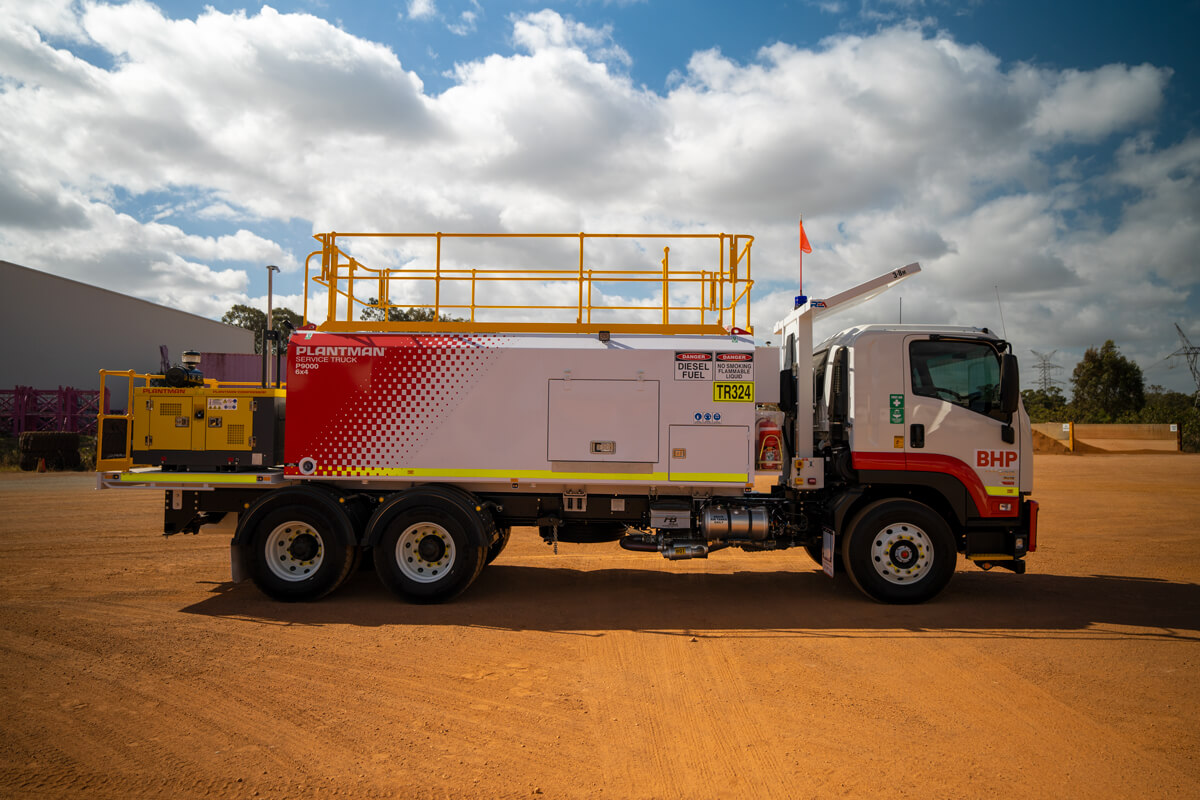

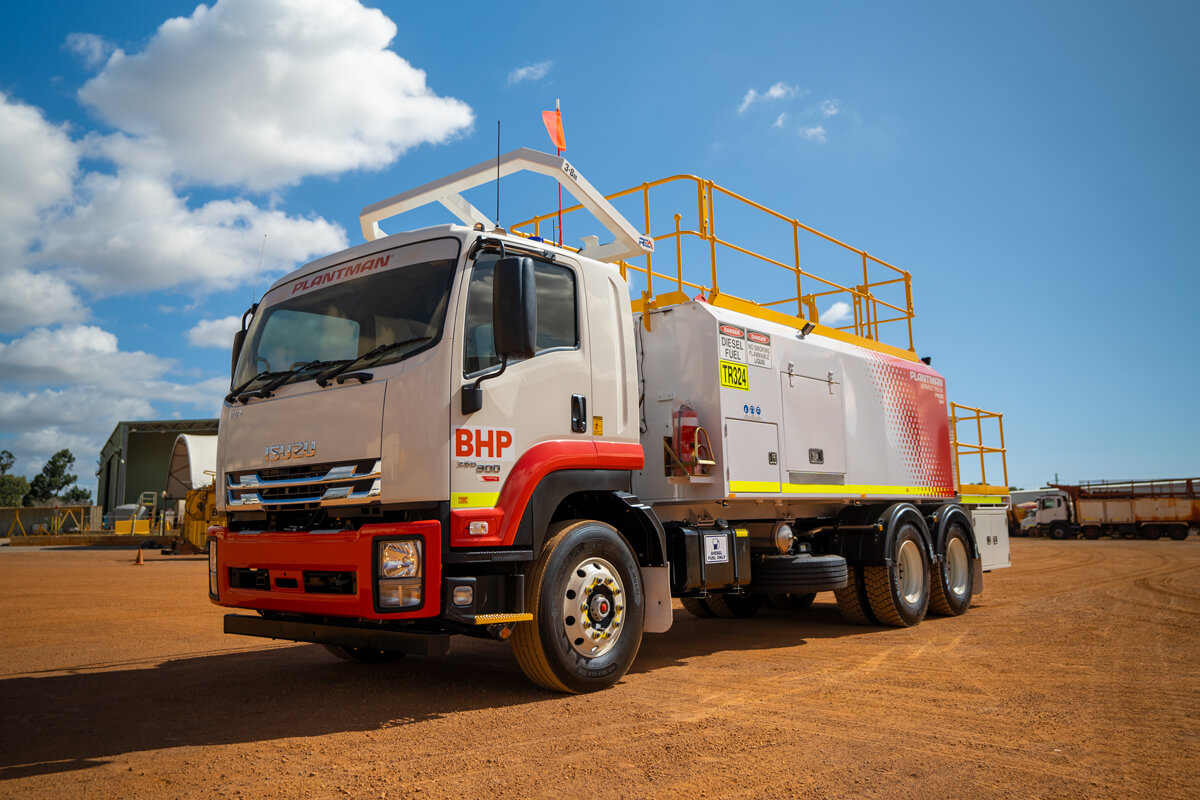

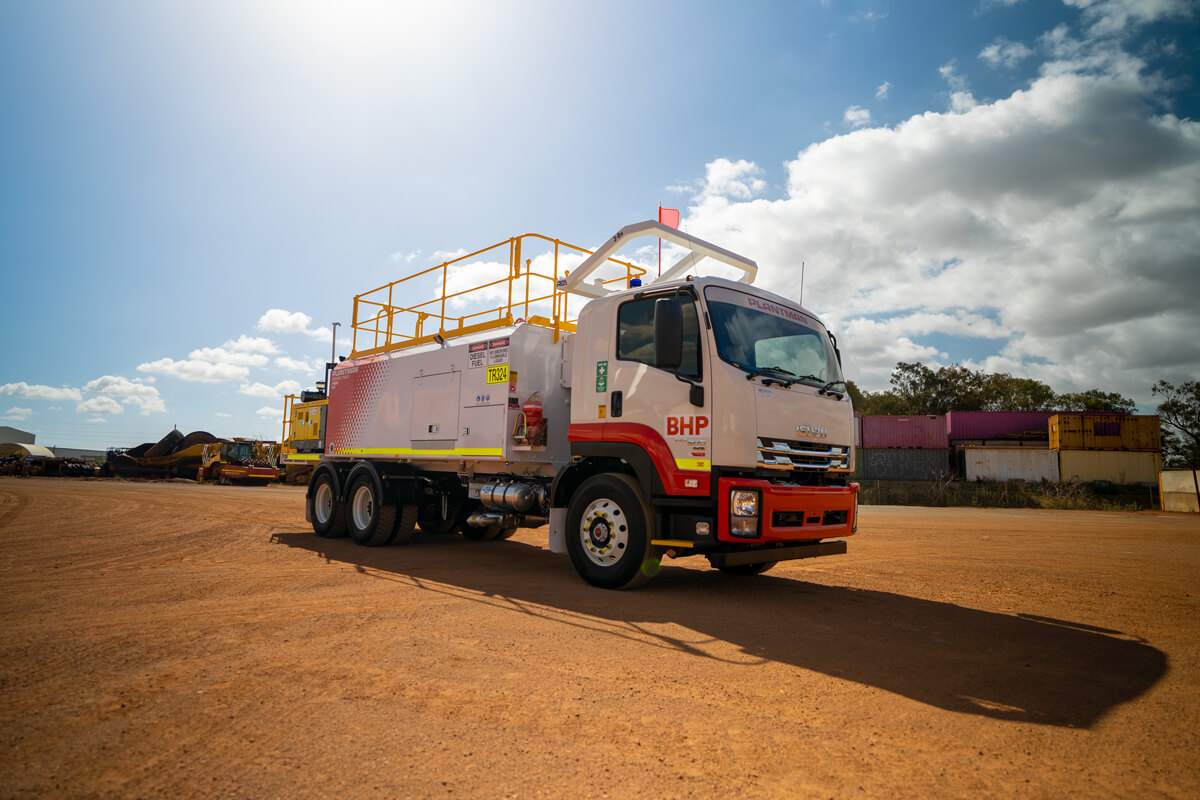

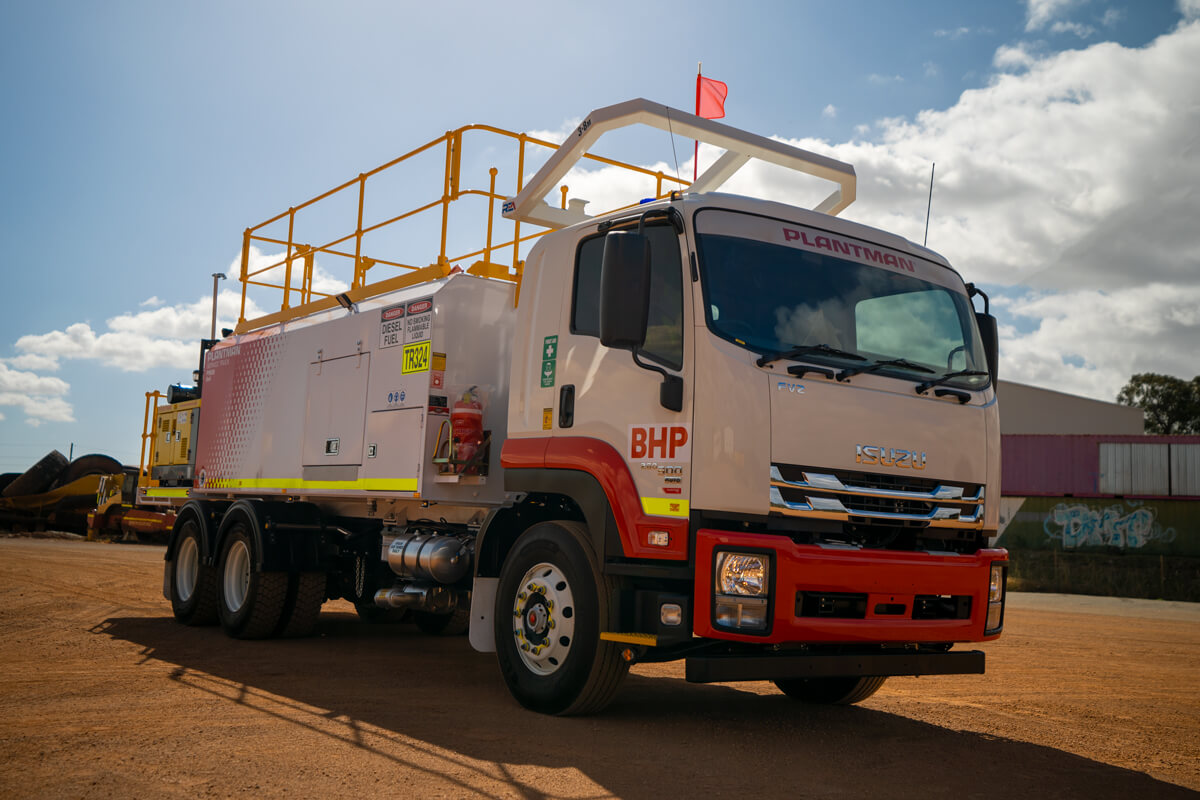

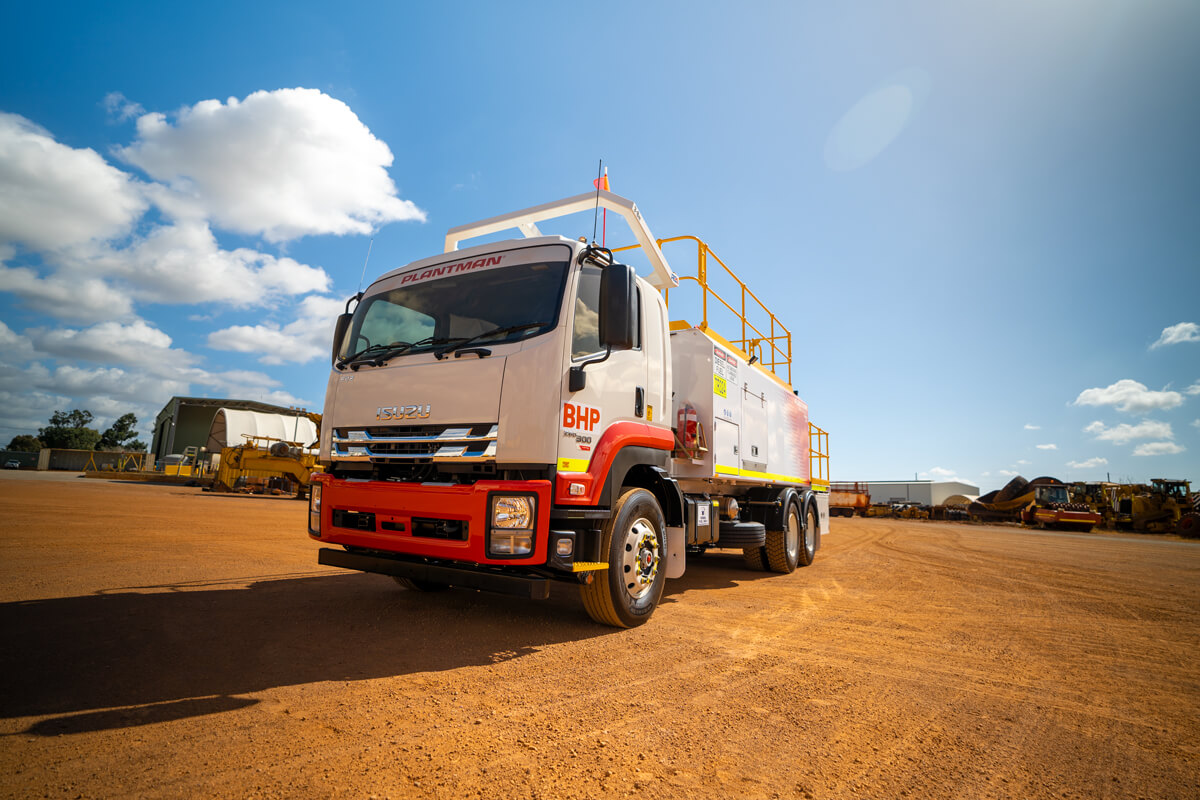

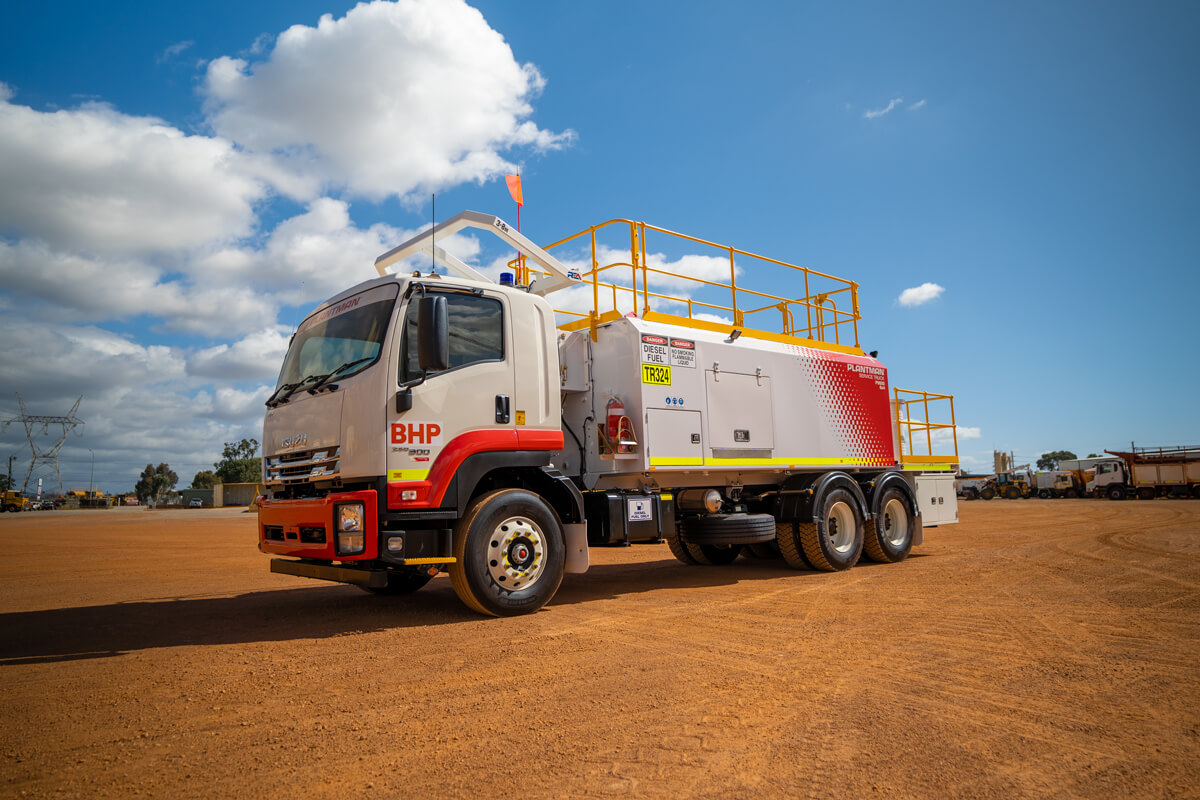

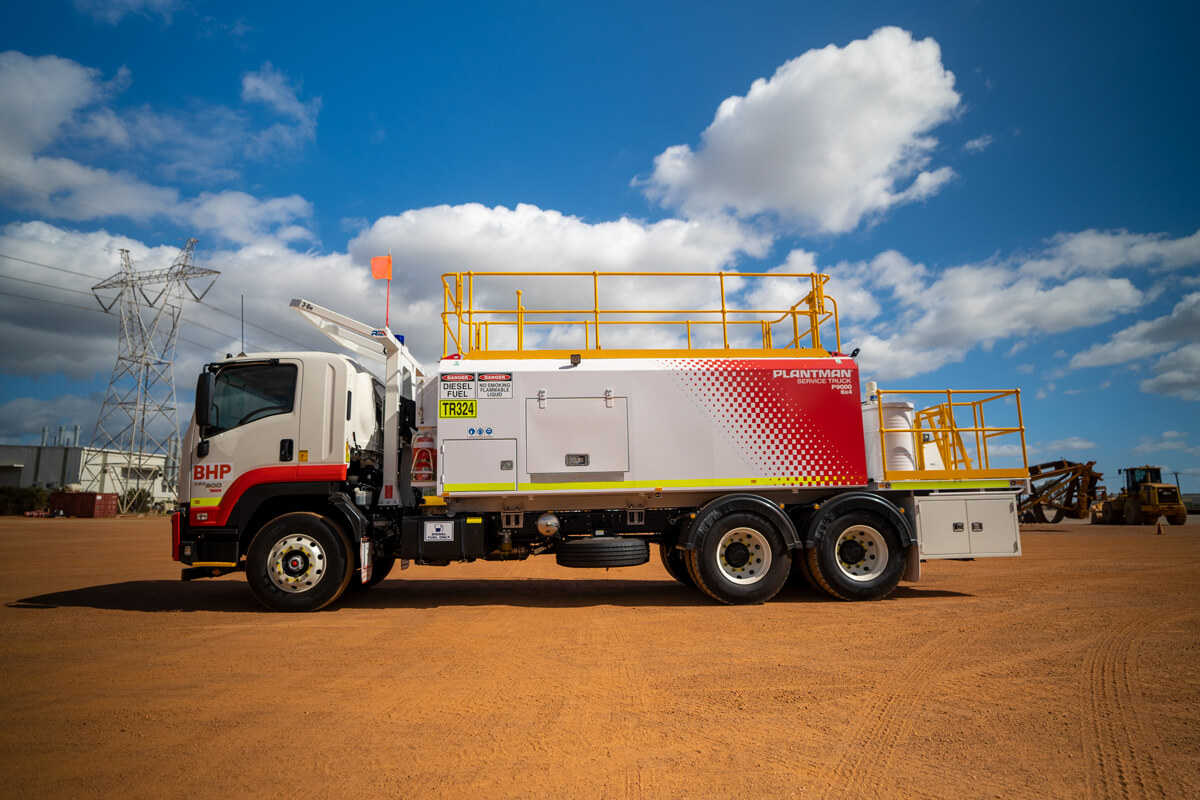

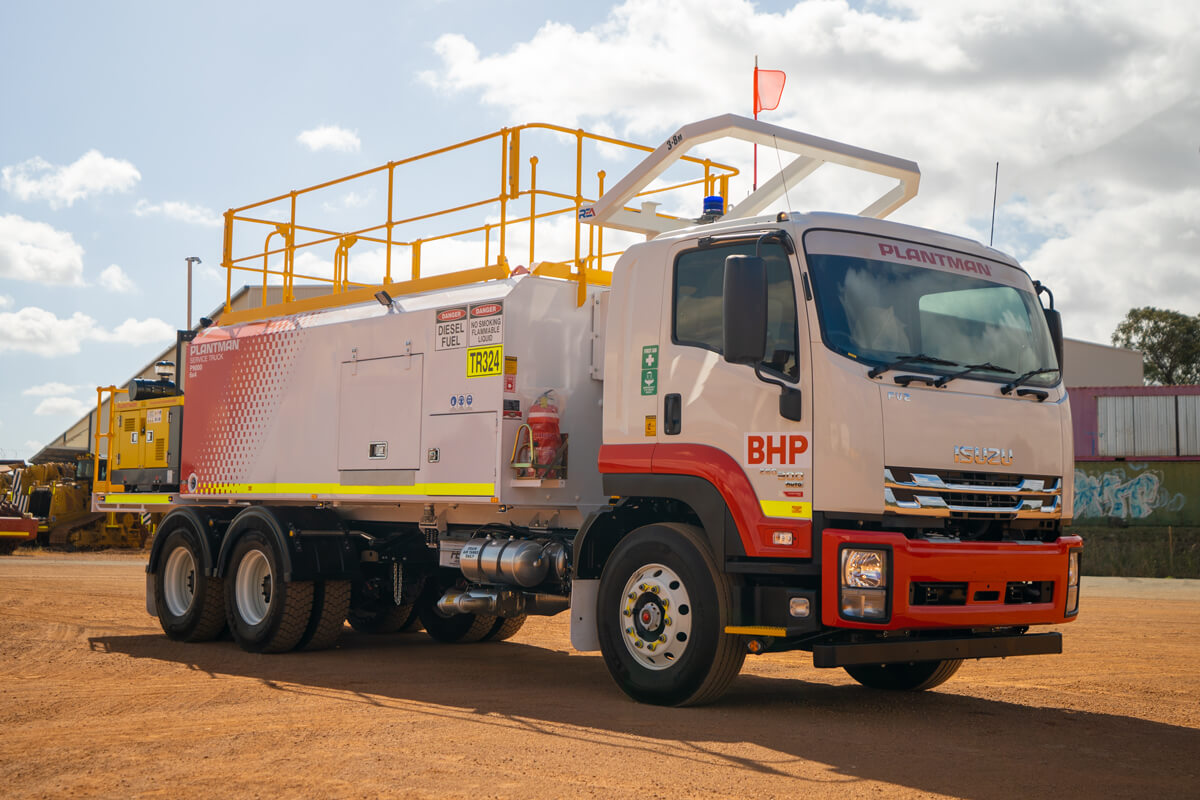

2021 ISUZU FVZ260-300 6×4 SERVICE TRUCK P9000

BHP

INDUSTRY: MINING

LOCATION: PILBARA

TYPE: SERVICE TRUCK

Download Specs
Product Summary

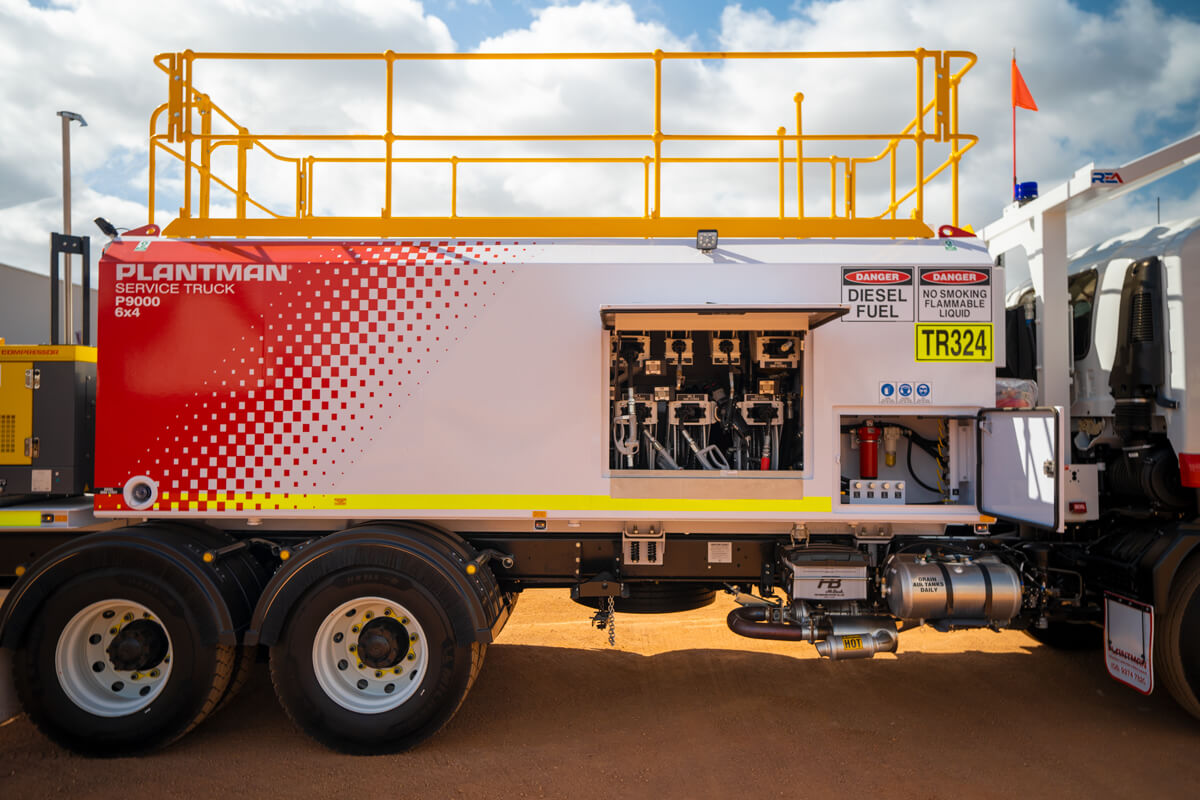

New Heavy-duty chassis-mounted steel, Plantman P9000 compartment service module:

Tank#Tank TypeTank Capacity

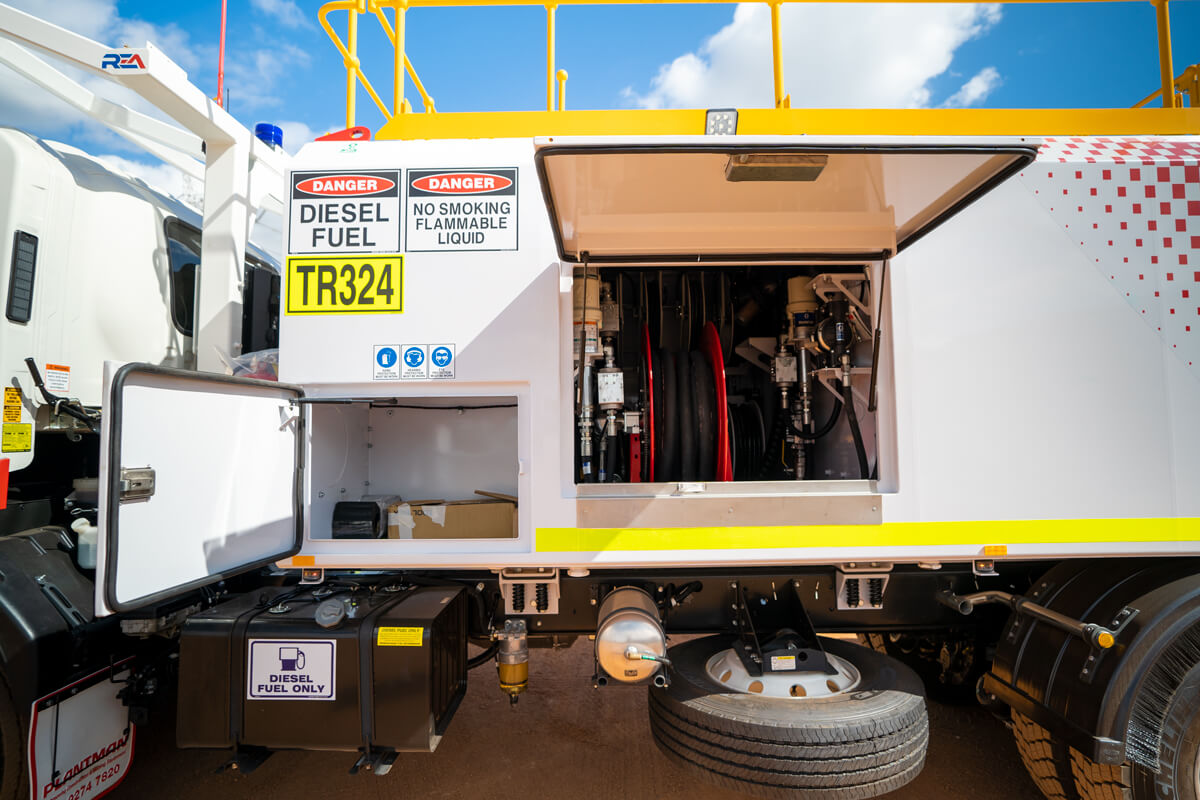

No 1Bulk Diesel – Air Rewind Reel, hose, Wiggins FF Gun with digital dispensing display9,000 litres
L/V Diesel Spring Retractable Reel with Auto Shut Off Nozzle
No 2Oil – Spring Retractable Samoa 3/4″ Reel, hose, manual handpiece900 litres
No 3Oil – Spring Retractable Samoa 3/4″ Reel, hose, manual handpiece900 litres
No 4Oil – Spring Retractable Samoa 3/4″ Reel, hose, manual handpiece900 litres
No 5Waste – Spring Retractable Samoa 3/4″ Reel, hose, manual handpiece, four-way valve to empty560 litres
No 6Coolant – Spring Retractable Samoa Reel, hose, manual handpiece with manual dispenser200 litres
  • HP Grease – Spring Retractable Reel & LV, 3/8″ hose, manual hand piece – 180 kg drum with bunded holder & frame
  • Grease system, Visual Level Gauges
  • All Air Operated Pumps with Ground Level Central Fill Station & Top Fill

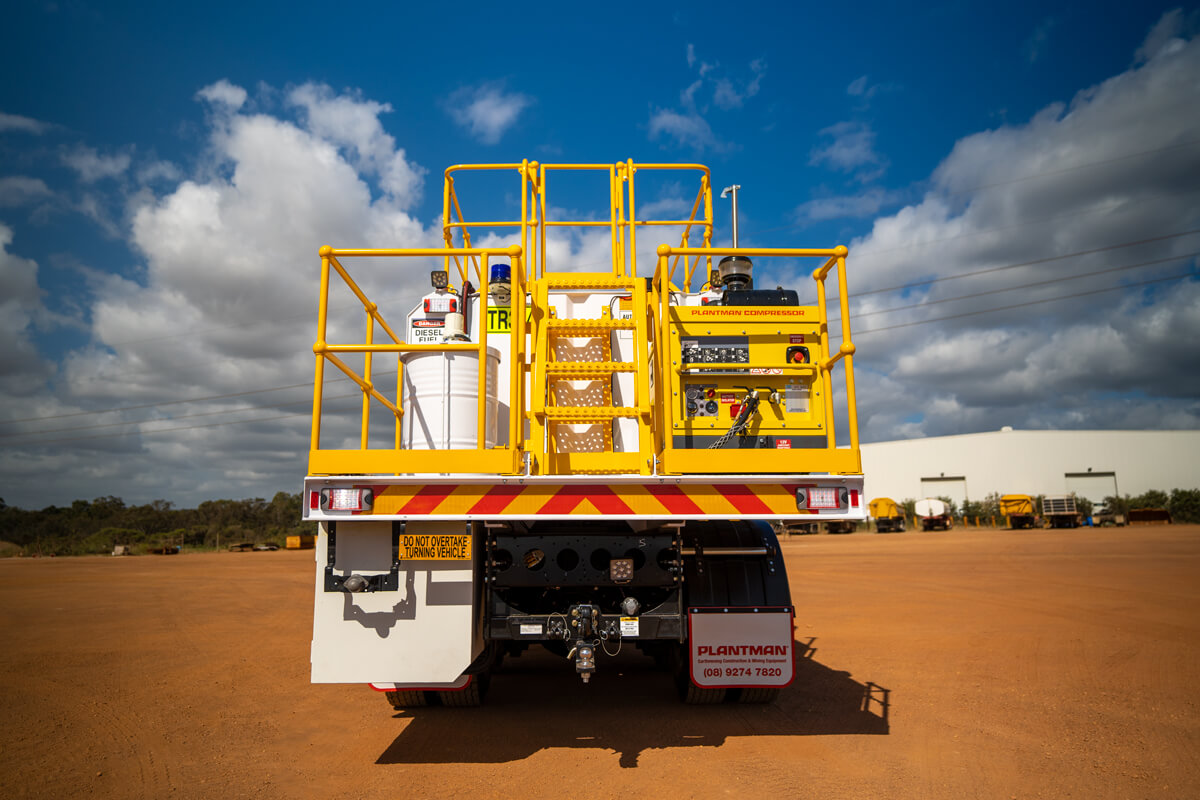

  • Rear tray with Ladder access to roof with fold down hand rails
  • DG3 Tape on sides of module and cabin
  • Blue Rotating Beacon on module and cabin

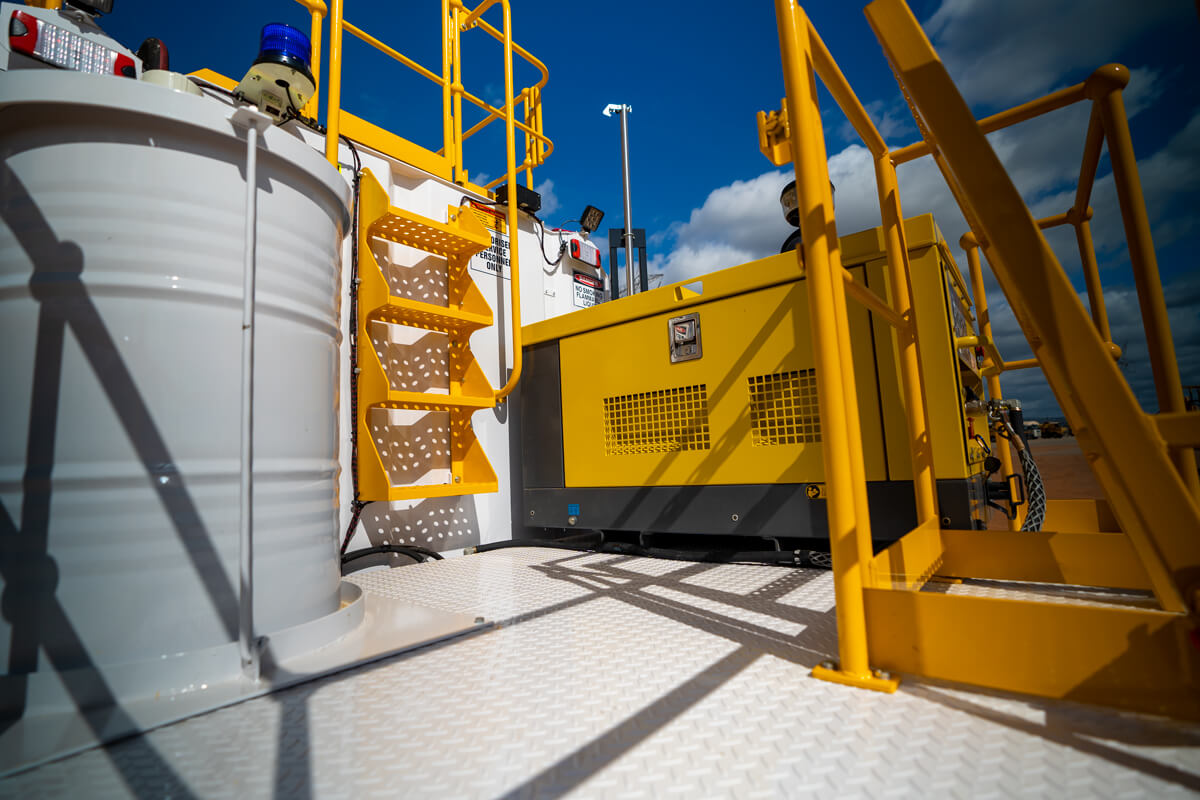

Atlas Copco Air Compressor U75 Specifications:

  • Extended exhaust stack and bracket
  • Air dryer and air lubricator
  • External air cleaner and filter
  • Safety decal kit
  • Lockable battery isolator
  • Emergency Stop

Plantman P9000 – ISUZU FVZ260-300 6×4 Service Truck P9000 Specifications:

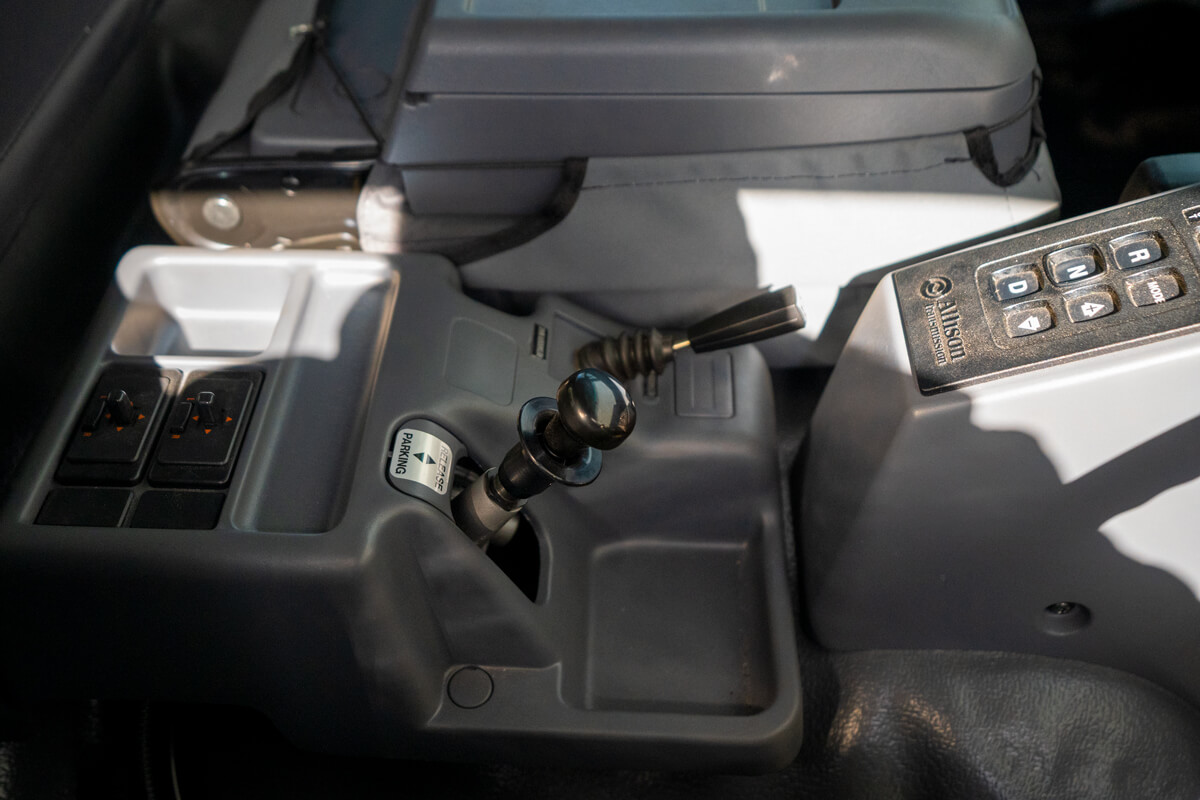

  • Automatic Transmission
  • Spring Suspension
  • A/C Cabin
  • Canvas Seat covers
  • Certified ROPS
  • Jack / Wheel Nut Indicators / Safety Triangle / Wheel Chocks
  • Tropical tinted rear and side windows
  • Reverse Alarm
  • Headlights on with Ignition
  • Lockable Battery & Starter Isolators
  • Anderson Jump Start Receptacle
  • High Mount Flag

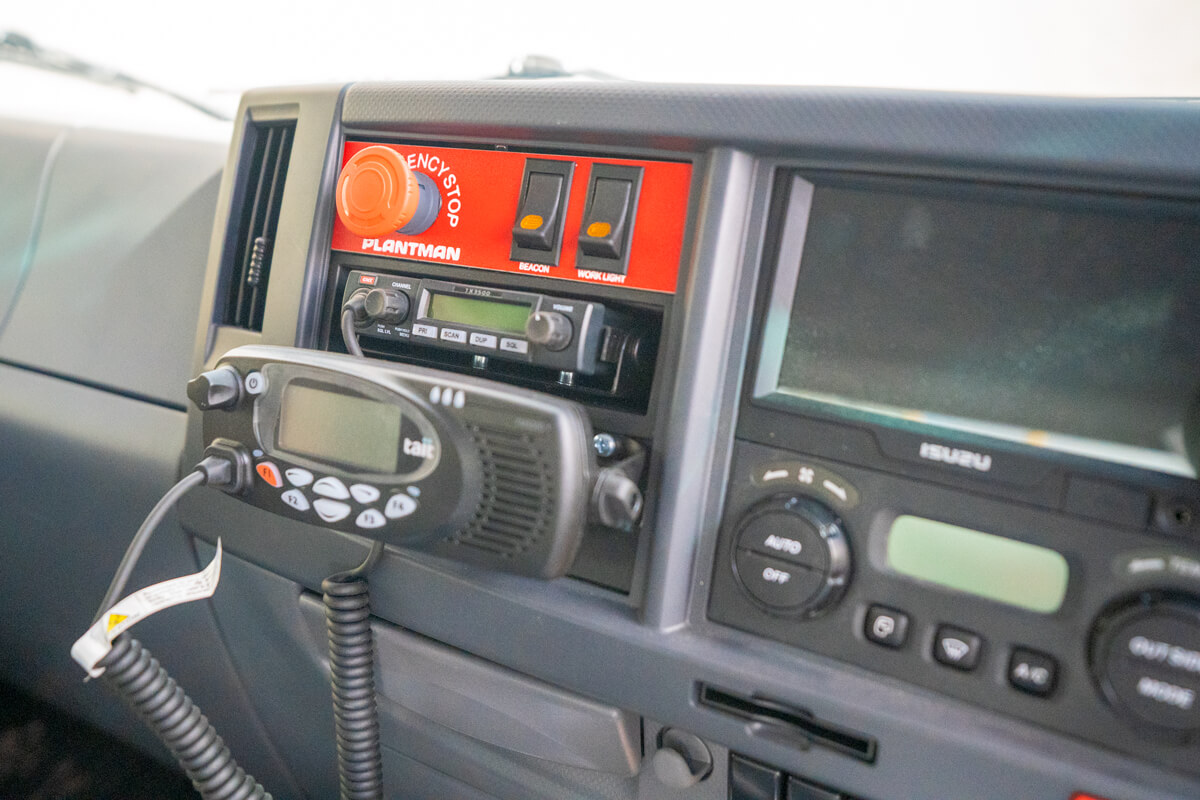

  • 1 x E-Stop in truck cabin, 1 x E-Stop at ground level on module
  • 5 x LED Night Lights on module, internal strip lights
  • Rear Facing High Lights
  • Reverse Alarm
  • 2 x 9kg Fire Extinguishers
  • Safety & Operating Decals
  • Roadworthy Passed ready for licensing in Western Australia
Read More
Product Specifications
Axles 6x4
Capacity 9000L
Make ISUZU
Type Service Truck
